The Renogy 500A Battery Monitor is a shunt-based monitor for off-grid battery systems, giving high-precision voltage and current readings so you always know the true state of your battery bank. It covers a wide range of battery voltages and chemistries, from 10V to 120V and up to 500A.

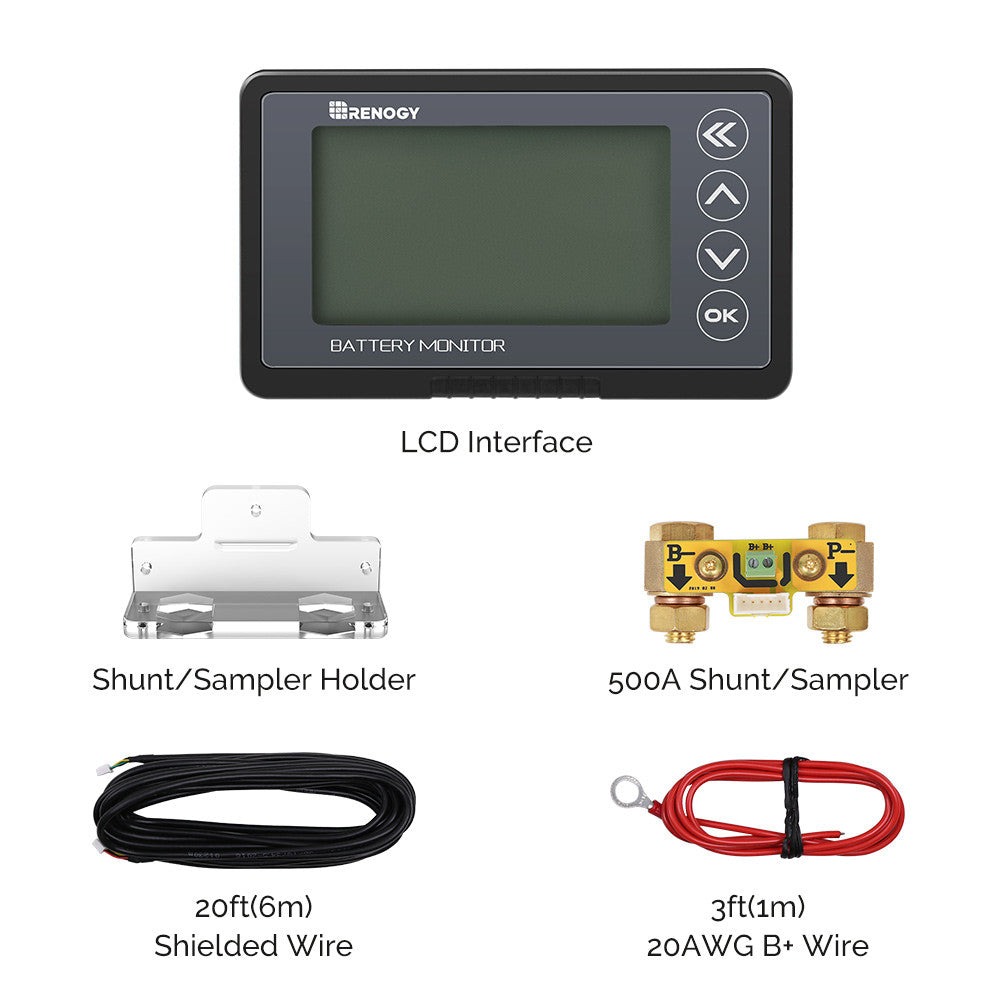

The kit includes a backlit LCD display, the 500A shunt and shunt holder, a shielded wire for remote mounting, and a B+ wire, so the display can be positioned away from the shunt itself.
Key Features
Shunt-based design for accurate real-time voltage and current readings

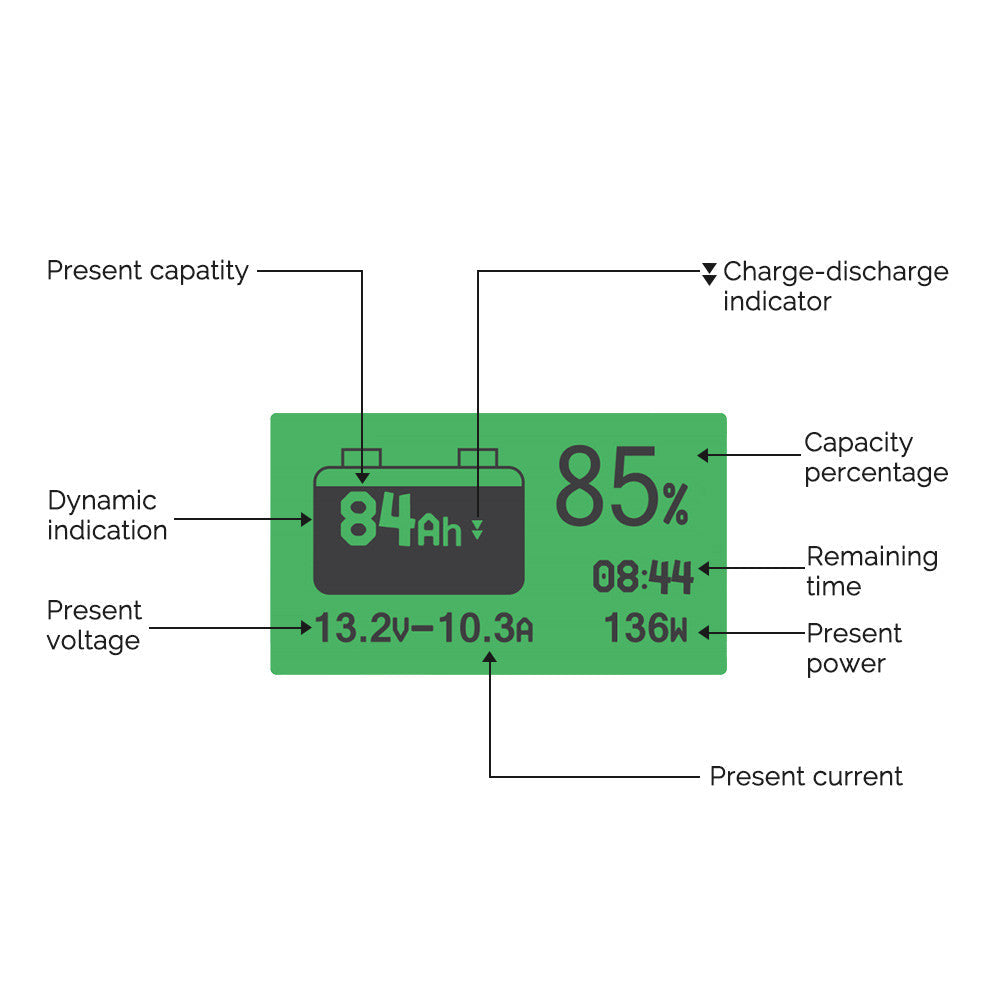

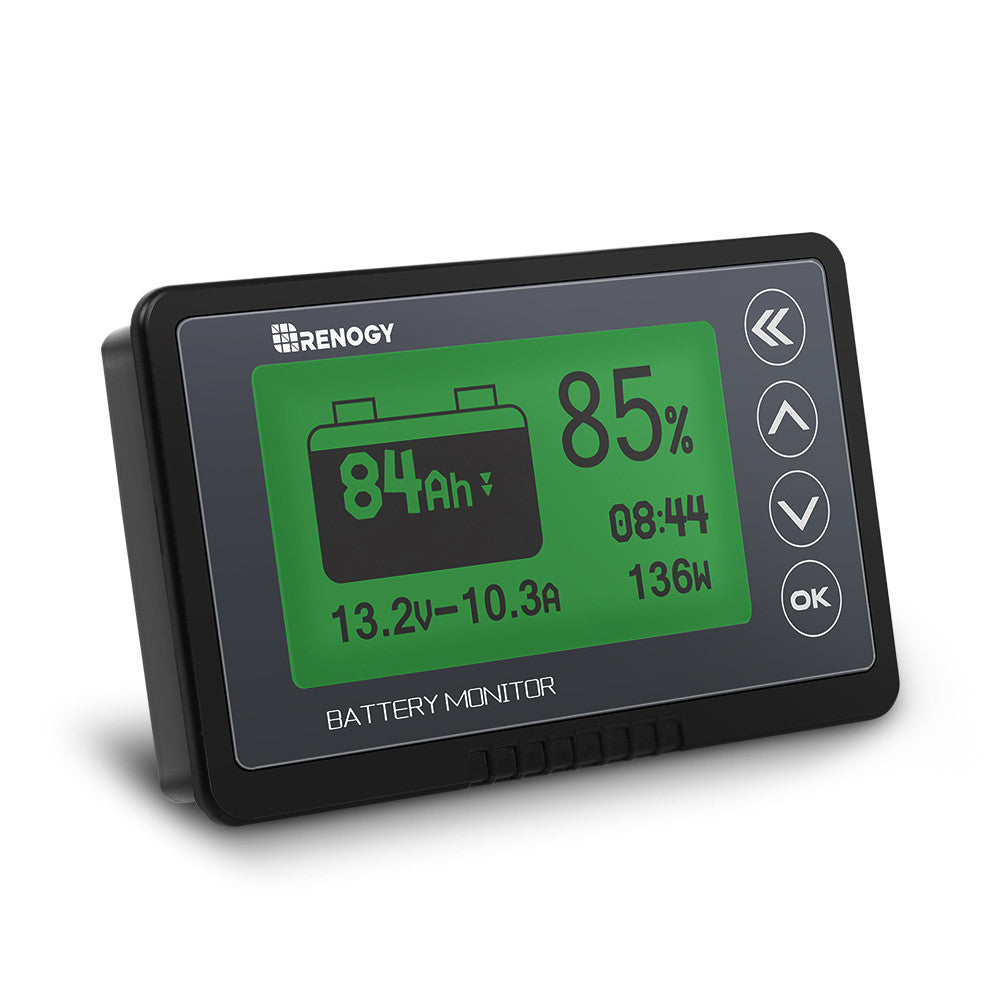

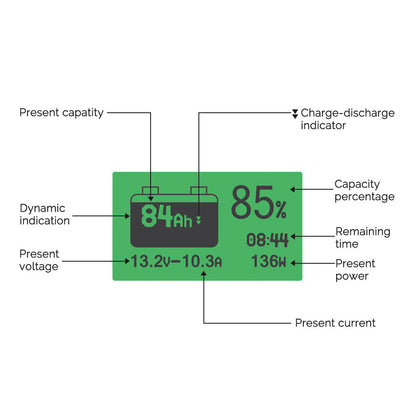

Displays voltage, current, power, capacity and battery degradation
High and low capacity alarms with a flashing backlight and voltage warning

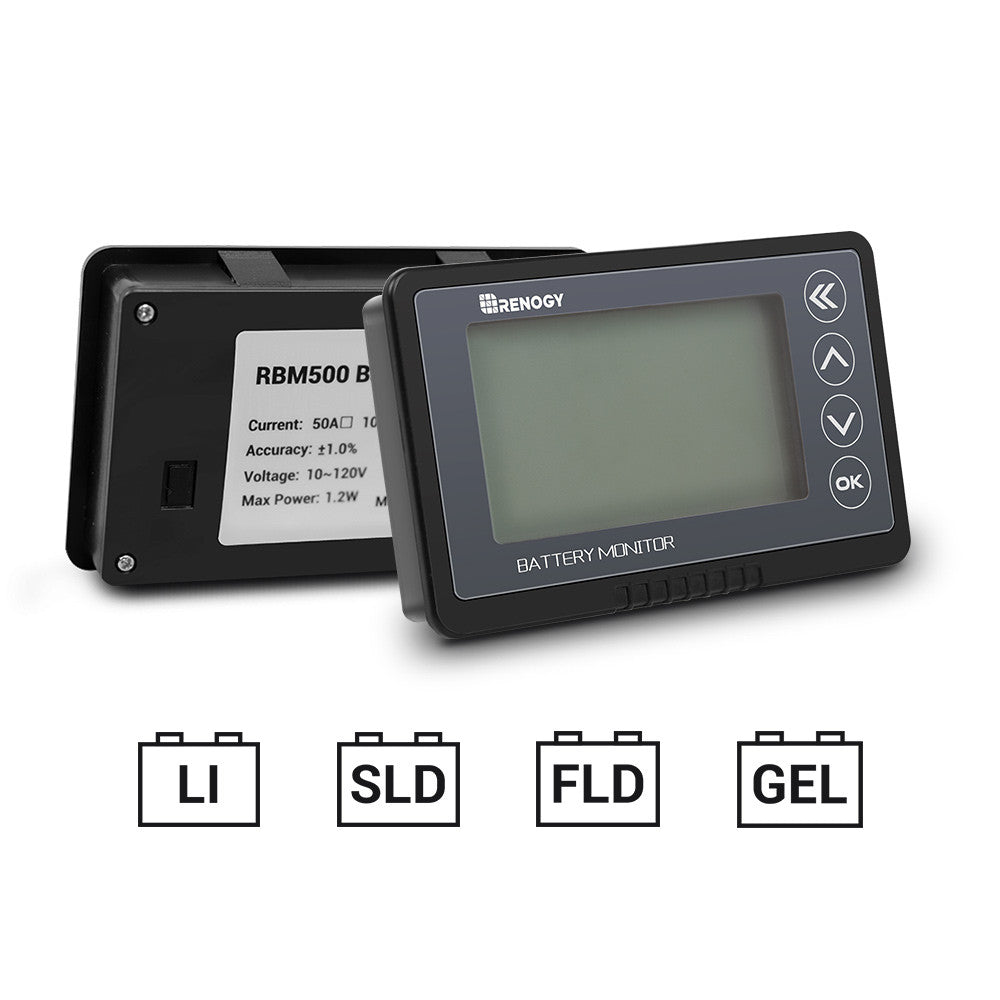

Compatible with Lead Acid (AGM, GEL) and lithium battery banks

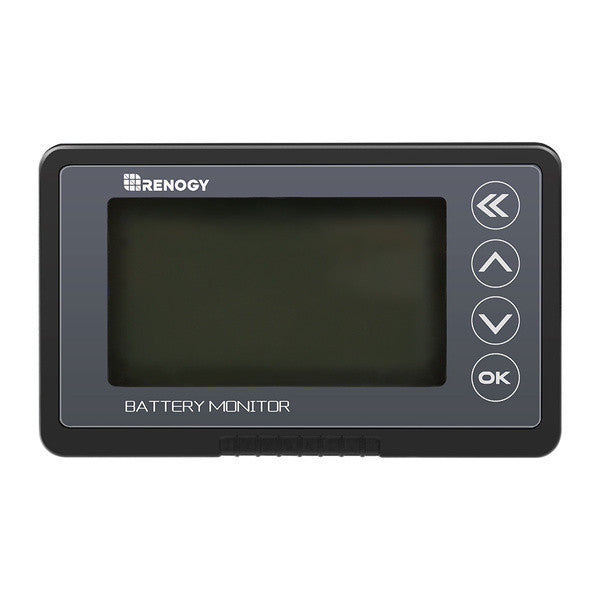

Backlit LCD with adjustable brightness; the backlight switches off automatically at low current to save power
Transparent shunt holder and long shielded wire for remote monitoring
Specifications
Shunt Rating
500A
Working Voltage
10-120V
Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion
