Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series

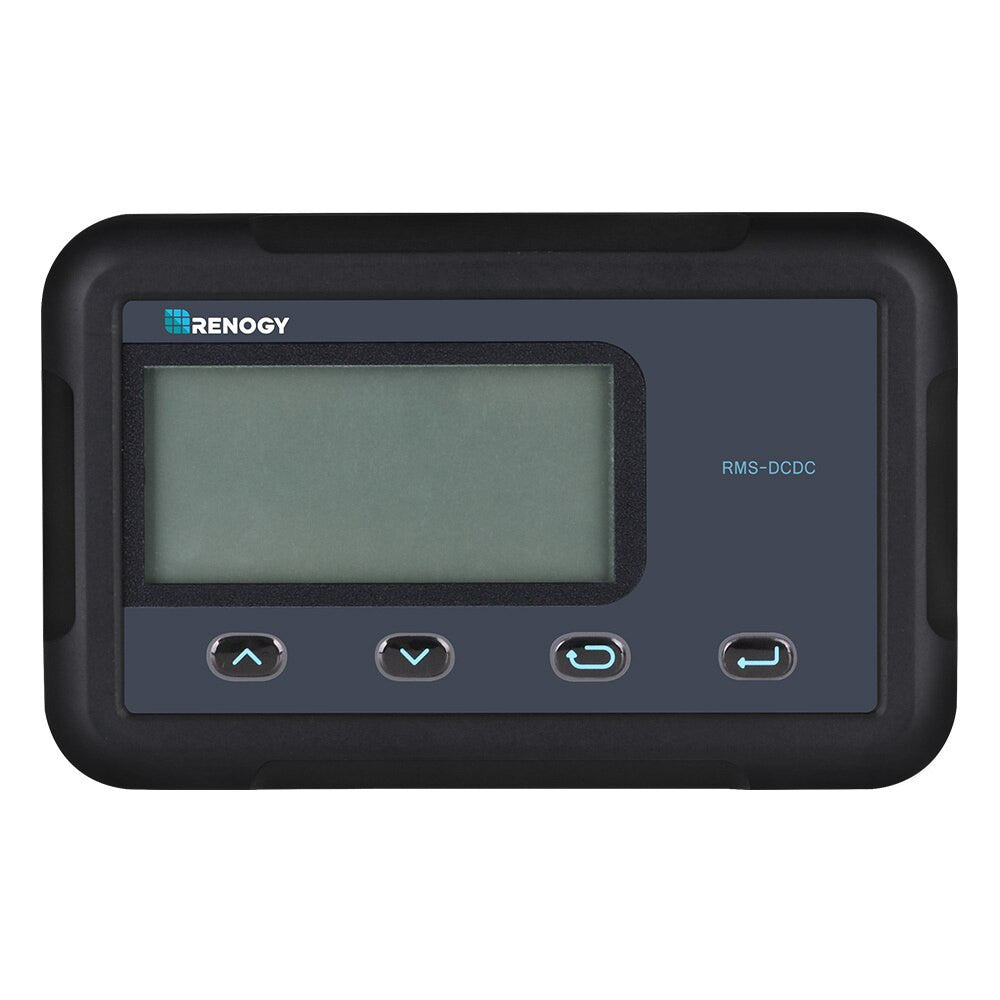

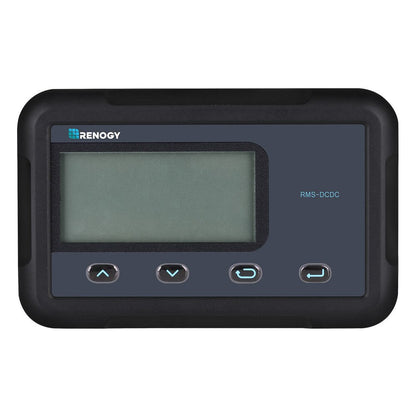

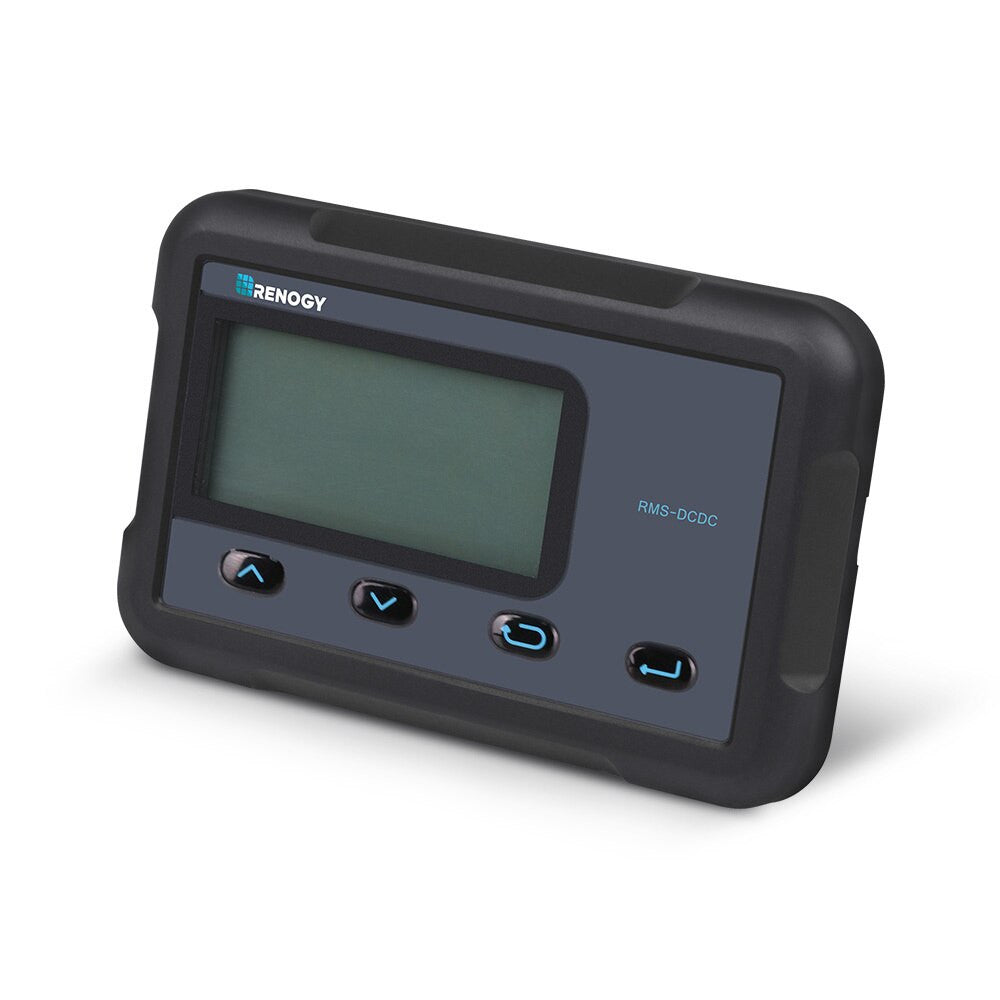

The RMS-DCDC is a remote monitoring screen designed for Renogy's DC-DC MPPT series onboard battery chargers. It mounts separately from the charger for a clean, flush-mounted look and gives full visibility of your dual battery charging system from a backlit LCD.

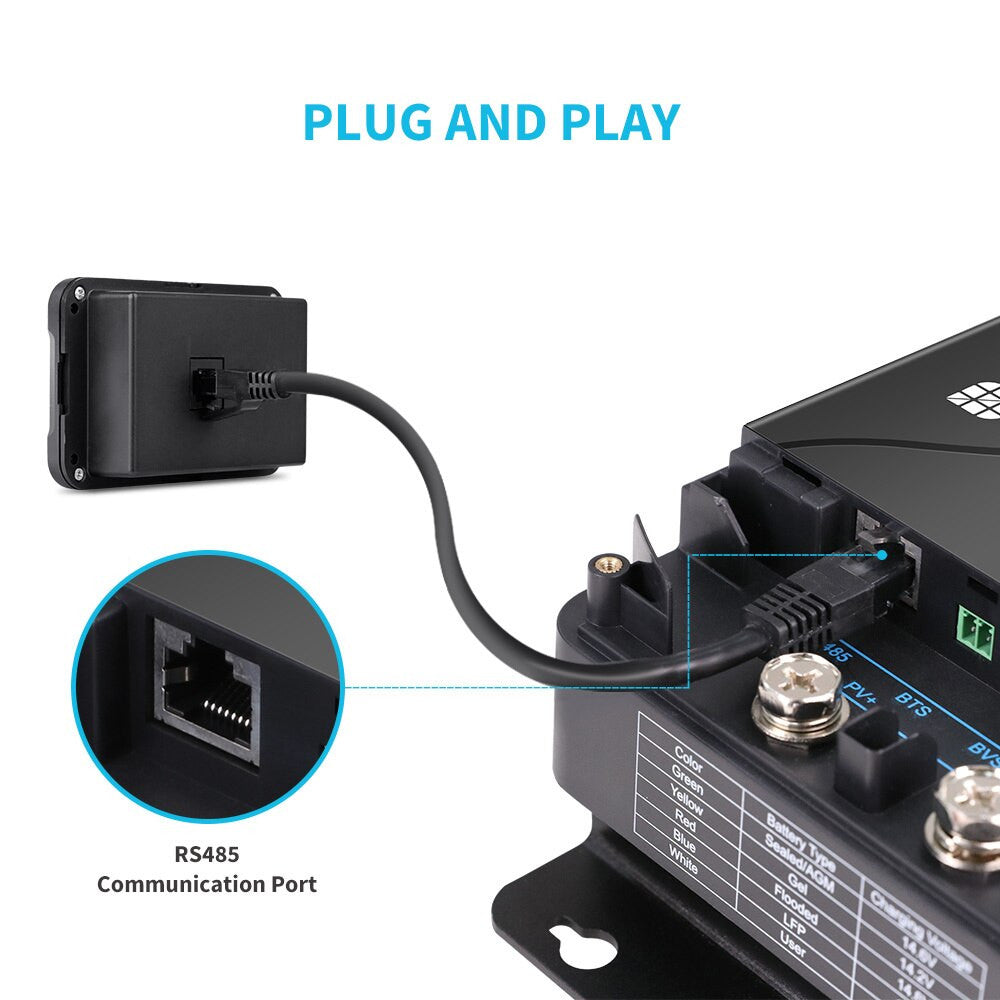

A single RJ45 cable connects the screen directly to the charger, so no separate wiring or configuration is needed to start monitoring.
Key Features
Monitors both the house and auxiliary battery charging status
Displays voltage, current, temperature and kilowatt readings

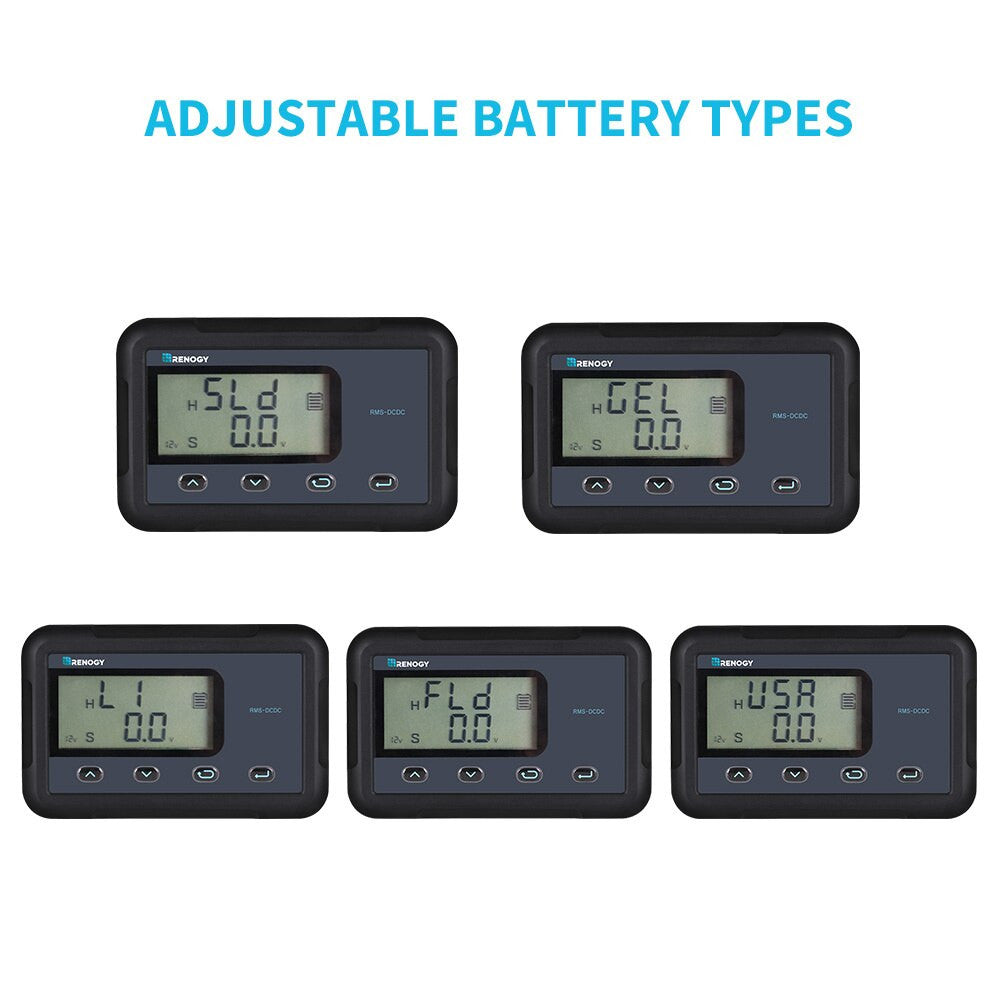

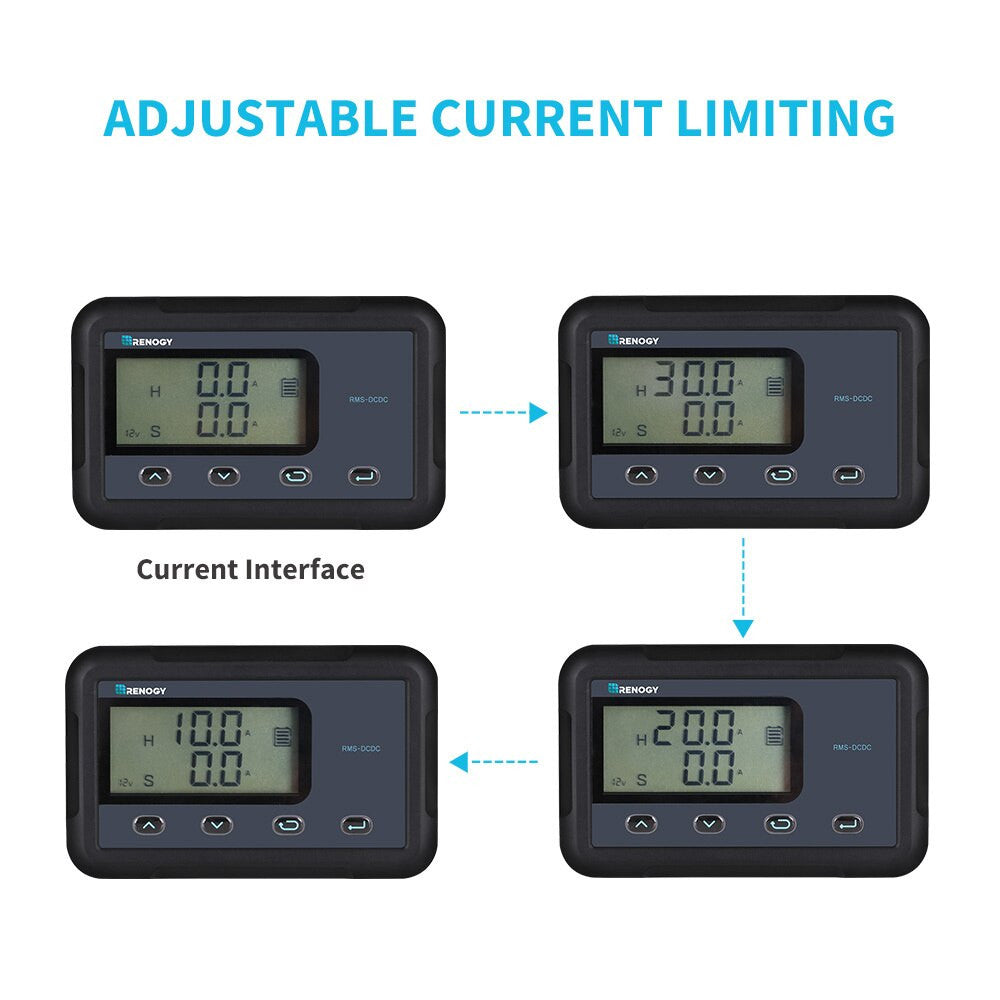

Adjustable charging parameters, current limits and battery type from the screen
Plug and play RJ45 connection, no separate configuration needed

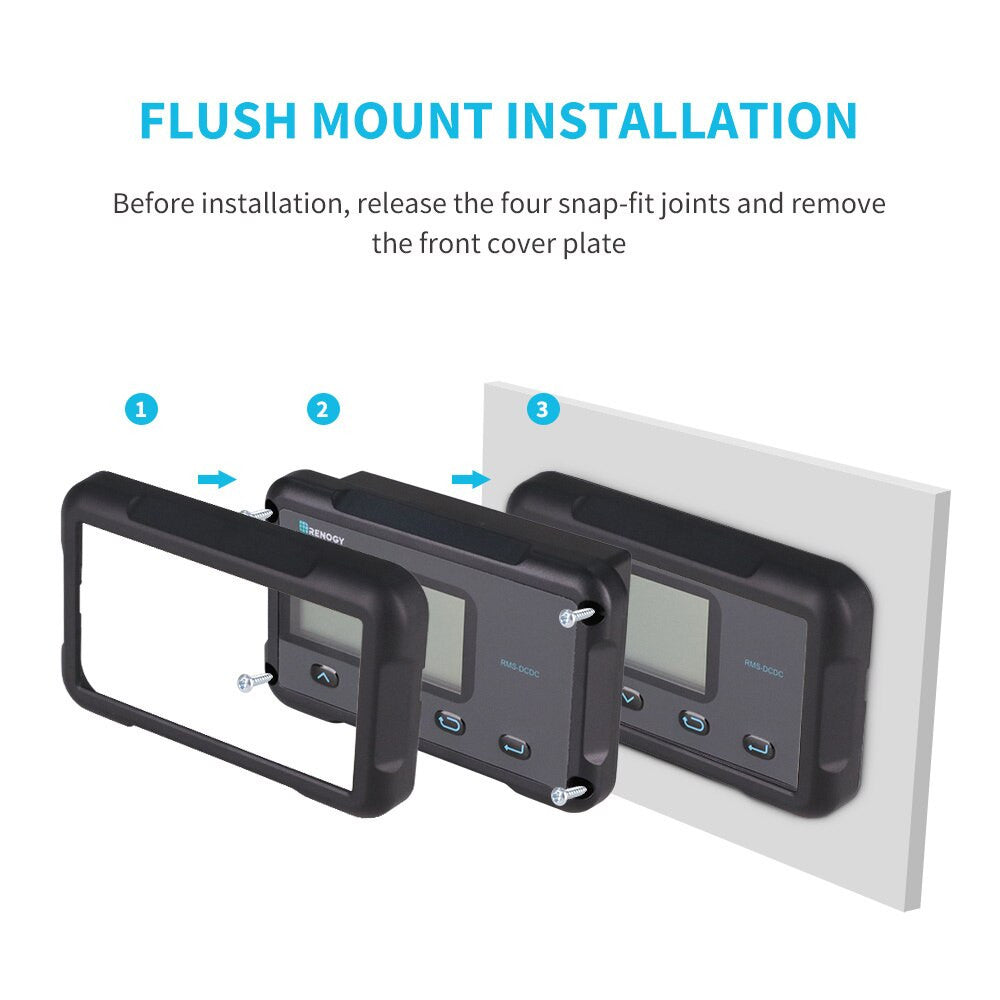

Flush-mount design with a backlit LCD and 4-button interface

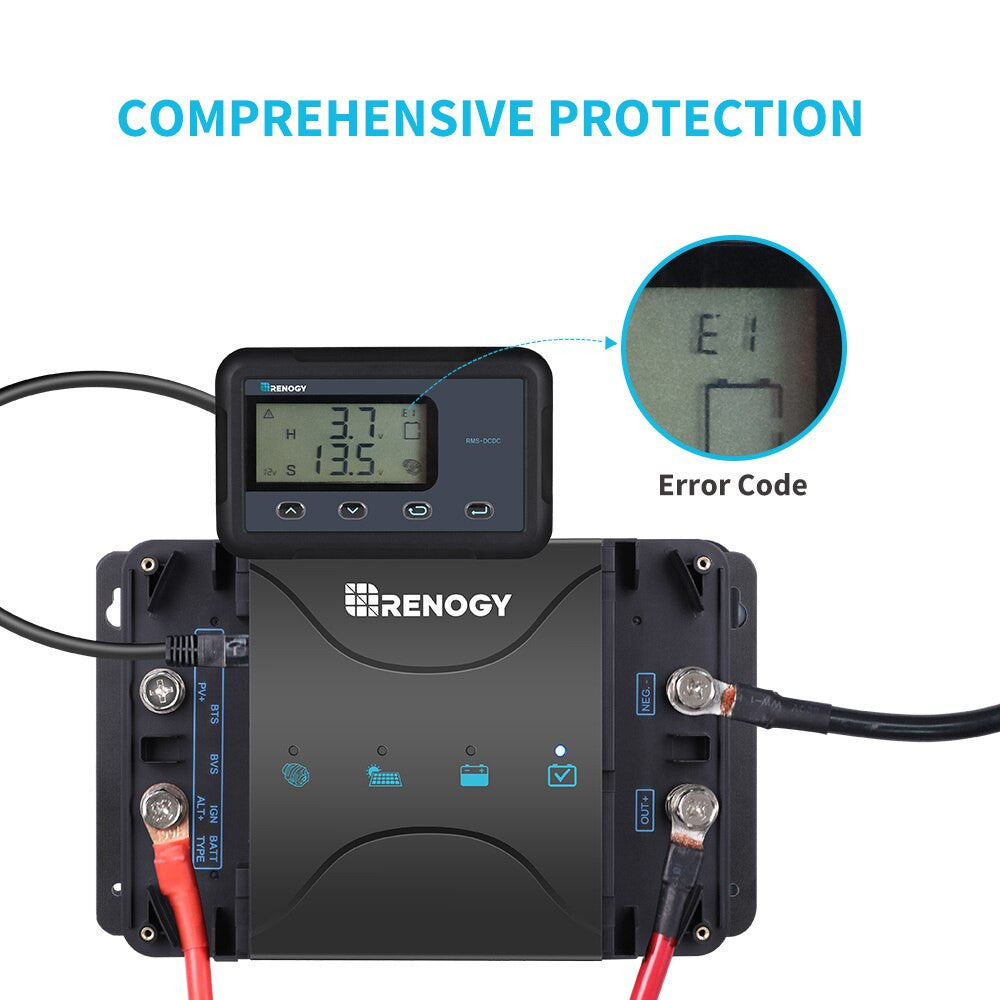

Shows error codes for troubleshooting
Specifications
Compatible Chargers
RBC50D1S, RBC30D1S
Communication Port
RJ45 (RS485 Protocol)
Supply Voltage
5VDC
Display
Backlit LCD
Wire Length
16.4 ft / 5 m
Operating Temperature Range
-20°C to 45°C
In the Box
Monitoring Screen for DC-DC MPPT Battery Charger Series x 1
