Renogy - 12V - 100AH - Core Mini Lithium Iron Phosphate Battery

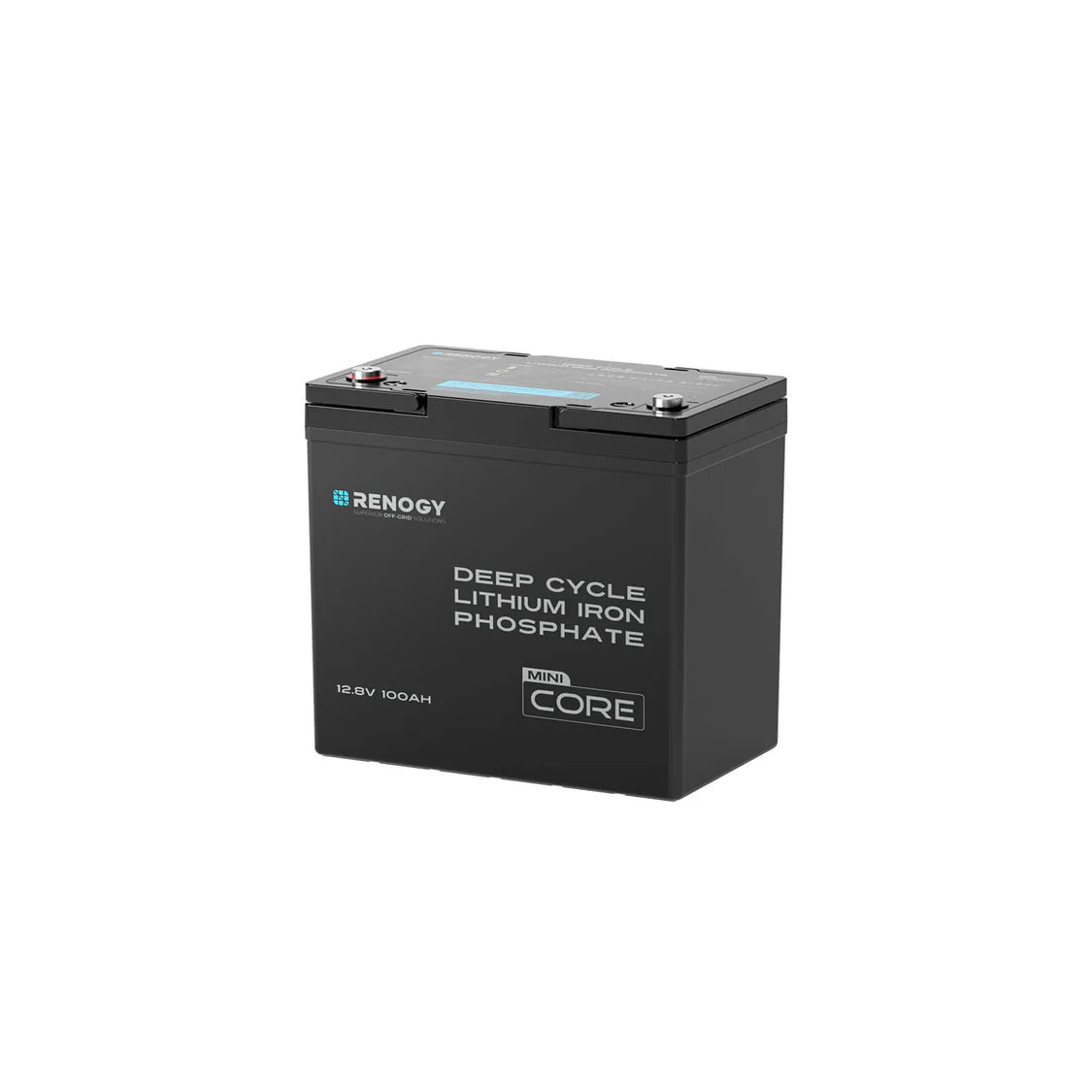

Renogy Core Mini 12V 100Ah Lithium Iron Phosphate Battery

The Core Mini 100Ah is a 12.8V deep-cycle LiFePO4 battery built to the standard BCI G22NF group size, so it drops in place of a lead-acid battery of the same footprint while weighing about half as much and delivering twice the usable energy at 100% depth of discharge. It uses automotive-grade cells and a built-in Battery Management System (BMS).

It suits tight installs in trailers, kayaks, caravans and boats, and can be expanded up to 16 batteries in a 4-series/4-parallel system. Add an optional Renogy Battery Shunt for phone-based remote monitoring.

Key Features

• 100Ah / 12.8V LiFePO4 battery, drop-in replacement for BCI group size G22NF lead-acid batteries
• Automotive-grade battery cells
• Built-in BMS with low-temperature charge cut-off and cell balancing
• IP65-rated, rugged case for RV, marine and off-grid use
• Series and parallel connection, up to 4S4P (48V, 400Ah, 20.48kWh max)
• Compatible with the optional Renogy Battery Shunt for smartphone monitoring

Specifications

In the Box

• Core Mini 12.8V 100Ah Lithium Iron Phosphate Battery x 1
• User Manual x 1
• Long Terminal Bolt (M8 x 1.25 x 15 mm) x 2
