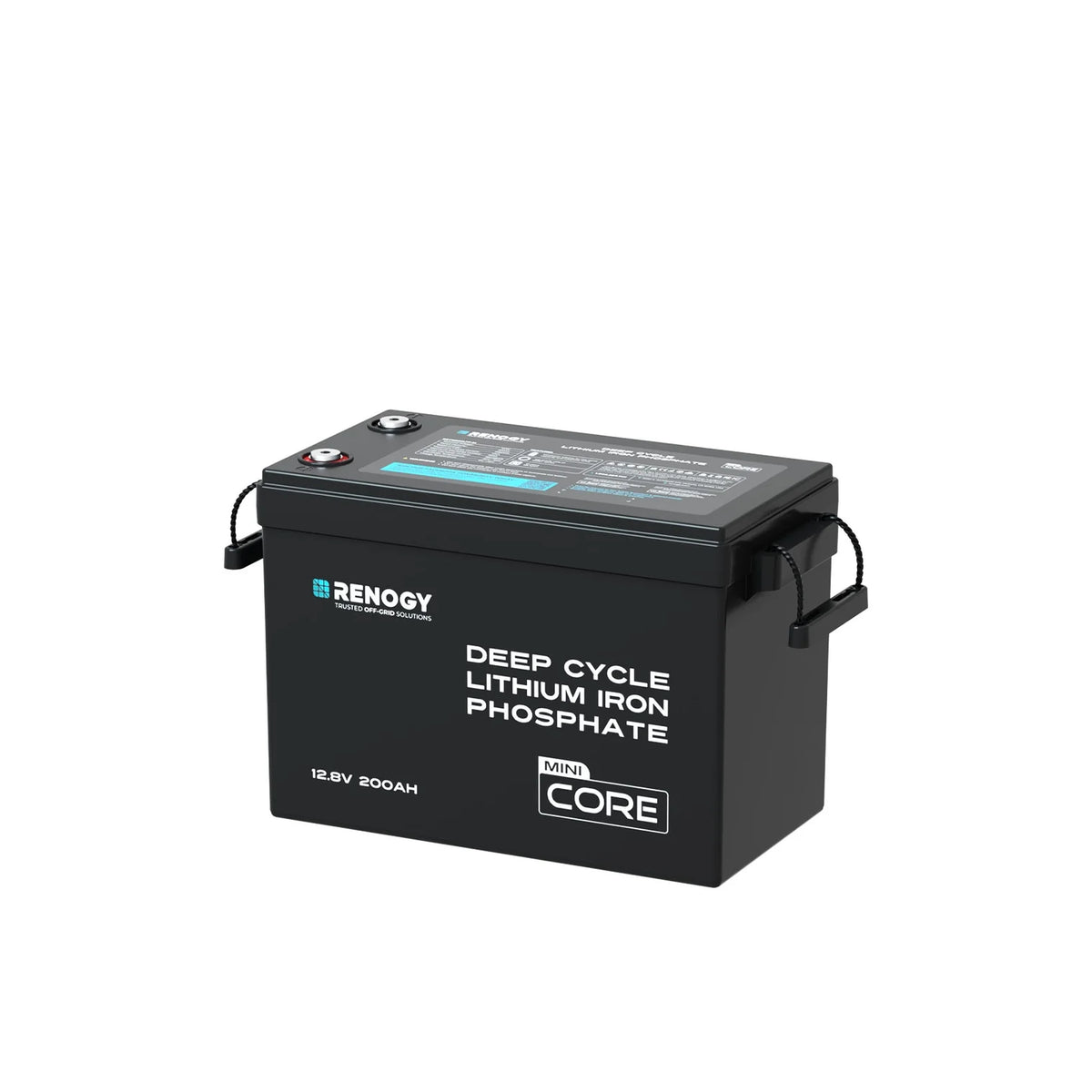

Renogy - 12V - 200AH - Core Mini Lithium Iron Phosphate Battery

Renogy Core Mini 12V 200Ah Lithium Iron Phosphate Battery

The Core Mini 200Ah is a 12.8V deep-cycle LiFePO4 battery in a compact case, designed as a drop-in replacement for lead-acid batteries of a standard BCI group size. It uses prismatic cells and a Battery Management System (BMS) with low-temperature charge cut-off and cell balancing.

It suits trailers, caravans, kayaks and boats where space and weight are at a premium, and can be wired in series and parallel for larger systems. Add an optional Renogy Battery Shunt for phone-based monitoring.

Key Features

• 200Ah / 12.8V LiFePO4 battery in a compact case, about half the weight of an equivalent lead-acid battery
• Prismatic lithium iron phosphate cells
• BMS with low-temperature charge cut-off and cell balancing
• IP65-rated, rugged case for RV, marine and off-grid use
• Series (4S) and parallel (8P) connection for larger battery banks
• Compatible with the optional Renogy Battery Shunt for smartphone monitoring

Specifications

In the Box

• Core Mini 12.8V 200Ah Lithium Iron Phosphate Battery x 1
• Terminal Bolt (M8 x 1.25 x 12 mm) x 2
• Long Terminal Bolt (M8 x 1.25 x 16 mm) x 2
• User Manual x 1
