Renogy - ONE M1 Energy Monitoring Panel

Renogy ONE M1 Energy Monitoring Panel

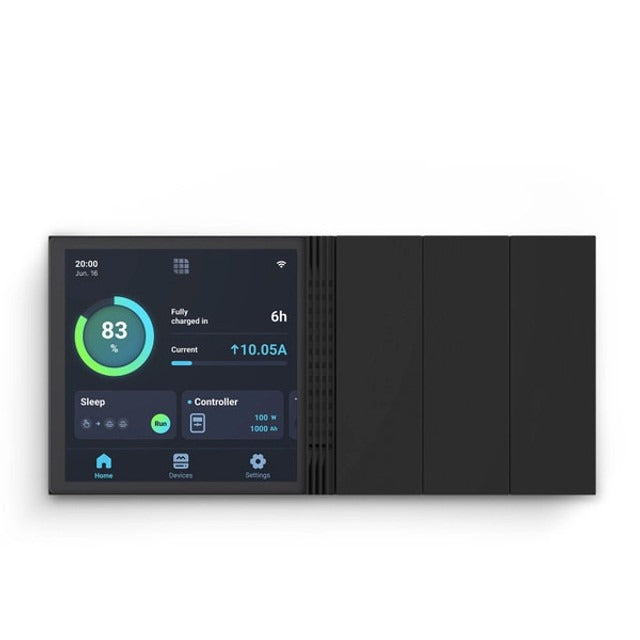

The Renogy ONE M1 is a wall-mounted touch screen panel that brings monitoring and control of an off-grid power system together in one place. It communicates with compatible Renogy batteries, charge controllers, inverters and DC-DC chargers, and can also connect smart accessories such as door and window sensors, motion sensors and smart plugs.

Renogy ONE pairs with the Renogy DC Home app over Wi-Fi so the system can be monitored and controlled remotely, and its onboard relays can switch external DC loads on and off from the panel or the app.

Key Features

• Touch screen panel for monitoring compatible Renogy energy devices
• Connects to energy devices by Bluetooth, RS485 or RV-C communication
• Connects smart accessories, including door and window sensors and smart plugs, by Zigbee
• Pairs with the Renogy DC Home app over Wi-Fi for remote monitoring and smart scenes
• 3 onboard relays for switching external DC loads (up to 30V DC, 5A each)
• Flush mounts into a 110 mm x 65 mm cut-out on a vertical surface

Specifications

In the Box

• Renogy ONE M1
• 12V Power Cable (5 m)
• Mounting screws
