Renogy - 12/24/36/48V - 100A - Rover Li MPPT Solar Charge Controller

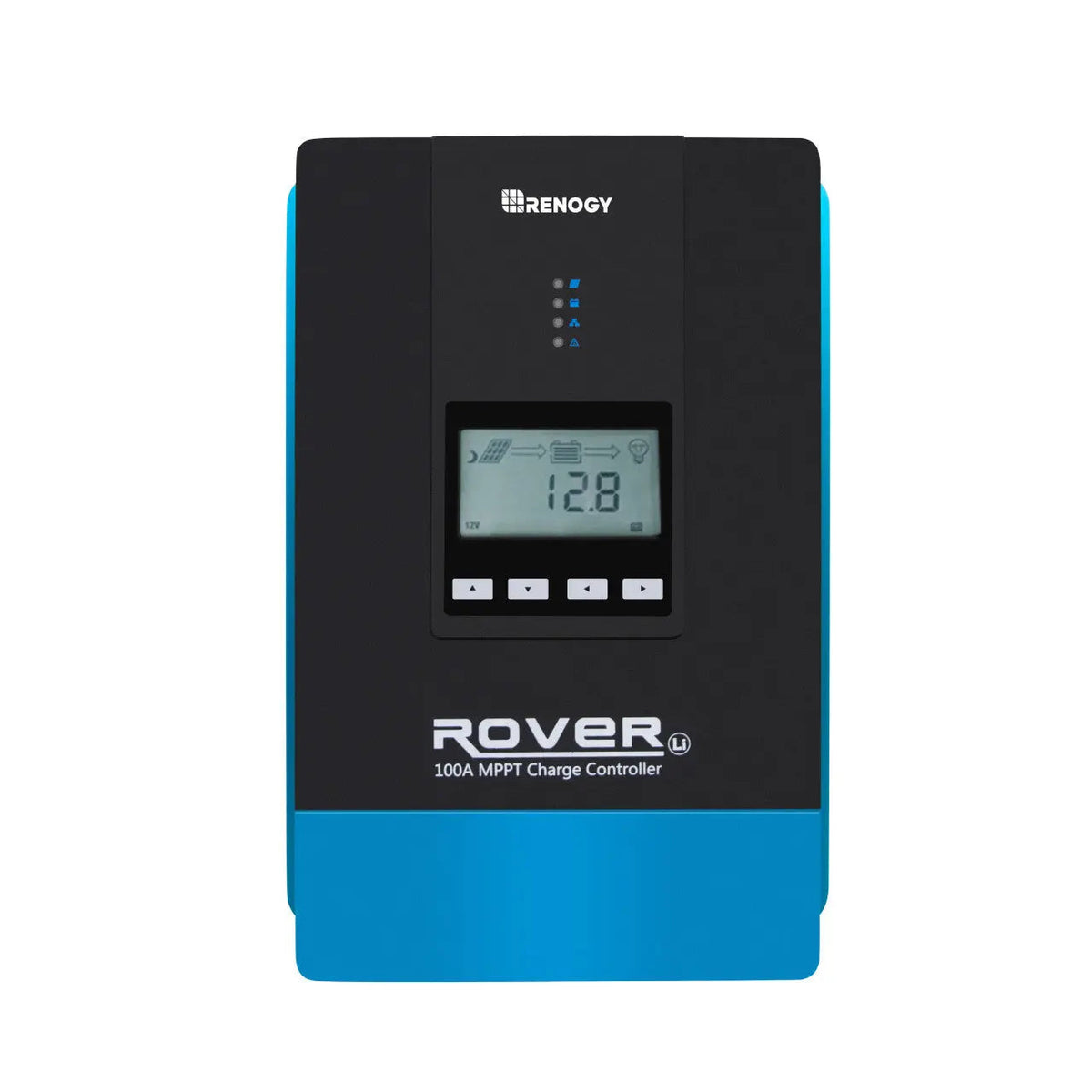

Renogy Rover Li 100A MPPT Solar Charge Controller

The Renogy Rover Li 100A MPPT Solar Charge Controller is the largest controller in the Rover range, built for large 12V, 24V, 36V and 48V off-grid solar systems. It uses Renogy's MPPT technology to track the maximum power point of the connected solar array, converting more of the panels' output into usable battery charge than a standard PWM controller.

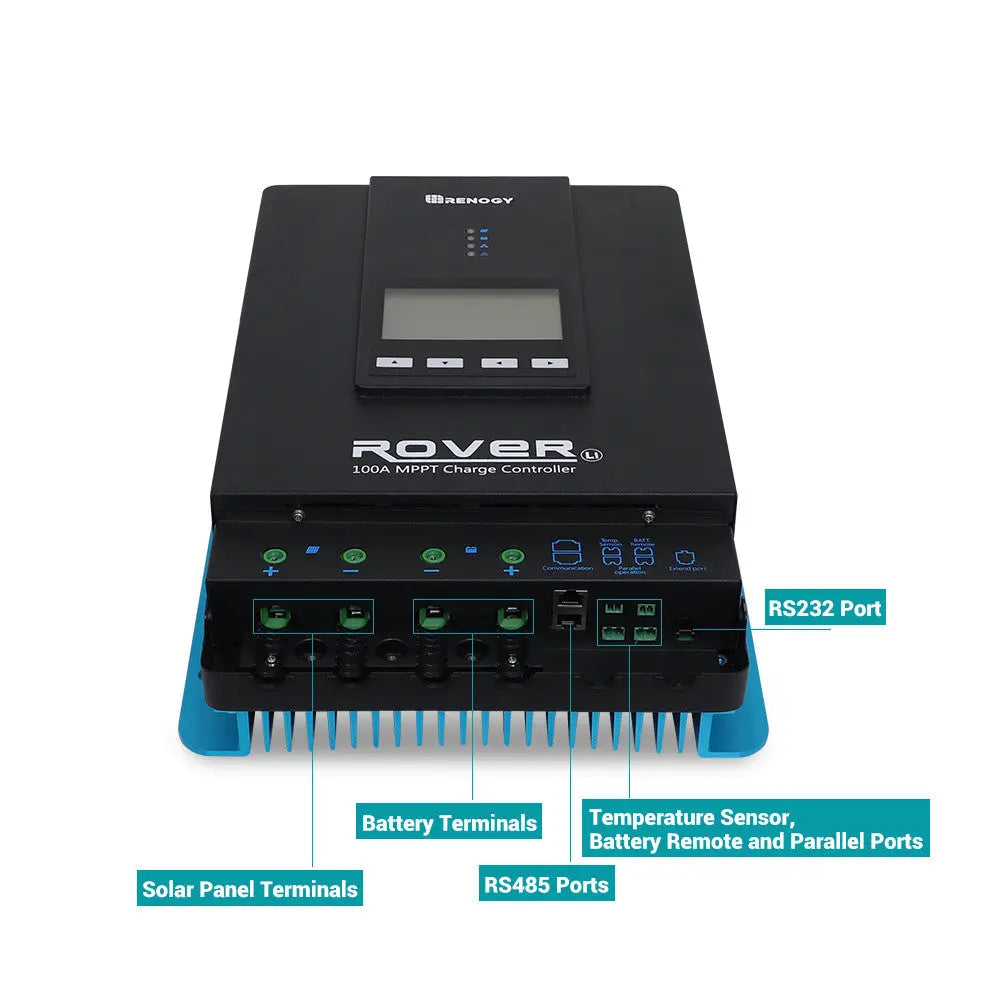

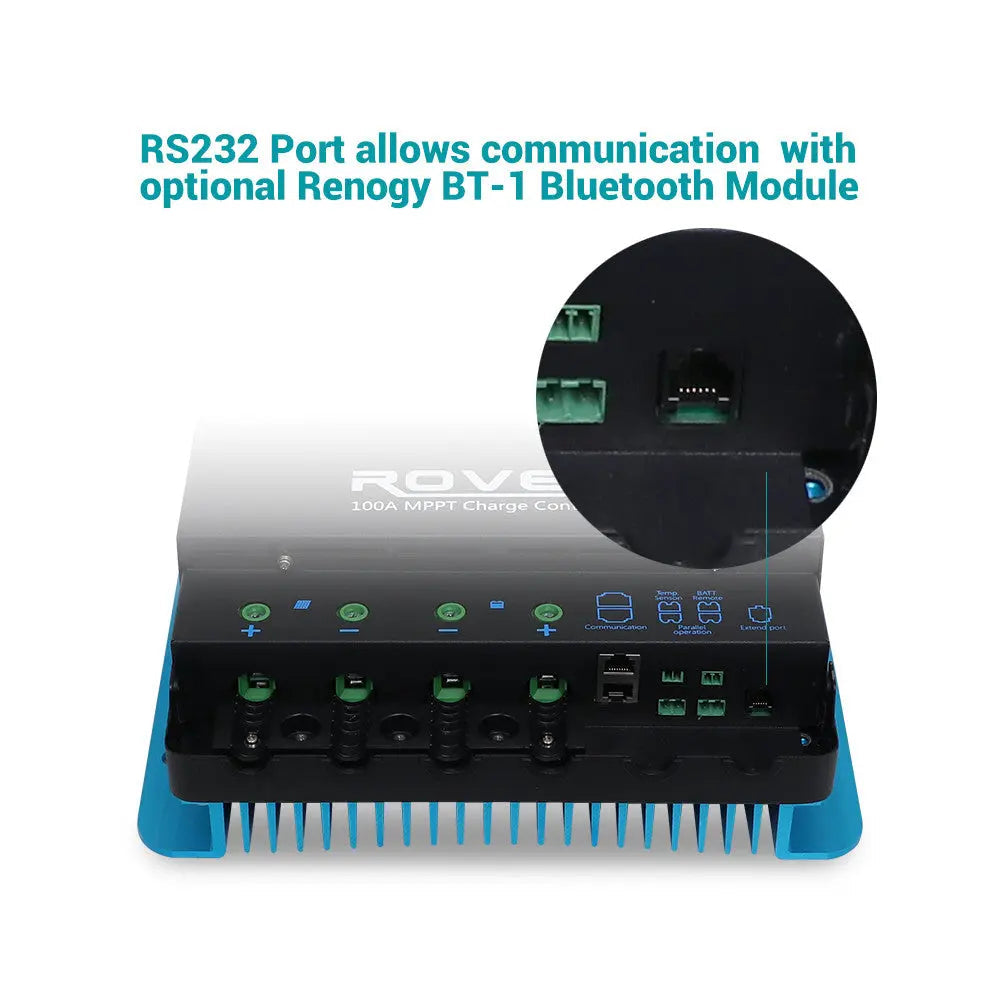

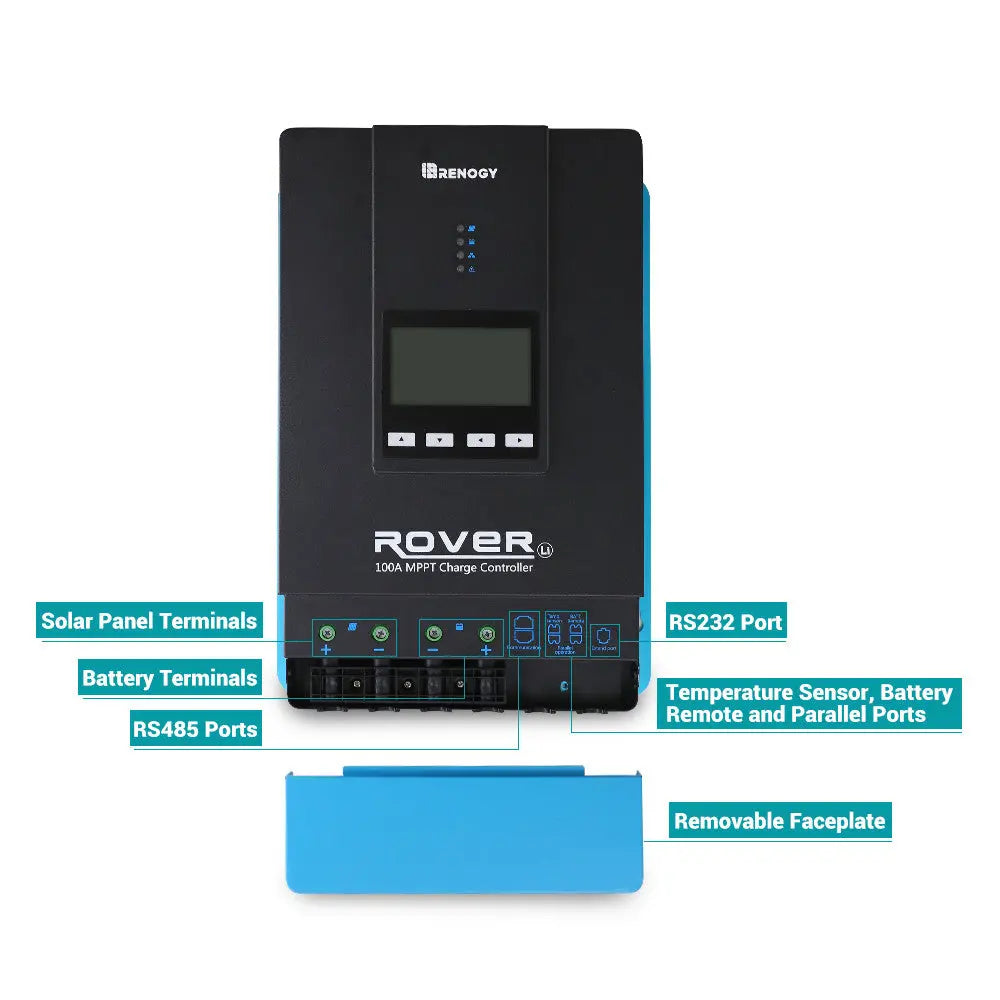

Two 100A Rover controllers can be connected in parallel for up to 200A of combined charge current on larger systems, and it has a communication port ready for the optional Renogy BT-1 or BT-2 Bluetooth Module (sold separately) for wireless monitoring via the Renogy DC Home app.

Key Features

• MPPT (Maximum Power Point Tracking) technology for efficient solar charging
• Automatically detects 12V/24V/36V/48V system voltage for non-lithium batteries; lithium voltage is set manually
• Compatible with AGM, Gel, Flooded and Lithium battery banks
• Can be paralleled with a second 100A Rover controller for up to 200A total charge current
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuit and reverse current

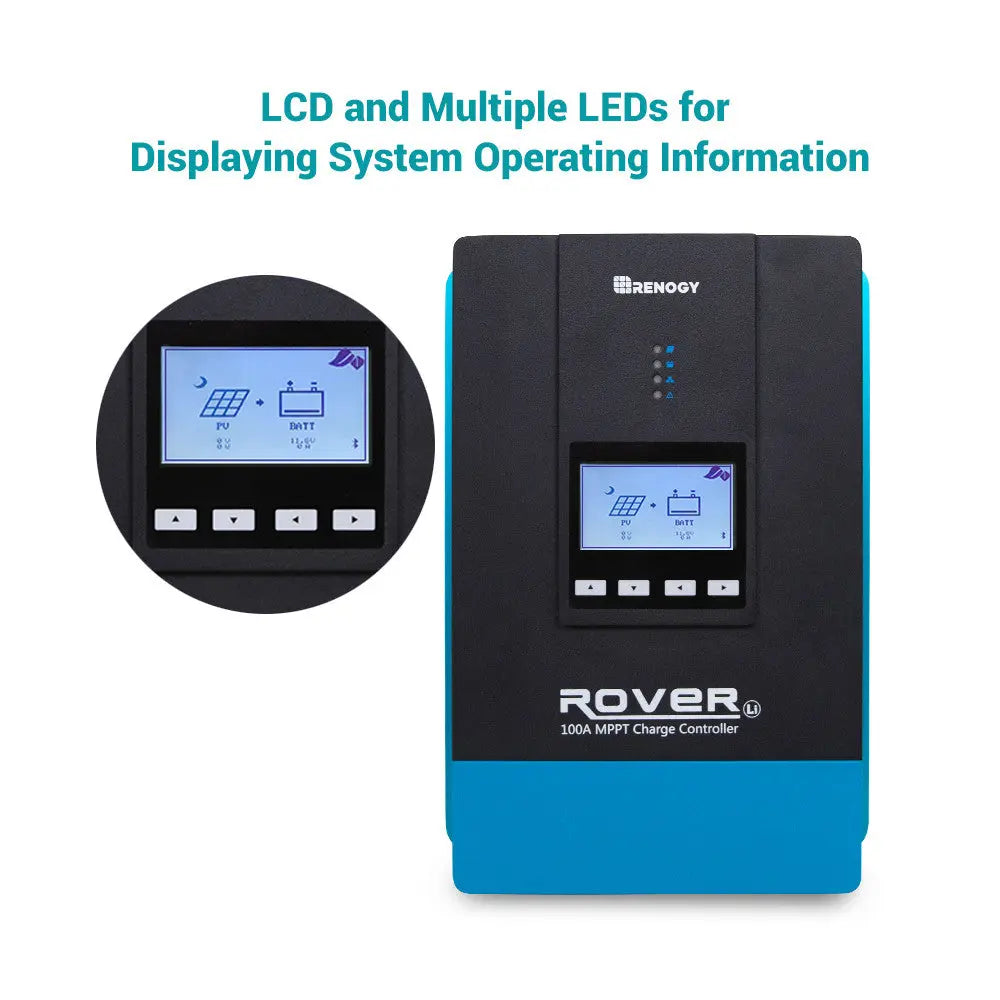

• LCD screen and multiple LED indicators showing system status, parameters and error codes
• Self-diagnosis of system errors

Specifications

In the Box

• 1 x Renogy Rover Li 100A MPPT Solar Charge Controller

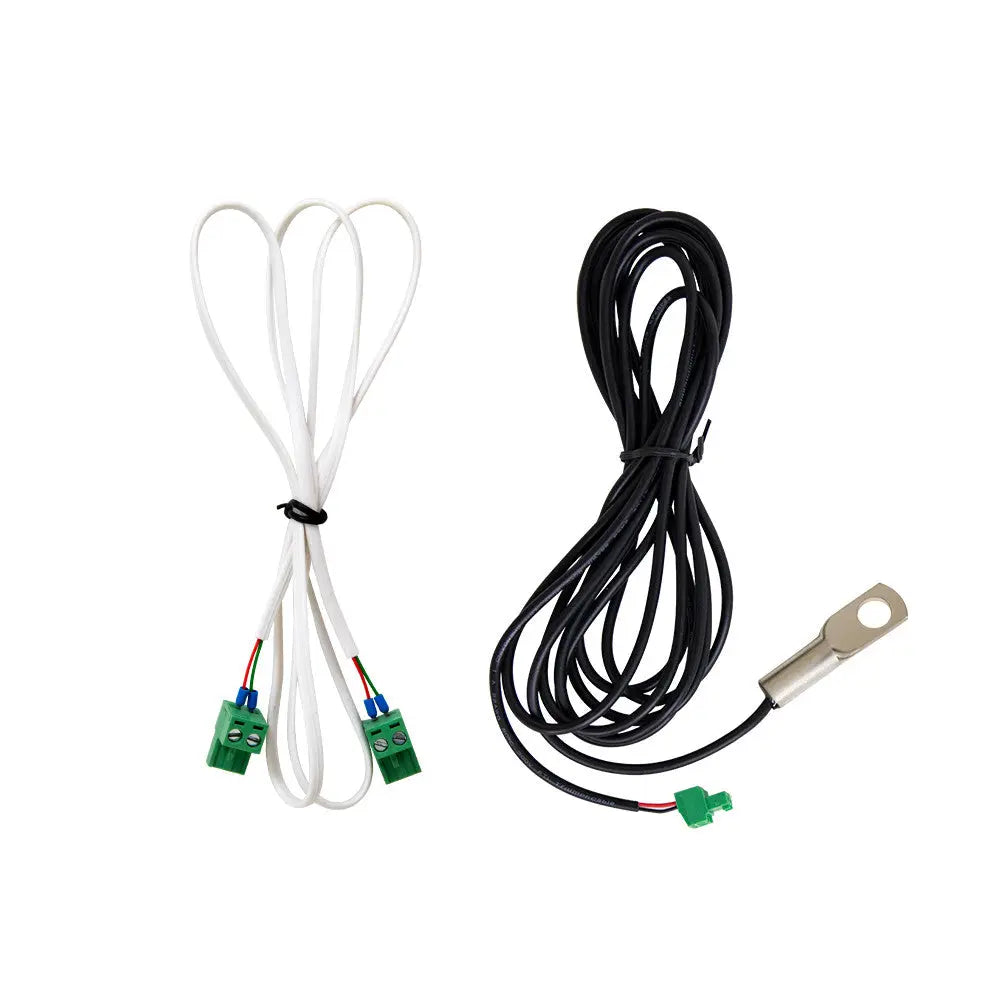

• 1 x Remote Temperature Sensor
• 1 x Controller Paralleling Cable
