Renogy - 12/24V - 20A - Voyager PWM Waterproof Solar Charge Controller
Renogy - 12/24V - 20A - Voyager PWM Waterproof Solar Charge Controller
Regular price
$69.95 AUD
Regular price
$79.99 AUD
Sale price
$69.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

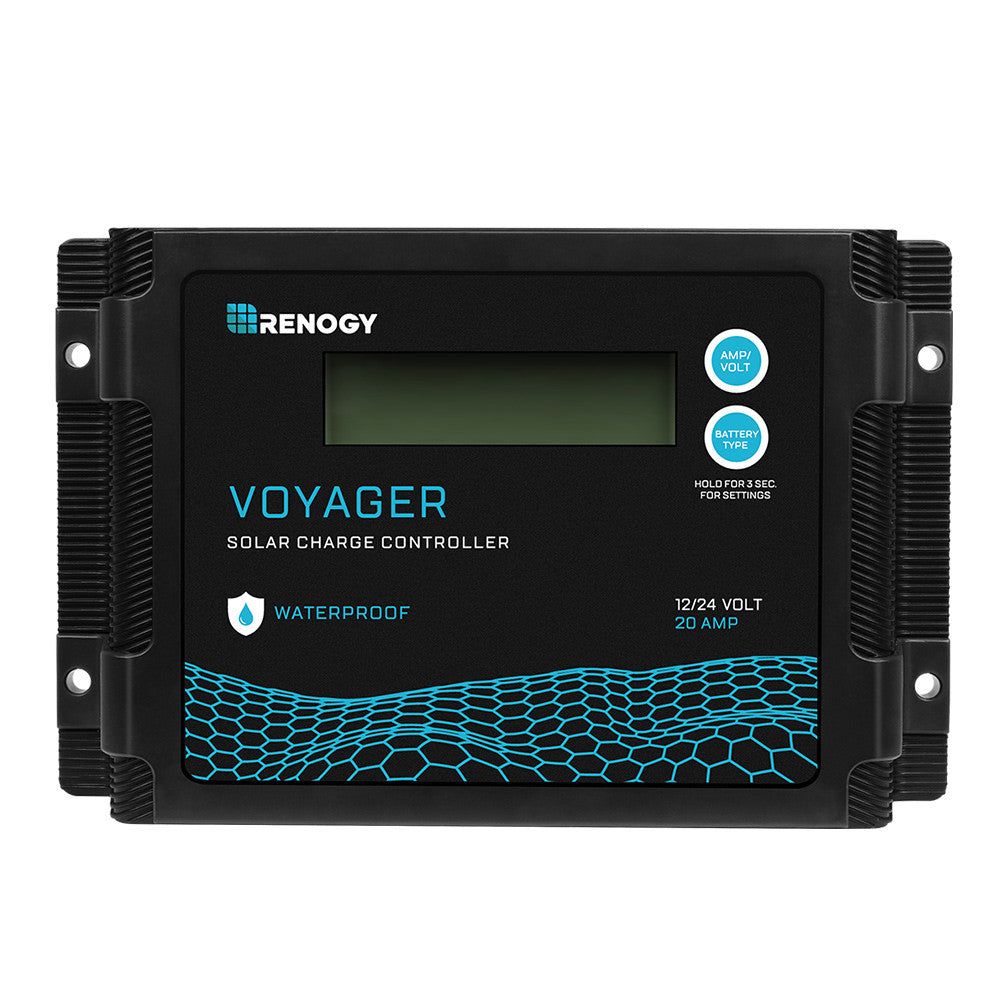

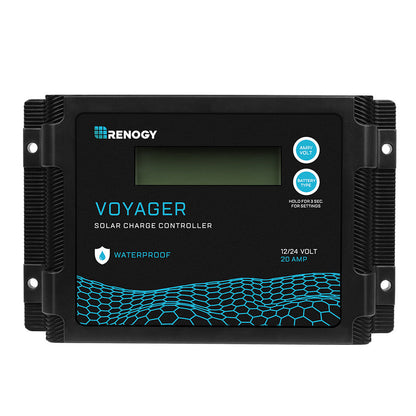

Renogy Voyager 20A PWM Waterproof Solar Charge Controller

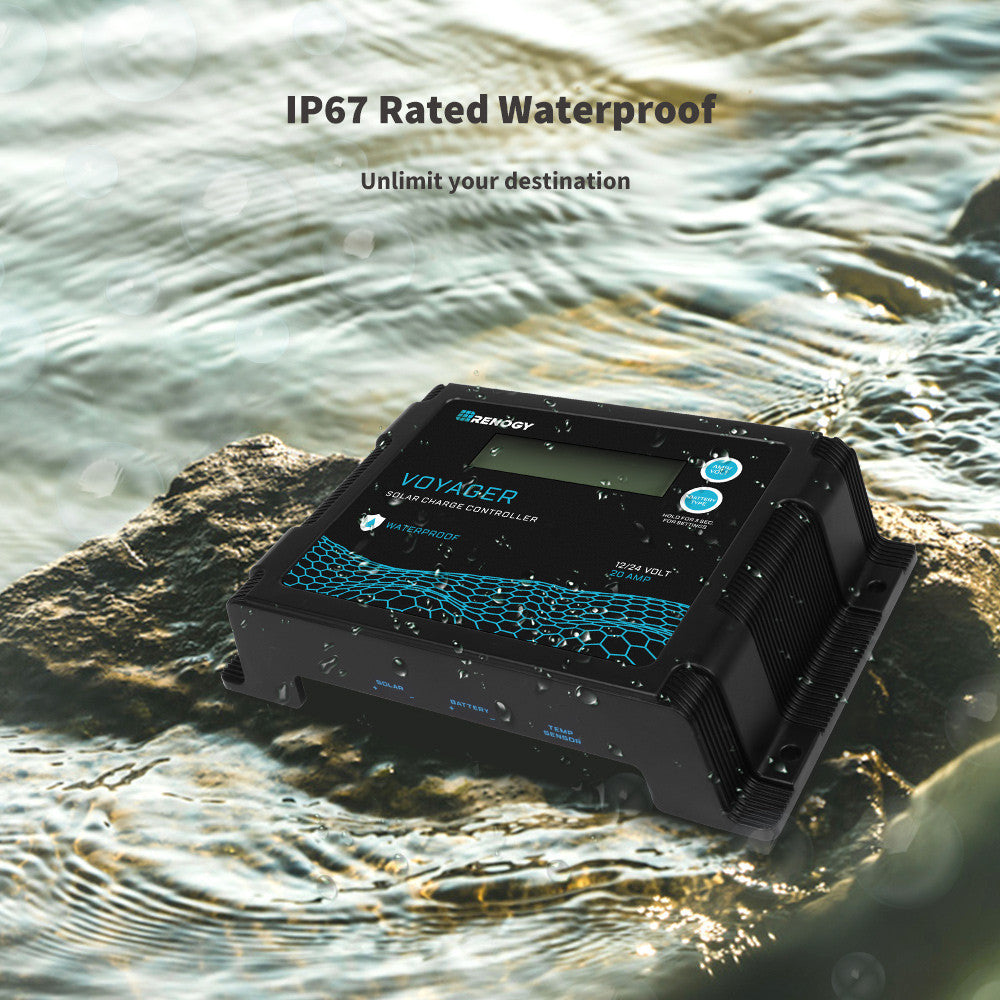

The Voyager 20A is an IP67-rated waterproof PWM solar charge controller that keeps working when exposed to water spray, rain or condensation. It automatically detects 12V or 24V system voltage when paired with Gel, AGM or Flooded batteries, and includes a Lithium activation feature.

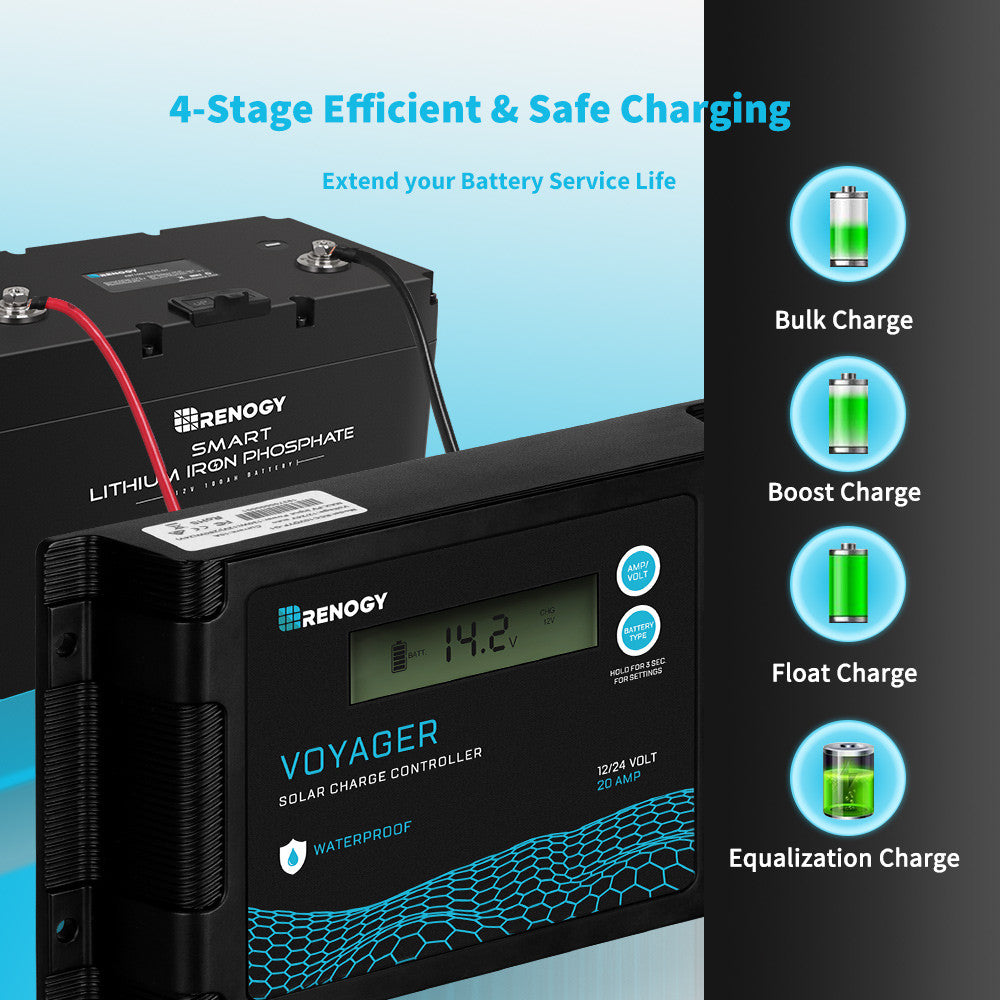

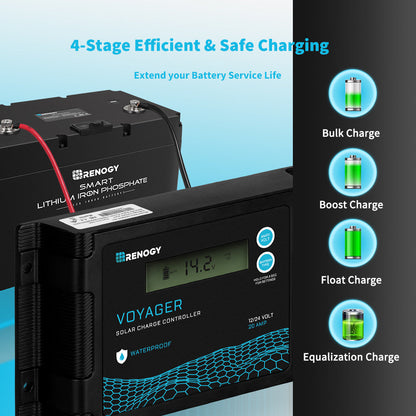

A backlit LCD shows charging current, generated energy, temperature, battery voltage and error codes, and 4-stage PWM charging protects the battery through Bulk, Absorption, Float and Equalisation stages.
Key Features
- 4-stage PWM charging: Bulk, Absorption, Float and Equalisation
- IP67 rated waterproof design for outdoor use
- Automatically detects 12V or 24V system voltage with Gel, AGM or Flooded batteries

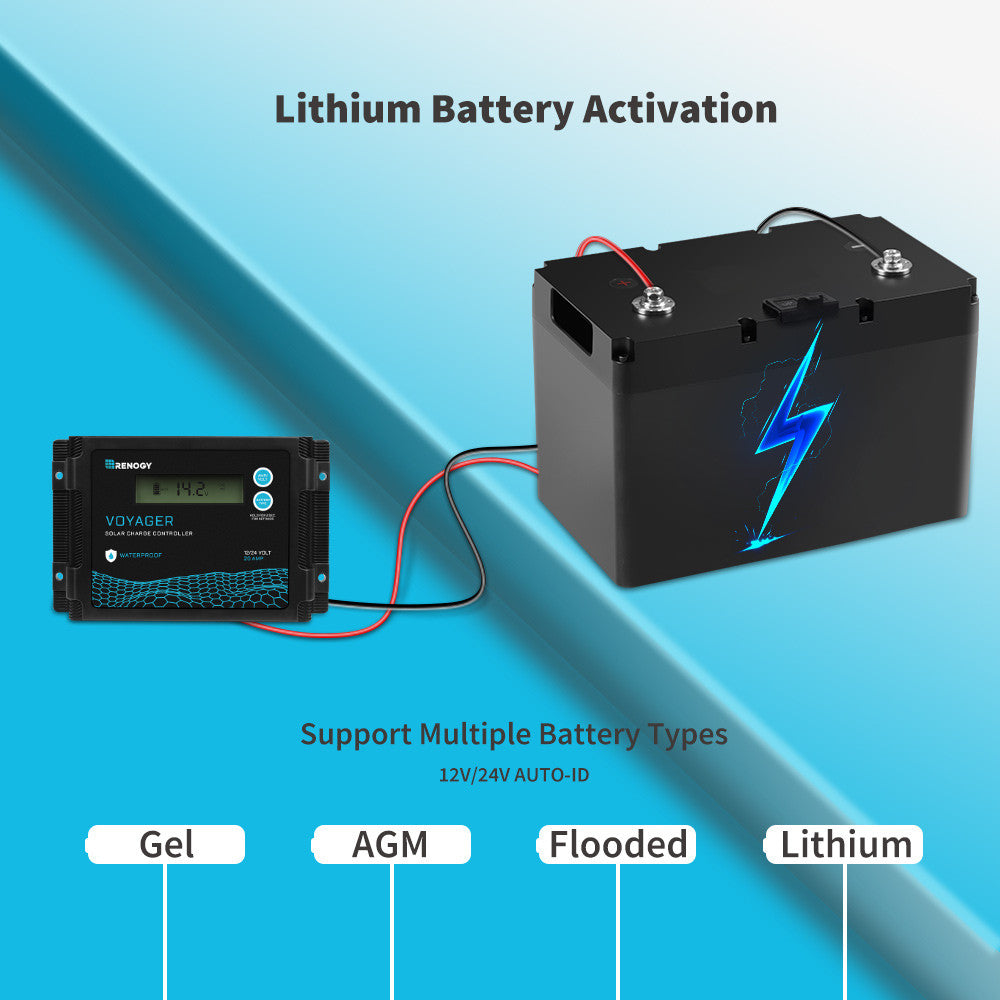

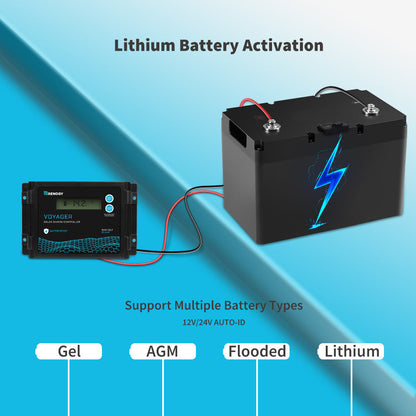

- Lithium activation feature for LiFePO4 battery banks
- Backlit LCD showing charging current, generated energy, temperature, battery voltage and error codes
- Protection against reverse polarity, overcharge, short-circuit, reverse current, overload and over-discharge
Specifications
| Nominal System Voltage | 12V/24V Auto-Detect |
|---|---|
| Rated Charge Current | 20A |
| Battery Types | SLD/AGM, GEL, FLD, LI |
| PV Input Voltage Range | 15V-55V |
| Max. PV Open Circuit Voltage | 12V@25V, 24V@55V |
| Max. PV Input Power | 12V @ 260W / 24V @ 520W |
| Max Battery Voltage | 32V |
| Ground Type | Positive |
| Enclosure Rating | IP67 |
| Dimensions | 6.08 x 3.83 x 1.40in |
| Weight | 0.55lbs |
In the Box
- 1 x New Edition Voyager 20A PWM Waterproof Solar Charge Controller
