Renogy
Renogy - 12V - 60A - Rego MPPT Solar Charge Controller
Renogy - 12V - 60A - Rego MPPT Solar Charge Controller
Regular price
$534.95 AUD
Regular price
$623.99 AUD
Sale price
$534.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

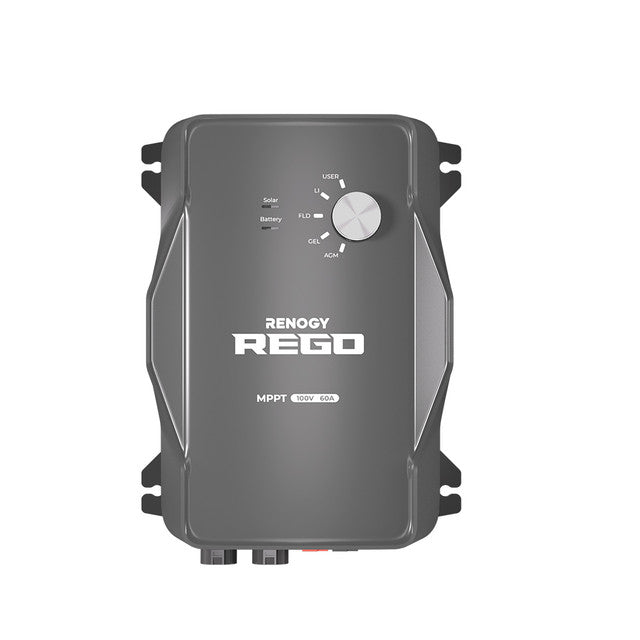

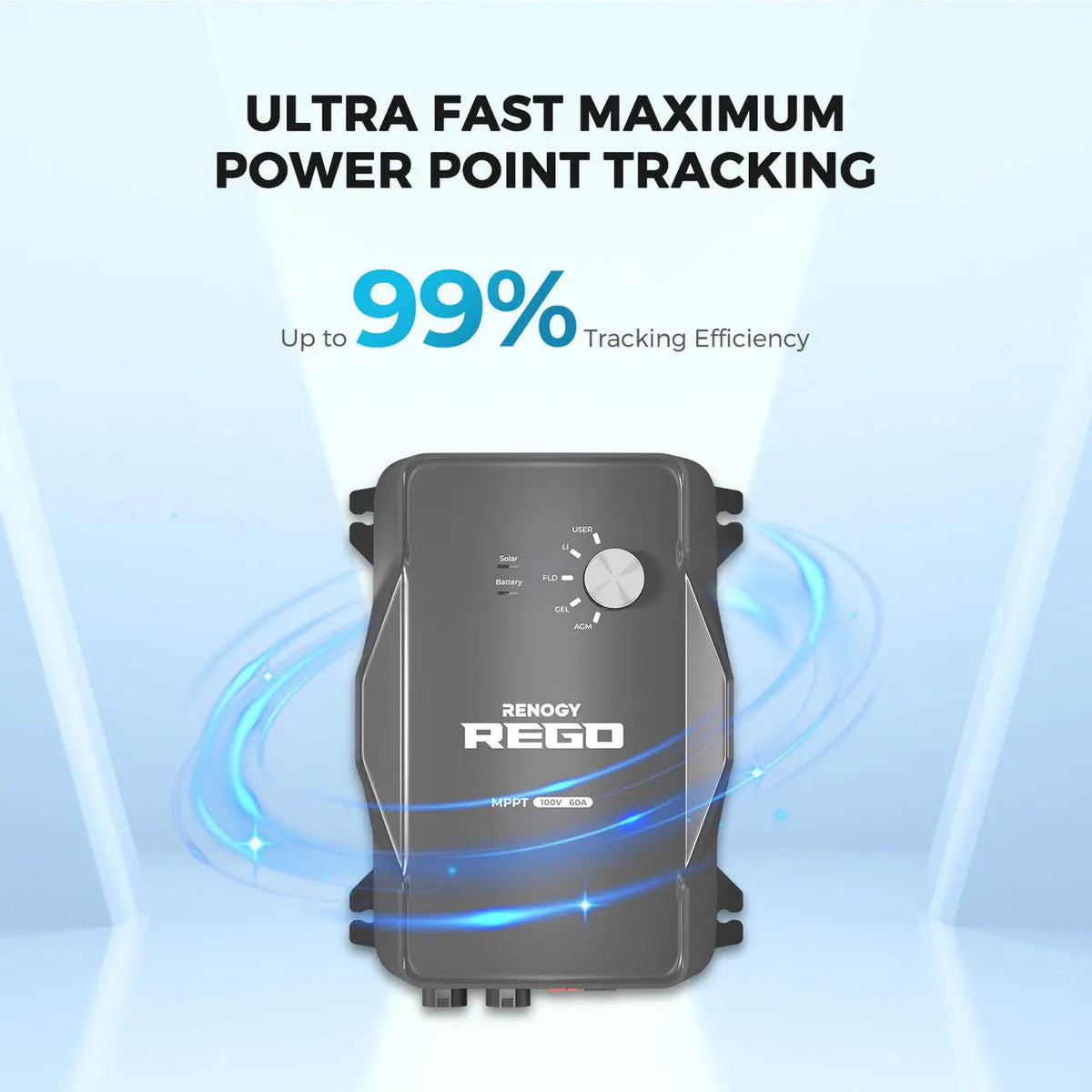

Renogy Rego 12V 60A MPPT Solar Charge Controller
The Rego 60A is a 12V MPPT solar charge controller with plug-and-play Anderson connections for quick and easy installation. A die-cast aluminium heat sink and built-in temperature sensor keep charging stable across a wide operating range.
Renogy's Battery Protect Unit (BPU) disconnects non-essential loads before the battery is over-discharged, while built-in Bluetooth pairs with the Renogy DC Home App for remote monitoring and charge-profile adjustment.
Key Features
- Plug-and-play Anderson PP75 connections speed up installation
- 3- to 4-stage charging for lead-acid batteries (Bulk, Boost, Float, Equalisation) and 2-stage charging for lithium

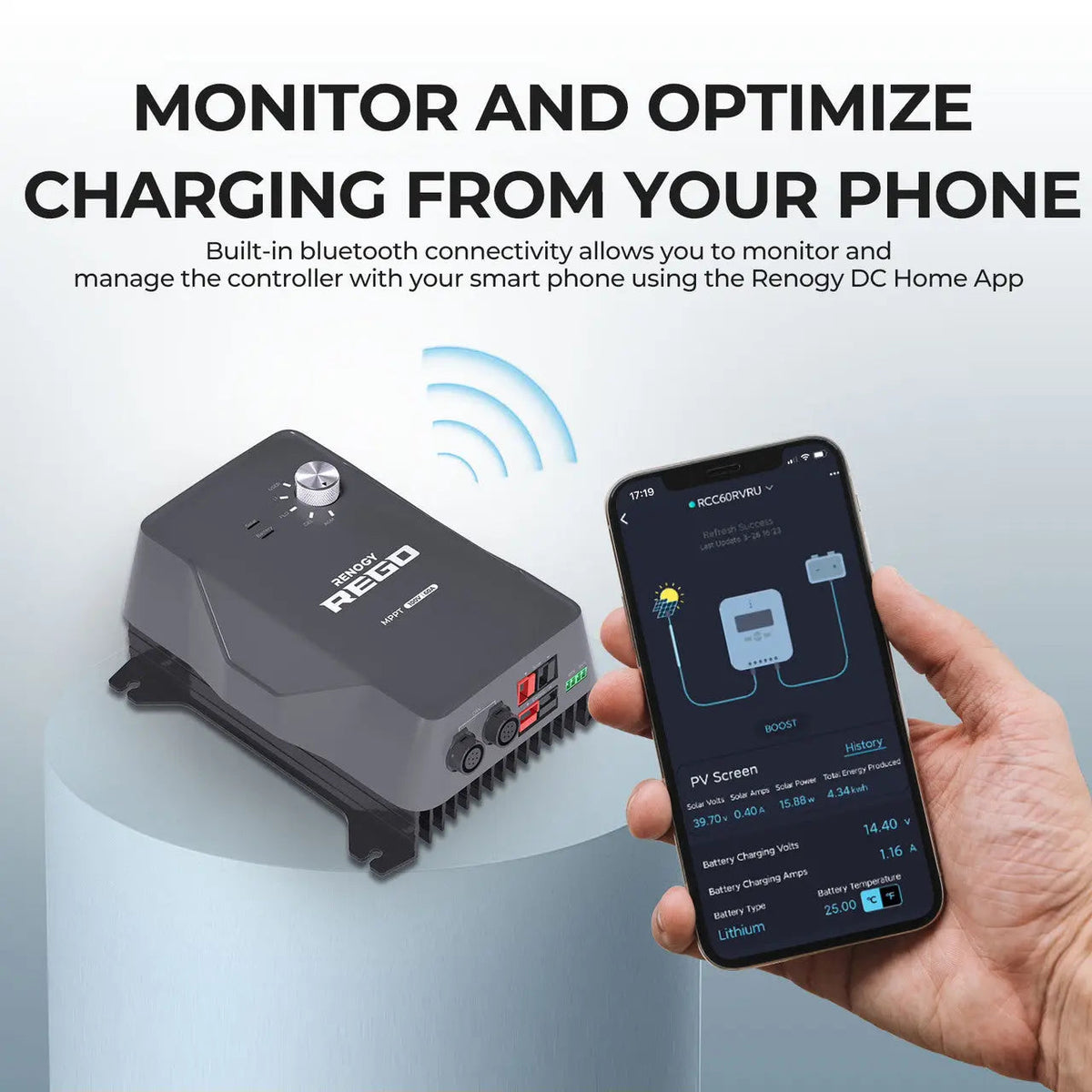

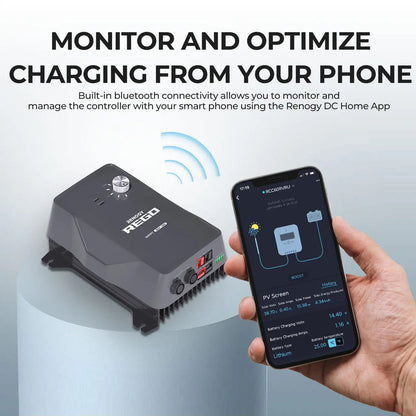

- Built-in Bluetooth for the Renogy DC Home App
- Battery Protect Unit (BPU) disconnects non-essential loads before over-discharge
- Die-cast aluminium heat sink for stable thermal management
- Built-in temperature sensor with automatic temperature compensation

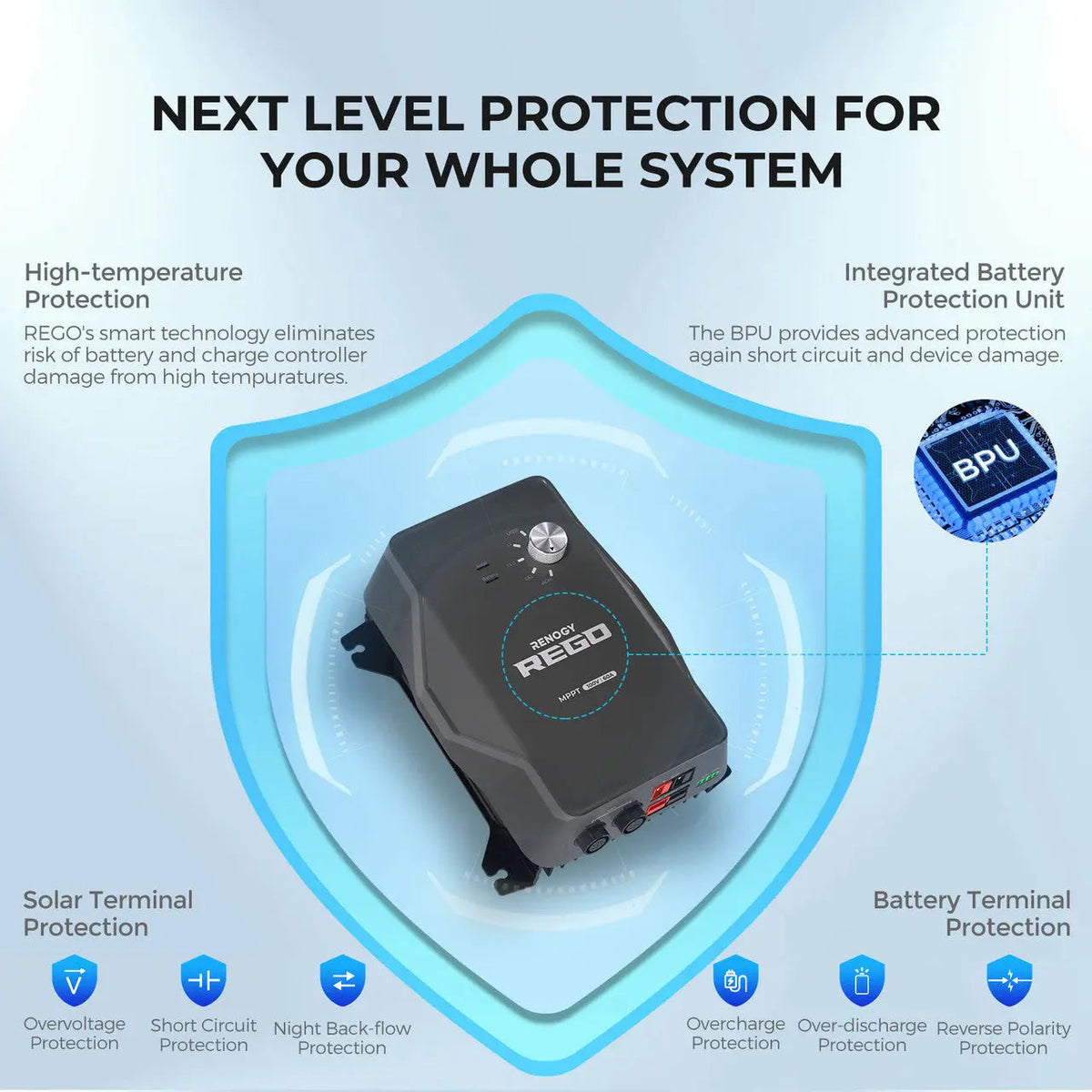

- Battery overcharge, over-discharge and reverse polarity protection, plus PV short-circuit and reverse polarity protection
Specifications
| Nominal System Voltage | 12V |
|---|---|
| Rated Charge Current | 60A |
| Max. PV Input Power | 800W |
| Solar Input Voltage Range (VOC) | 100V |
| MPPT Voltage Range | 15-100VDC / 12V |

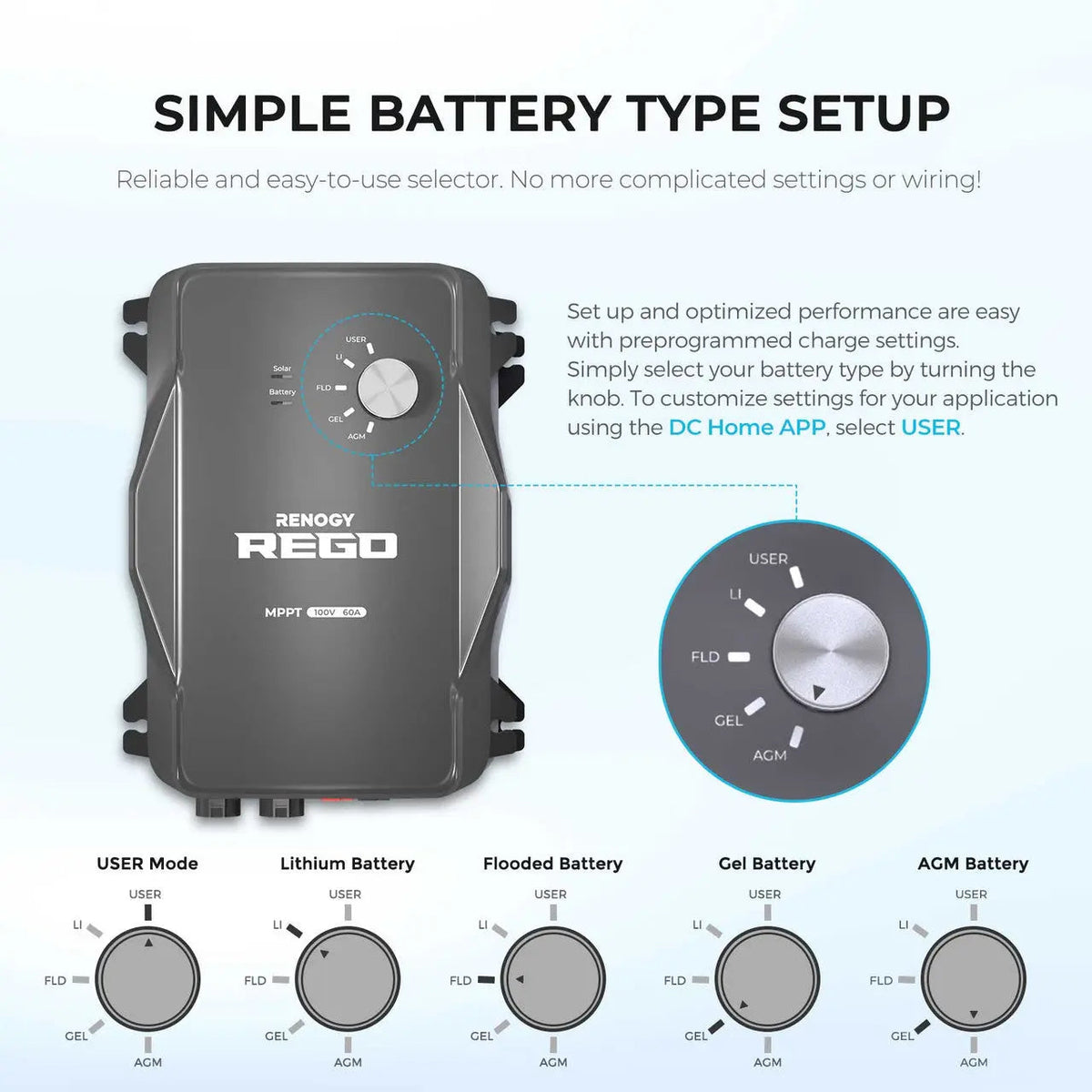

| Battery Types | AGM/Sealed, GEL, FLOODED, LFP, USER* |
| Ground Type | Common Negative Lug |
| Terminals | Anderson PP75 |
| Communication | Built-in Bluetooth (Renogy DC Home App) |

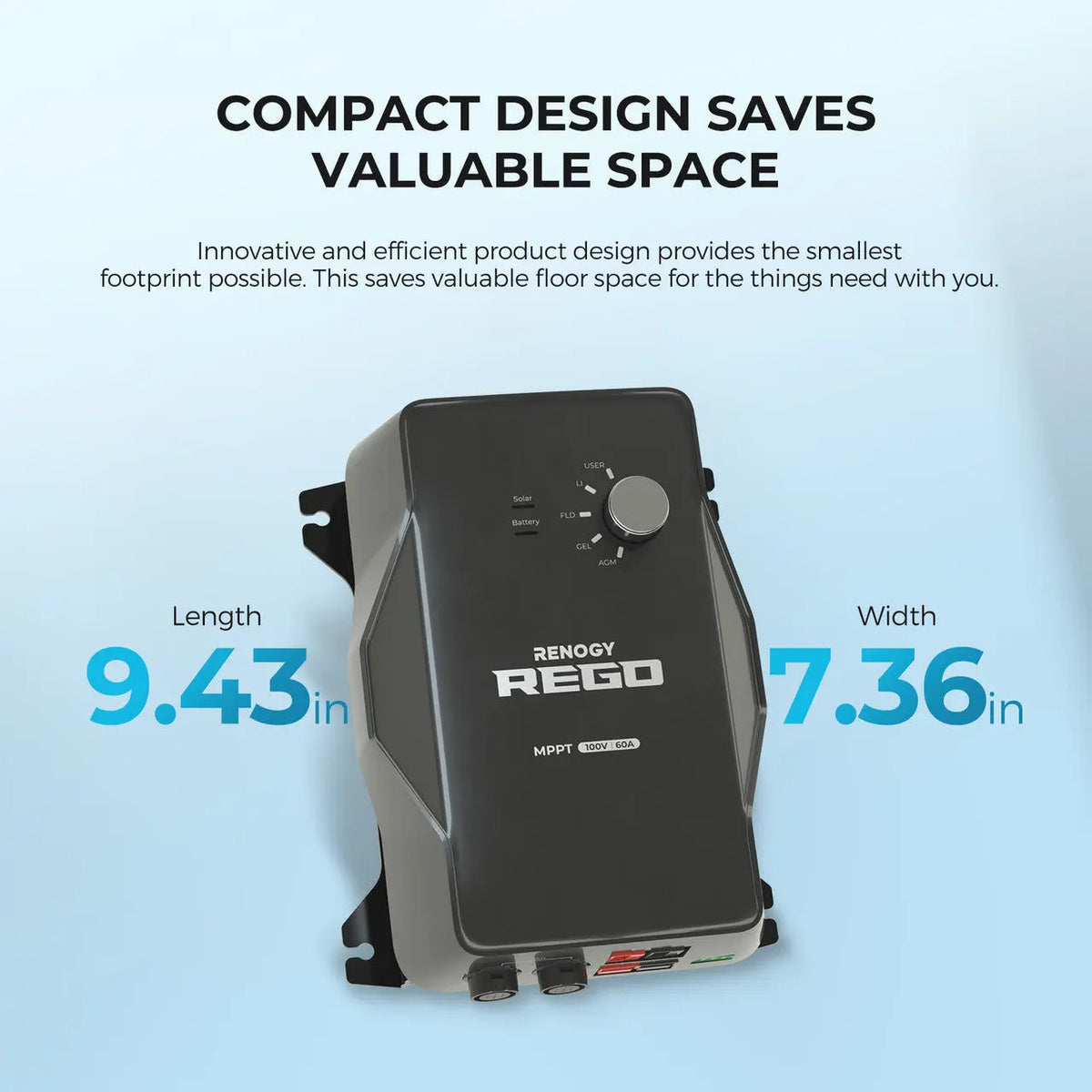

| Dimensions | 239.4 x 187 x 108.8mm |
| Weight | 2.30kg |
In the Box
- REGO 12V 60A MPPT Charge Controller (1x)
- Renogy Temperature Sensor (1x)
- Solar Adapter Cable (1x)
- Mounting Screws (4x)
