Ruuvi RuuviTag Pro Sensor (4in1) Wireless Temperature, Humidity, Air Pressure and Motion Sensor
Accurate and Durable Sensor for Versatile Conditions

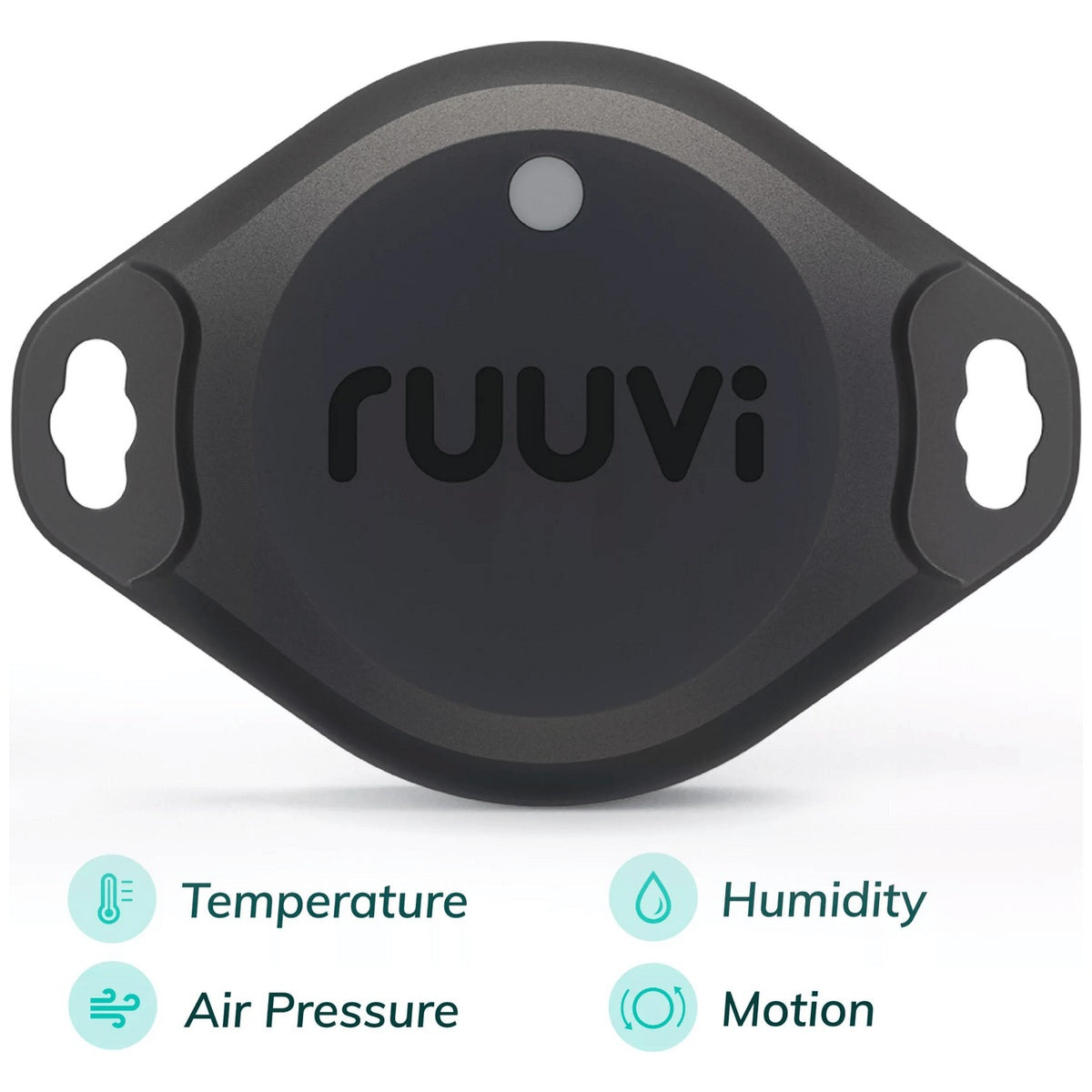

RuuviTag Pro is a rugged IP certified environmental sensor for temperature, humidity, air pressure and acceleration monitoring.
The Pro is based on RuuviTag’s successful concept and additionally brings several new outstanding features to the table. RuuviTag Pro is the toughest open source sensor on the market.
Waterproof Certified Temperature Sensor
RuuviTag Pro tolerates wet and rough conditions.
The IP67 certified RuuviTag Pro (4-in-1) comes with a breathable membrane that enables air humidity and air pressure monitoring. It tolerates temporary wet conditions.
Note! Please keep in mind that Bluetooth signals are strongly attenuated in the water and range will be significantly reduced. Ruuvi sensors can then be used in narrow water if you want to maintain connection (for example pool or jacuzzi). If you want to measure deeper, you can attach the RuuviTag Pro to a string and take it back to the surface when you want to download the data history.
Medical Grade Temperature Accuracy
RuuviTag Pro has an extremely accurate temperature sensor on board. The sensor is designed to meet ASTM E1112 and ISO 80601 requirements for electronic patient thermometers.
Measurement resolution is 0.01 °C, while absolute accuracy is astounding at ±0.1 °C across the temperature range of –20 to +50 °C, with no calibration.
The sensor units are 100% tested on a production setup that is NIST traceable and verified with equipment that is calibrated to ISO/IEC 17025 accredited standards.
Professional Mounting

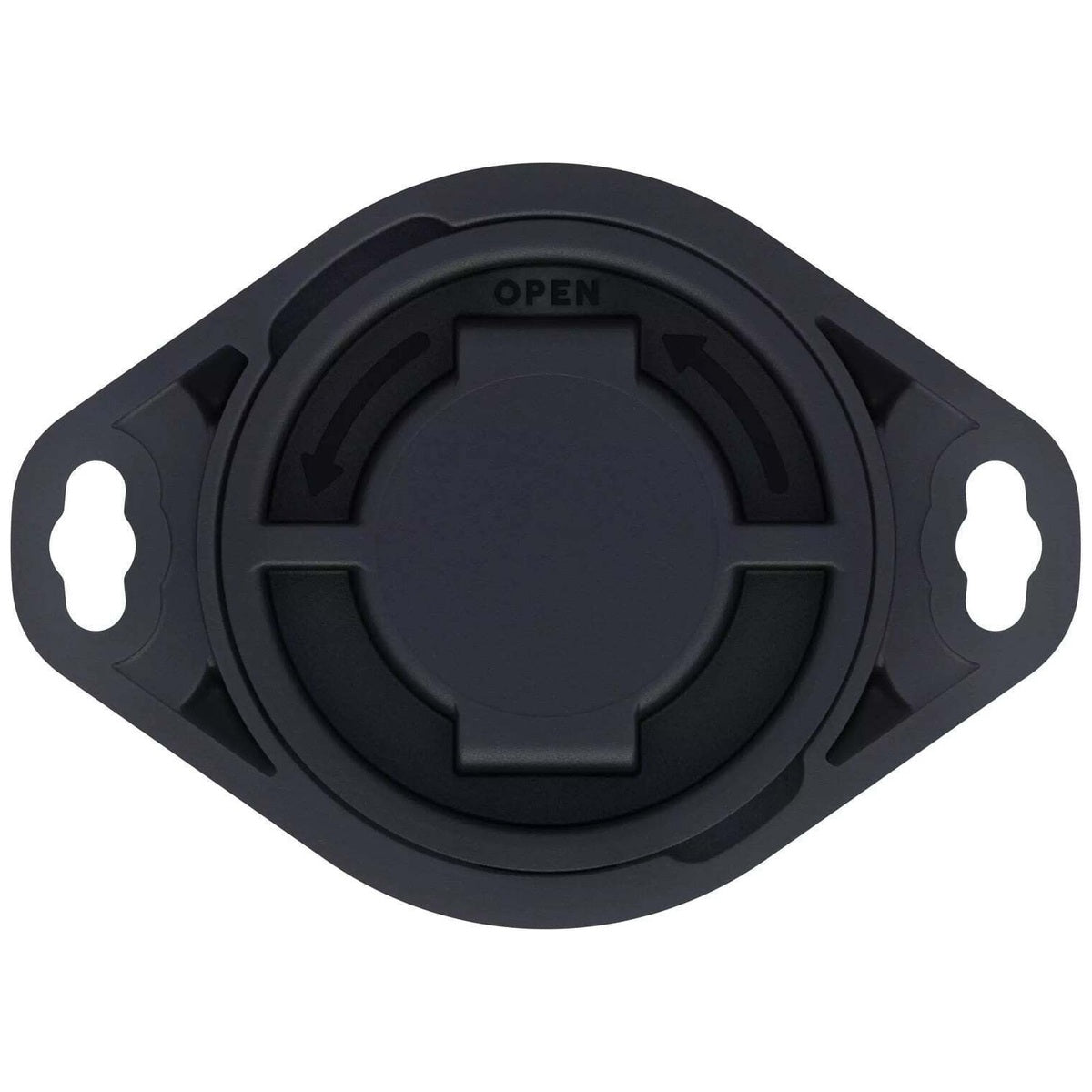

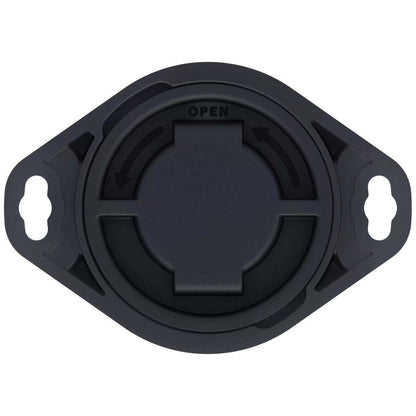

RuuviTag Pro has two strong mounting ears that allow reliable installation methods to be used. Wooden ceilings, Gyproc walls, concrete foundations, you name it. Attach and measure professionally wherever you need to.
Wide Temperature Range From -40 to +85 °C
RuuviTag Pro’s casing and electronics are designed to operate without interruption in a wide range of temperatures. Maintenance is minimal because the included Ruuvi CR2477T wide temperature battery lasts up to 2 years.
Temperature, Humidity, Air Pressure and Motion Measuring Made Easy

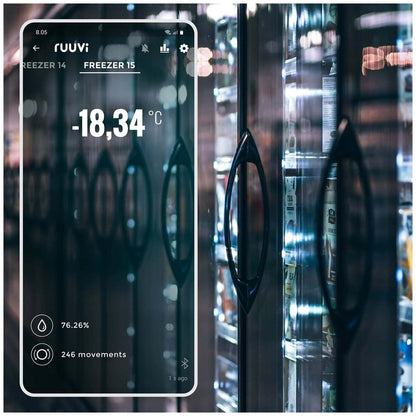

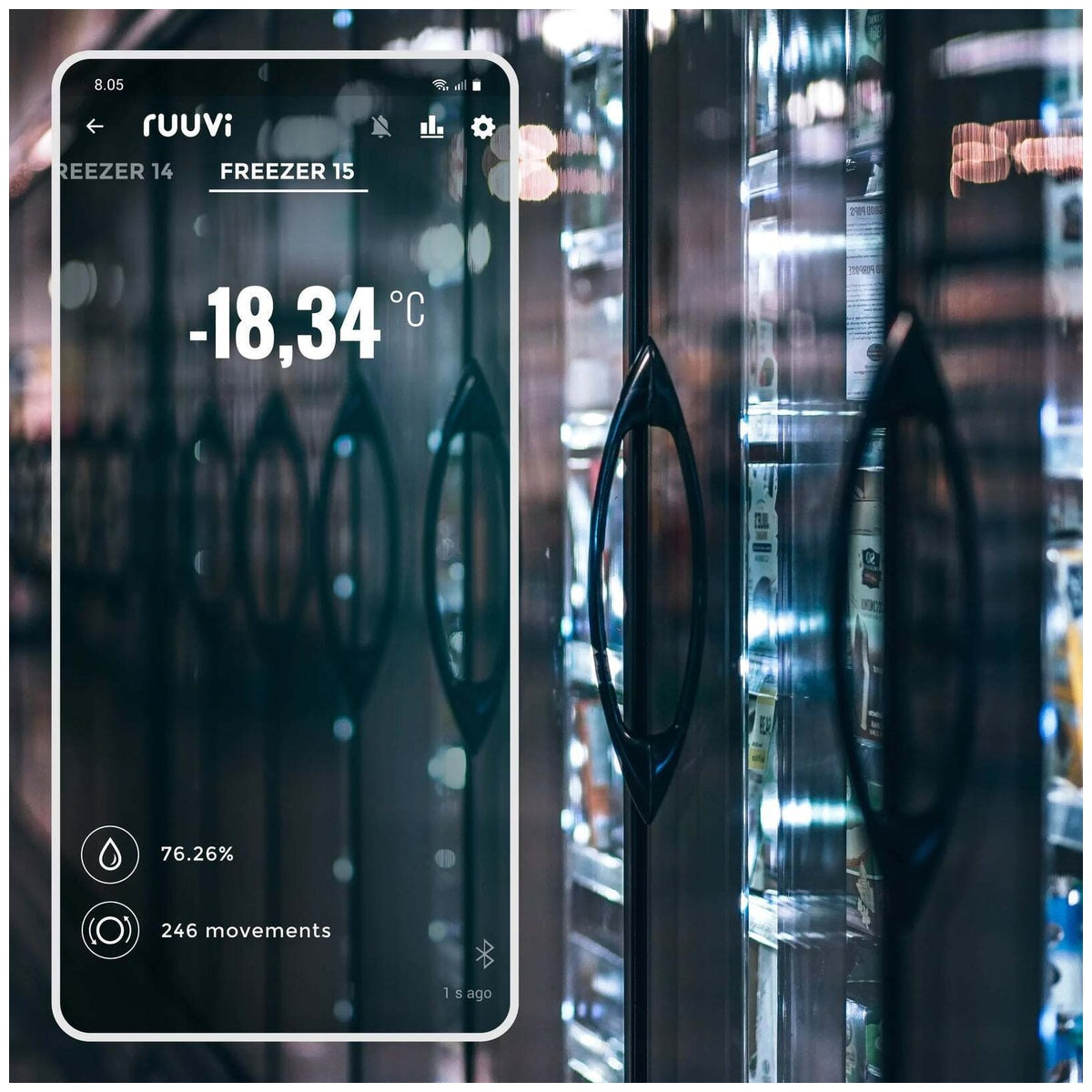

RuuviTag is a wireless Bluetooth sensor node that measures temperature, air humidity, air pressure and movement. You can read live measurements and history data directly on your smartphone using Ruuvi’s mobile app for Android and iOS.
Use your imagination and measure almost anything at your home, at work, in your hobbies.
Easy to Use
All you need is a smartphone and RuuviTag sensors. Add as many as you like!
Free Ruuvi Station App
Ruuvi Station mobile app is available on Android and iOS.
Why would I need Ruuvi products?
The use cases for Ruuvi sensors are unlimited and the only limit is your imagination. Read more about use cases and user experiences on the Ruuvi/Victron blogs and Ruuvi/Victron forums.
The Ruuvi products are designed in Finland and produced in France with the highest quality standards to ensure the best possible products at the end!
Victron GX Compatibility
RuuviTag Pro sensors can be read by Victron GX devices (Cerbo GX, Venus GX and CCGX); a Bluetooth USB adapter is required. Temperature and humidity then show on the GX display and the VRM Portal, and the GX relays can be set to switch on temperature, for example to run a fan or a heating pad.
Purchase a RuuviTag Pro Sensor today and revolutionize your environmental monitoring by taking the first step towards smarter, more reliable industrial sensing solutions.
Specifications
| Specification | Detail |
|---|---|
| Recommended operating temperature | -40 ºC to +85 ºC (with the included CR2477T battery) |
| Maximum operating temperature | -40 ºC to +85 ºC (electronics and enclosure) |
| Battery | 1000 mAh CR2477T Li/MnO2 battery (included) |

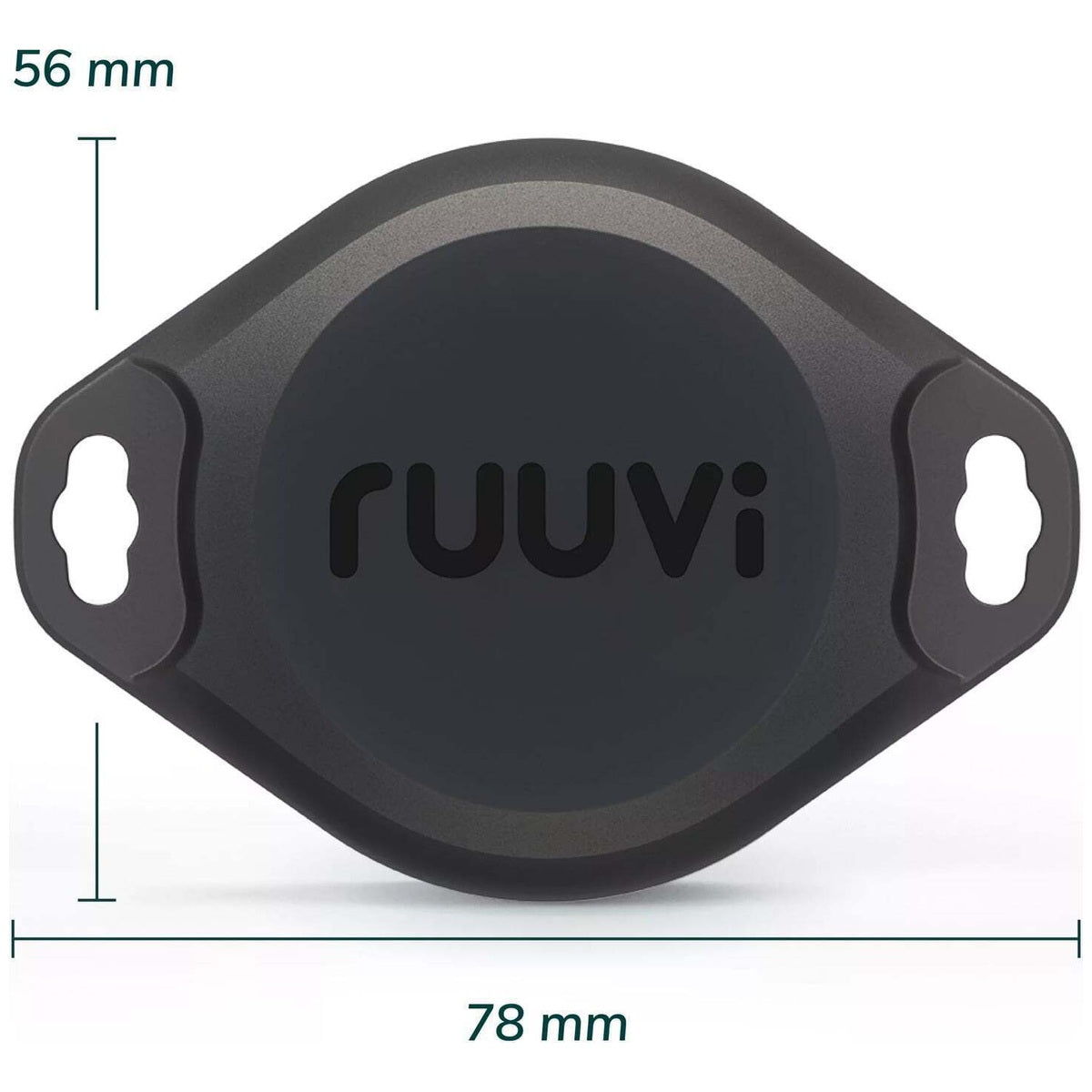

| Diameter | 78.3 mm |
| Height | 12.55 mm |
| Weight | 38 g |
| Temperature units (on Ruuvi Station) | Celsius, Fahrenheit, Kelvin |
| Humidity units (on Ruuvi Station) | Relative air humidity, absolute humidity, dew point |
| Pressure units (on Ruuvi Station) | Pa, hPa, mmHg, inHg |
| Temperature sensor accuracy | ±0.1 °C absolute accuracy, 0.01 °C resolution |
| Humidity sensor accuracy | ±2 % typical absolute accuracy, 20...80 %, 25 °C |
| Pressure sensor accuracy | ±1 hPa typical absolute accuracy |

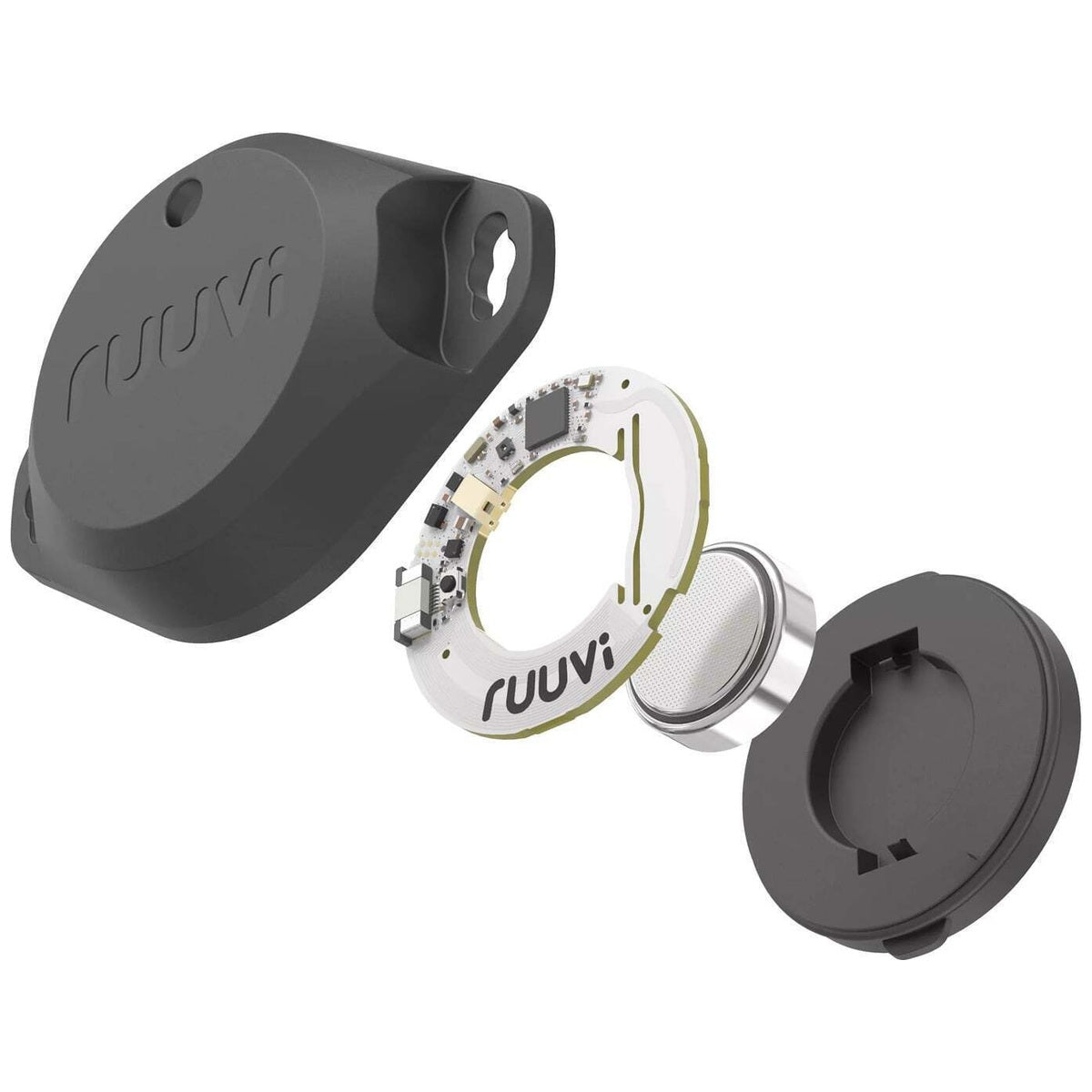

| Main chip | Nordic Semiconductor nRF52832 |
| Ambient sensor | Sensirion SHTC3, temperature and air humidity |
| Pressure sensor | Infineon DPS310 |
| Accelerometer | STMicroelectronics LIS2DH12 |
| Radio protocols | Bluetooth (default), Wirepas Mesh, Lumenradio Mesh, Bluerange Mesh, ANT, Other 2.4 GHz proprietary protocols |
| NFC | Embedded NFC™-A tag antenna |
| Enclosure material | Polycarbonate |
| Waterproofing | IP67, not suitable for continuous immersion. Use Goretex membrane sealed with waterproof tape for immersion. |
| Certifications | CE, FCC, ISED, TELEC, IFETEL, NOM, RTCA DO-160, RoHS, IP67 |
