15W Waterproof Wireless Charging, Recessed Surface Mount

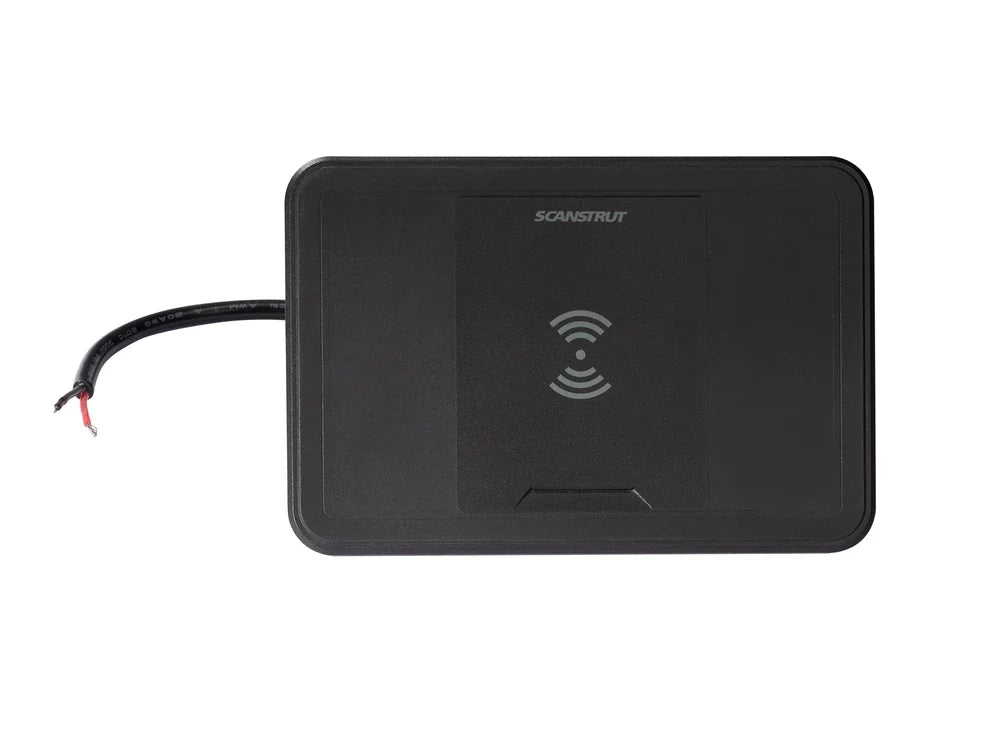

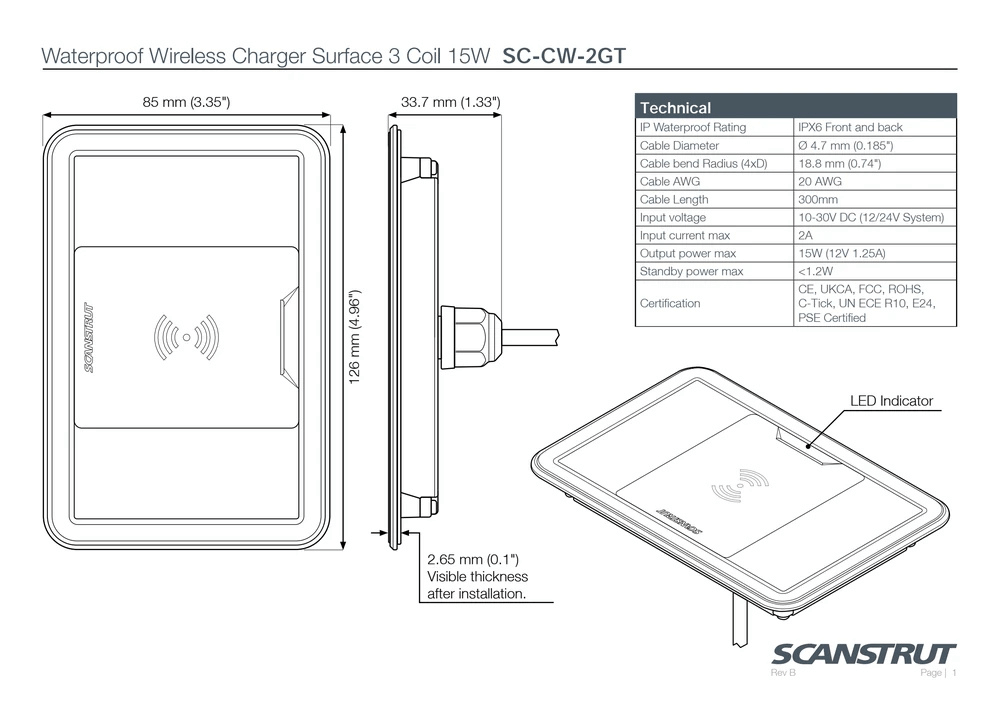

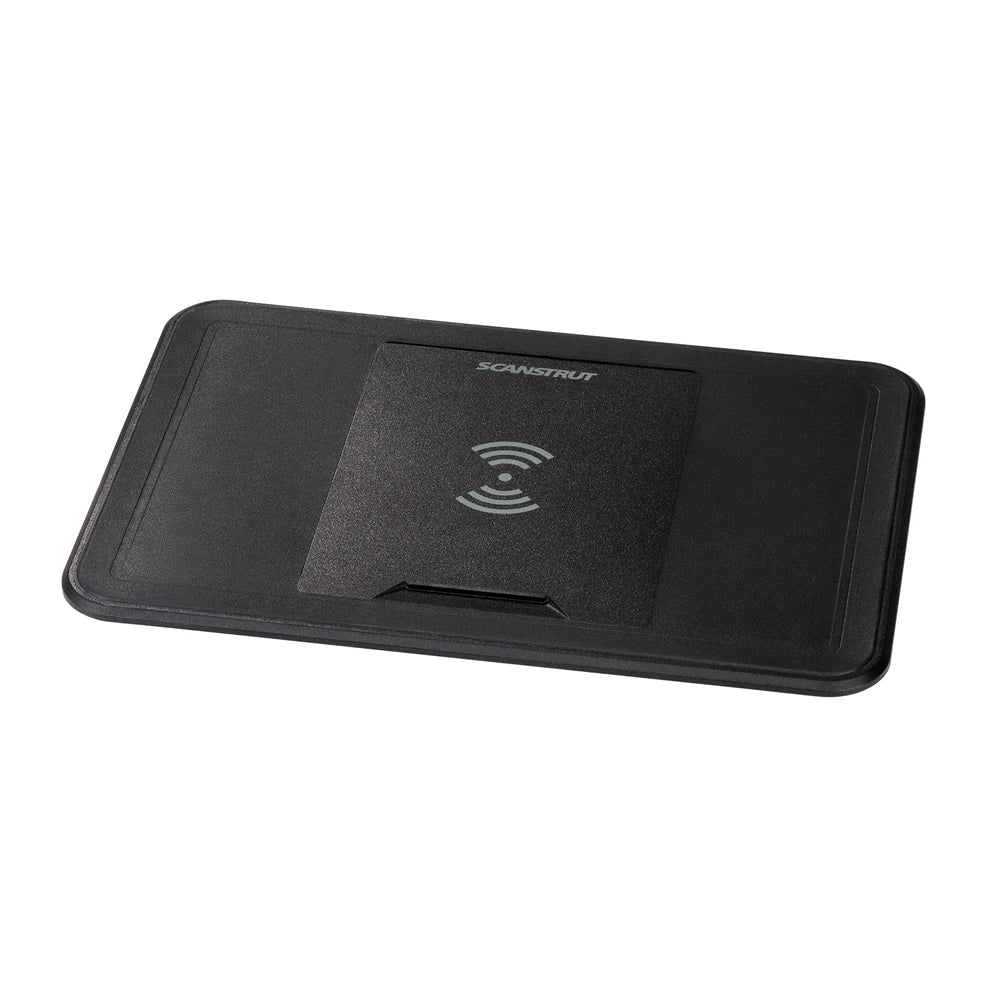

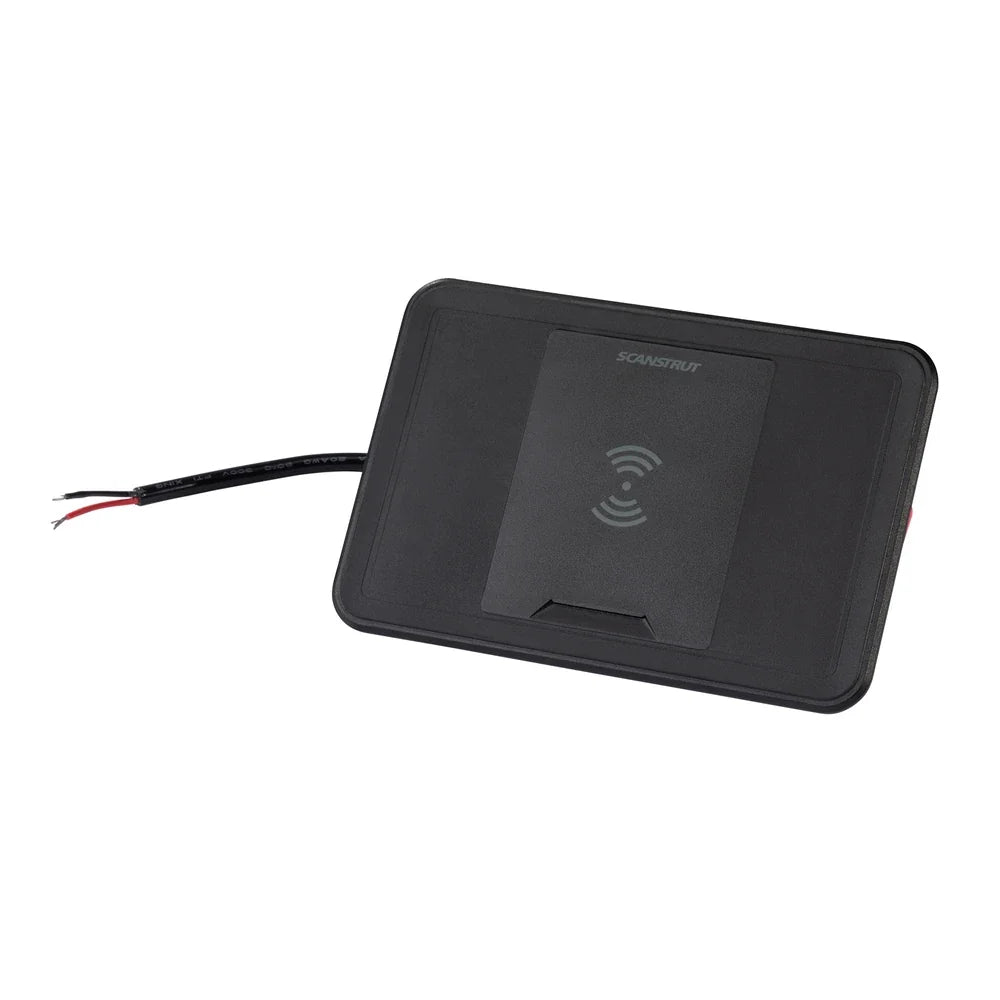

The Scanstrut ROKK Wireless Surface 3-Coil is a waterproof wireless phone charger for 12V and 24V electrical systems, designed to be recessed into a console or bulkhead. It accepts a 10-30V DC input and delivers 15W (12V, 1.25A) of Qi-compatible charging.

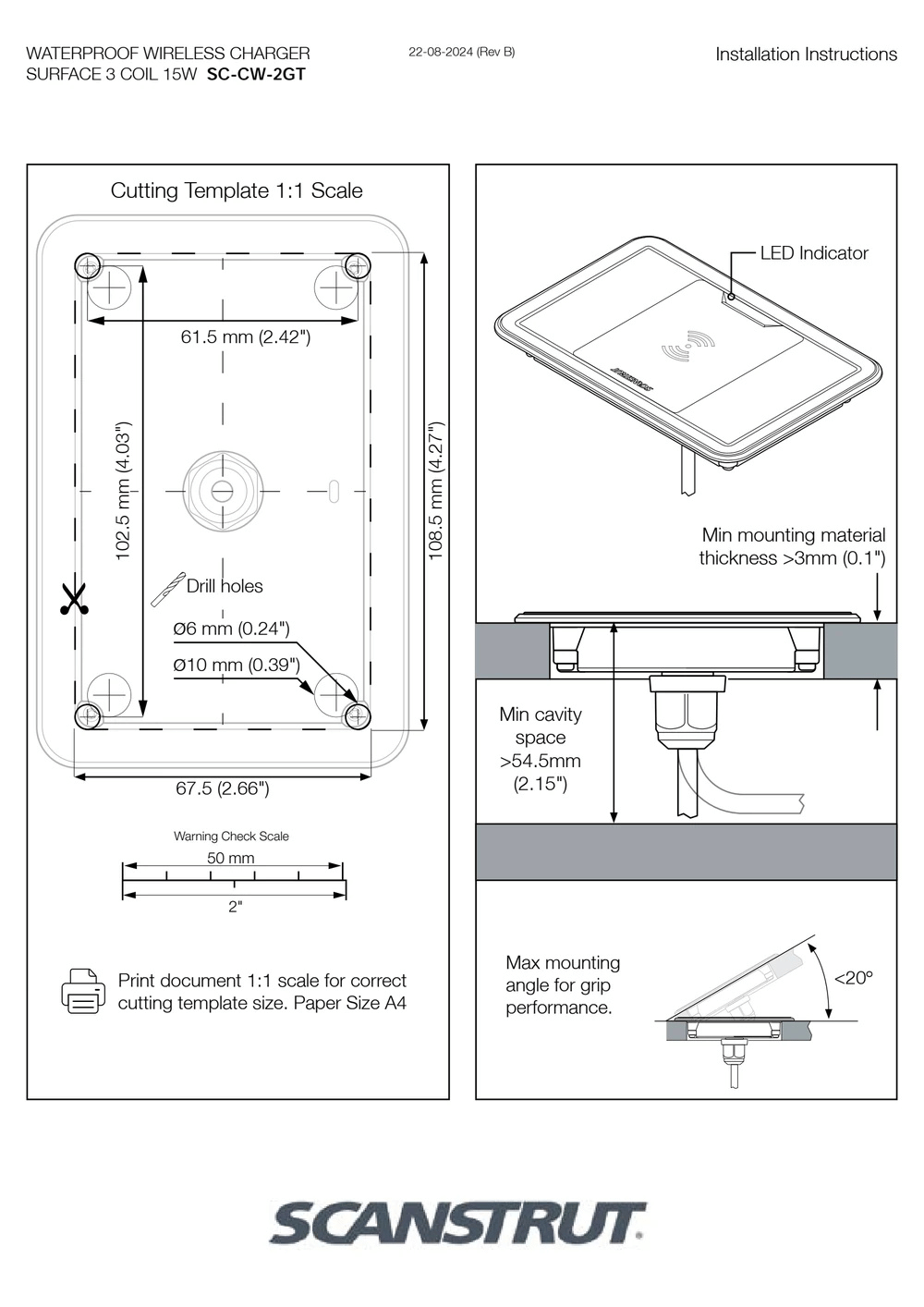

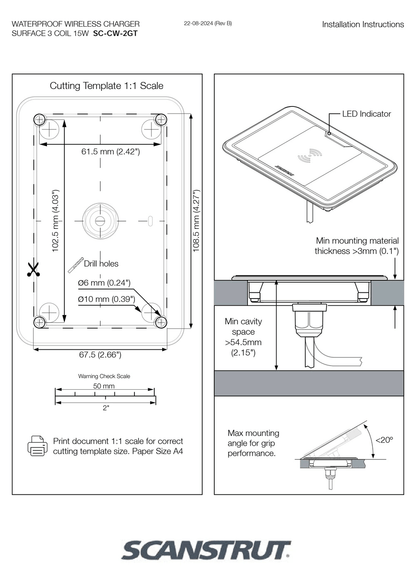

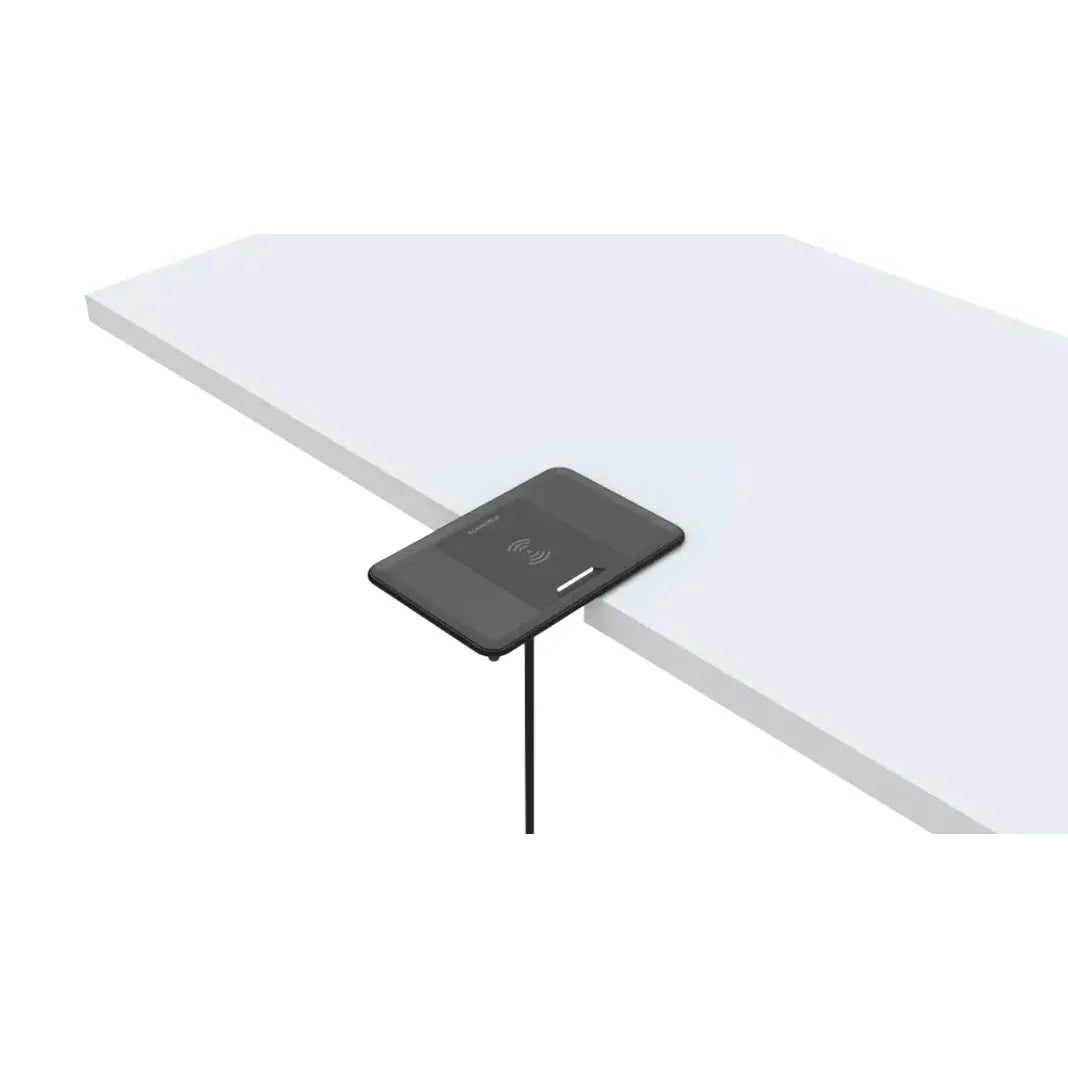

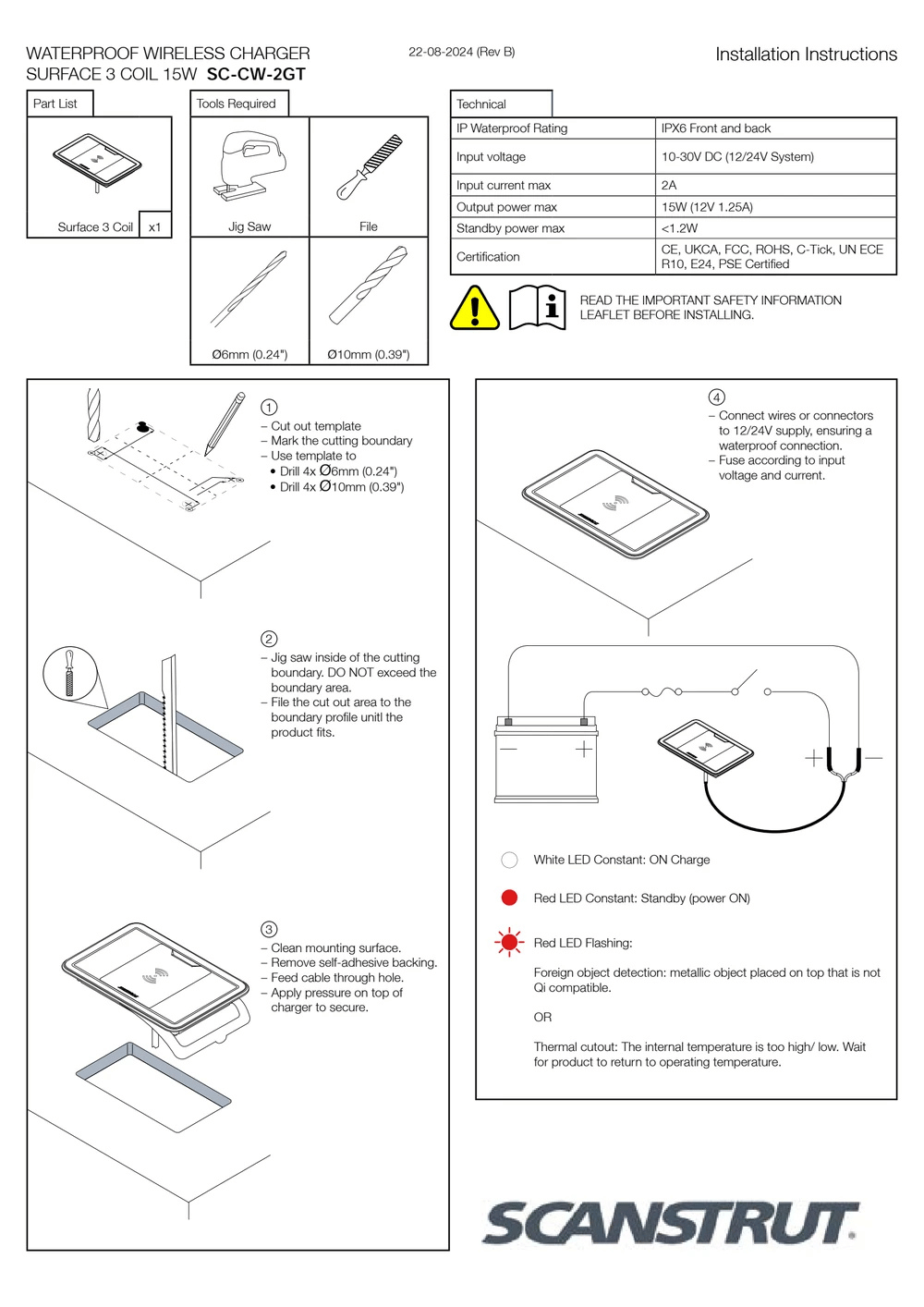

Three overlapping charging coils maximise the active charging area, so no alignment is needed - the phone charges wherever it is placed. It mounts using 3M tape on the underside, routed into the surface with Scanstrut's template, and needs no sealant. The unit includes reverse polarity protection, foreign object detection, a rear installation light for testing power and wiring, and an LED that shows charging status. It is IPX6 waterproof.
Key Features
15W (12V, 1.25A) Qi-compatible wireless charging
10-30V DC input suits 12V and 24V systems
IPX6 waterproof
Three overlapping charging coils - no alignment needed
Recessed surface mount, 3M tape fixing, no sealant required
Reverse polarity protection and foreign object detection
