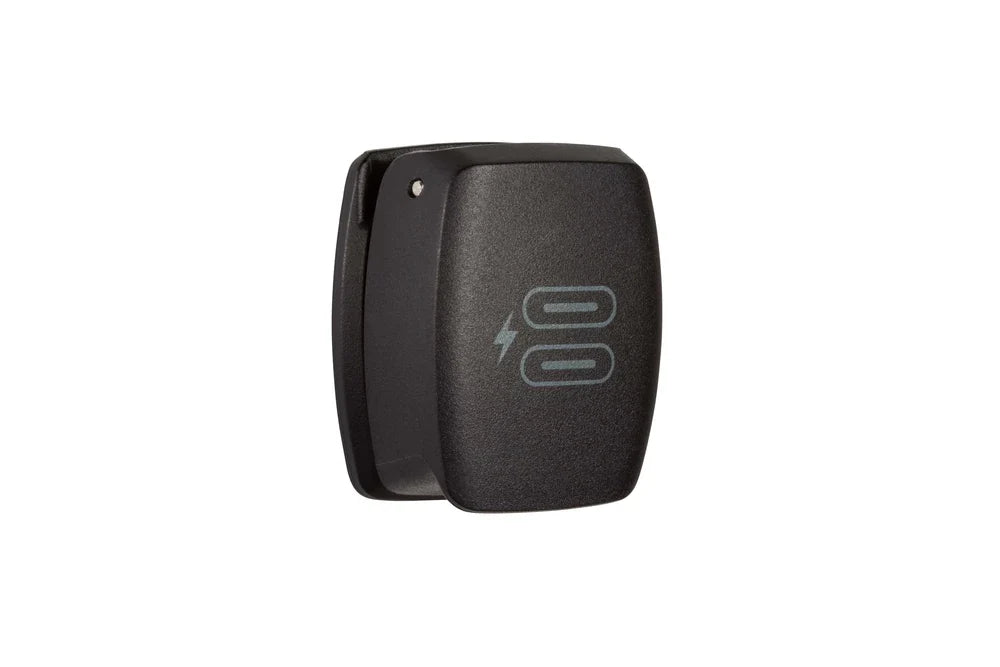

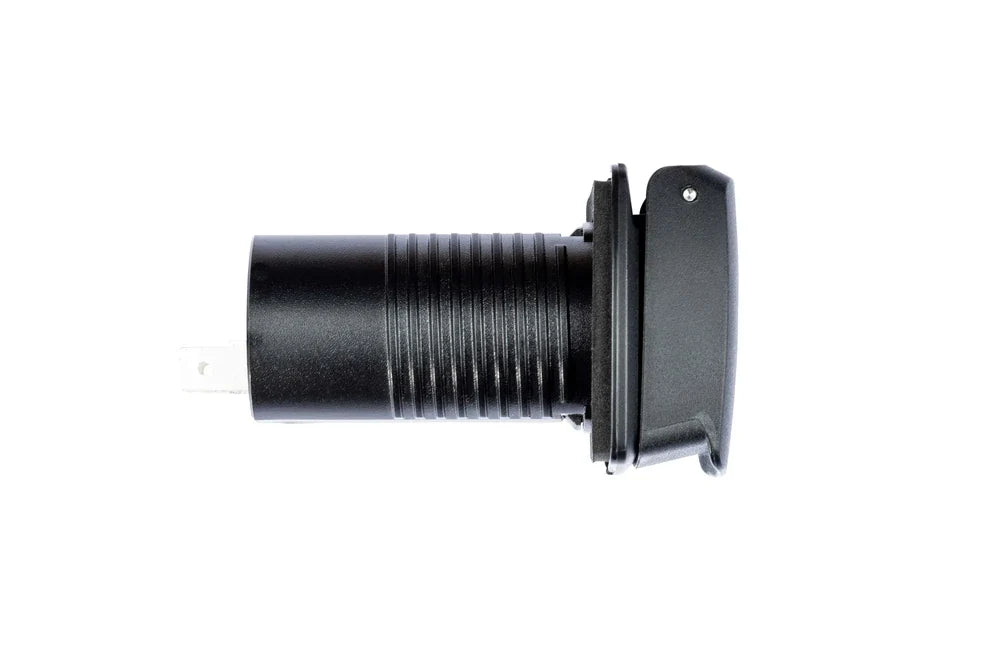

Flip Pro Max steps up to two USB-C ports for charging modern laptops, tablets and phones directly from a 12V or 24V system. It's supplied as standard with an optional front-fit bezel, so it can be mounted from behind the panel or from the front.

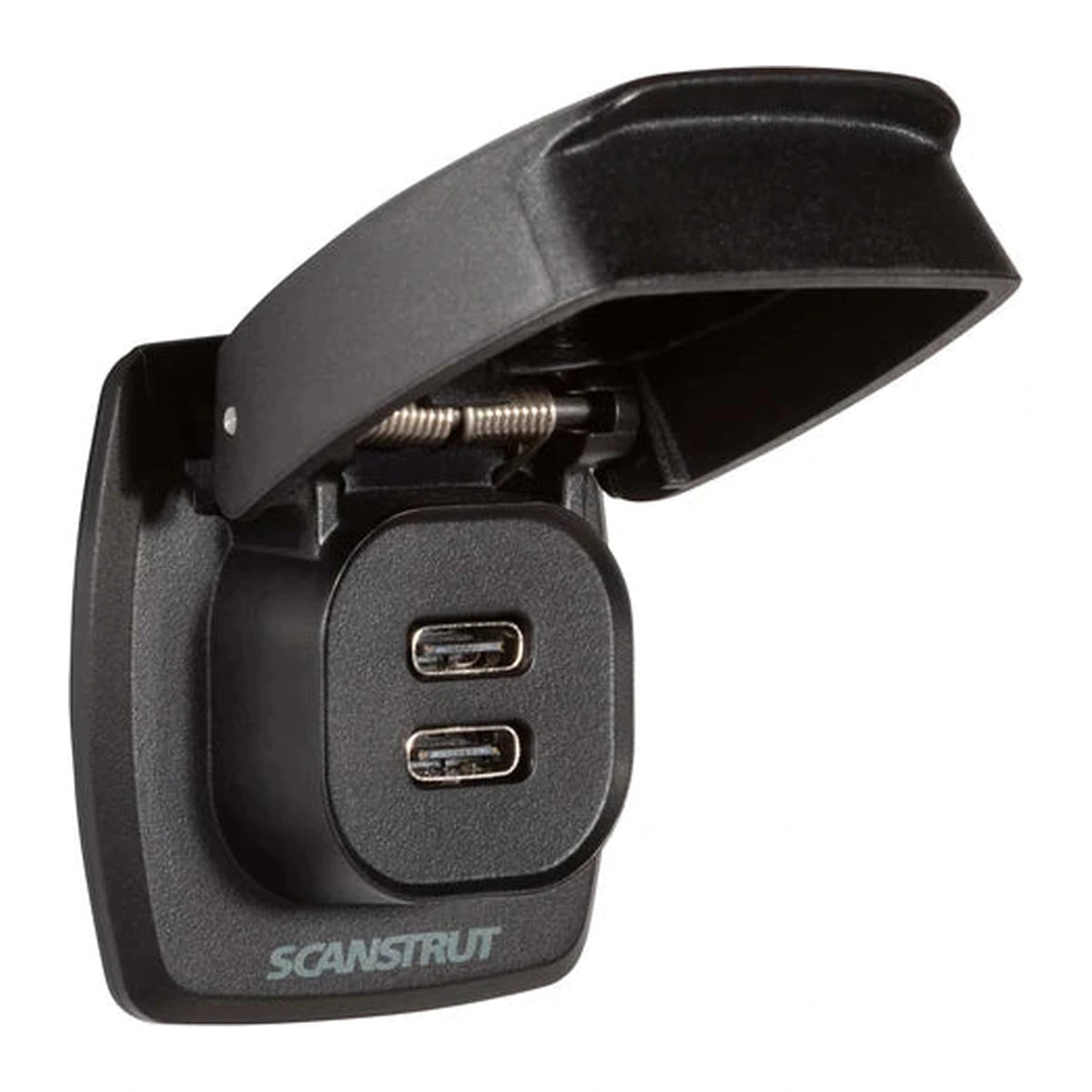

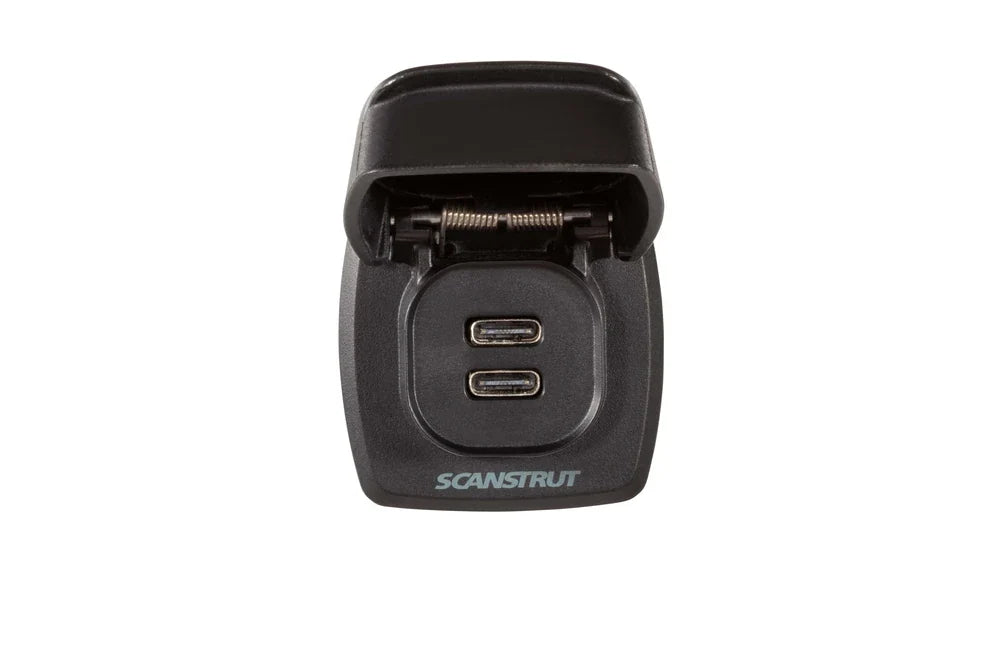

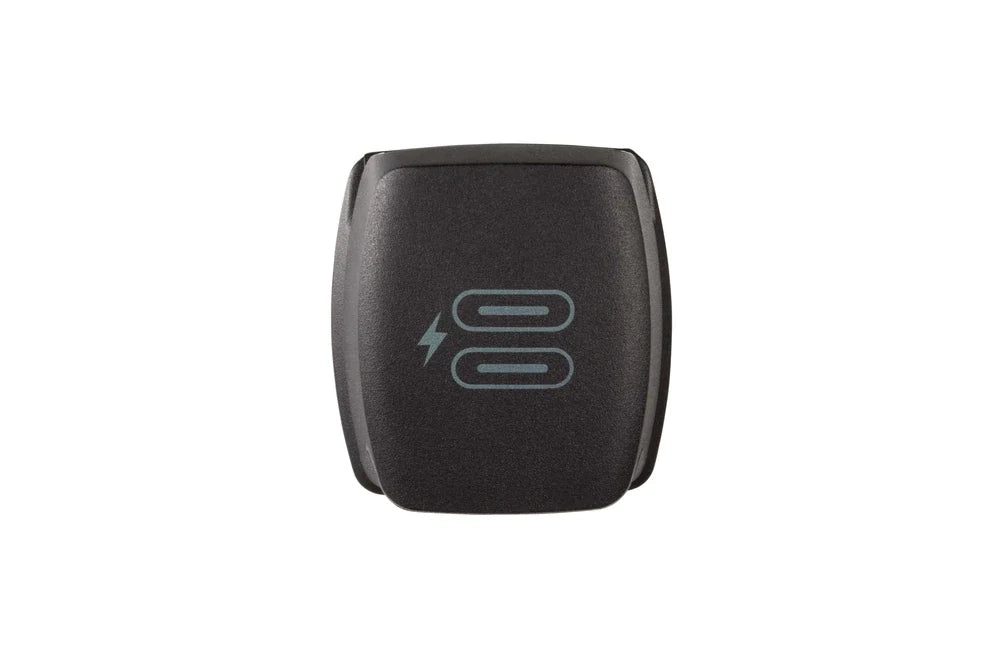

A spring-loaded cap keeps the ports sealed when not in use and locks open while charging. The housing is UV resistant with a 316 stainless steel hinge and spring for long-term outdoor use.
Key Features
Two USB-C ports
Standard Ø32mm (1.25") mounting hole

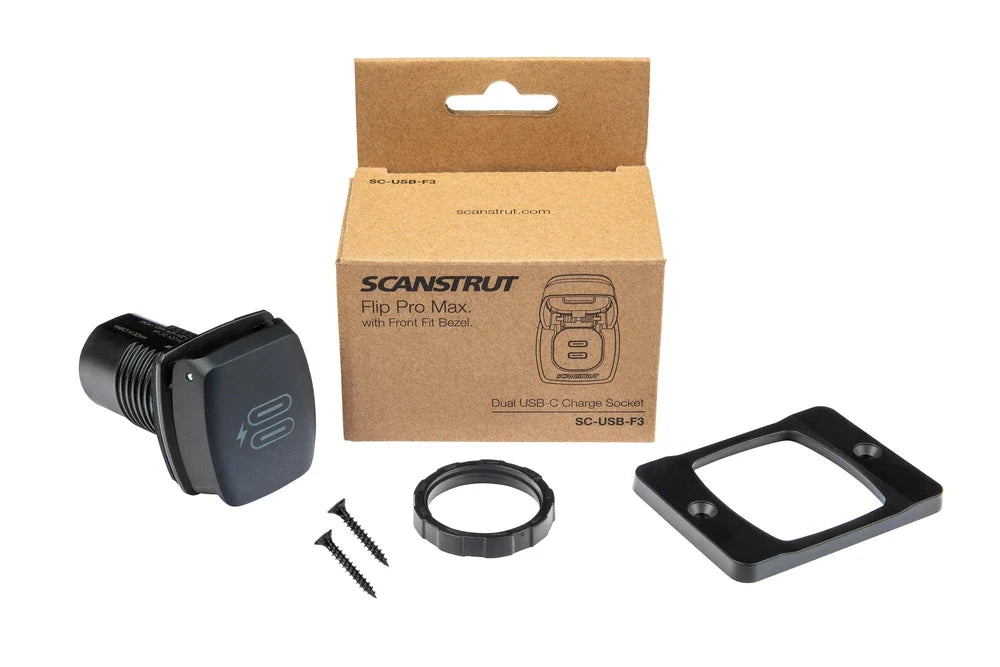

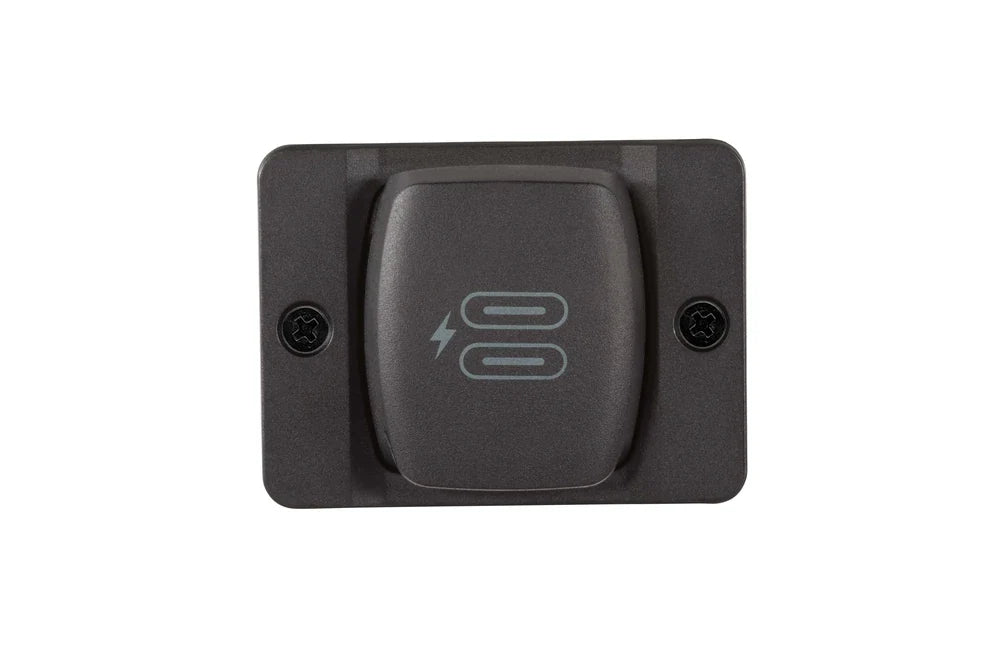

Supplied with an optional front-fit bezel
IPX4 waterproof with the cover closed
316 stainless steel hinge and spring, UV resistant housing

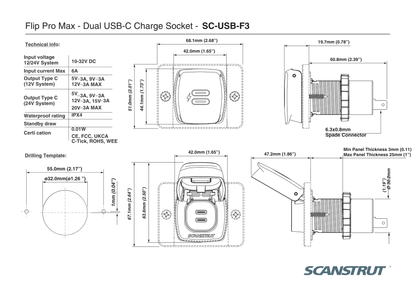

Specifications
Input Voltage
10-32V DC (12V/24V system)
Output
Up to 36W total on 12V systems, up to 60W total on 24V systems
Input Current
Max 6A (10A fuse recommended)

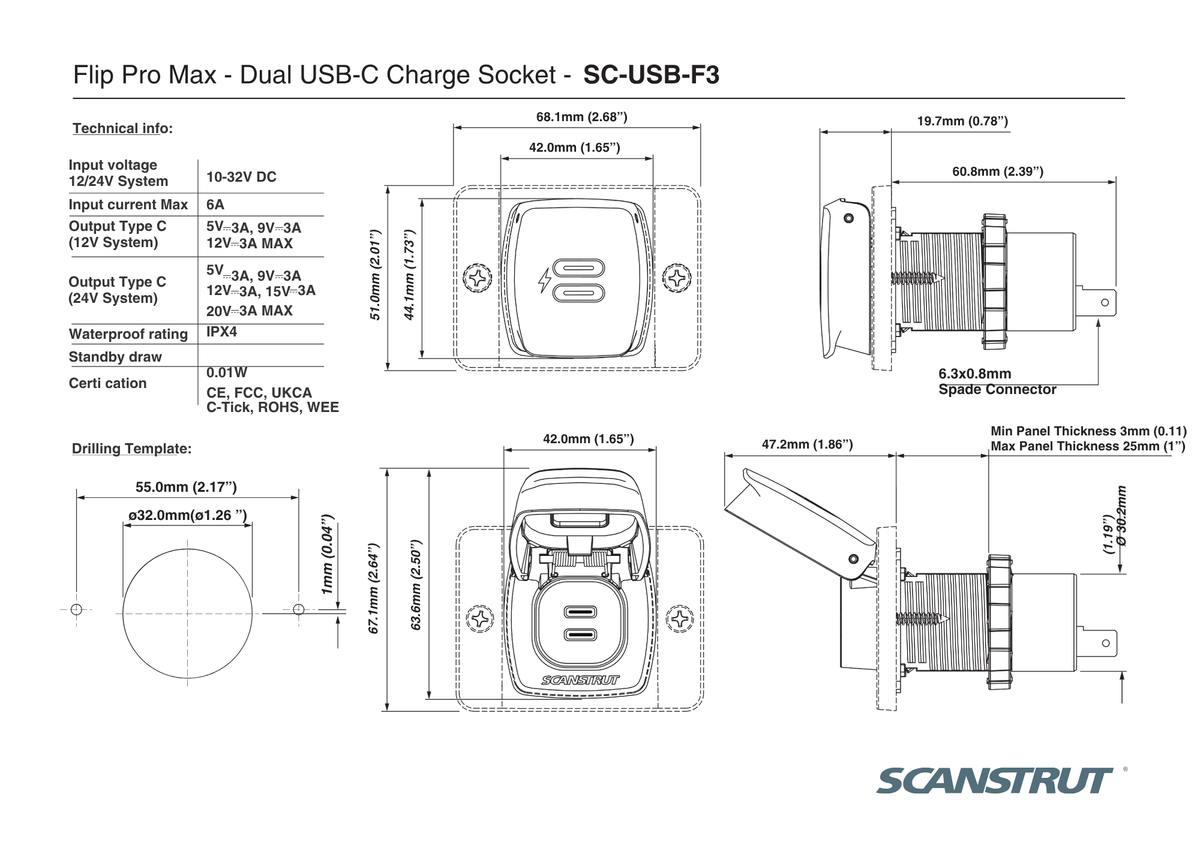

Cut-out
Ø32mm (1.25") hole saw
Standby Draw
0.01W
Waterproofing
IPX4 with cover closed
Materials
316 stainless steel hinge and spring, UV resistant housing
