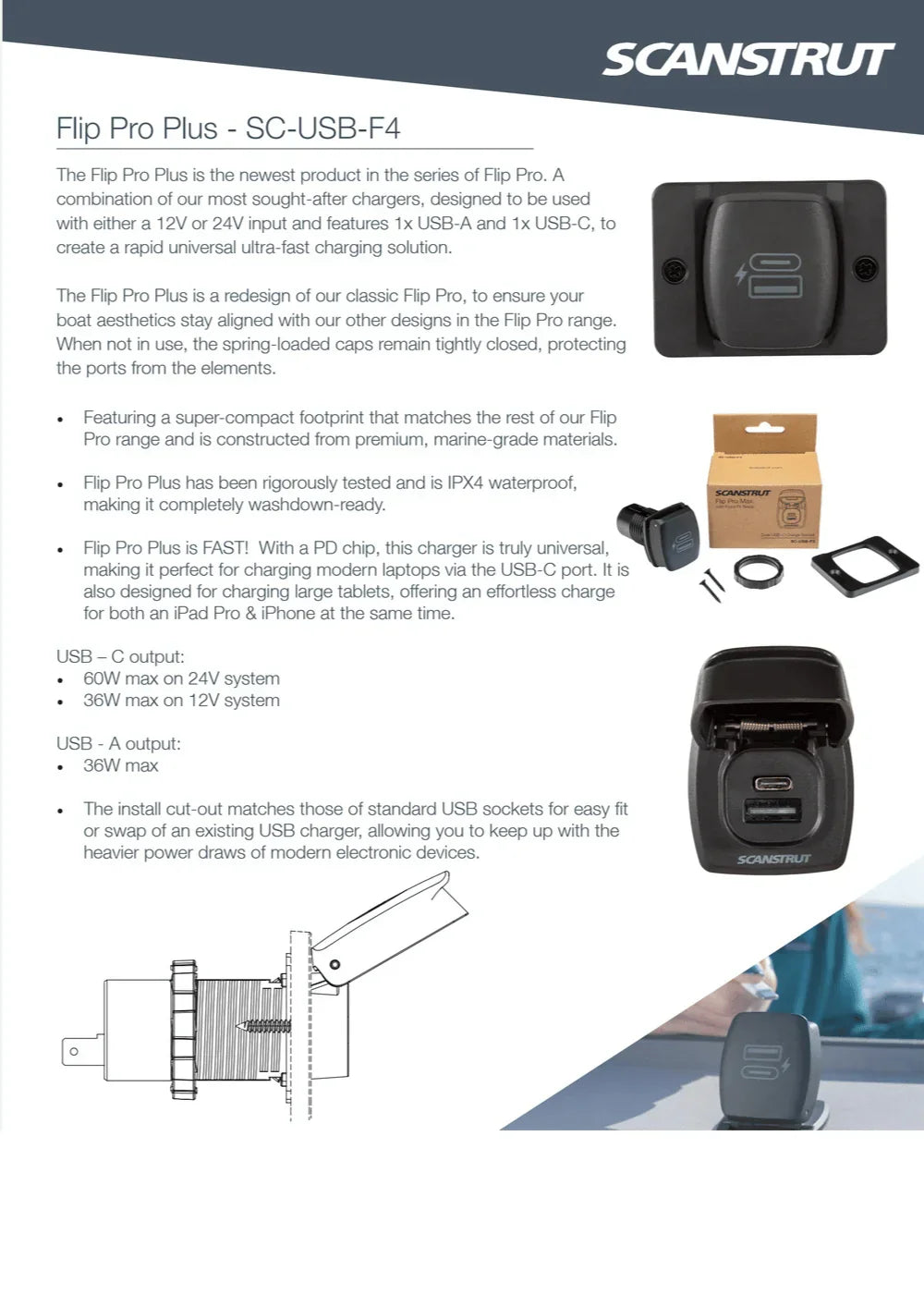

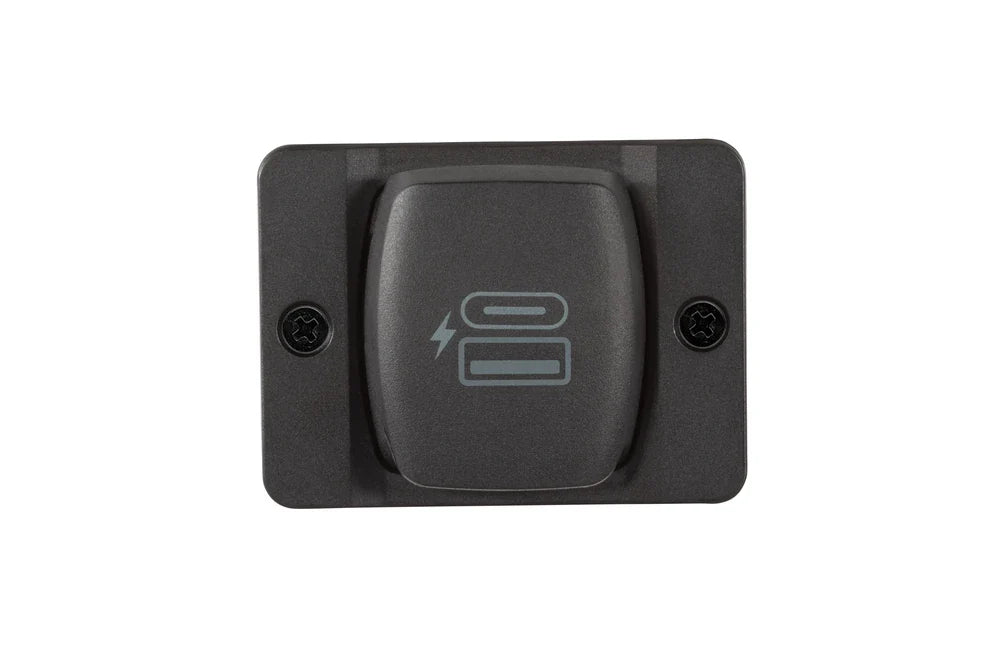

Flip Pro Plus pairs one USB-A port with one USB-C port for 12V or 24V systems and is supplied with a front mount bezel, sharing its cut-out with the Flip Pro Max and Multi sockets for a consistent look across your panel.

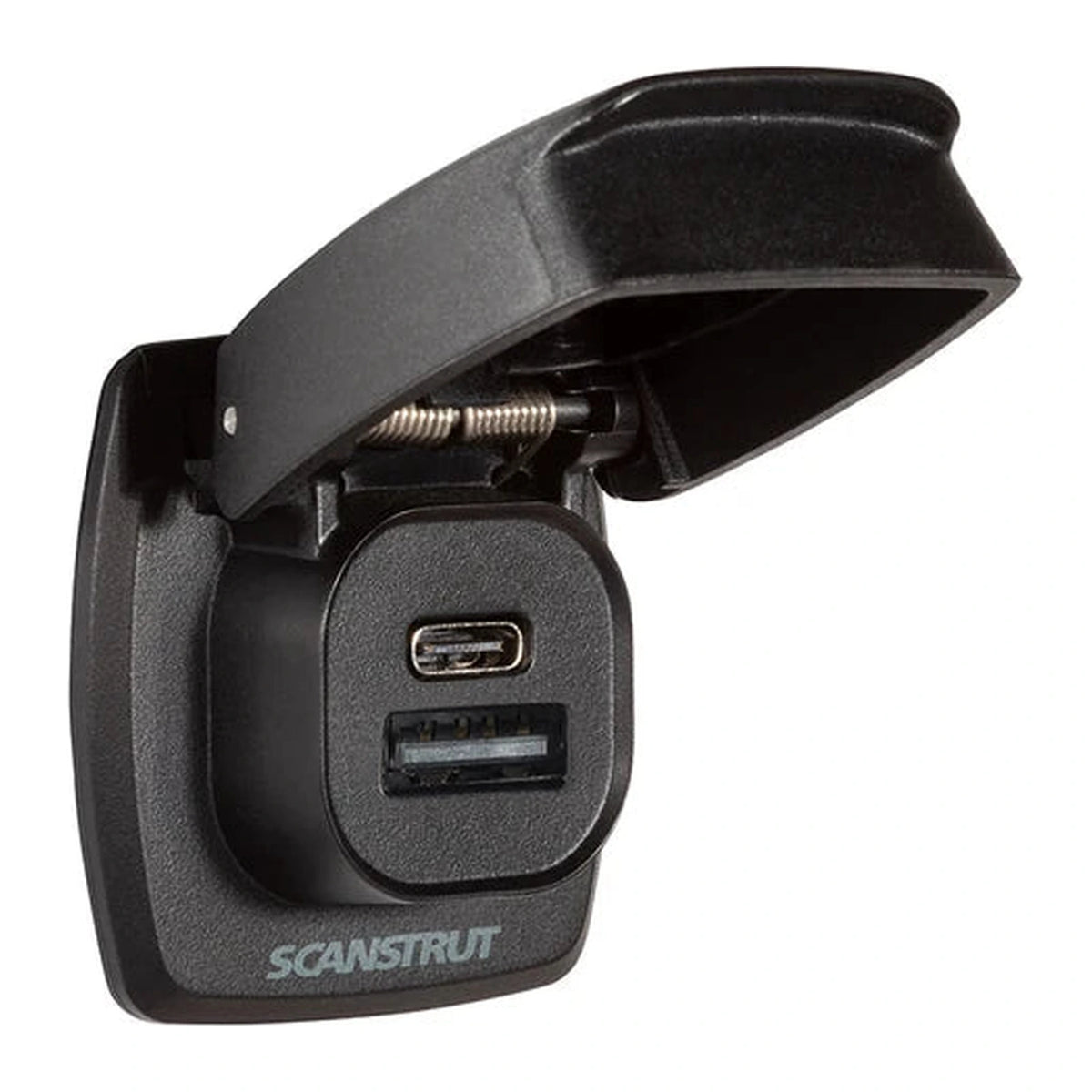

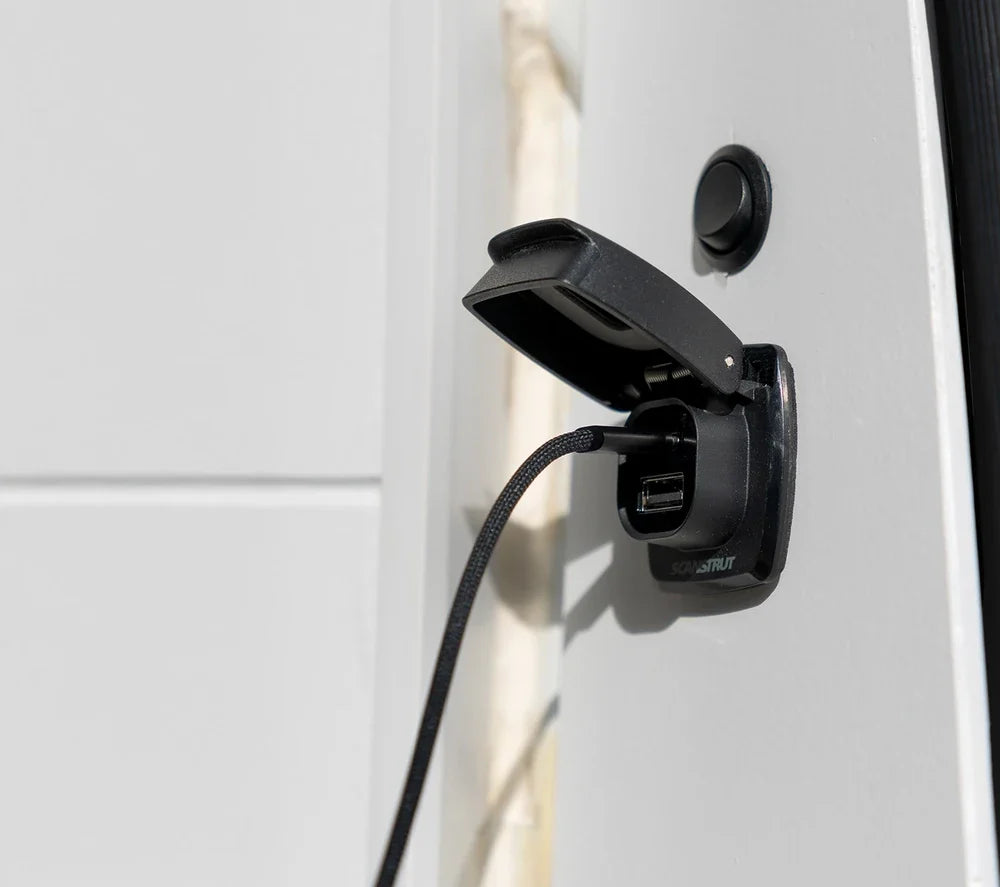

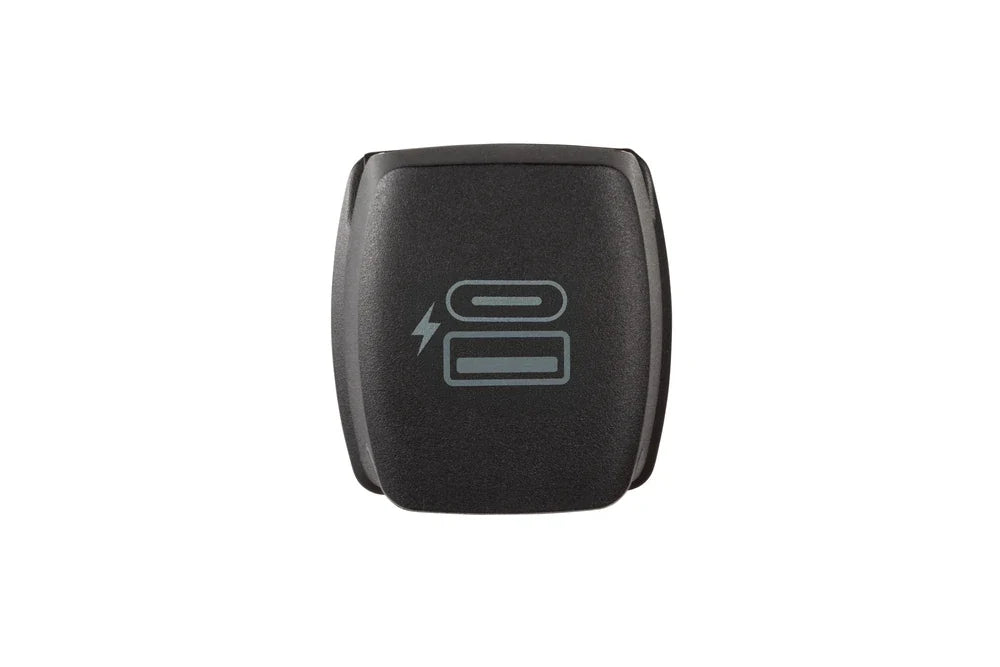

A spring-loaded cap keeps the ports sealed when not in use and locks open while charging. The housing is UV resistant with a 316 stainless steel hinge and spring for long-term outdoor use.
Key Features
One USB-A port and one USB-C port
Standard Ø32mm (1.25") mounting hole

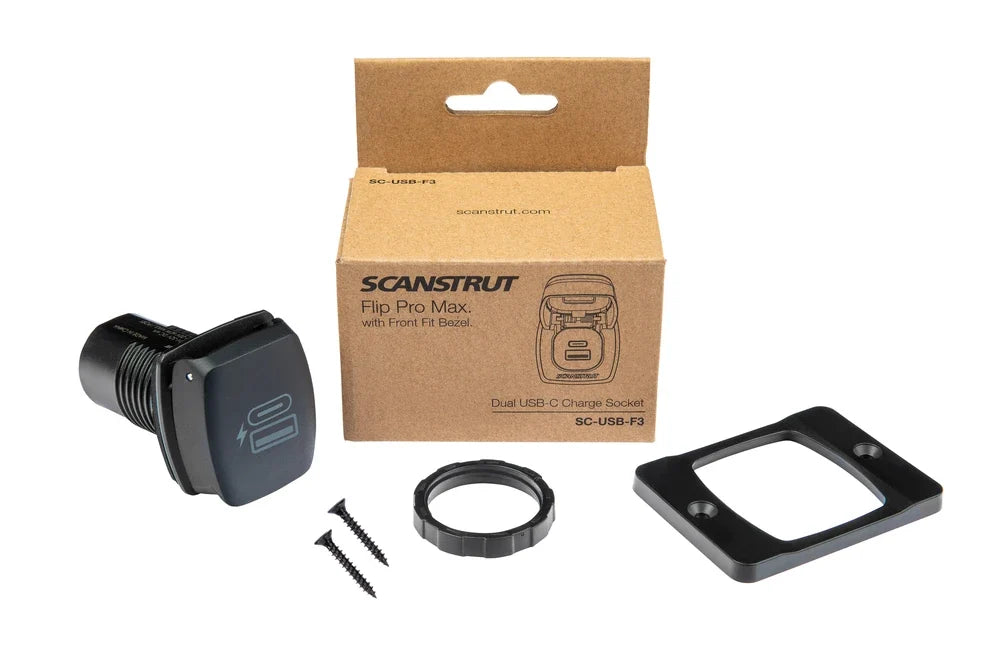

Supplied with a front mount bezel
IPX4 waterproof with the cover closed
316 stainless steel hinge and spring, UV resistant housing
Specifications
Input Voltage
10-32V DC (12V/24V system)
Output
Up to 36W total on 12V systems, up to 60W total on 24V systems
Input Current
Max 6A (10A fuse recommended)
Cut-out
Ø32mm (1.25") hole saw
Standby Draw
0.01W
Waterproofing
IPX4 with cover closed
Materials
316 stainless steel hinge and spring, UV resistant housing
