Scanstrut - 12/24V - TILE - Dual USB-C Socket - Black

Scanstrut - 12/24V - TILE - Dual USB-C Socket - Black

$94.95 AUD
$94.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

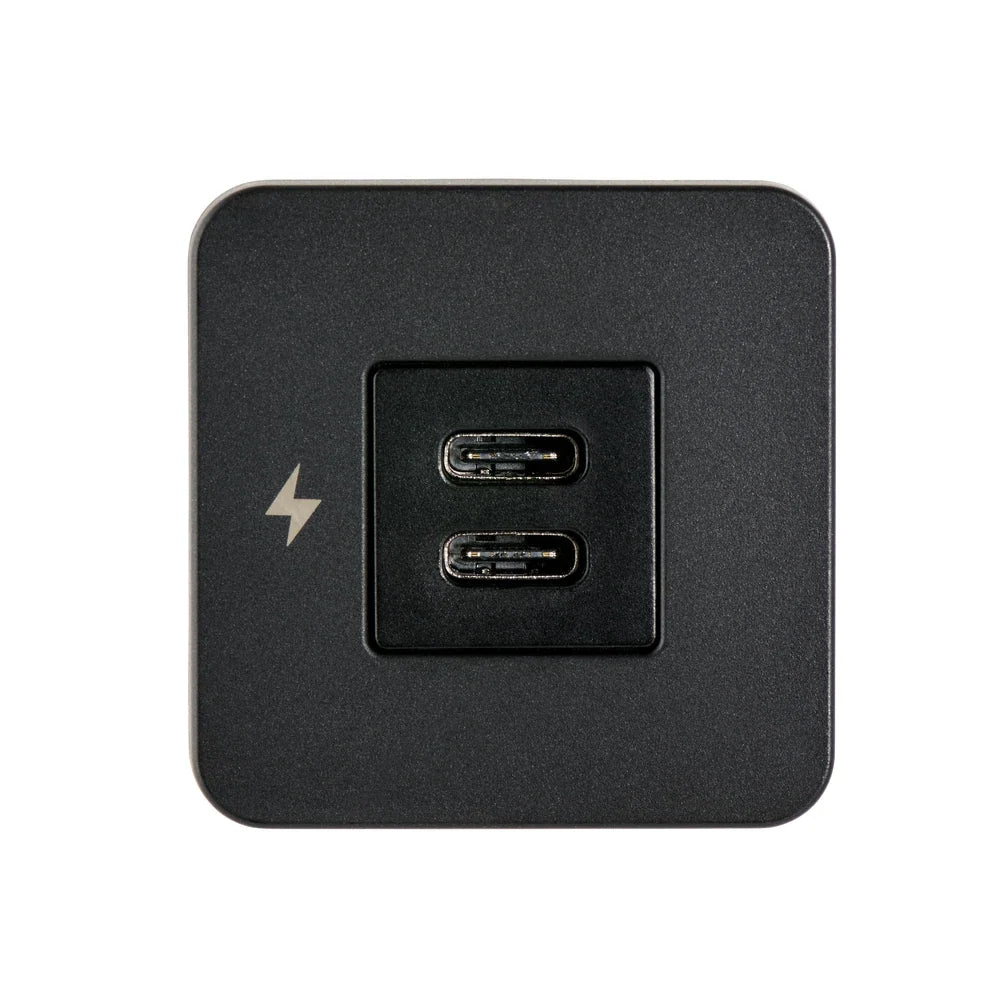

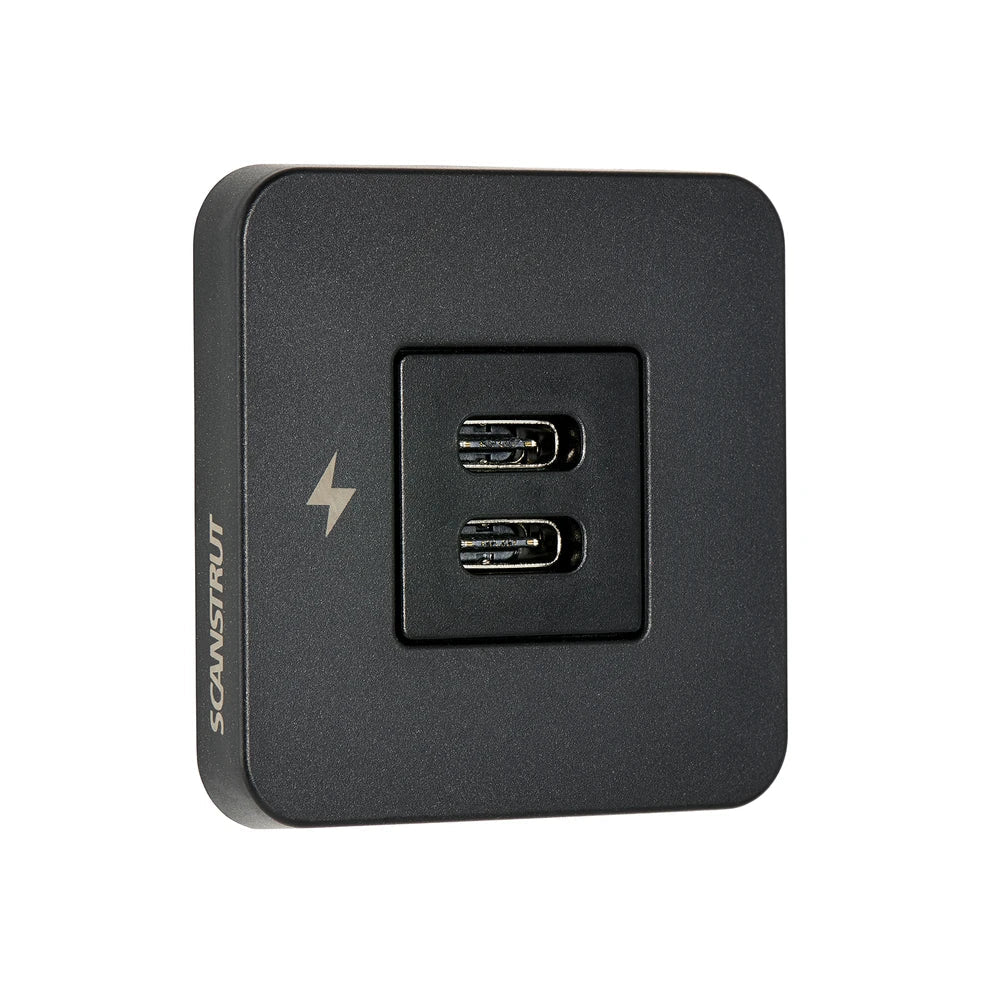

Scanstrut TILE Dual USB-C Socket - Black

Compact Interior Fast-Charging Socket

The TILE Dual USB-C socket is a compact, flush-mount charging point for caravan, motorhome and cabin interiors, finished with a matte black bezel and designed for the latest USB-C phones, tablets and laptops.

It works on 12V or 24V systems, charging at up to 36W on a 12V system or up to 60W on a 24V system, and can charge two devices at once. The electronics are conformal-coated. TILE is designed for interior use only and should not be installed where it may be exposed to water.

Key Features

  • Two USB-C ports
  • Up to 36W on 12V systems, up to 60W on 24V systems
  • Standard 29mm (1.14") hole saw installation
  • Matte black bezel
  • Ultra-low 0.01W standby draw
  • Interior use only - not for wet locations

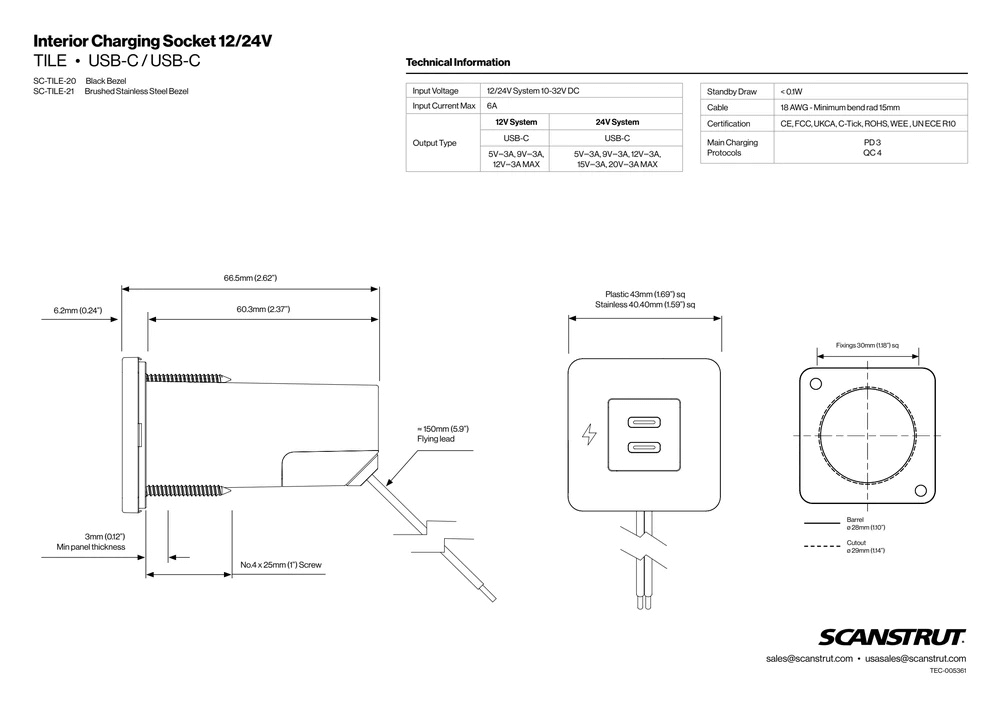

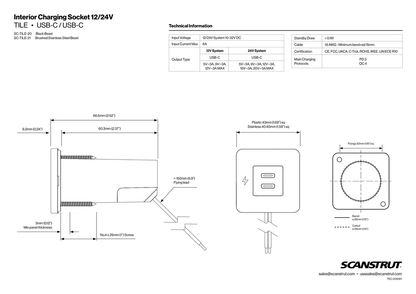

Specifications

Model SC-TILE-20
Input Voltage 10-32V DC (12V/24V system)
Output Up to 36W total on 12V systems, up to 60W total on 24V systems
Output Per Port USB-C: 5V, 9V, 12V at 3A max (12V system); 5V, 9V, 12V, 15V, 20V at 3A max (24V system)
Input Current Max 6A (10A fuse recommended)
Cut-out 29mm (1.14") hole saw
Standby Draw 0.01W
Bezel Finish Black
Certifications CE, FCC, UKCA, C-Tick, RoHS, WEE
Installation Interior use only - do not install where exposed to water
