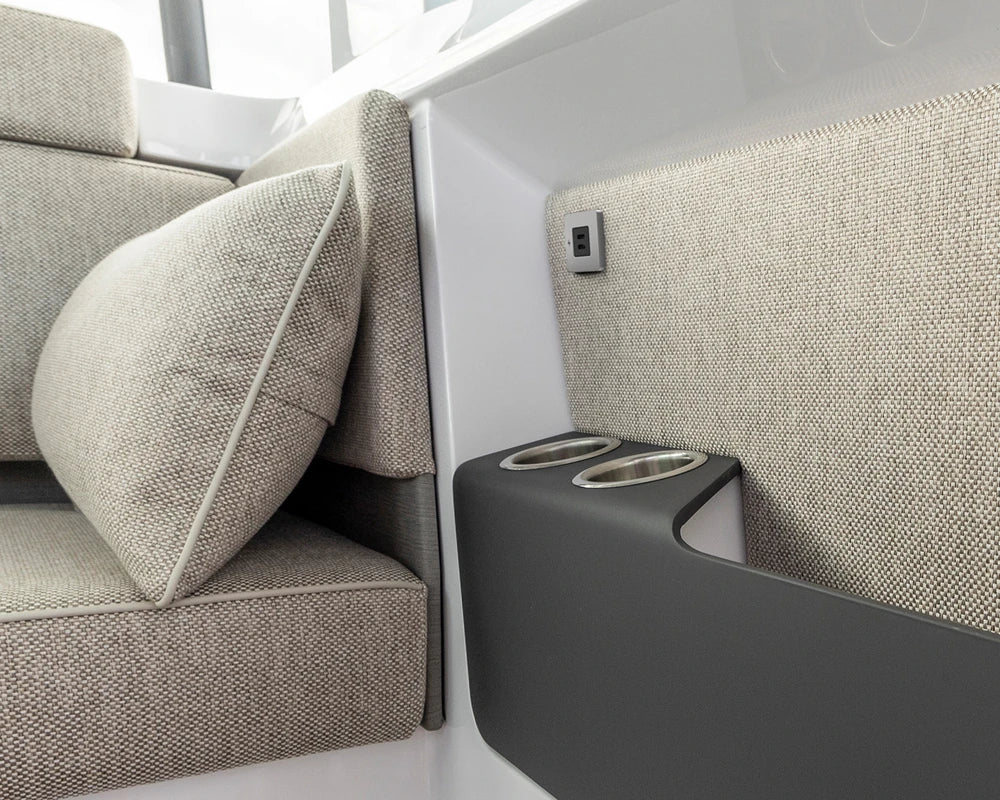

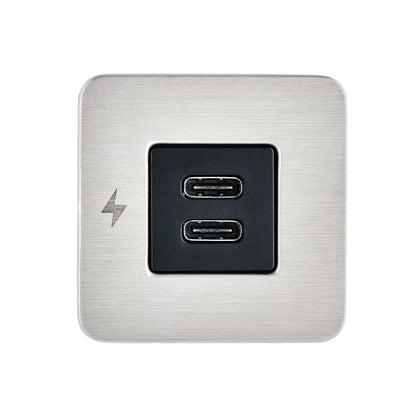

The TILE Dual USB-C socket is a compact, flush-mount charging point for caravan, motorhome and cabin interiors, finished with a 316 brushed stainless steel bezel and optimised for the latest USB-C phones, tablets and laptops.
It automatically adapts to 12V or 24V systems and steps up its output accordingly. TILE is designed for interior use only and should not be installed where it may be exposed to water.
Key Features

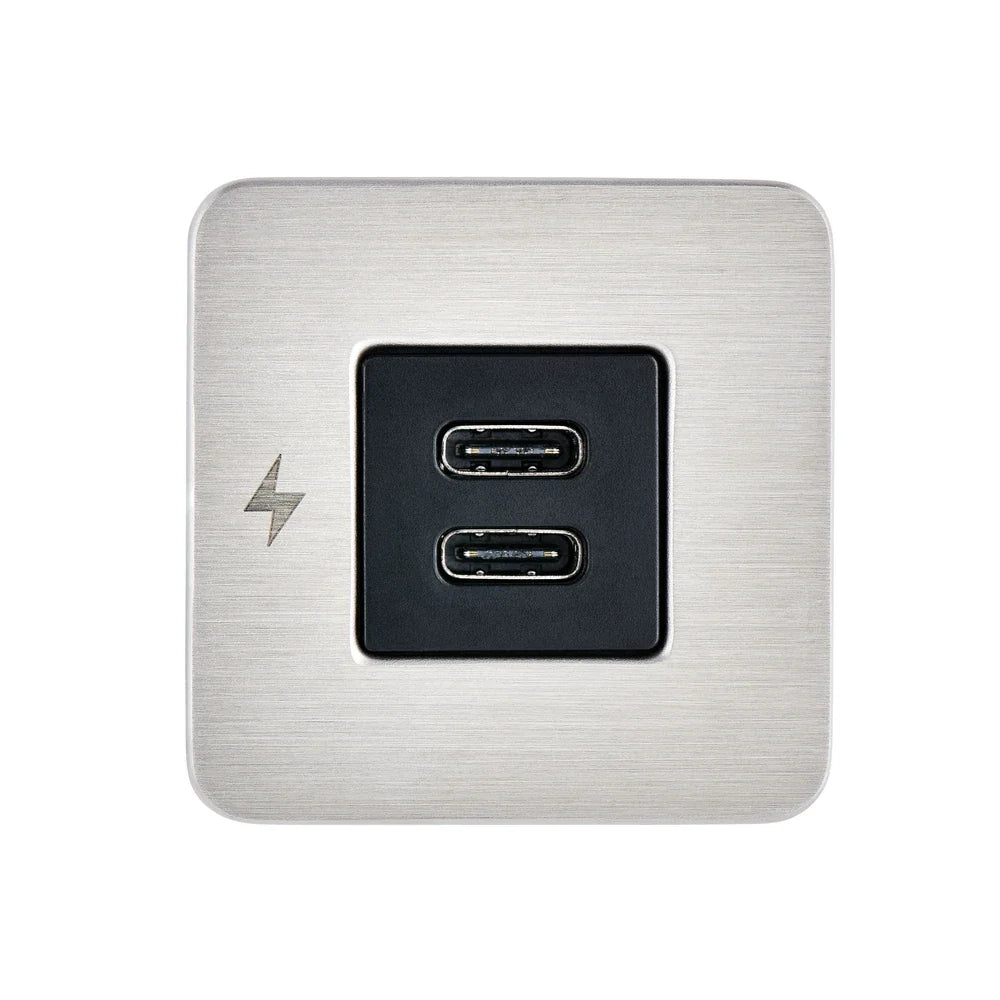

Two USB-C ports
Compact 40mm (1.57") footprint, standard 29mm (1.14") hole saw

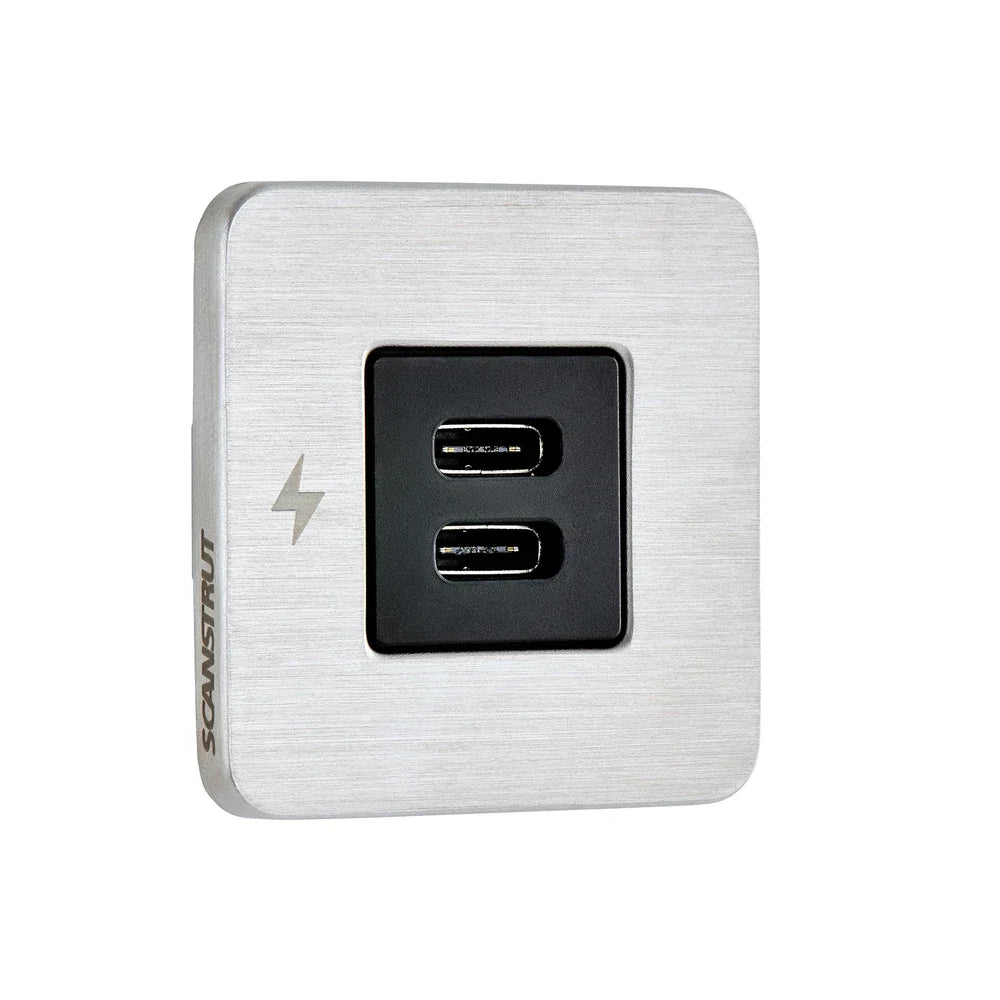

316 brushed stainless steel bezel
Ultra-low 0.01W standby draw
Interior use only - not for wet locations

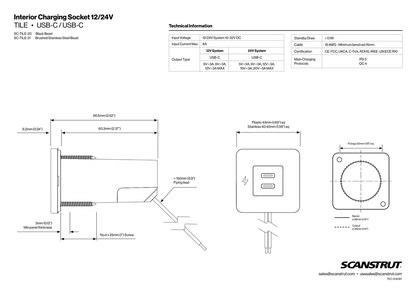

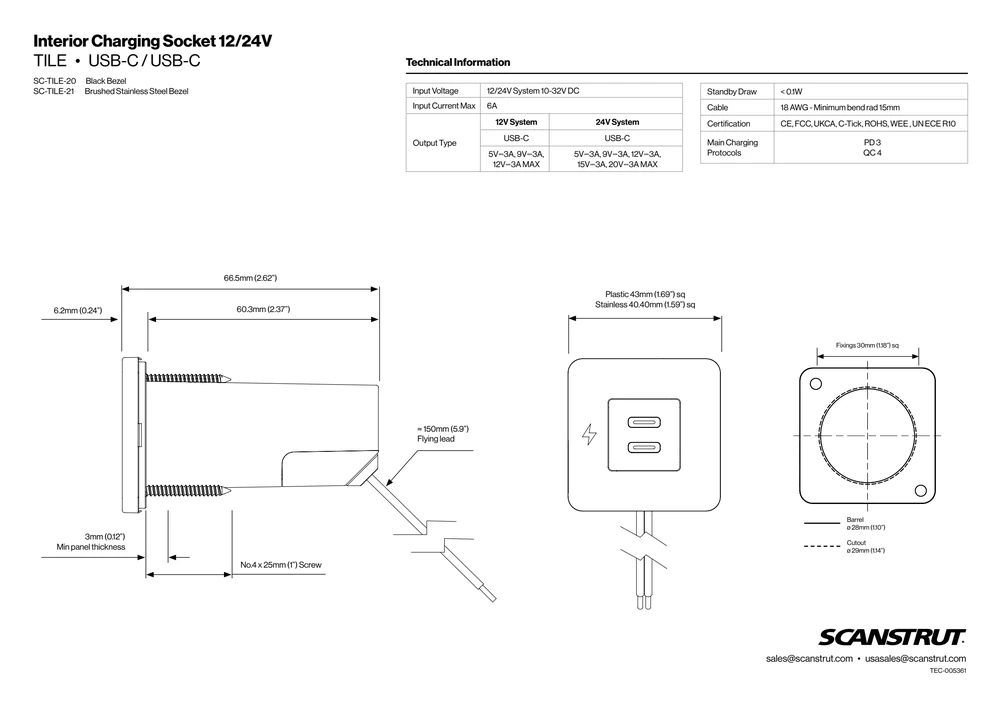

Specifications
Input Voltage
10-32V DC (12V/24V system)
Output
Up to 36W total on 12V systems, up to 60W total on 24V systems
Input Current
Max 6A (10A fuse recommended)
Cut-out
29mm (1.14") hole saw
Footprint
40mm (1.57")
Standby Draw
0.01W
Bezel Finish
316 brushed stainless steel

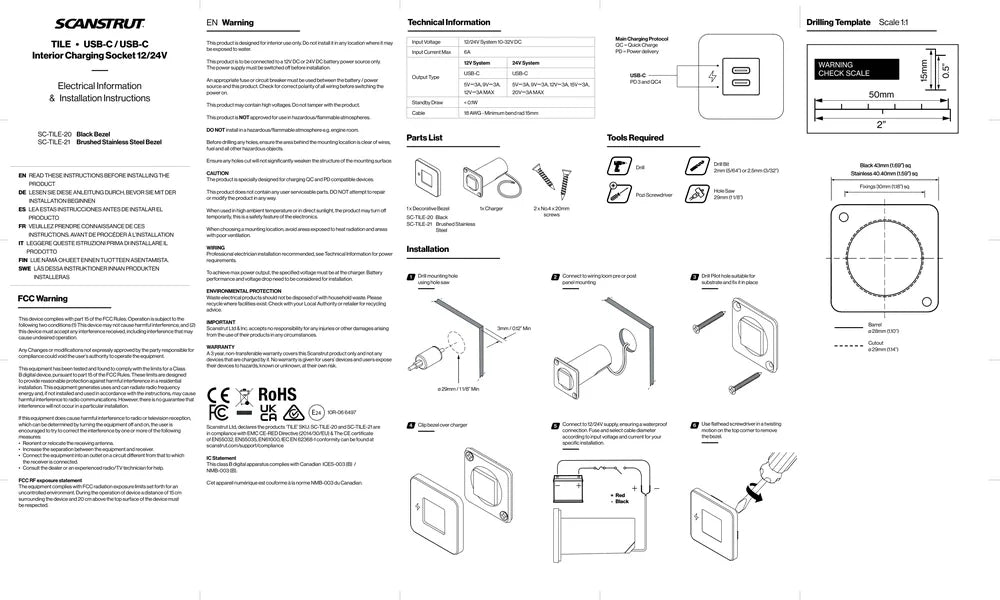

Installation
Interior use only - do not install where exposed to water
