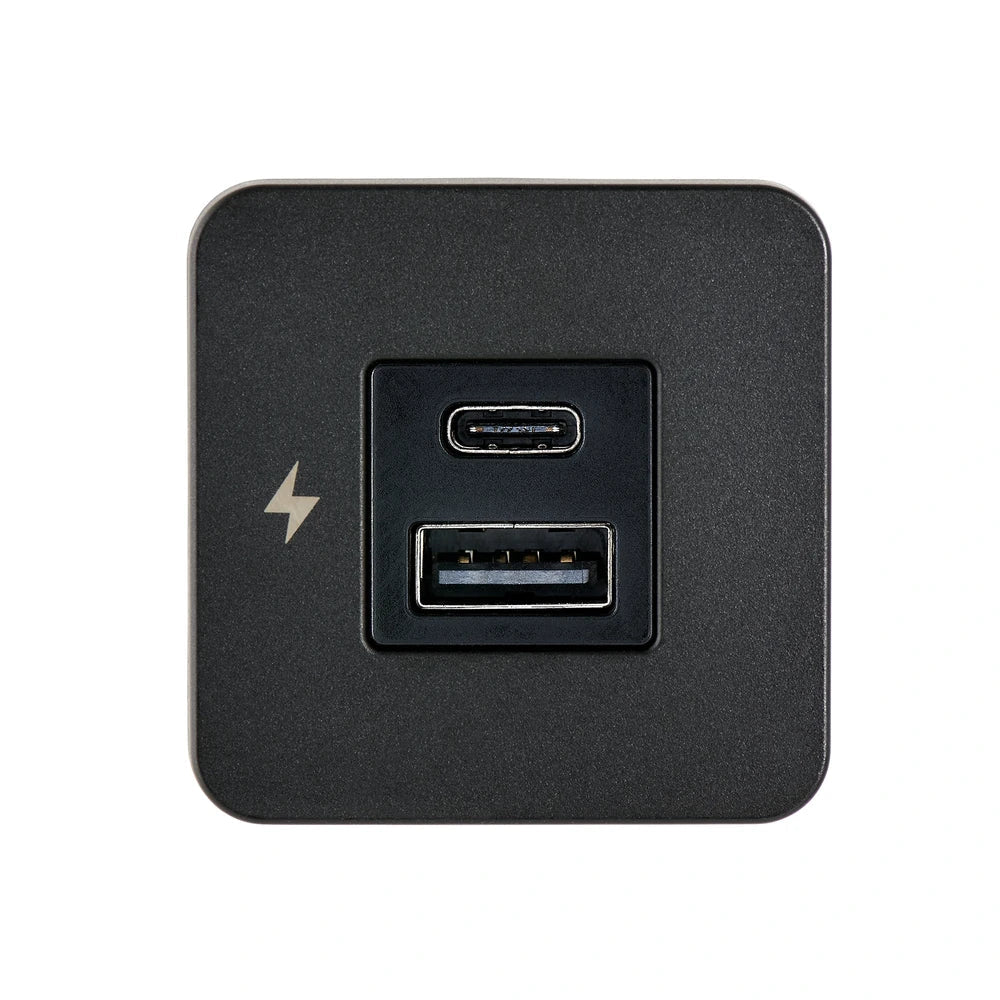

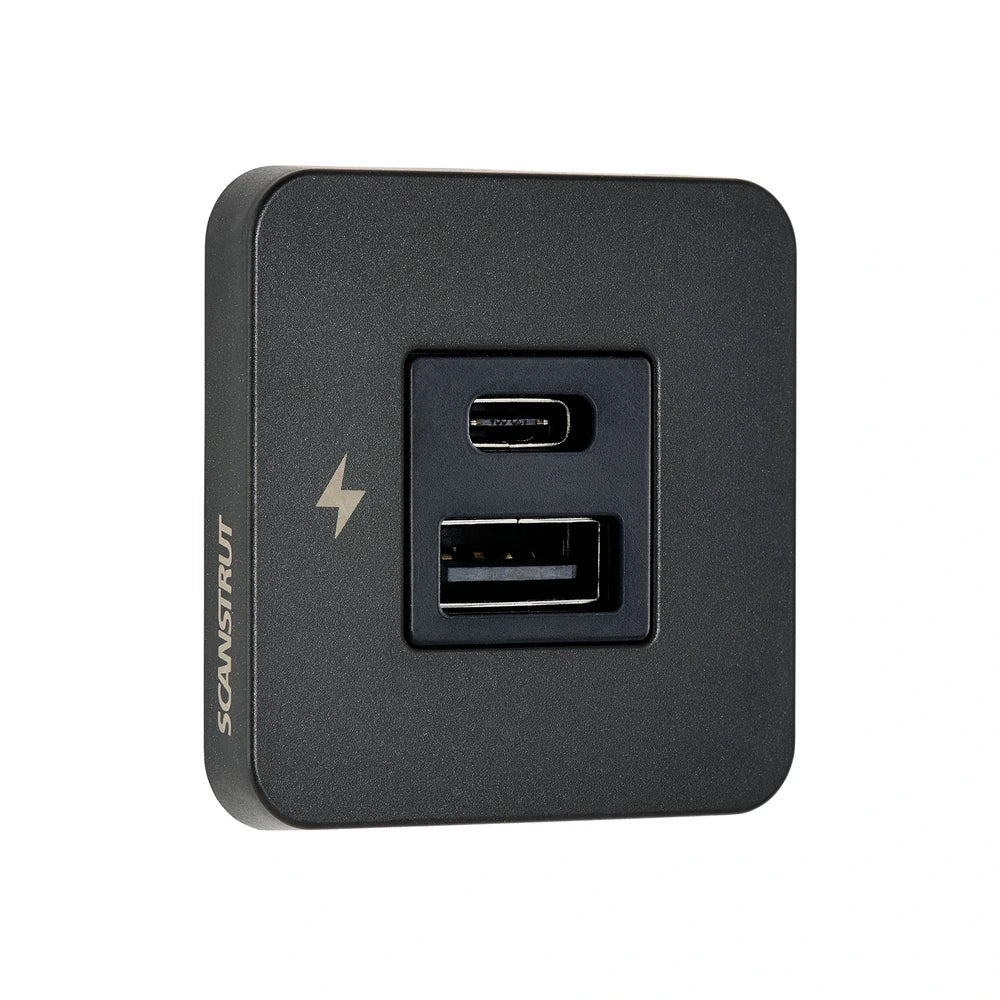

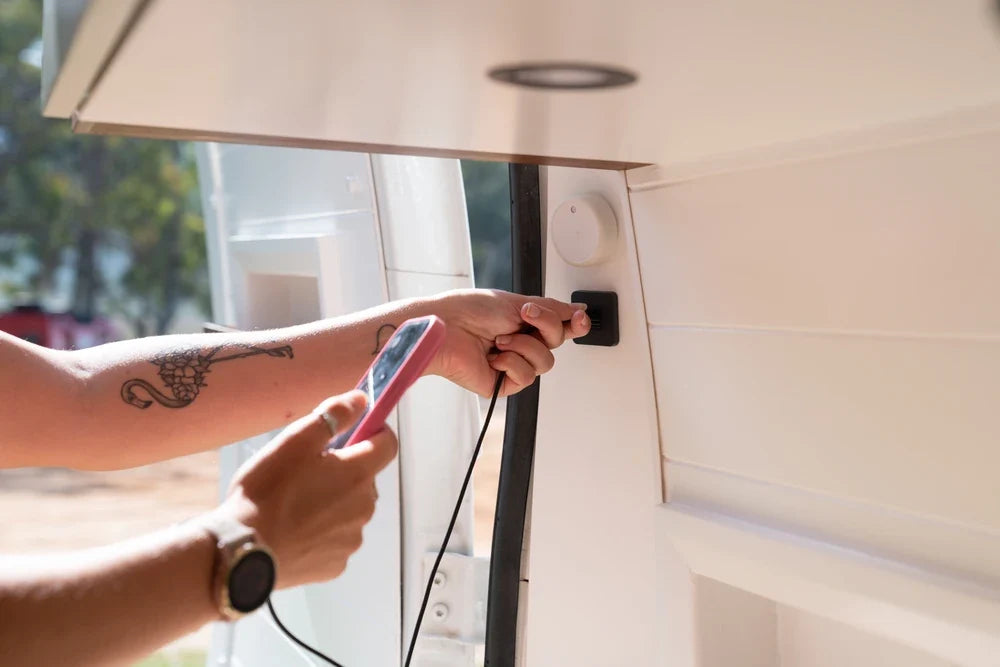

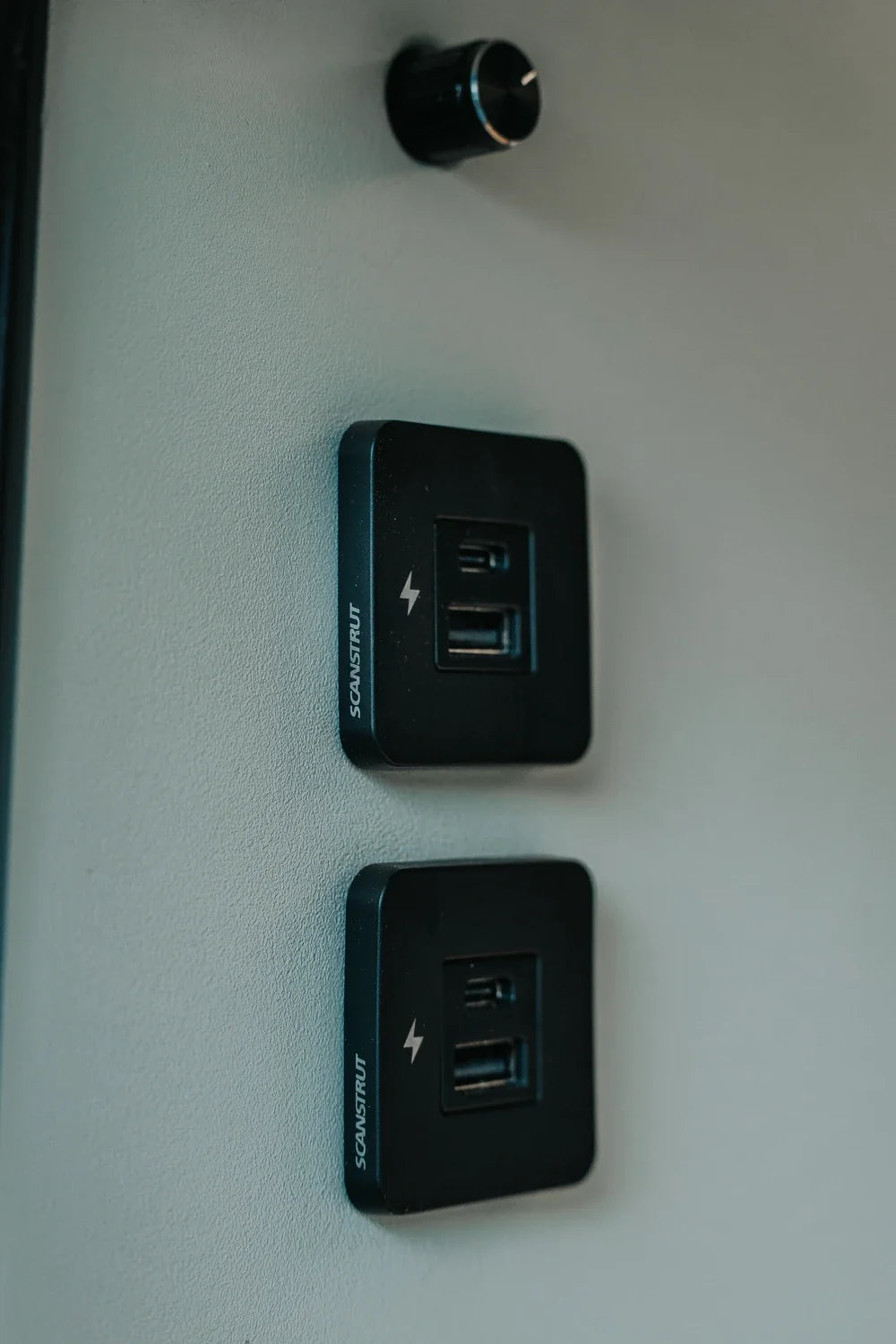

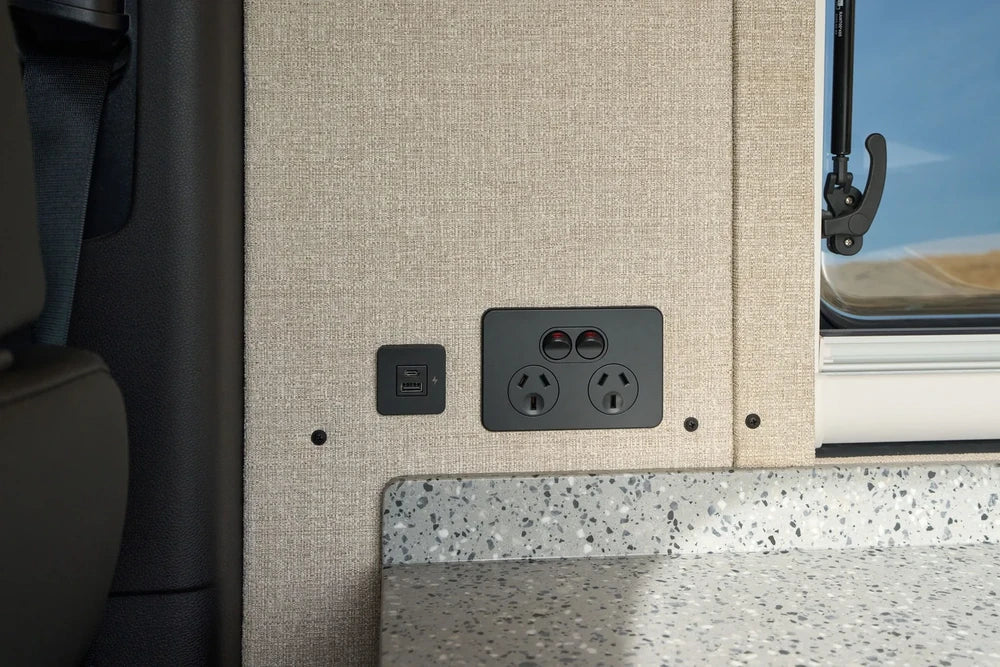

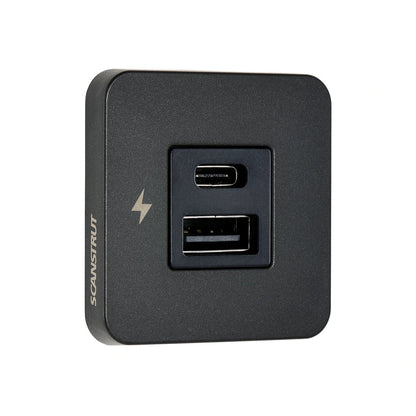

The TILE USB-A & USB-C socket is a compact, flush-mount charging point designed for caravan, motorhome and cabin interiors, with a matte black bezel that blends into modern interior panelling.
It automatically adapts to 12V or 24V systems and steps up its output accordingly, so the same socket suits smartphones, tablets and USB-C laptops. TILE is designed for interior use only and should not be installed where it may be exposed to water.
Key Features
One USB-A port and one USB-C port

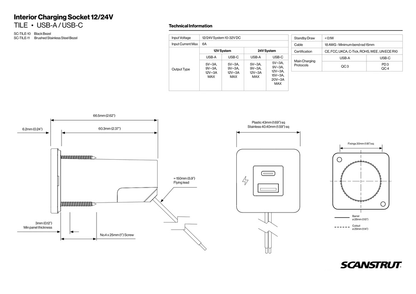

Compact 40mm (1.57") footprint, standard 29mm (1.14") hole saw
Matte black bezel
Ultra-low 0.01W standby draw
Interior use only - not for wet locations

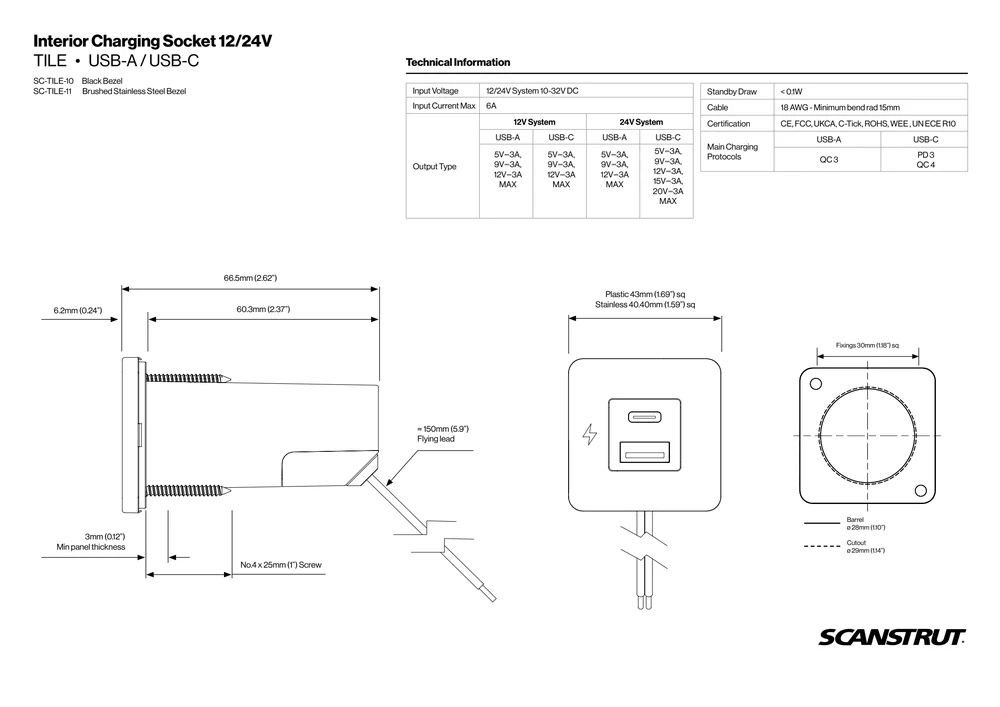

Specifications
Input Voltage
10-32V DC (12V/24V system)
Output
Up to 36W total on 12V systems, up to 60W total on 24V systems
Input Current
Max 6A (10A fuse recommended)
Cut-out
29mm (1.14") hole saw
Footprint
40mm (1.57")
Standby Draw
0.01W
Bezel Finish
Matte black

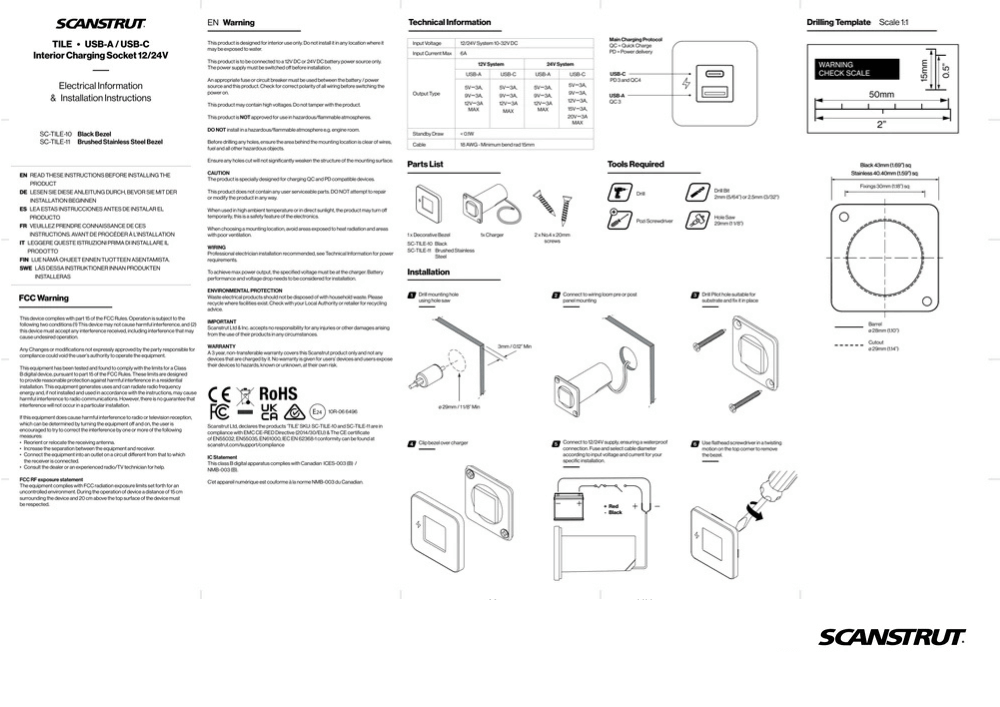

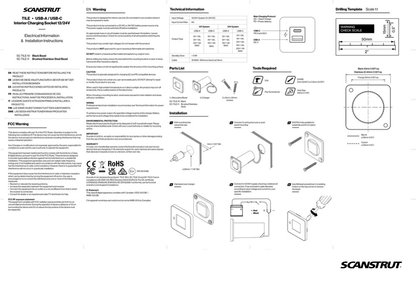

Installation
Interior use only - do not install where exposed to water
