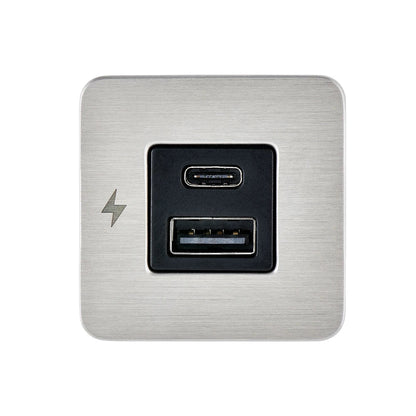

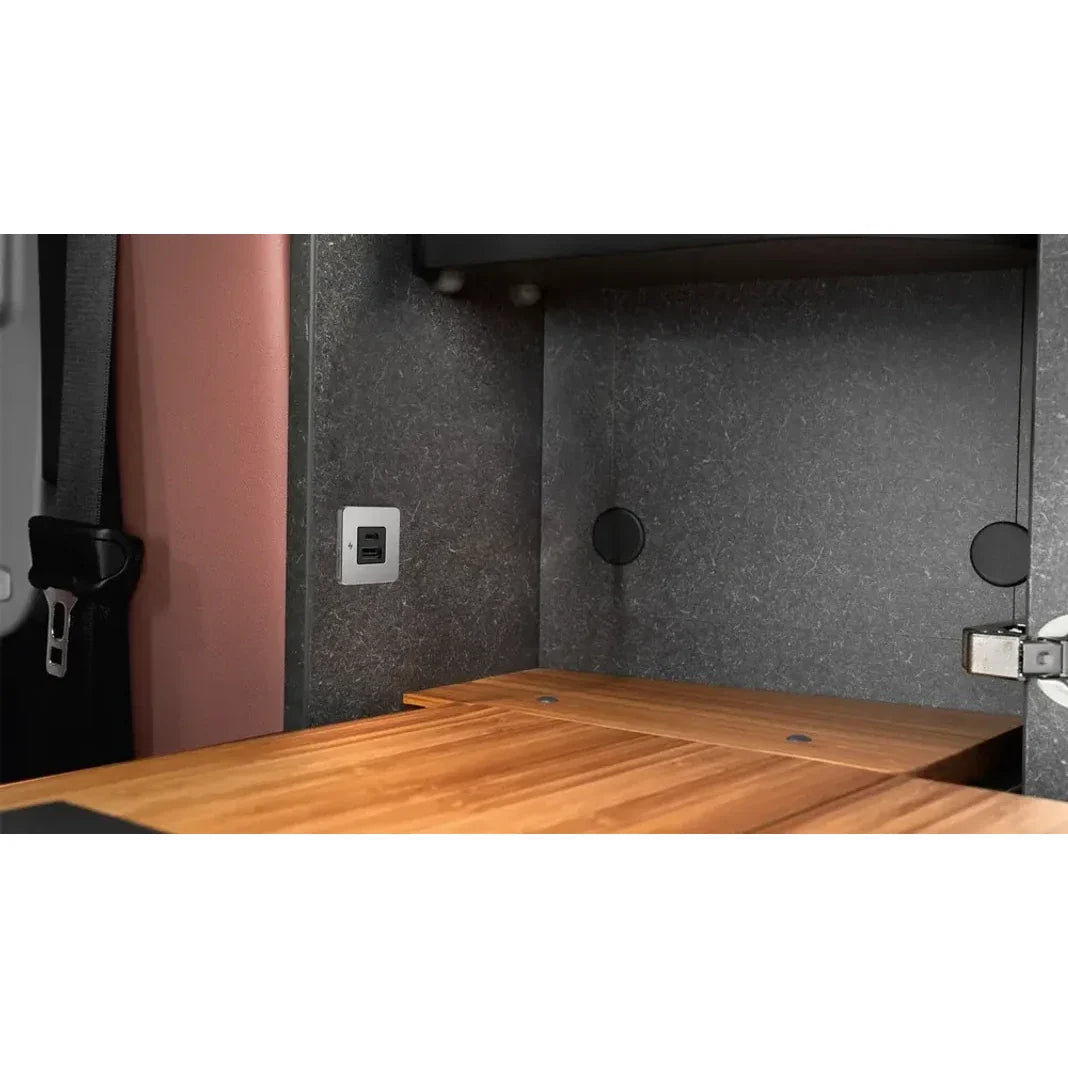

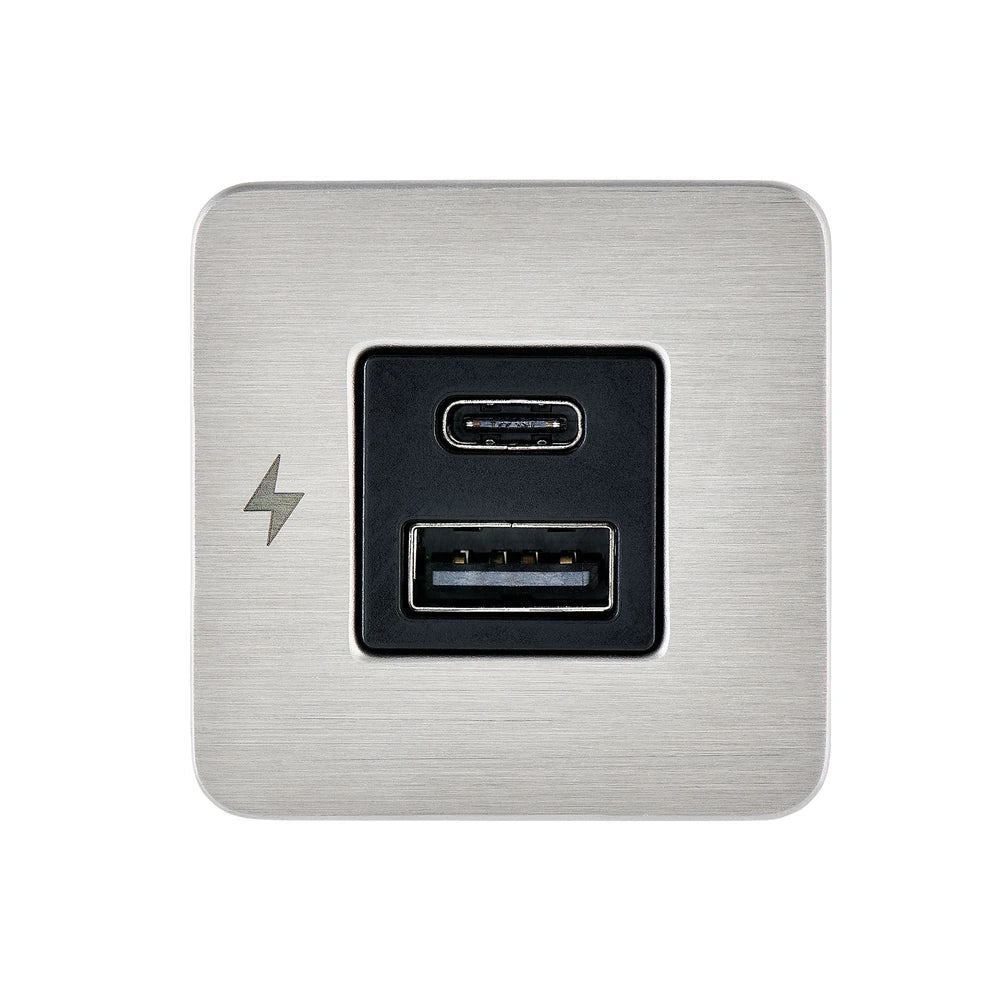

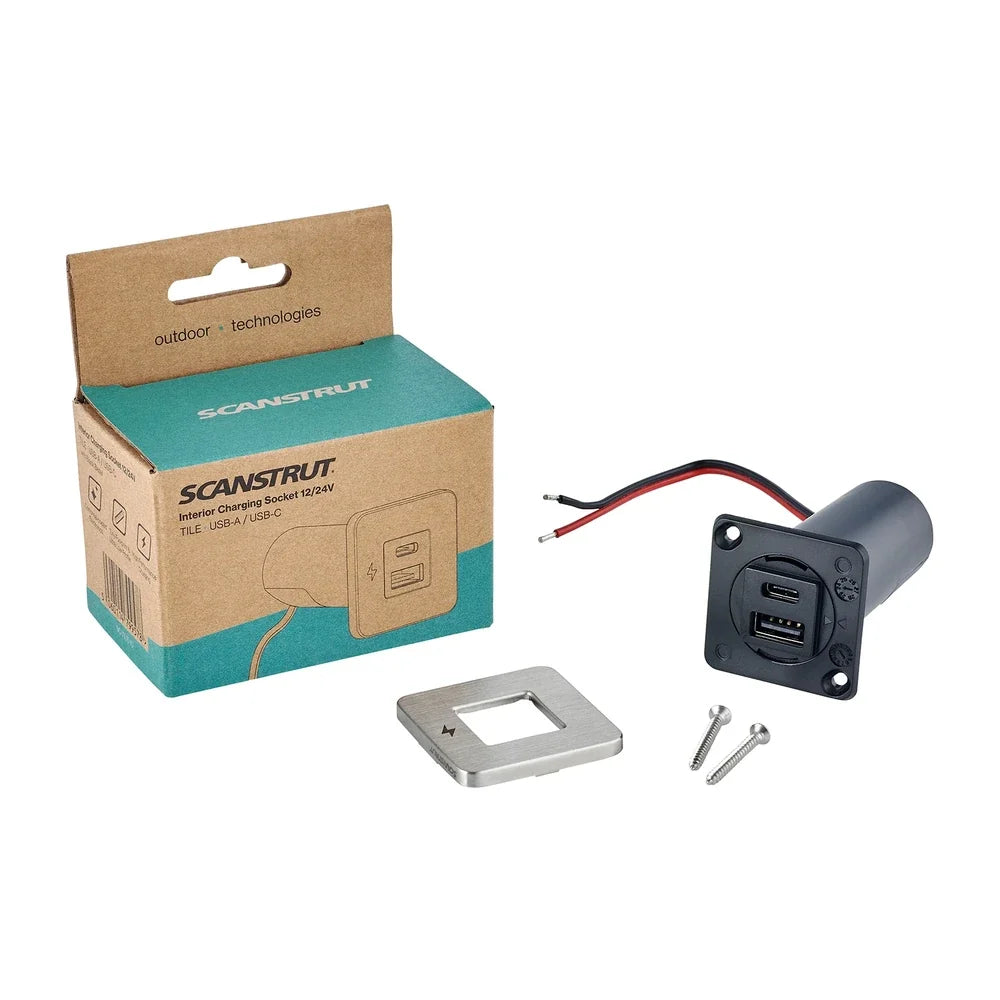

The TILE USB-A & USB-C socket is a compact, flush-mount charging point for caravan, motorhome and cabin interiors, finished with a 316 brushed stainless steel bezel for a premium look.
It automatically adapts to 12V or 24V systems and steps up its output accordingly, so the same socket suits smartphones, tablets and USB-C laptops. TILE is designed for interior use only and should not be installed where it may be exposed to water.
Key Features
One USB-A port and one USB-C port

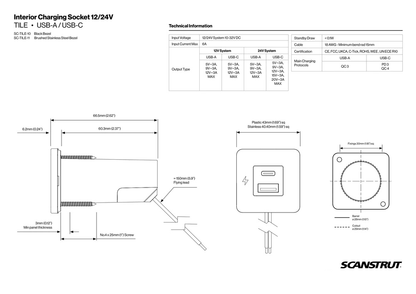

Compact 40mm (1.57") footprint, standard 29mm (1.14") hole saw

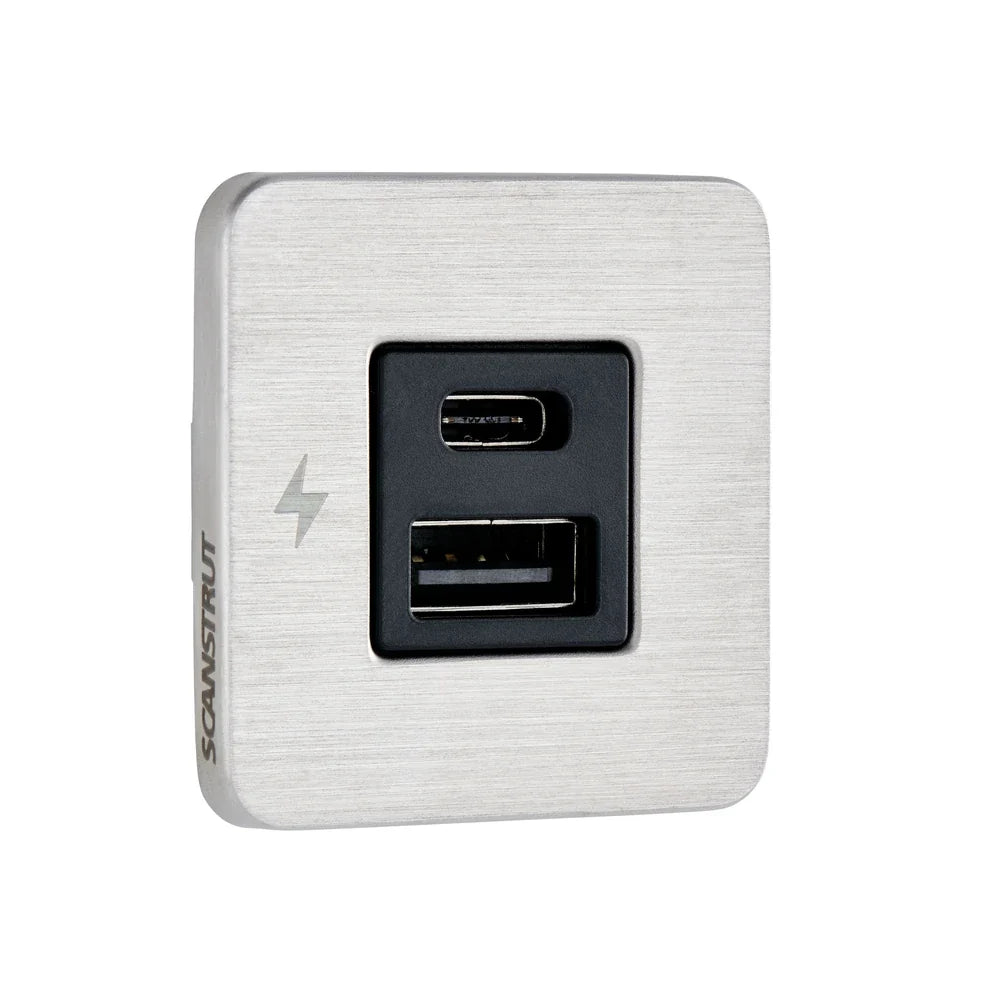

316 brushed stainless steel bezel
Ultra-low 0.01W standby draw
Interior use only - not for wet locations
Specifications
Input Voltage
10-32V DC (12V/24V system)
Output
Up to 36W total on 12V systems, up to 60W total on 24V systems
Input Current
Max 6A (10A fuse recommended)

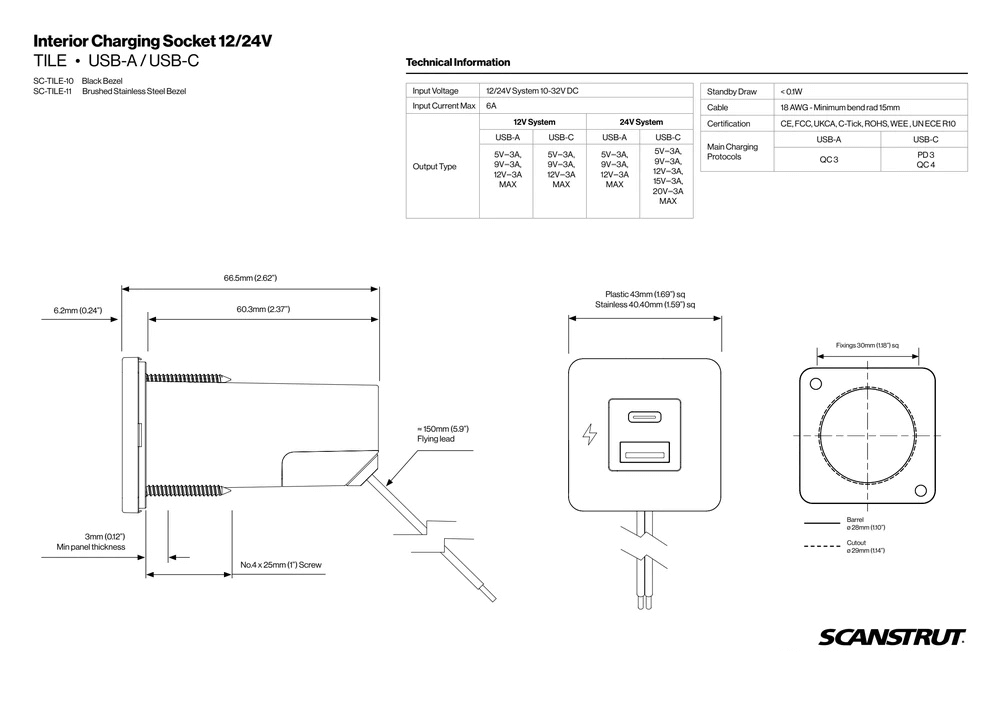

Cut-out
29mm (1.14") hole saw
Footprint
40mm (1.57")
Standby Draw
0.01W
Bezel Finish
316 brushed stainless steel

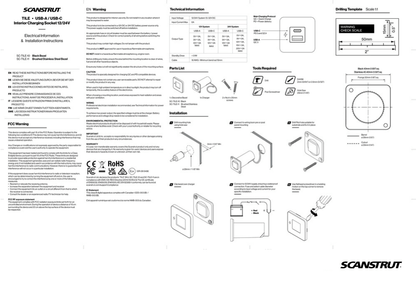

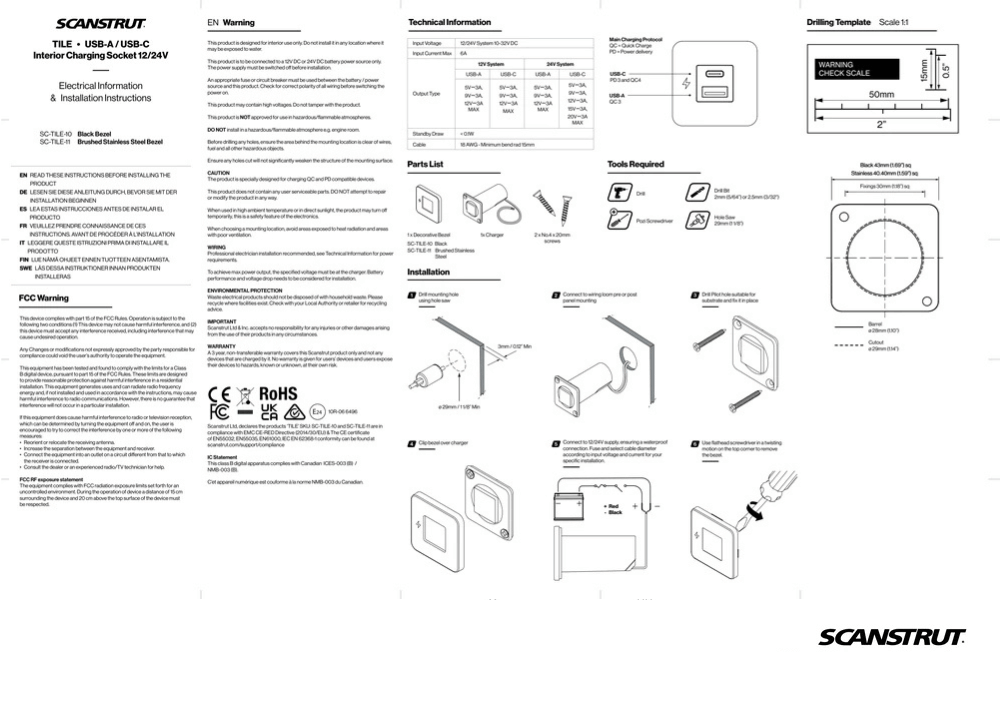

Installation
Interior use only - do not install where exposed to water
