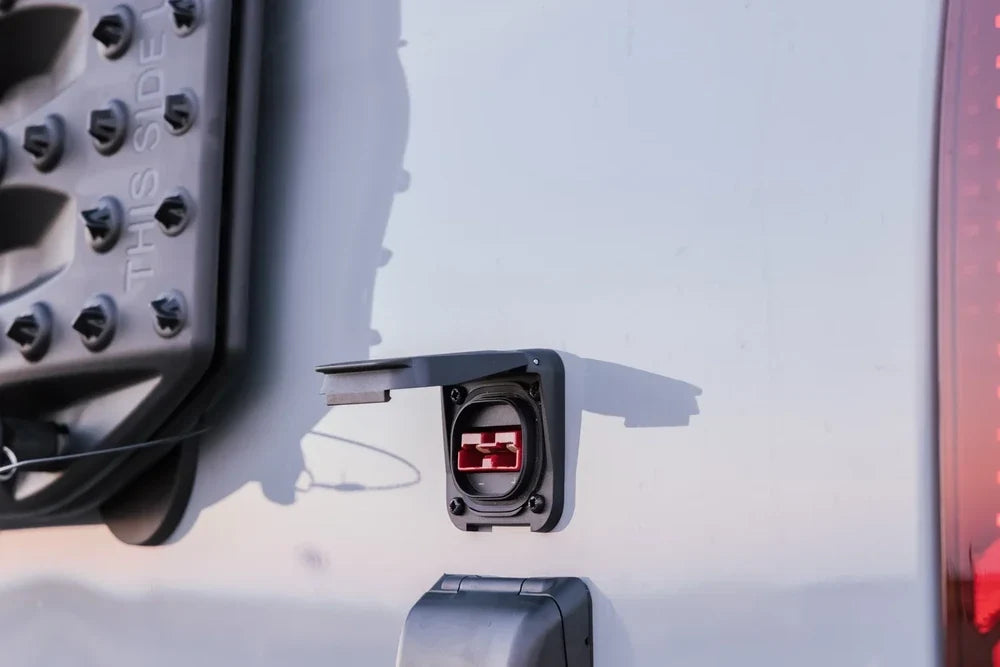

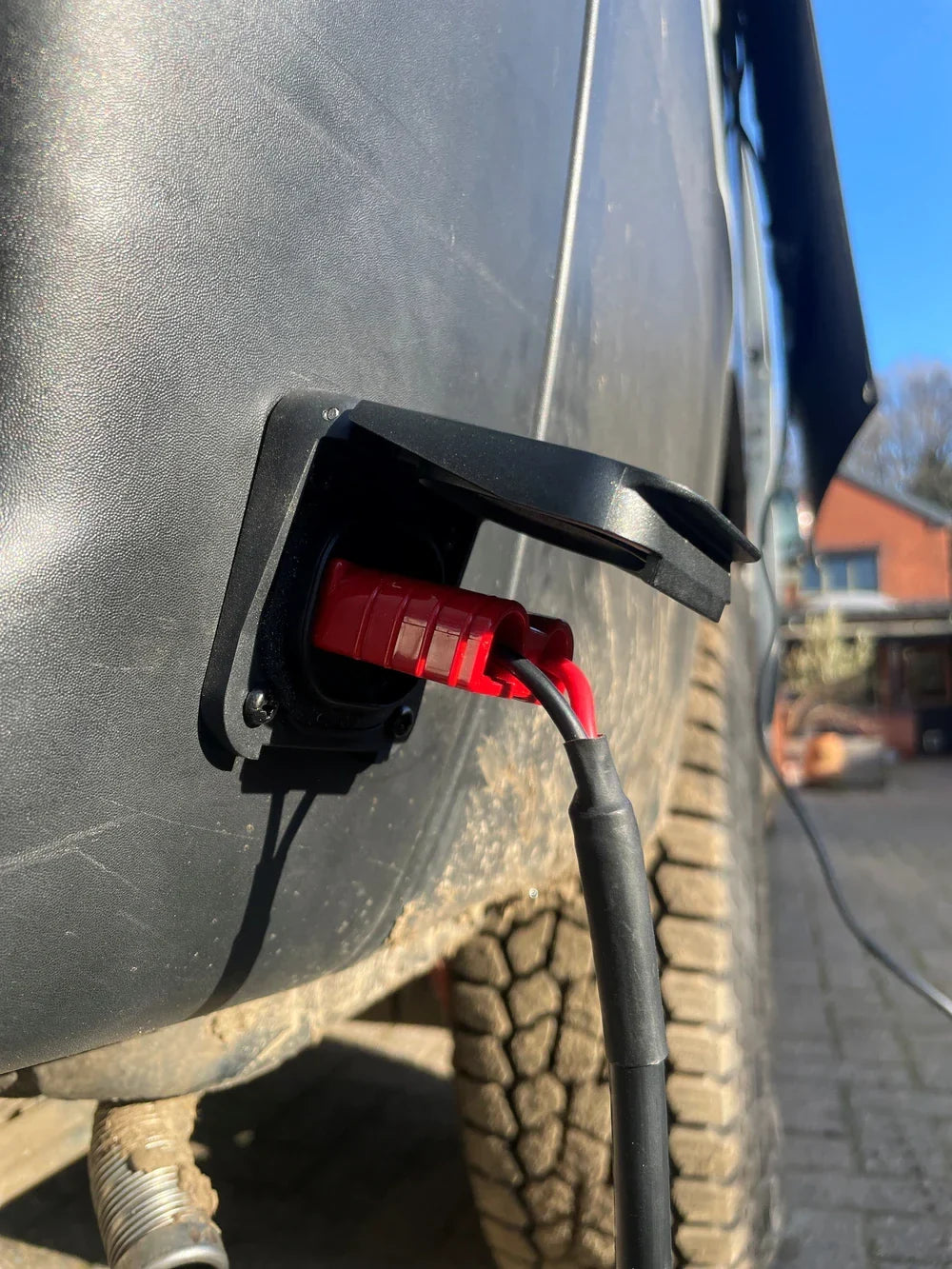

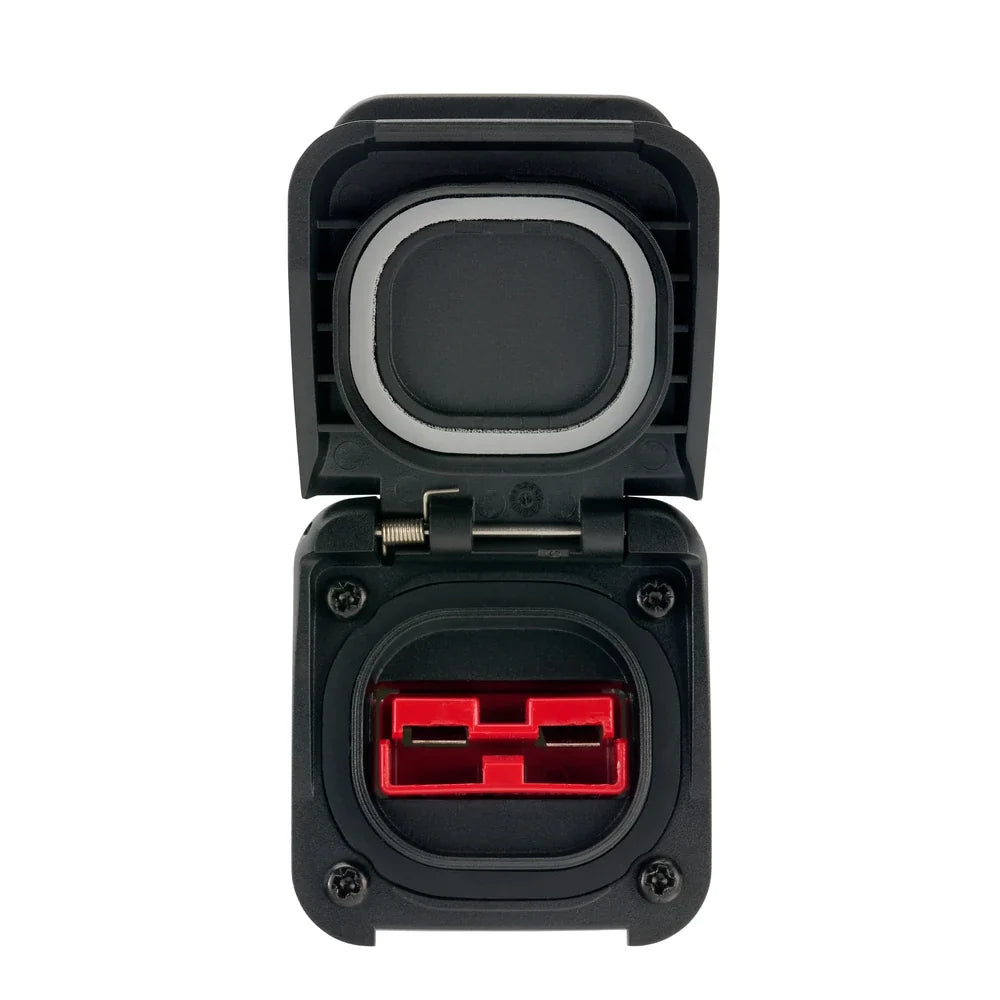

This Ventura socket houses a red Anderson SB50 connector so you can plug portable solar panels straight into your van, RV or boat without running cables through a window or door.

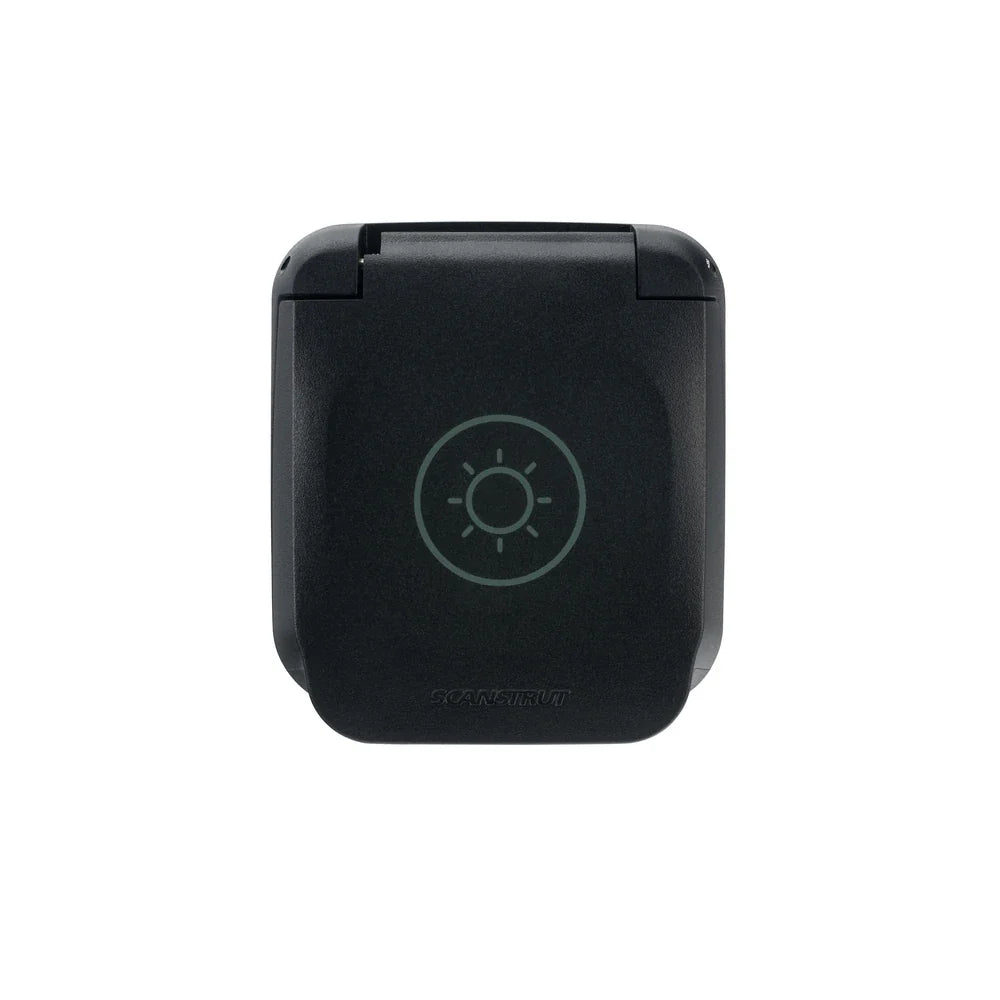

The spring-loaded lid opens a full 180 degrees with a 90-degree holding bump for easy connection, and seals watertight when closed. Fittings are marine-grade 316 stainless steel. SB50 terminal crimps are not included and are available separately from Anderson Power.
Key Features

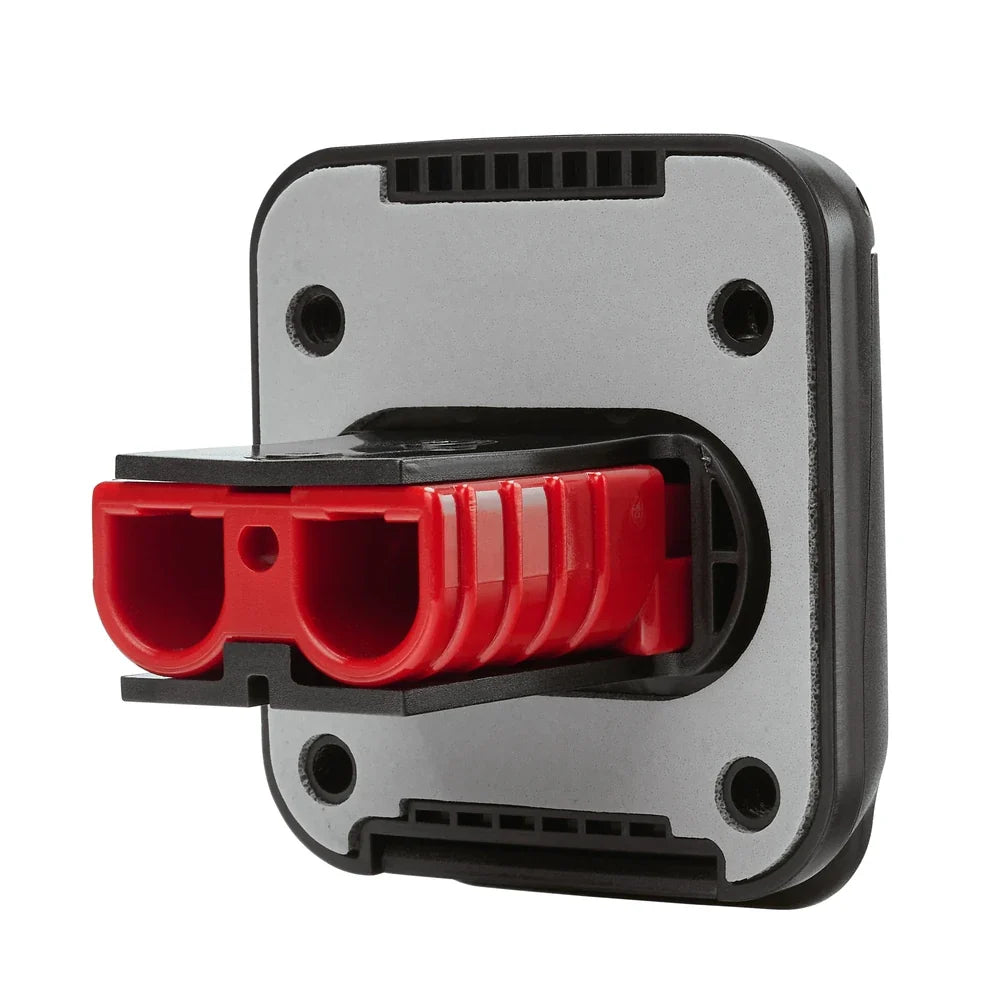

Red Anderson SB50 connector, rated 50A (6AWG cable)
Rated up to 600V DC - suits 12V, 24V and 48V systems
IP68 & IP69K waterproof with the lid closed

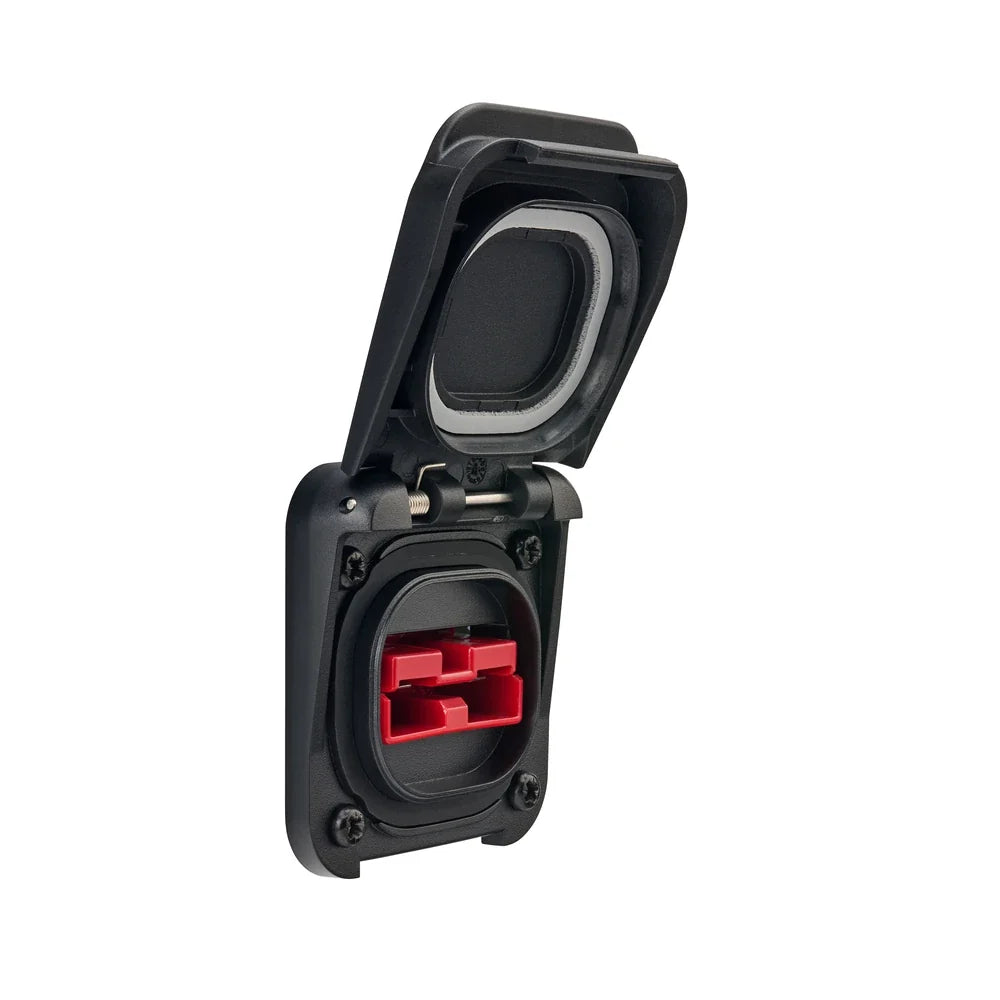

Spring-loaded lid opens 180° with a 90° holding bump
Marine-grade 316 stainless steel hardware

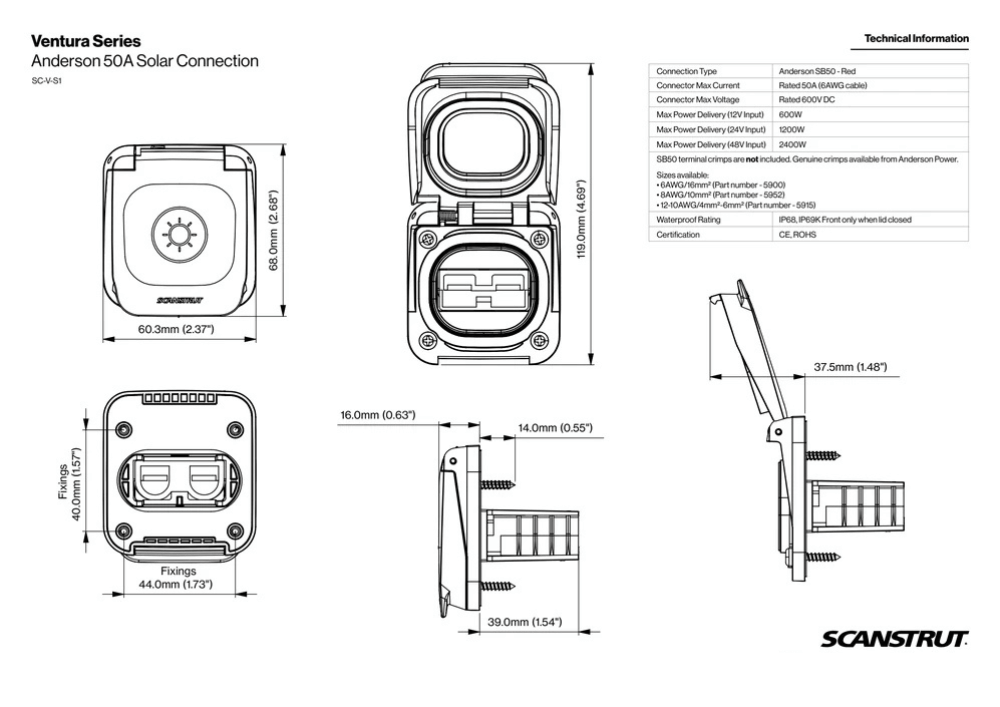

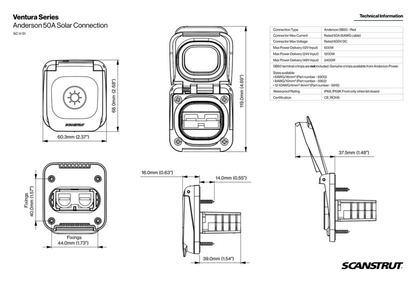

Specifications
Connector
Anderson SB50 (red)
Current Rating
50A (with 6AWG cable)
Max Voltage
600V DC
Max Power
Up to 600W (12V), 1200W (24V), 2400W (48V)
Waterproofing
IP68, IP69K (front, lid closed)
Materials
Marine-grade 316 stainless steel hardware
Box Contents

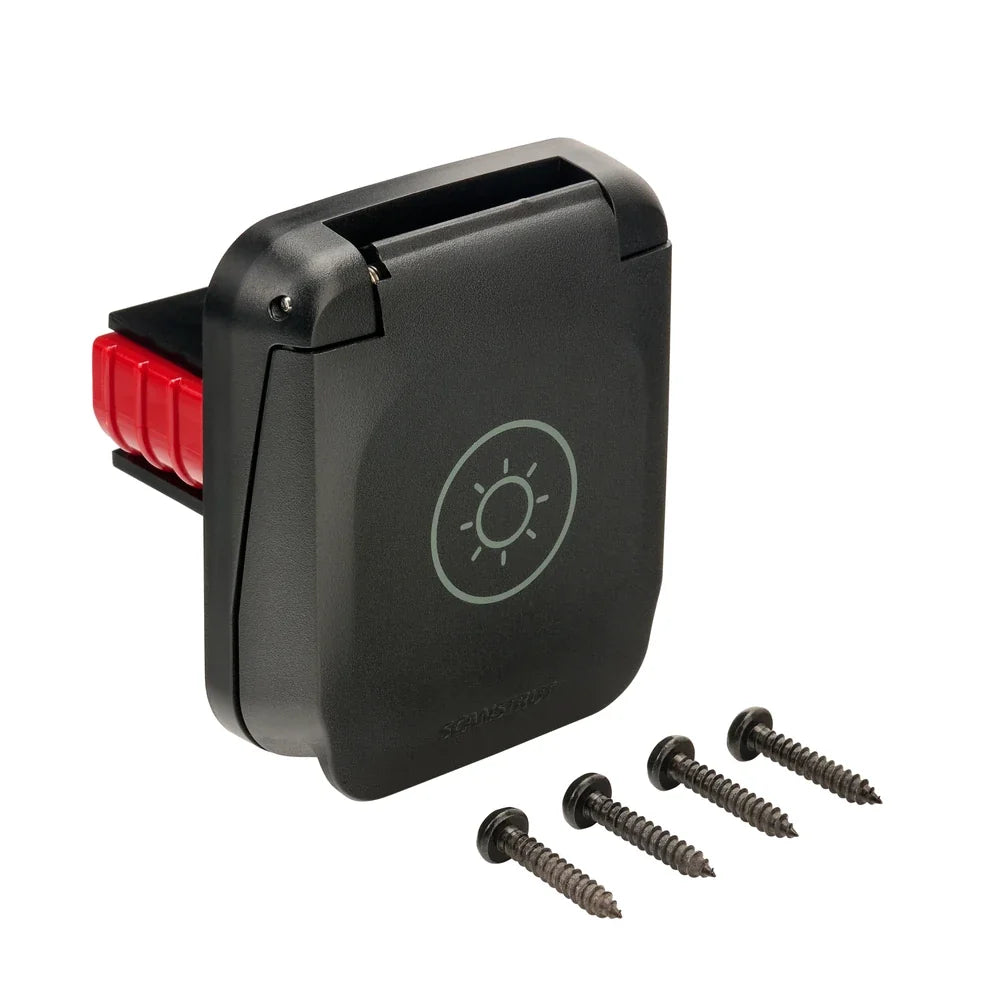

Socket and mounting hardware - SB50 crimps sold separately
