Scanstrut - Ventura - XT60 Solar Input Socket

Scanstrut - Ventura - XT60 Solar Input Socket

$62.95 AUD
$62.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Scanstrut Ventura XT60 Solar Input Socket

Weatherproof Exterior Solar Connection

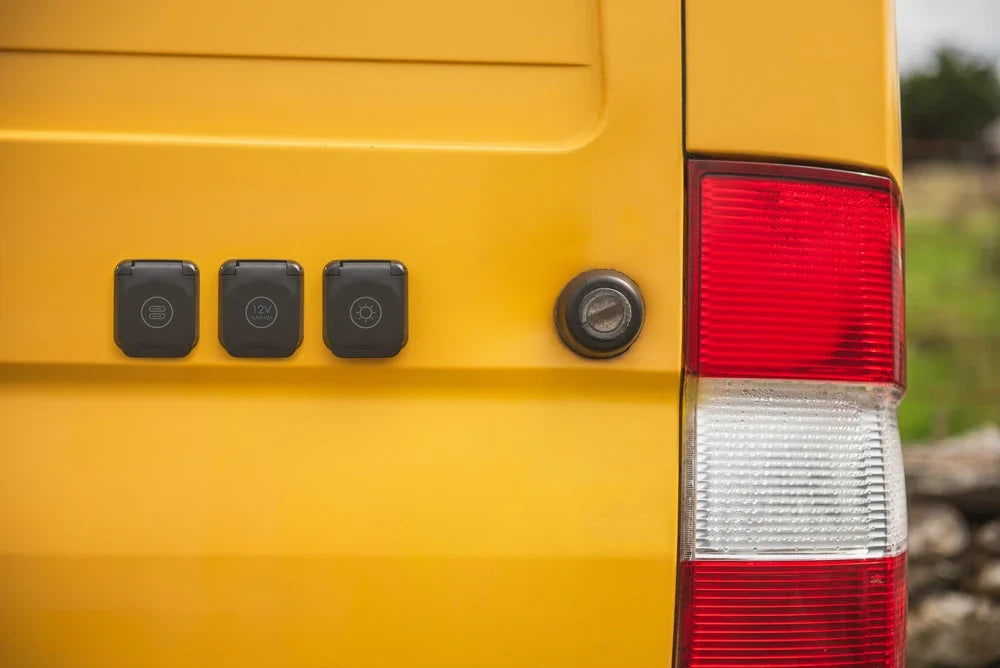

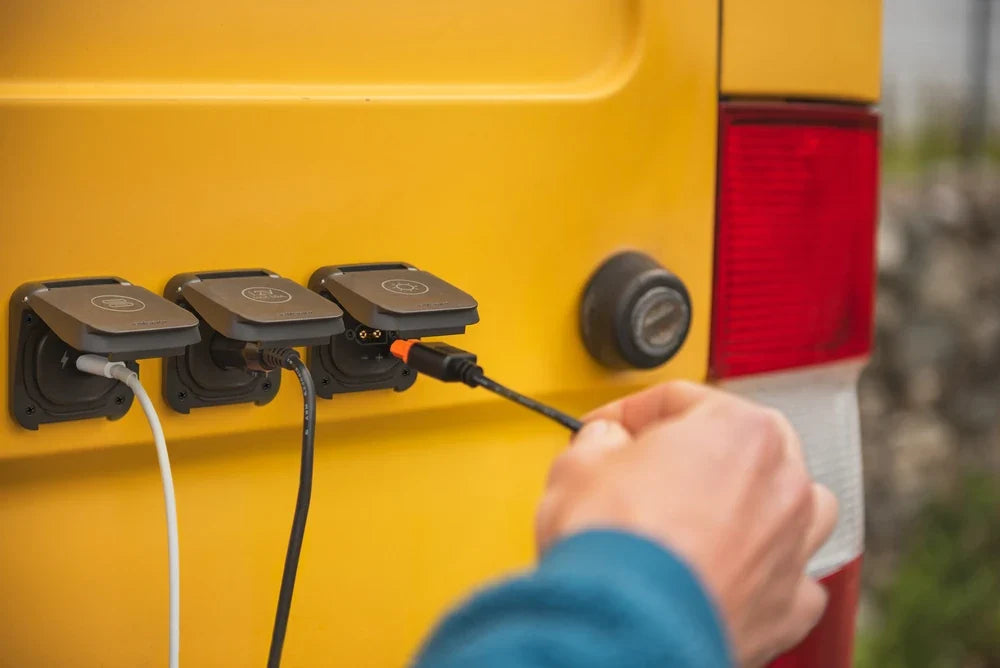

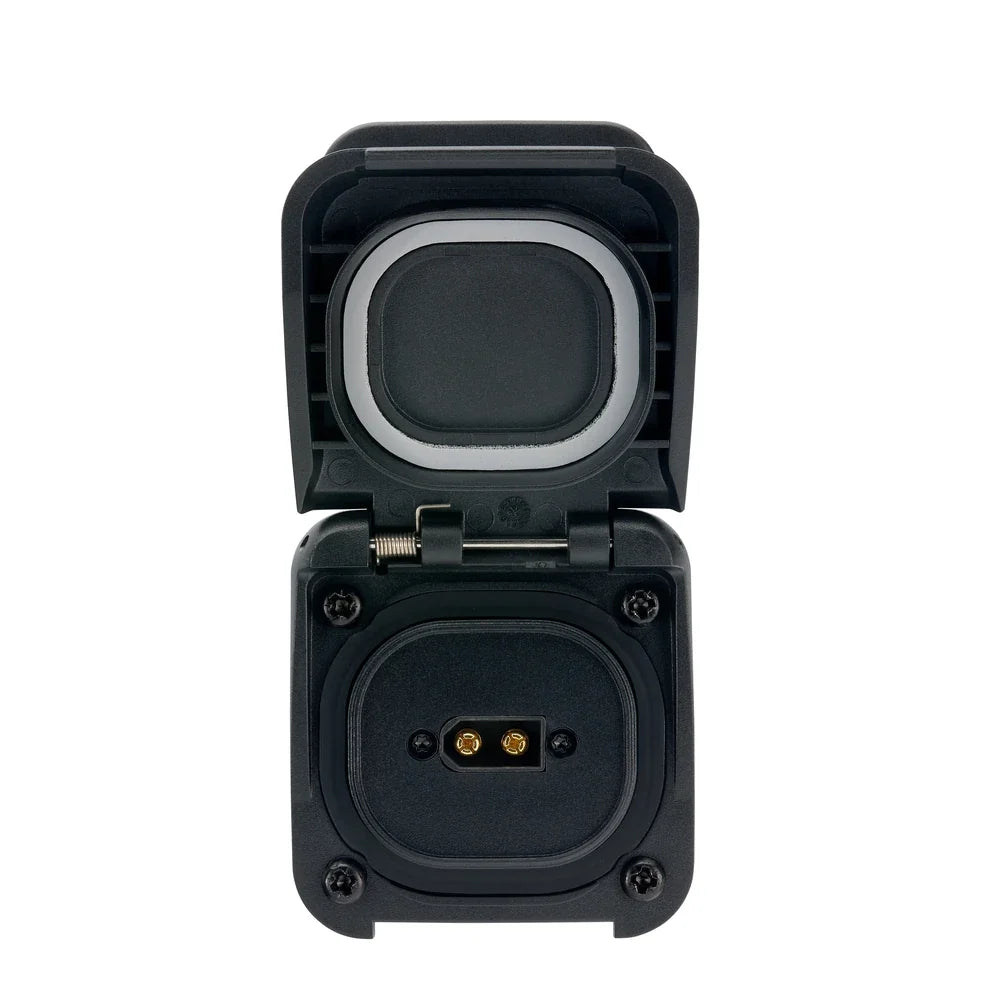

This Ventura socket houses an Amass XT60EW-M waterproof connector so you can plug a portable solar panel straight into your van, RV or boat without running cables through a window or door.

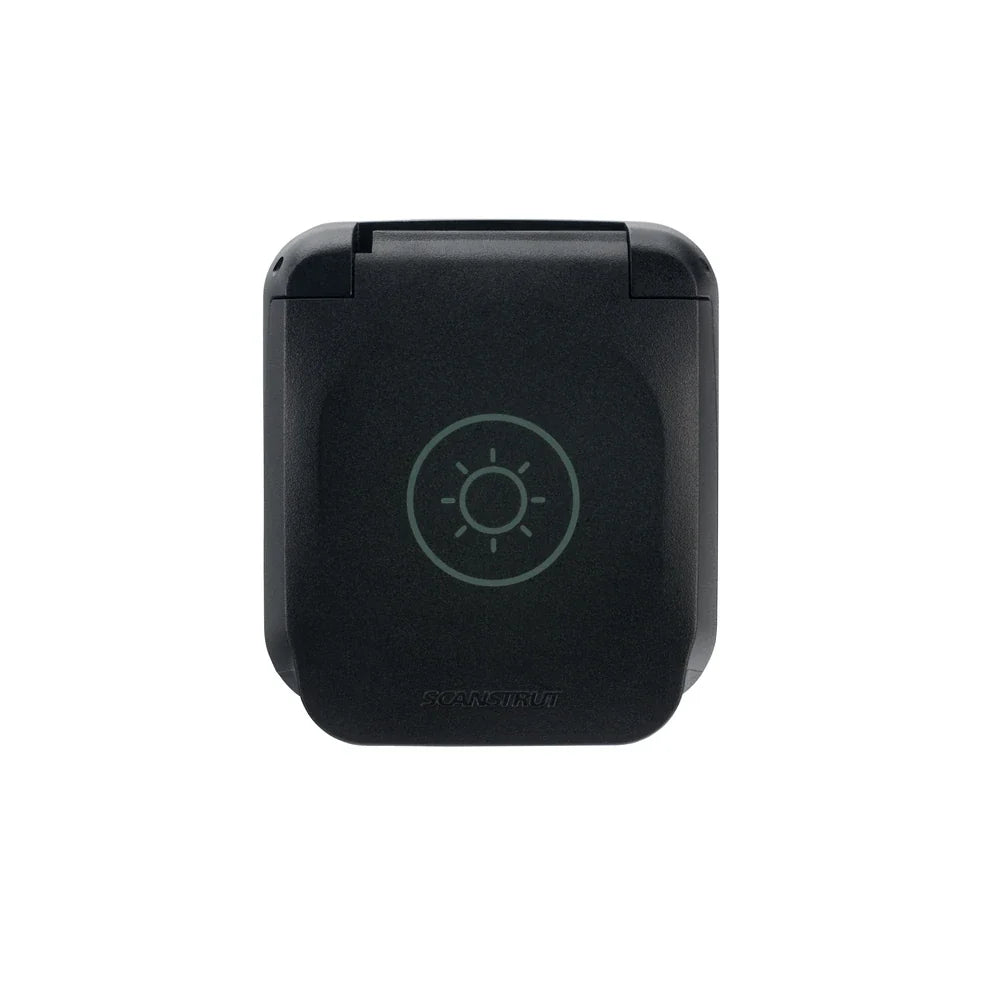

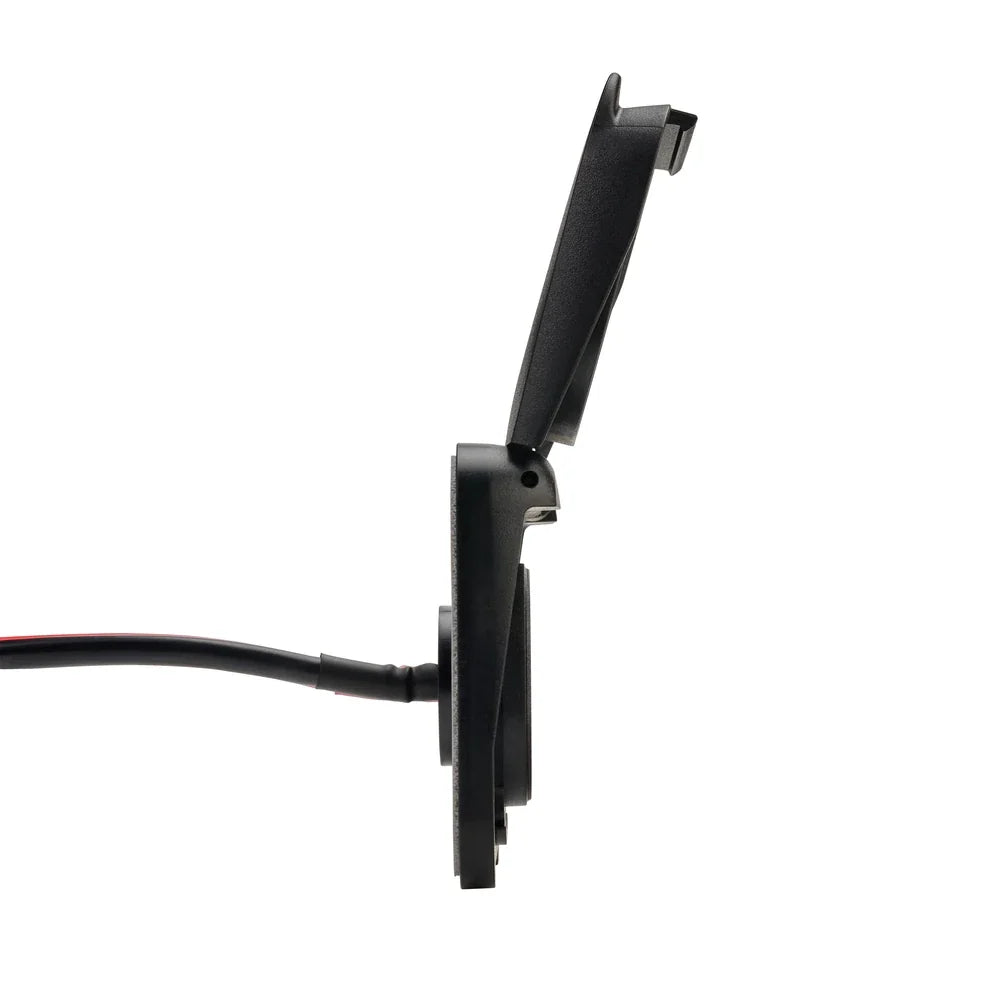

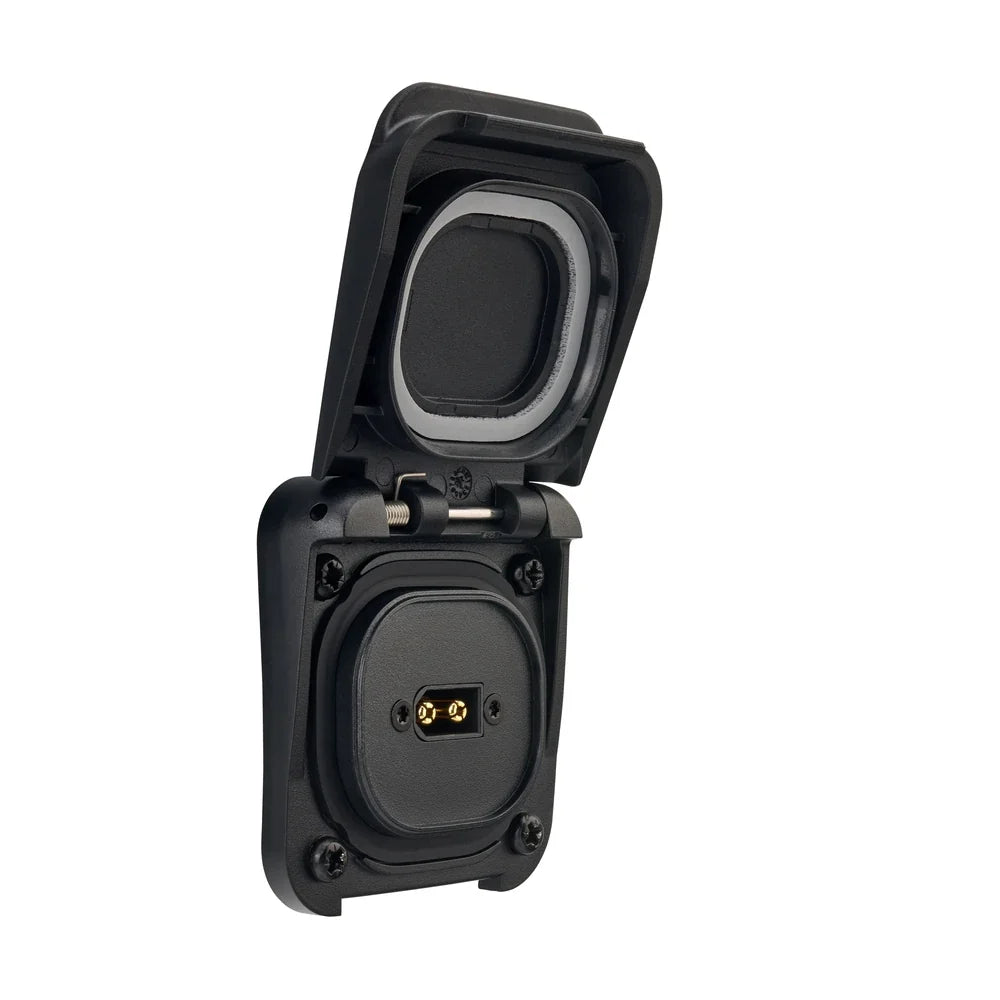

It comes pre-wired with a tinned copper lead for a low-resistance connection, and the spring-loaded lid seals watertight when closed. Fittings are marine-grade 316 stainless steel.

Key Features

  • Amass XT60EW-M connector, 30A continuous / 60A instantaneous
  • Suits 12V, 24V and 48V systems
  • IP68 & IP69K waterproof with the lid closed

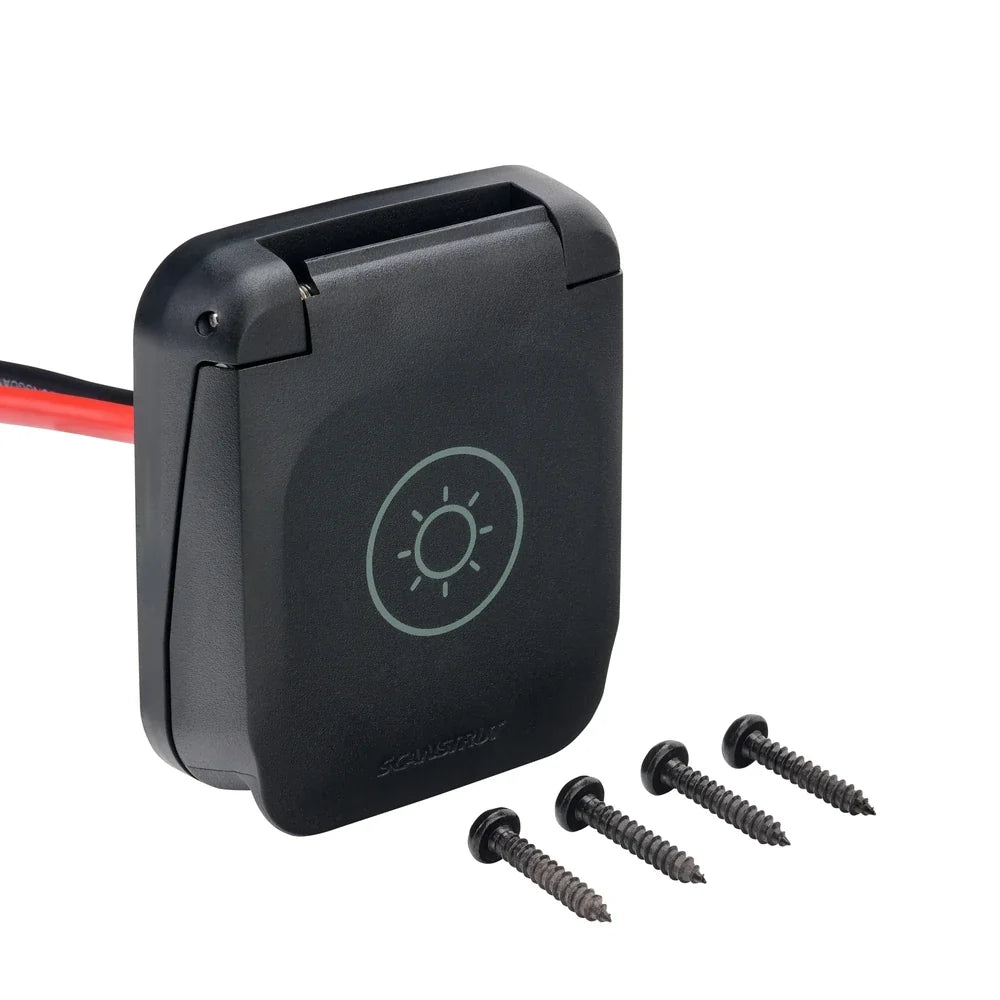

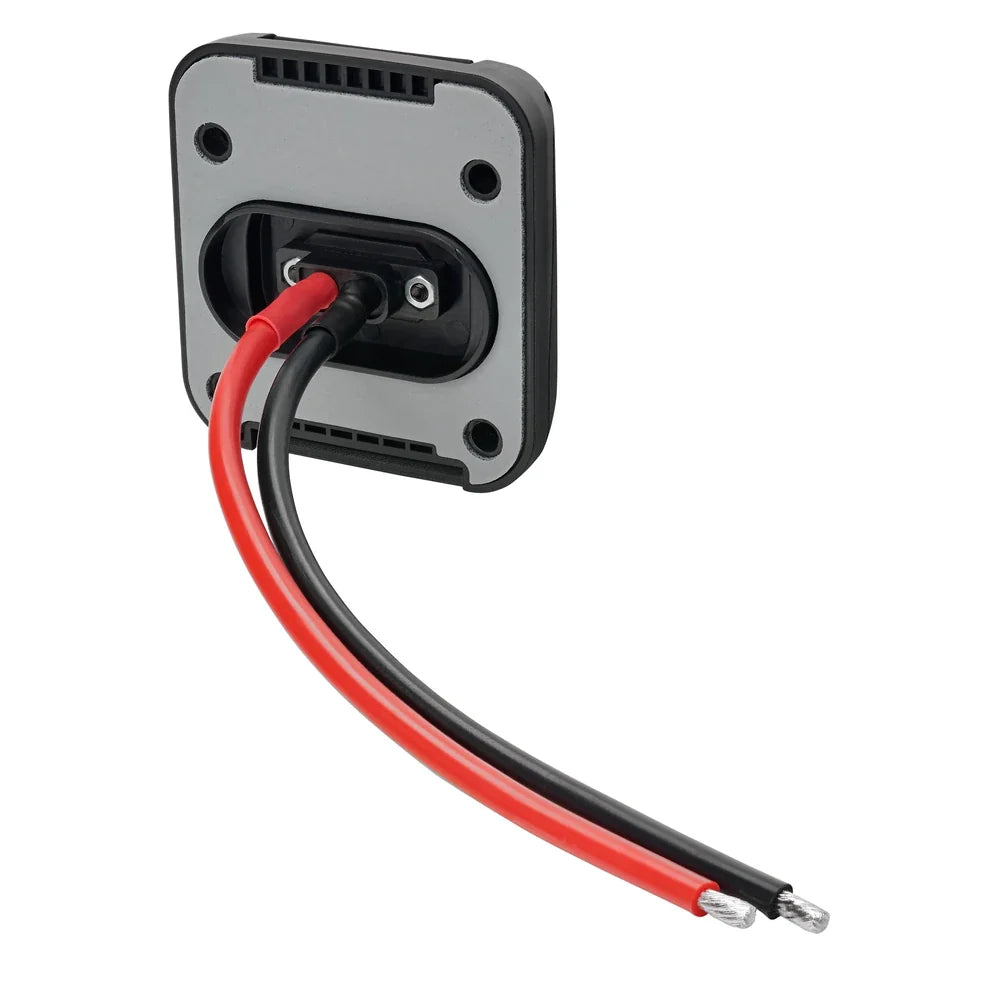

  • Pre-wired with 150mm of 4mm² (12AWG) tinned copper cable

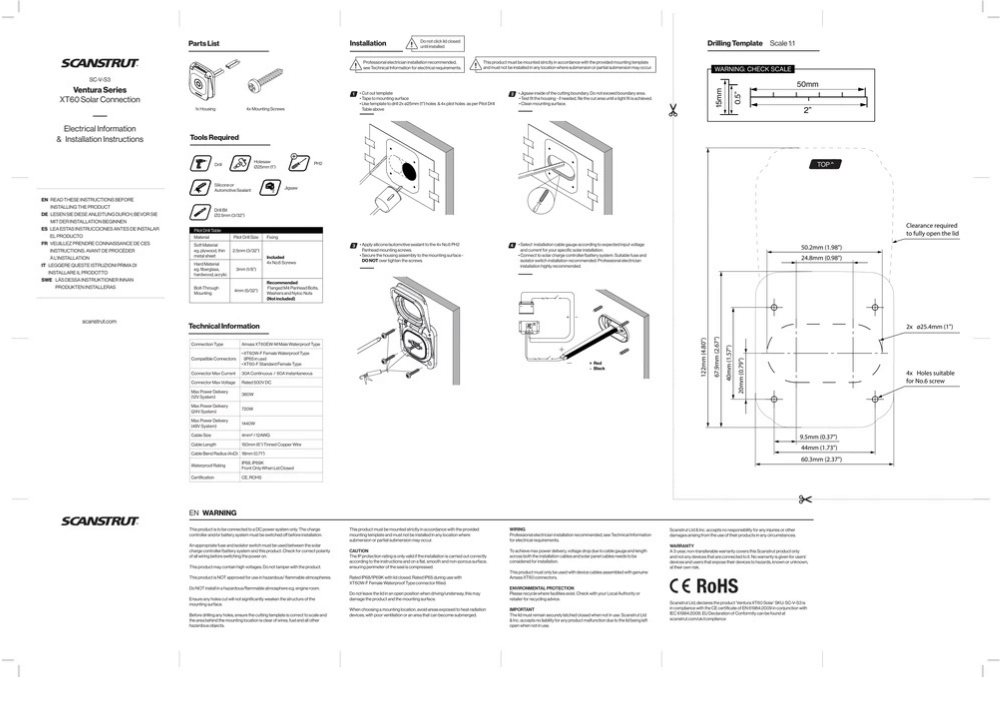

  • Standard 25mm (1.00") hole saw installation

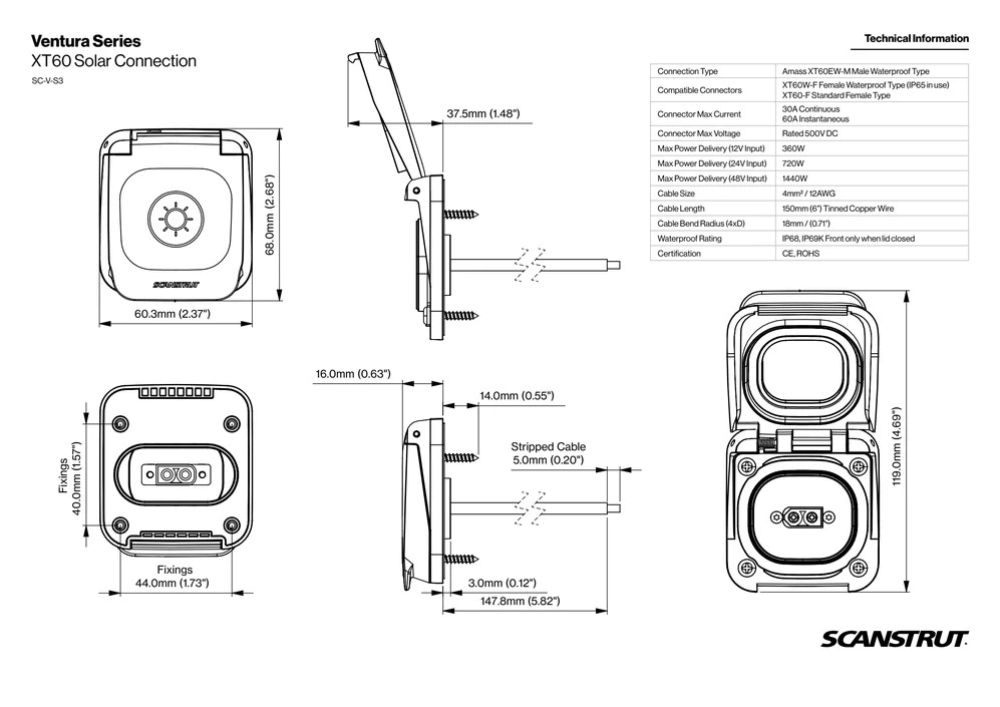

Specifications

Connector Amass XT60EW-M (male, waterproof)
Current Rating 30A continuous, 60A instantaneous
Max Power Up to 360W (12V), 720W (24V), 1440W (48V)
Waterproofing IP68, IP69K (front, lid closed)
Cut-out 25mm (1.00") hole saw
Cable 150mm (6") of 4mm² (12AWG) tinned copper wire
Materials Marine-grade 316 stainless steel hardware
