Sleeved Anderson Cable - 6 AWG (13.50mm2)

Our Sleeved Anderson Cables are custom made to order using Australian Made Twin Core Cable and Genuine Anderson SB50 Connectors.

Our 'Sleeved' cables add Genuine Techflex sleeving for added durability. Techflex sleeving is rated up to temps of 125c and are abrasion resistant without significantly impacting the overall flexibility of the cable. Our "Naked" version, without Techflex sleeving can be found here.

Suitable for an array of uses in 12v systems including solar panels/regulators, fridges, compressors and much more.

As all cables are custom made to order, we have short lead times before your cables will be posted. For more information, click here.

Prior to purchasing our Anderson Cables, please read our Cable Guide found here to ensure your choosing the right size cable for the job. A quick guide on our recommended cable lengths for this cable can be found below:

 ^Assumes maximum 3% voltage drop with an ambient temperature of 50c

The Boring Stuff:

Wire:

• Manufactured in Australia
• 82.4 amp rating at 30c
• Comprising of 168 x 0.32mm conductors for a nominal area of 13.50mm2 (or 6AWG)
• Oxygen Free Copper (OFC) to AS1125 Standards
• Insulated with RoHS Compliant V90 PVC to AS3808 Standards
• Electrical Resistance – 1.4 ohm/km @ 20c
• Insulation thickness - 1.1mm
• Sheath thickness – 0.8mm
• Nominal OD - 8.8mm x 16.0mm
• 36kg per 100m

Connectors:

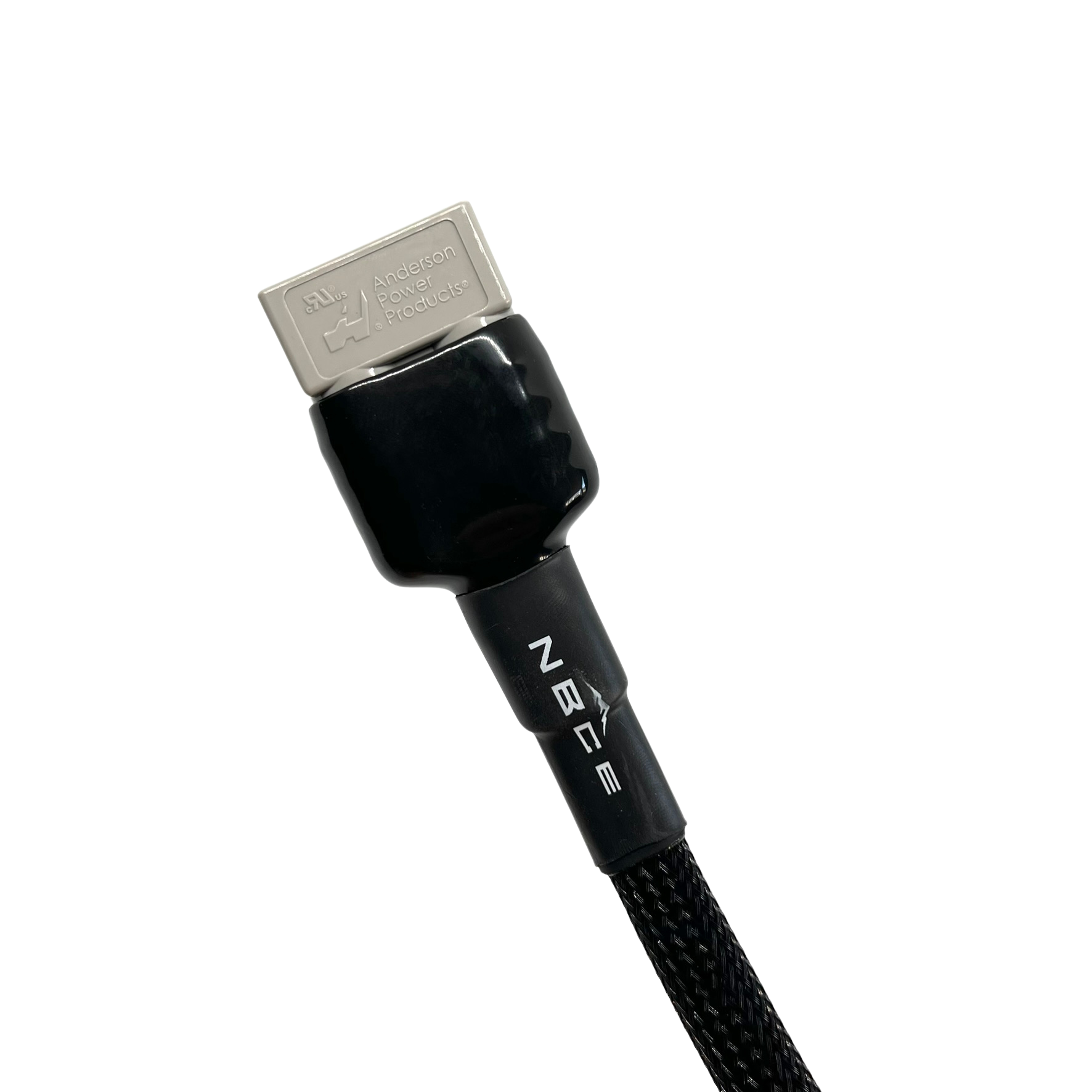

• Genuine 'Anderson Power Products' SB series 50A Plug
• Silver Coated 6 AWG Contacts
• Genderless design
• Rated to 600V 50A
• Size: 16x35x48mm
• Weight: 24 grams
