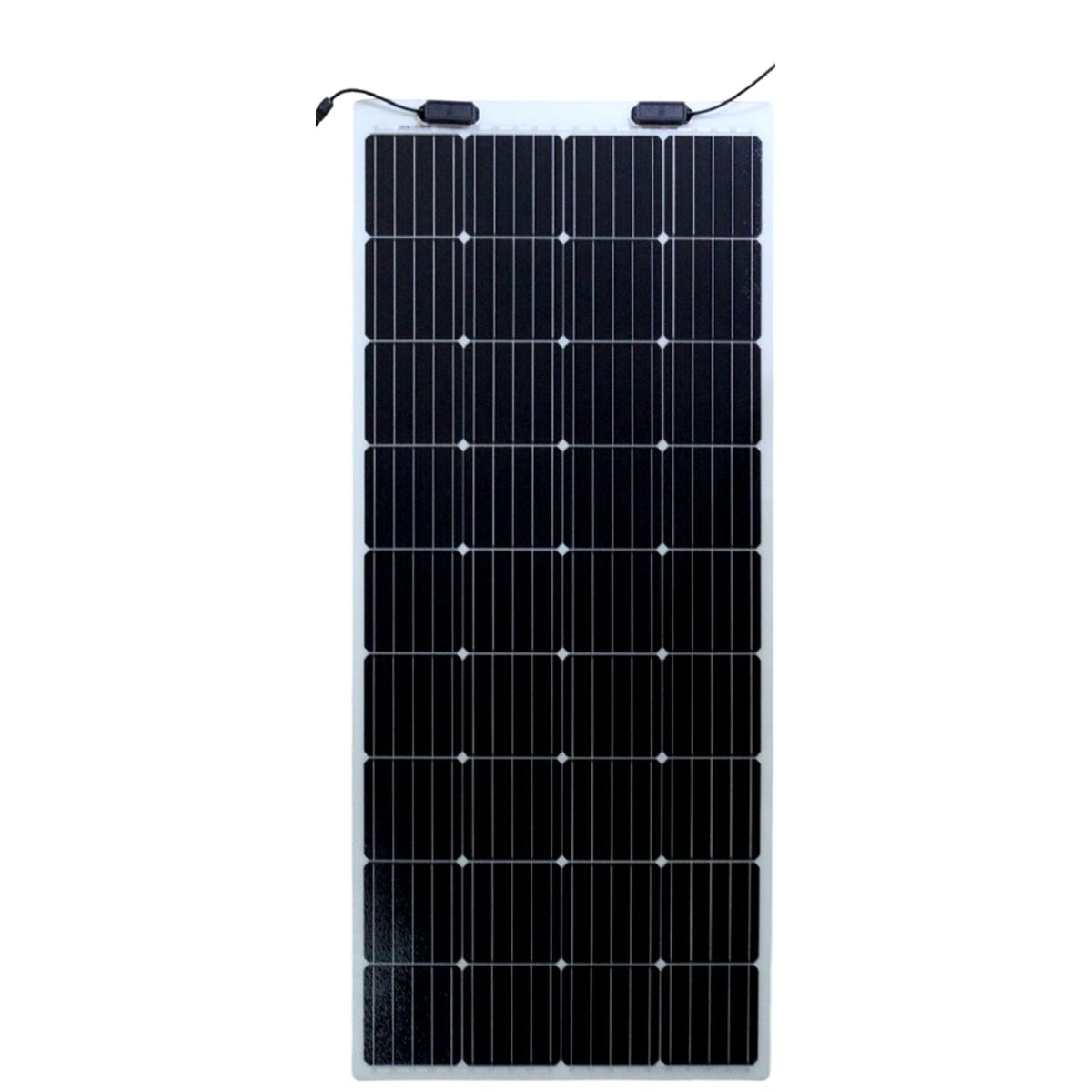

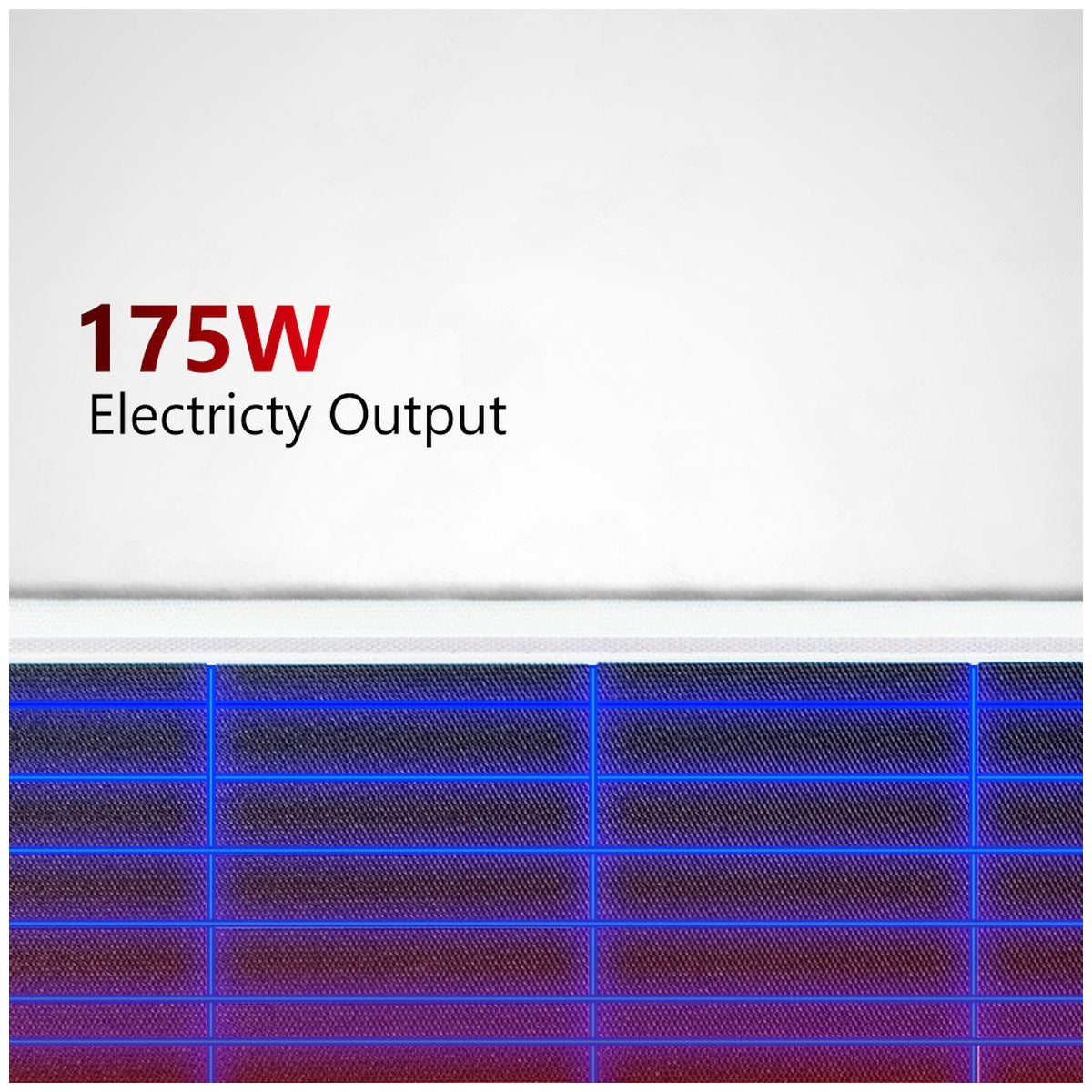

Sunman - eArc - 175W - Flexible Solar Panel

Sunman - eArc - 175W - Flexible Solar Panel

Regular price $309.95 AUD
Regular price Sale price $309.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Sunman eArc 175W Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels

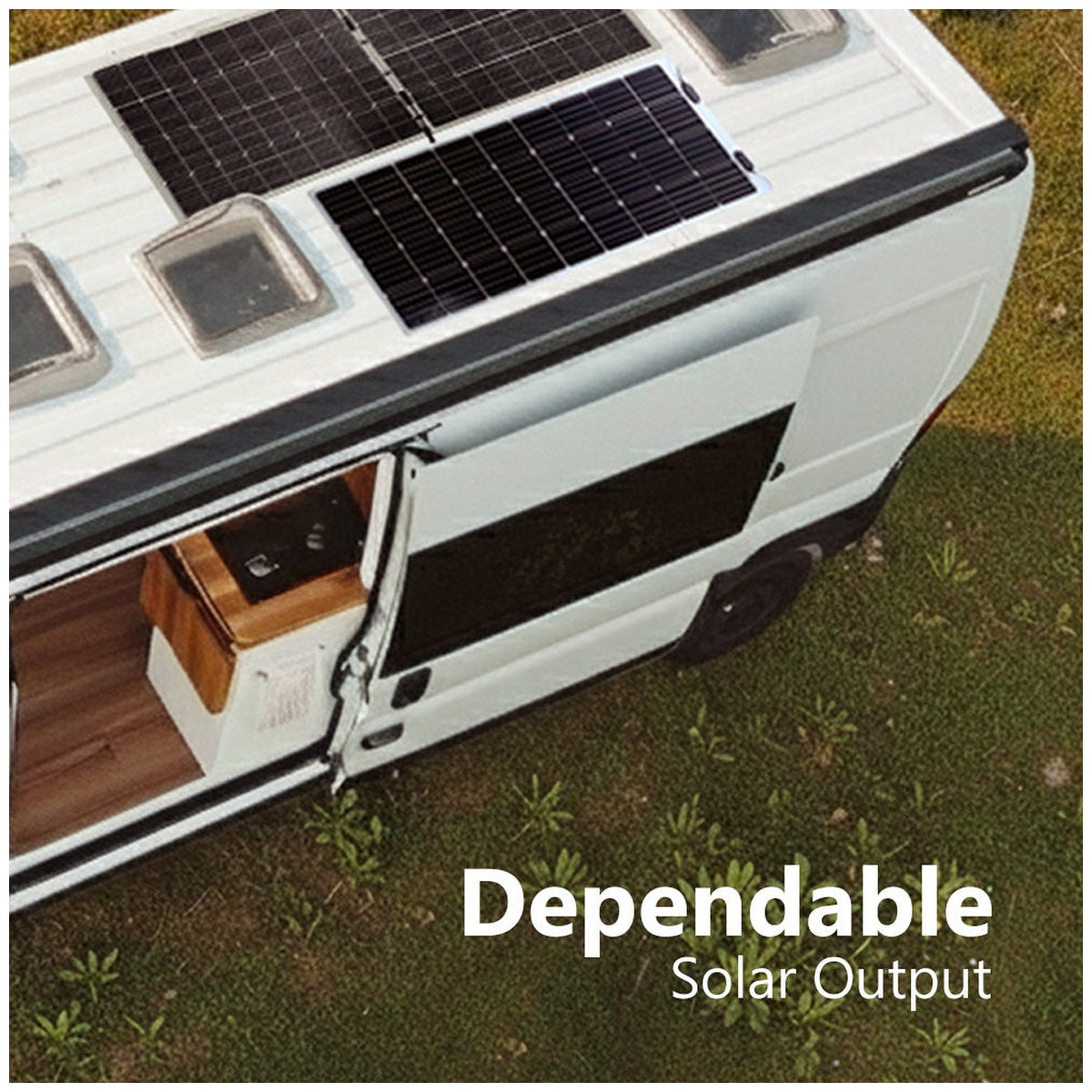

Superior solar technology with compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

Key Features:

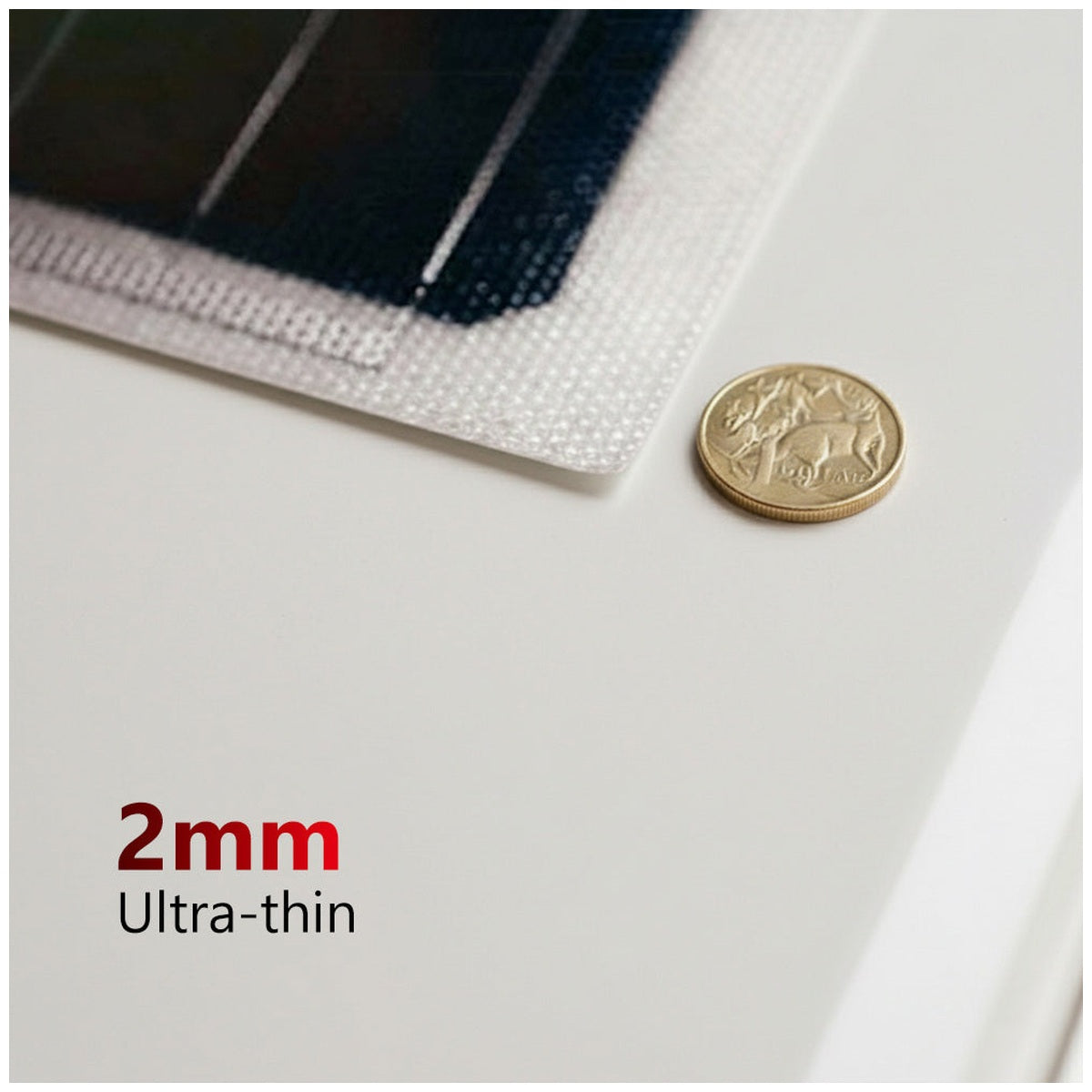

  • Lightweight and durable construction with cutting-edge technology

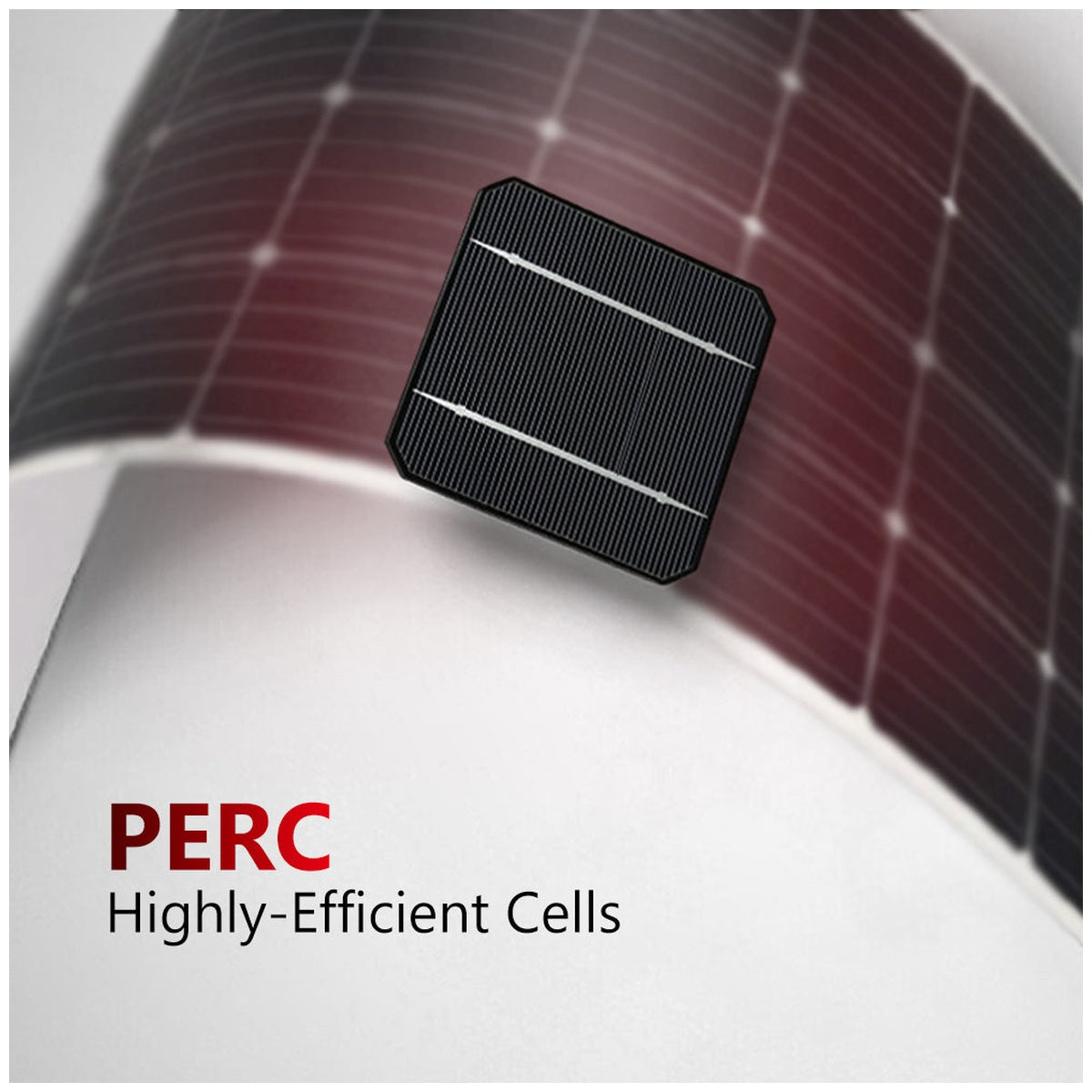

  • Highly efficient monocrystalline cells for optimal energy production

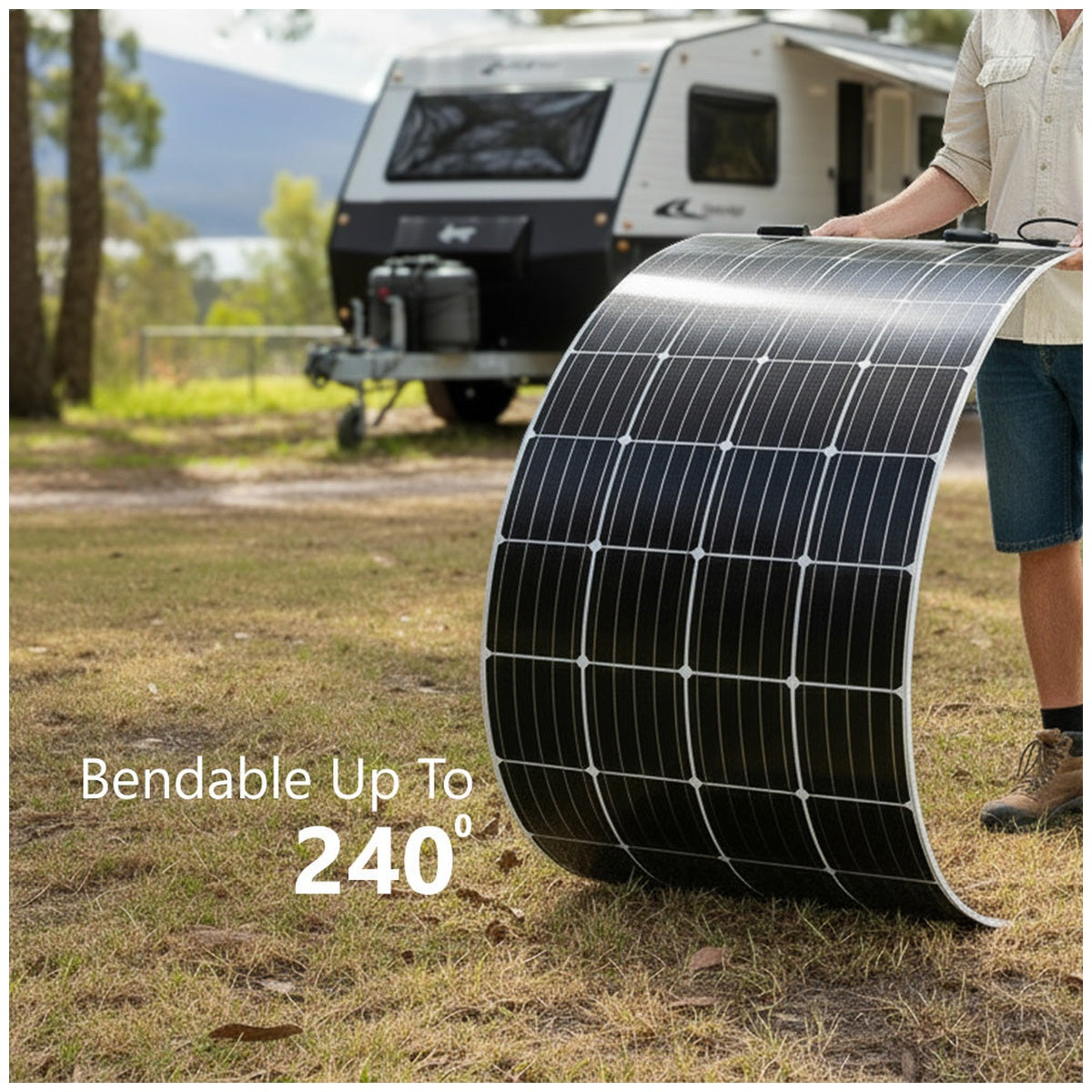

  • Flexible design for easy installation on various surfaces
  • Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
  • CEC-approved for residential and commercial use
  • 10-year product warranty for buildings and 5 years for mobile applications

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.

Optional Mounting Solutions

  • High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
  • Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
  • Eyelets: We can press eyelets into the panel so it can be secured using bolts or screws.

Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.

In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.

Specifications

Model SMF175M-4x09U
Solar cells 36 (4x9)
Maximum Power (Pmax) 175
Maximum Power Voltage (Vmp) 19.5
Maximum Power Current (Imp) 8.98
Open-circuit Voltage (Voc) 23.9
Short-circuit Current (Isc) 9.5
Operating Temperature (°C) -40 °C to 85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Application Class Class A
Power Tolerance 0/+5 W

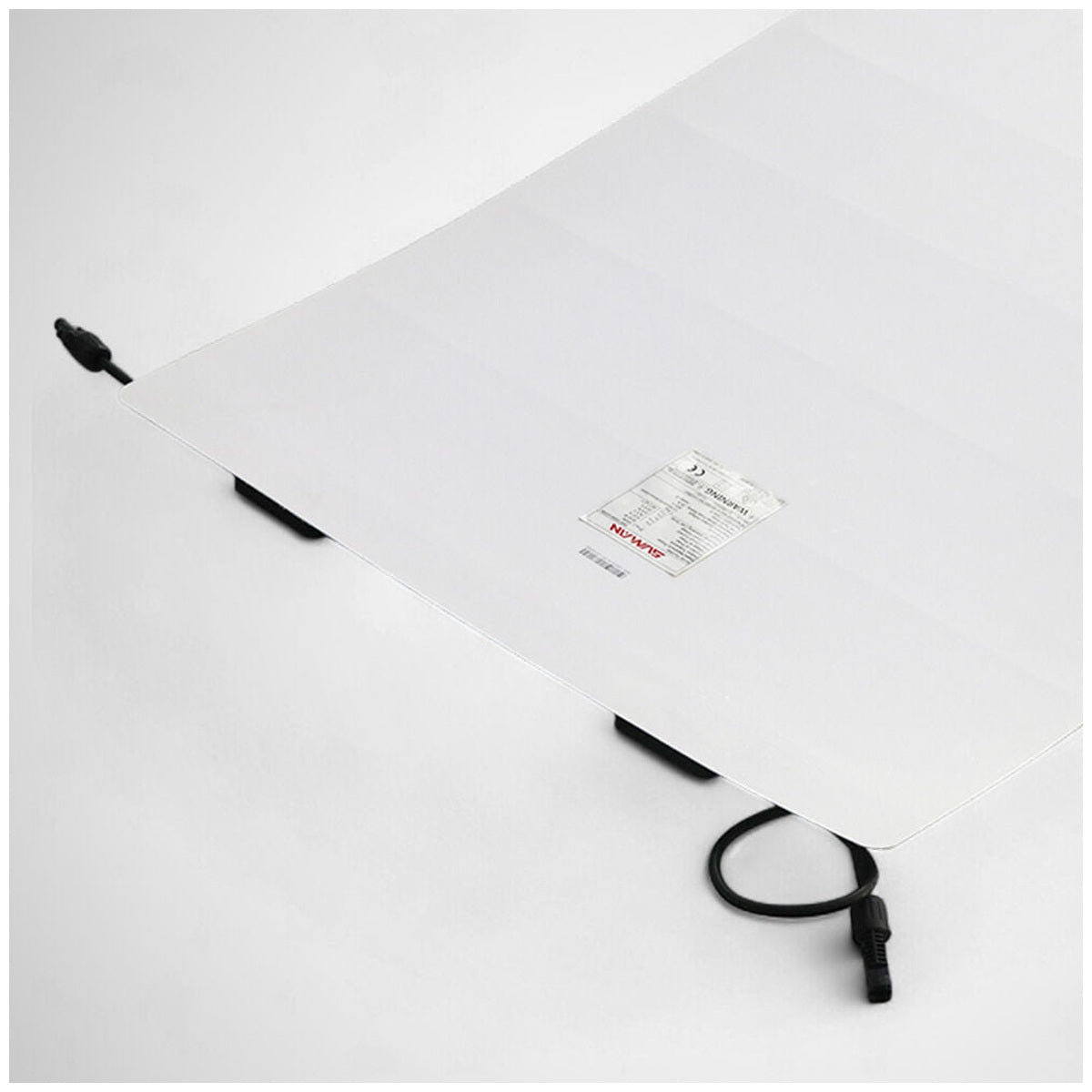

Backsheet White

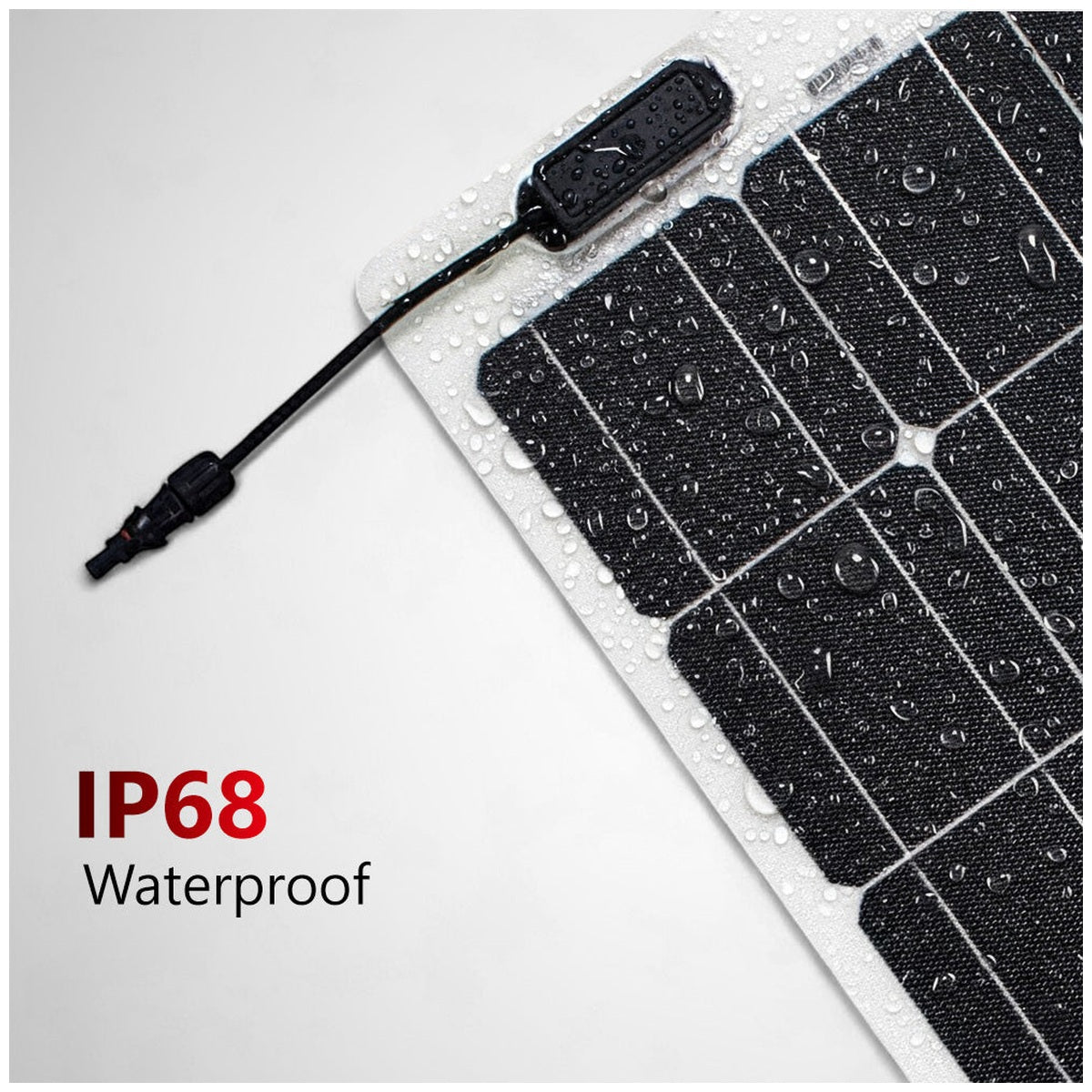

Junction box IP 68 rated (each j-box has one by-pass diode)
Output Cables Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
Connector MC4 compatible
