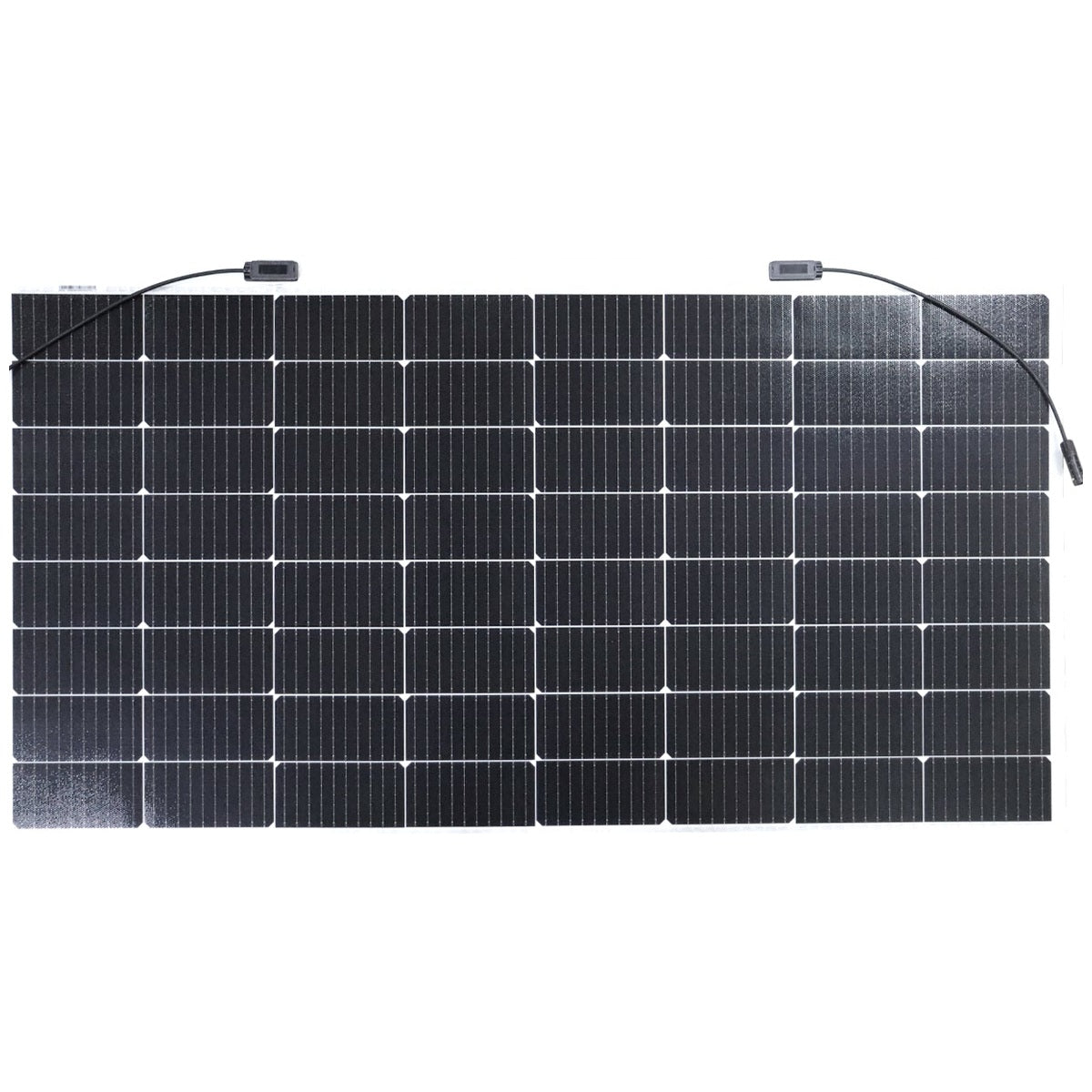

Sunman - eArc - 230W - Flexible Solar Panel

Sunman - eArc - 230W - Flexible Solar Panel

Regular price $349.95 AUD
Regular price Sale price $349.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Sunman eArc 230W Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels

Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

Key Features:

  • Lightweight and durable construction with cutting-edge technology
  • Highly efficient monocrystalline cells for optimal energy production

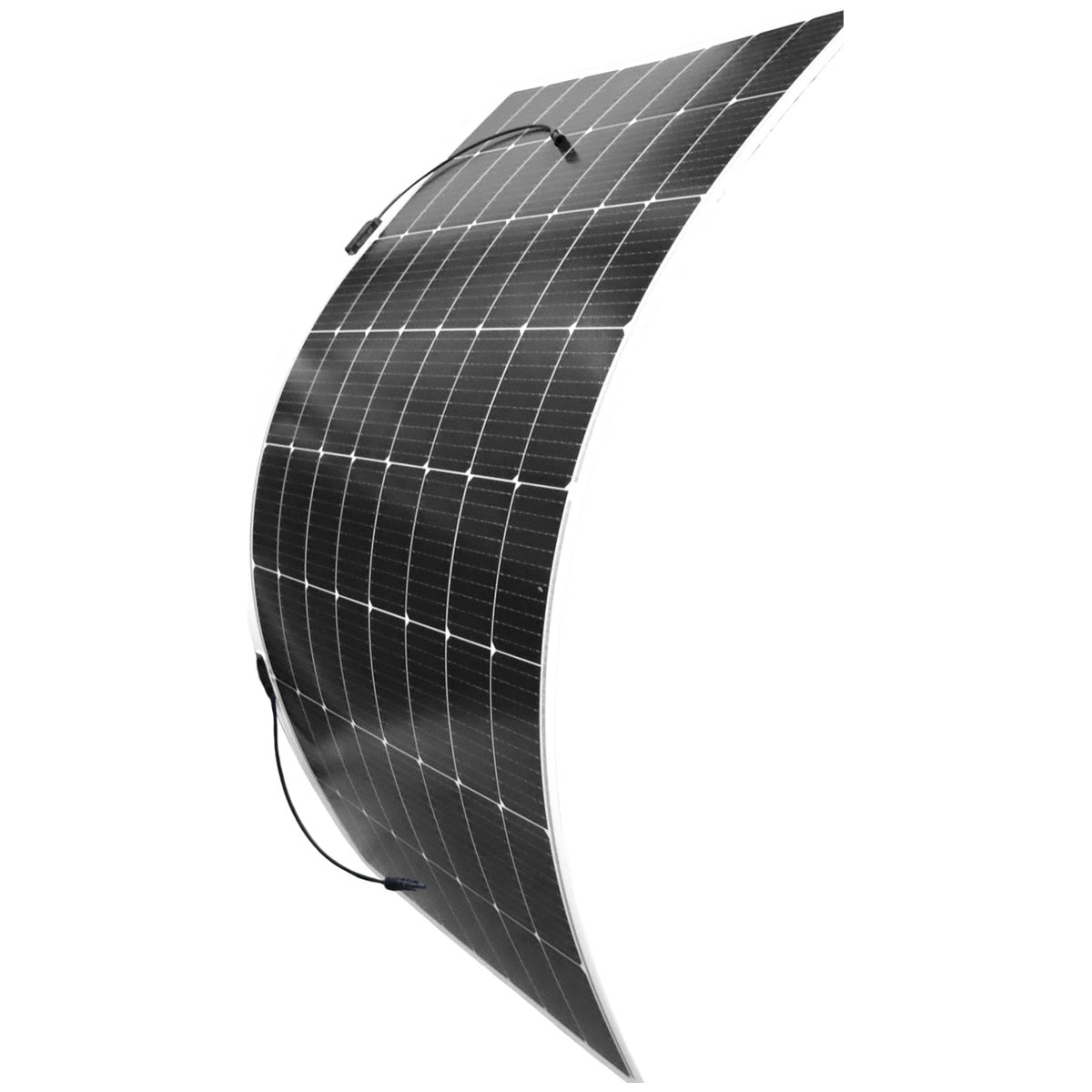

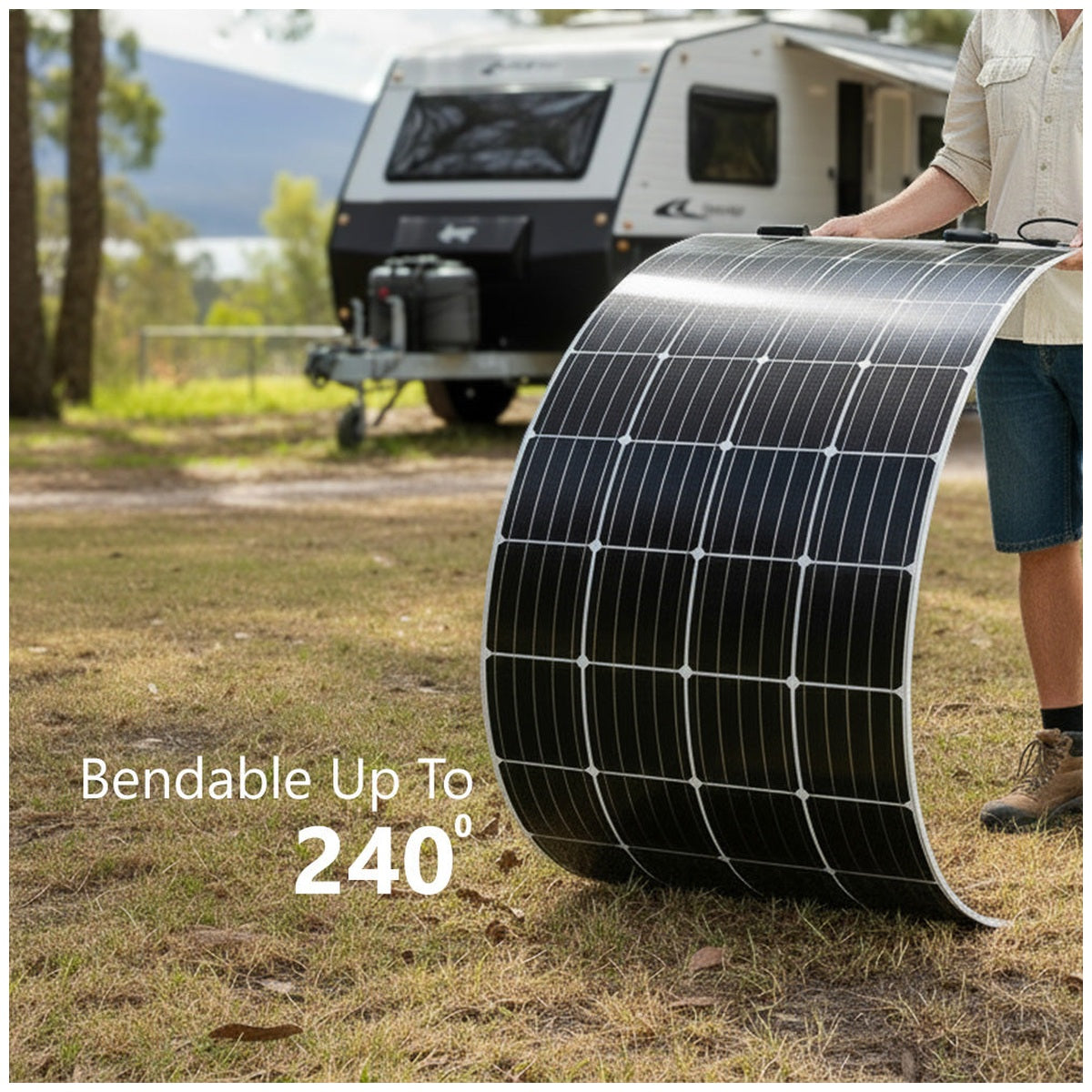

  • Flexible design for easy installation on various surfaces
  • Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
  • CEC-approved for residential and commercial use
  • 10-year product warranty for buildings and 5 years for mobile applications

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.

Optional Mounting Solutions

  • High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
  • Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
  • Eyelets: We can press eyelets into the panel so it can be secured using bolts or screws.

Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.

In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.

Specifications

Model SMF230J-8X8UW
Weight 3.31 kg
Maximum Power (Pmax) 230 W
Maximum Power Voltage (Vmp) 18.9 V
Current at Pmax (Imp) 12.31 A
Short-Circuit Current (Isc) 13.56 A ±5%
Open-Circuit Voltage (Voc) 21.4 V ±5%
Operating Temperature (°C) 41 °C
Maximum System Voltage 1000 V DC (IEC)
Power Tolerance 0/+5 W

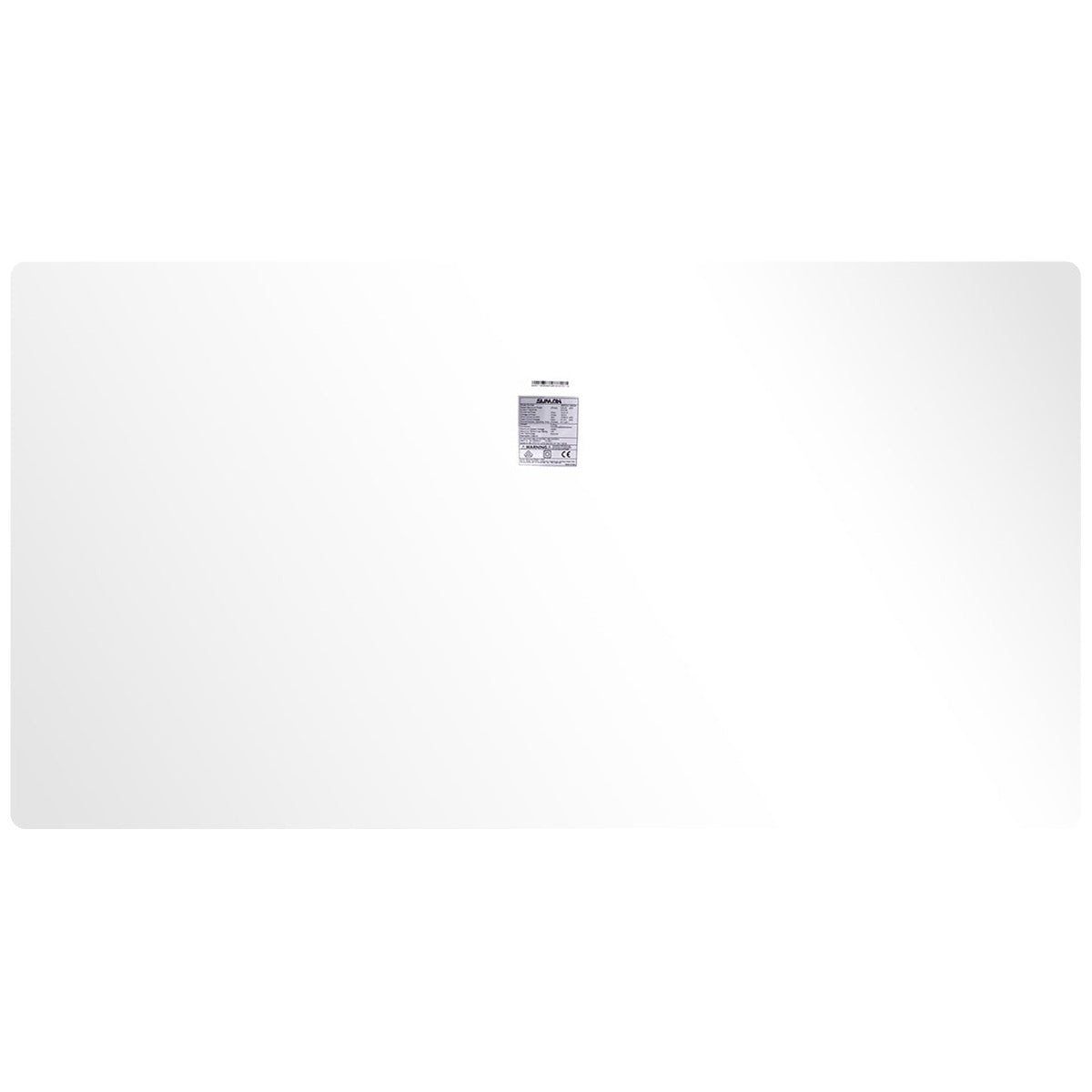

Backsheet White

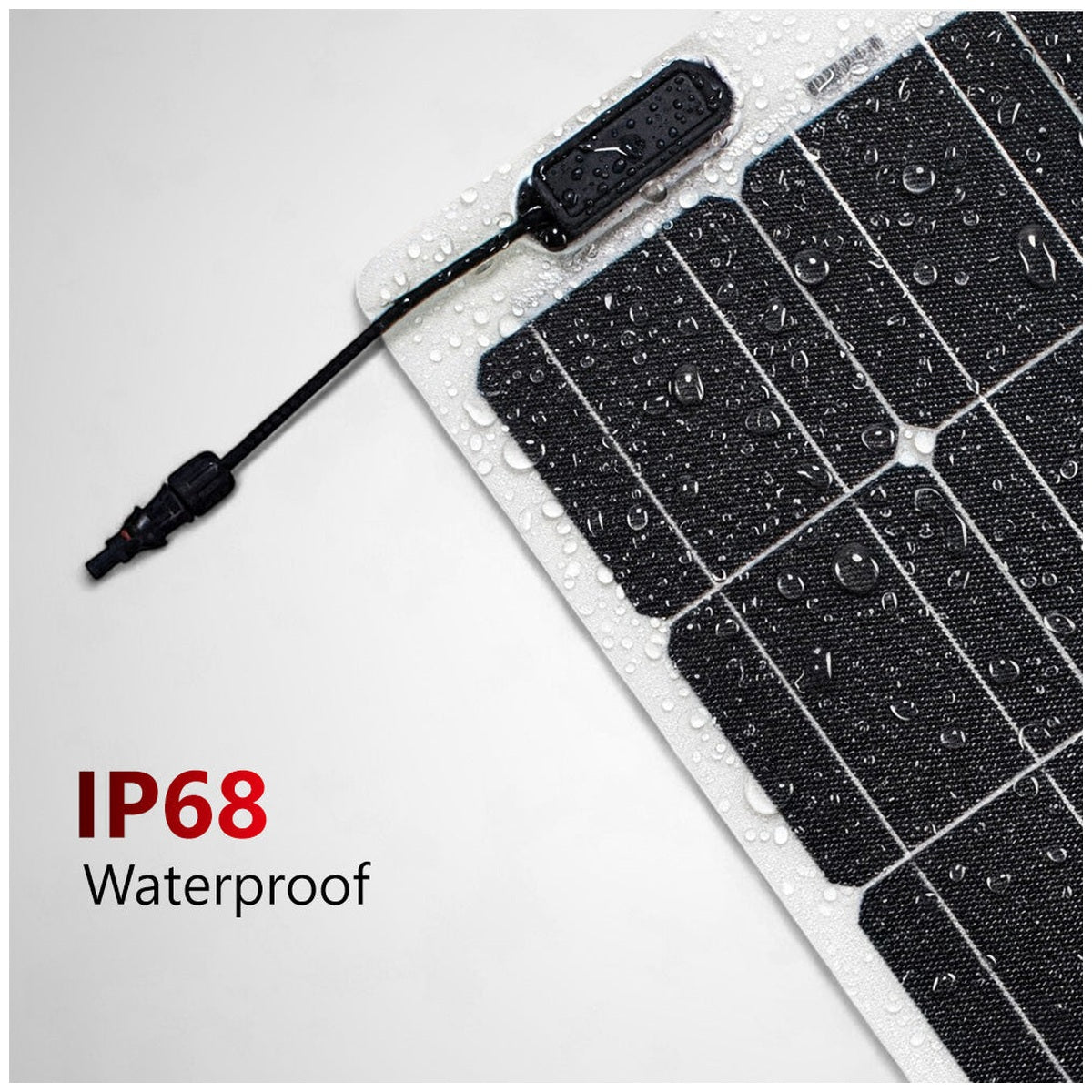

Junction Box IP68 rated (each junction box has one bypass diode)
Output Cables Photovoltaic technology cable 4.0 mm², (+)150 / (-)450 mm
Connector MC4 compatible

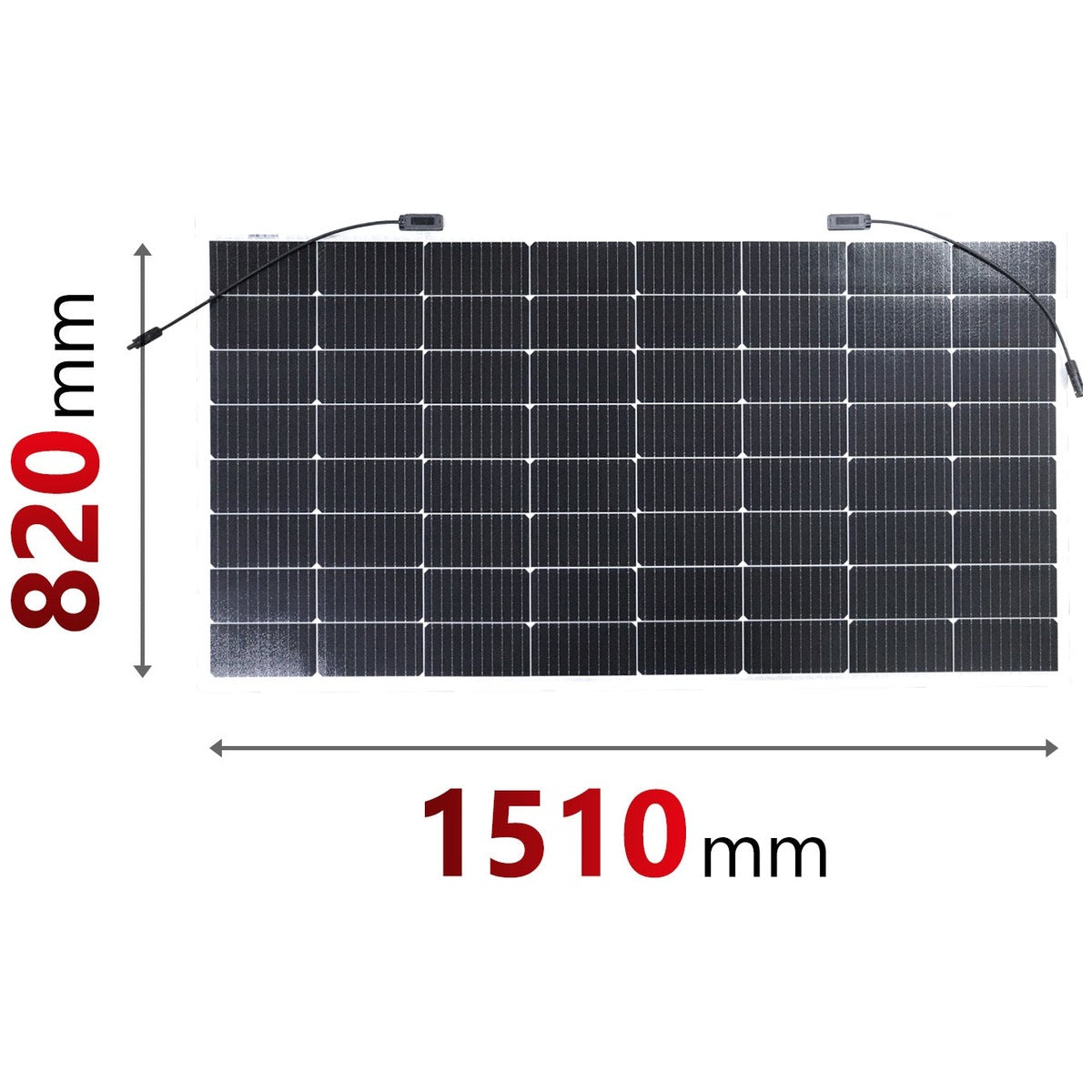

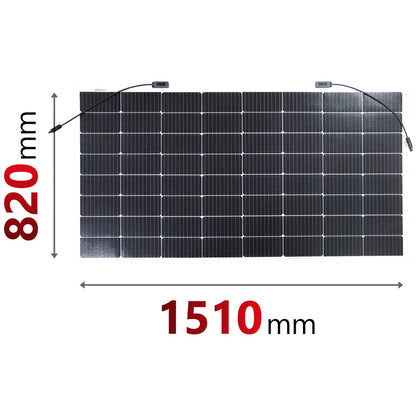

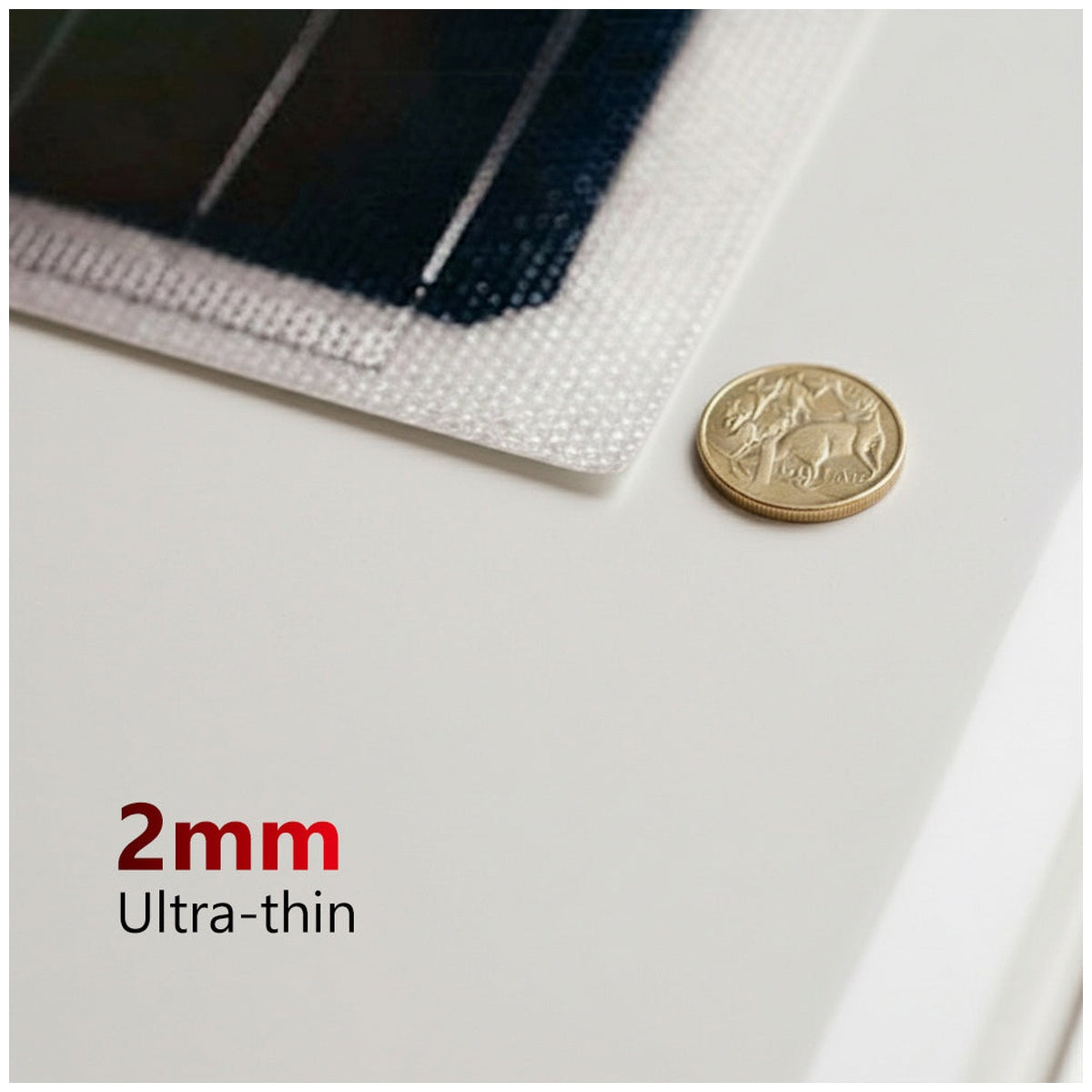

Dimensions 1510 x 820 x 2mm
