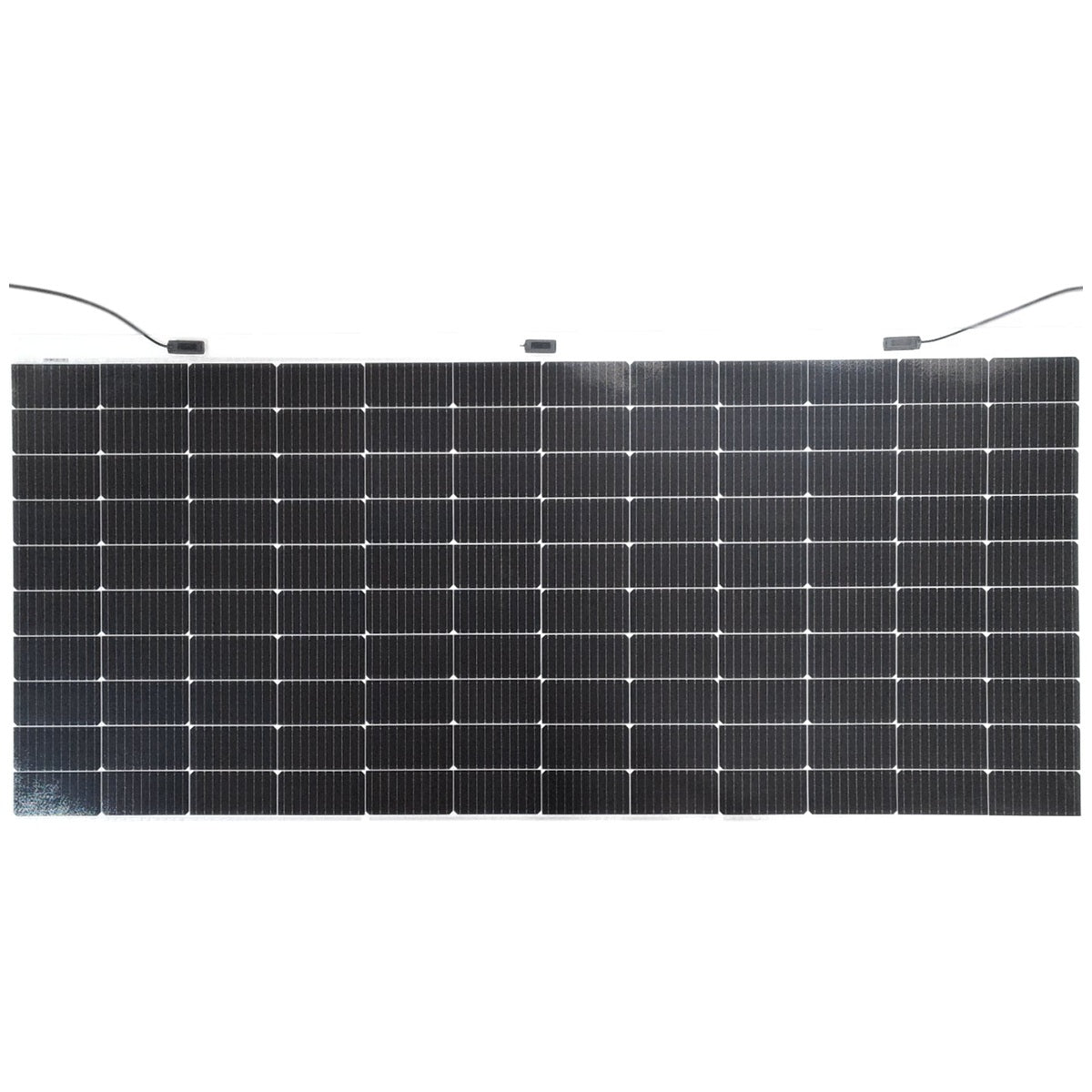

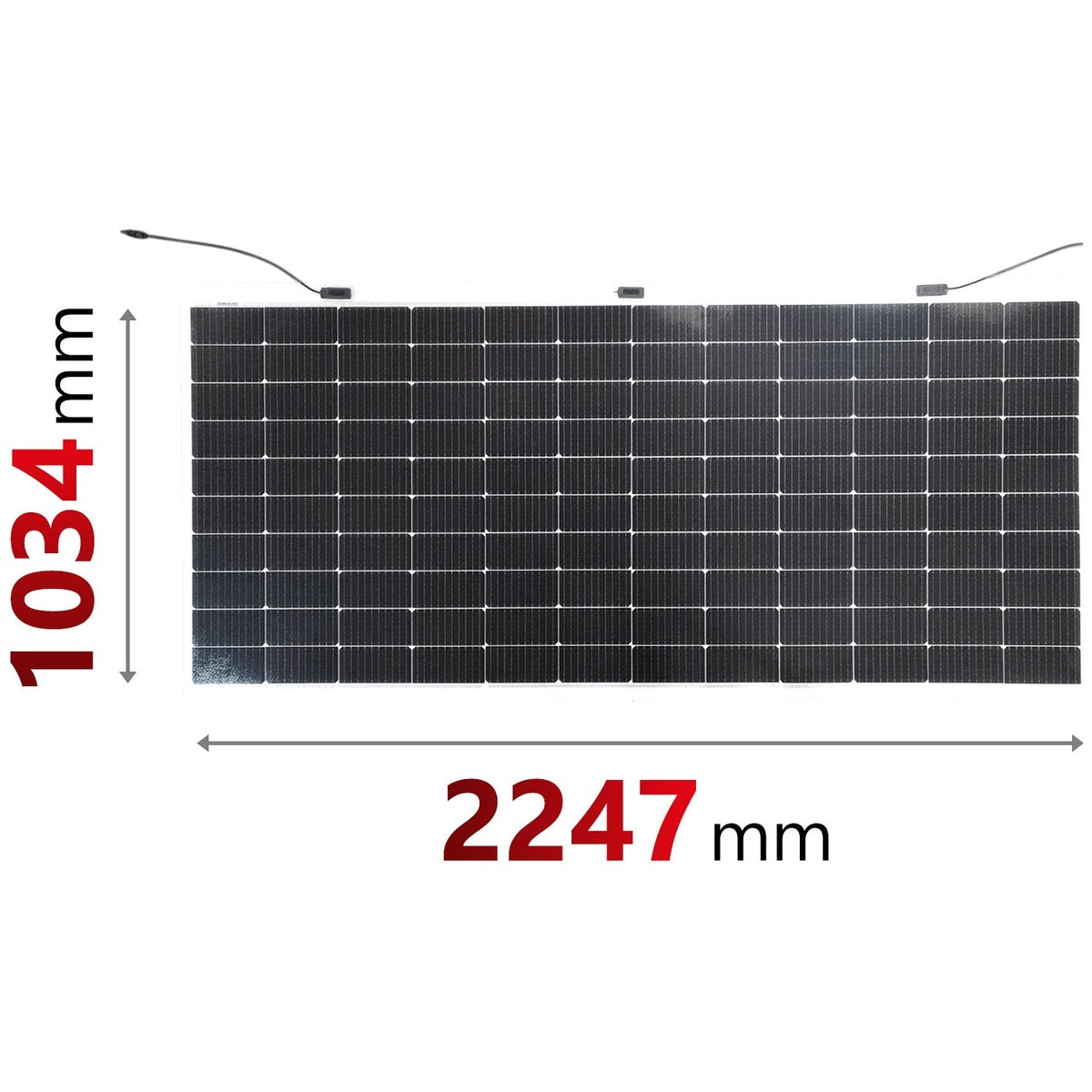

Sunman eArc 430W Flexible Solar Panel - Compact and Efficient Mono-PERC Solar Panels
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:

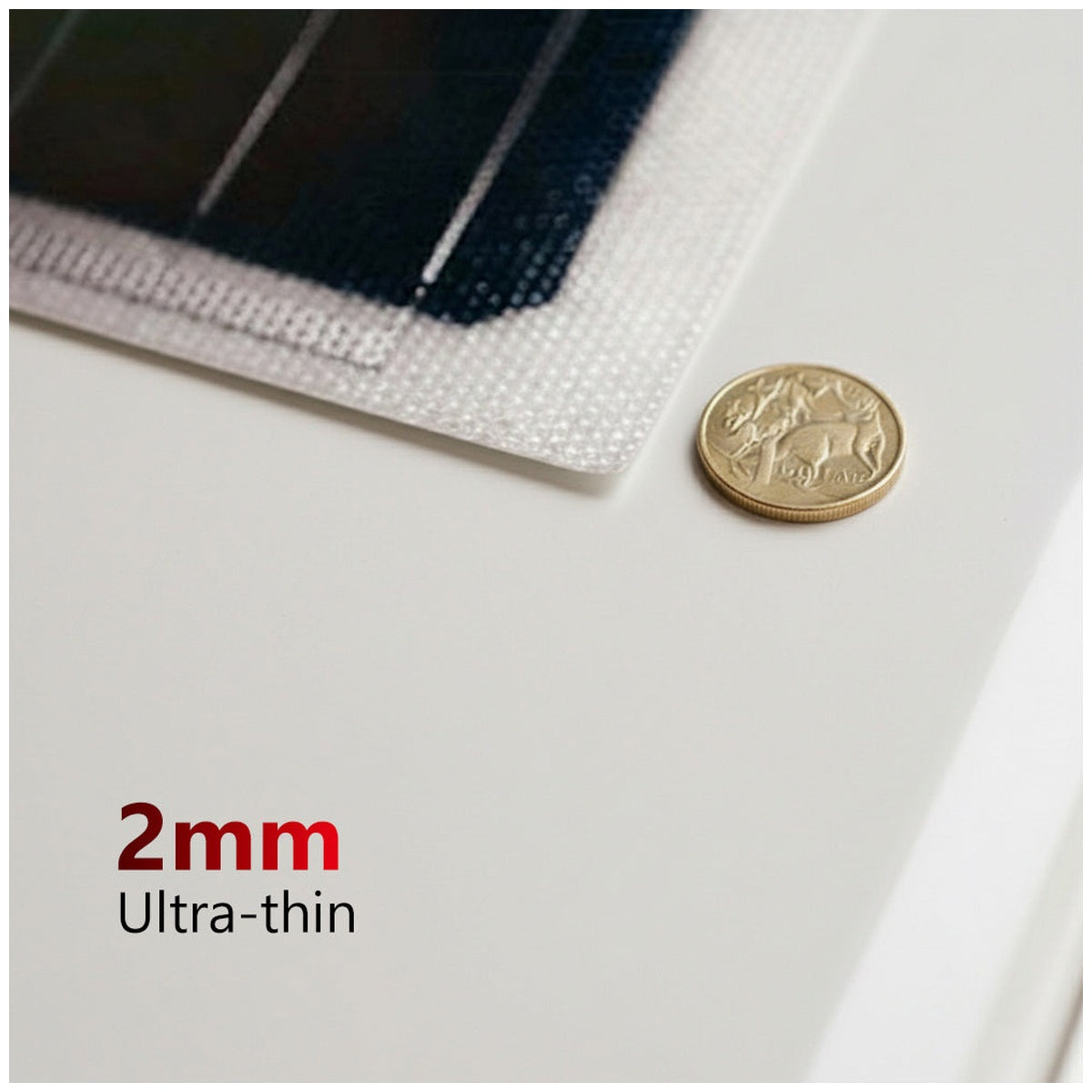

Lightweight and durable construction with cutting-edge technology
Highly efficient monocrystalline cells for optimal energy production

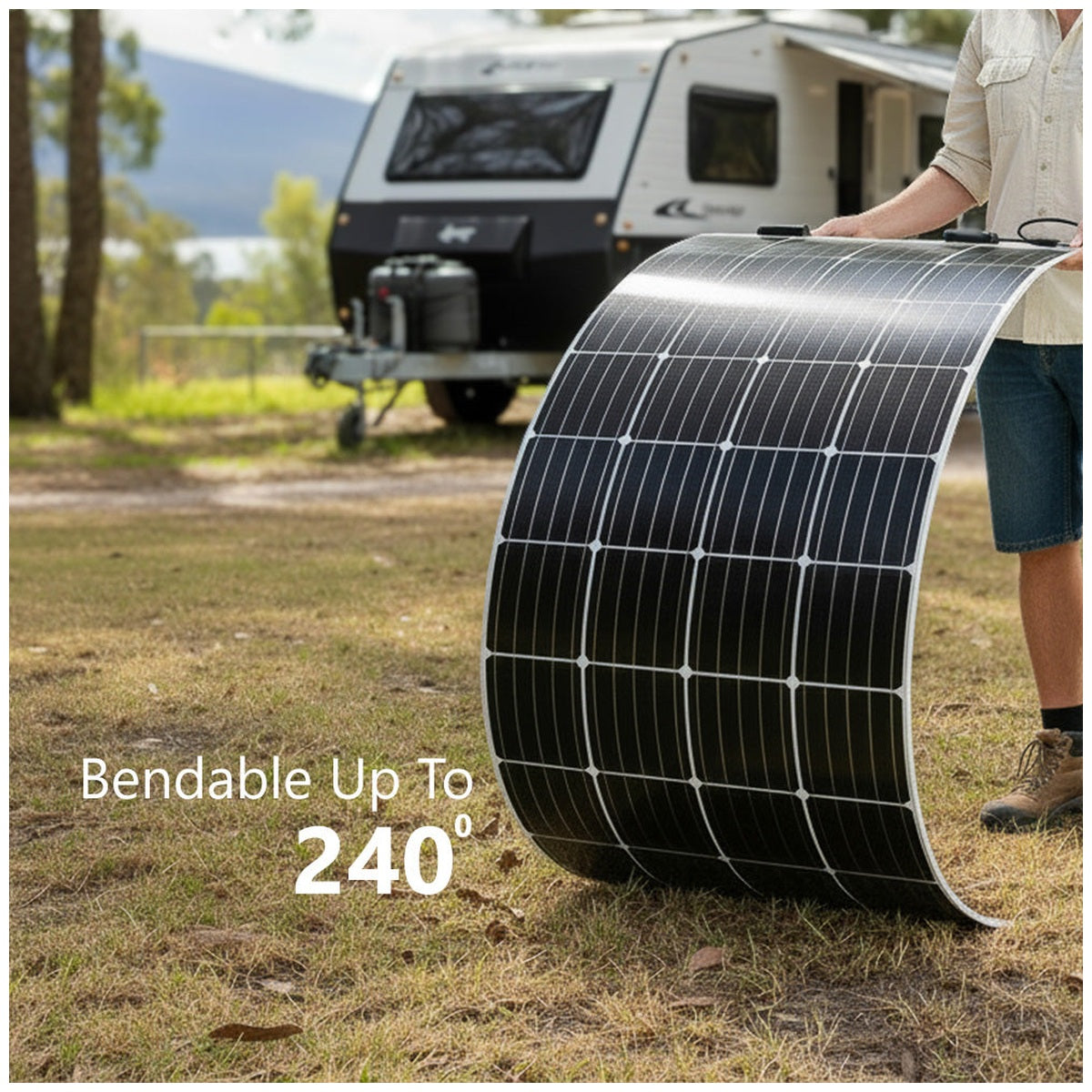

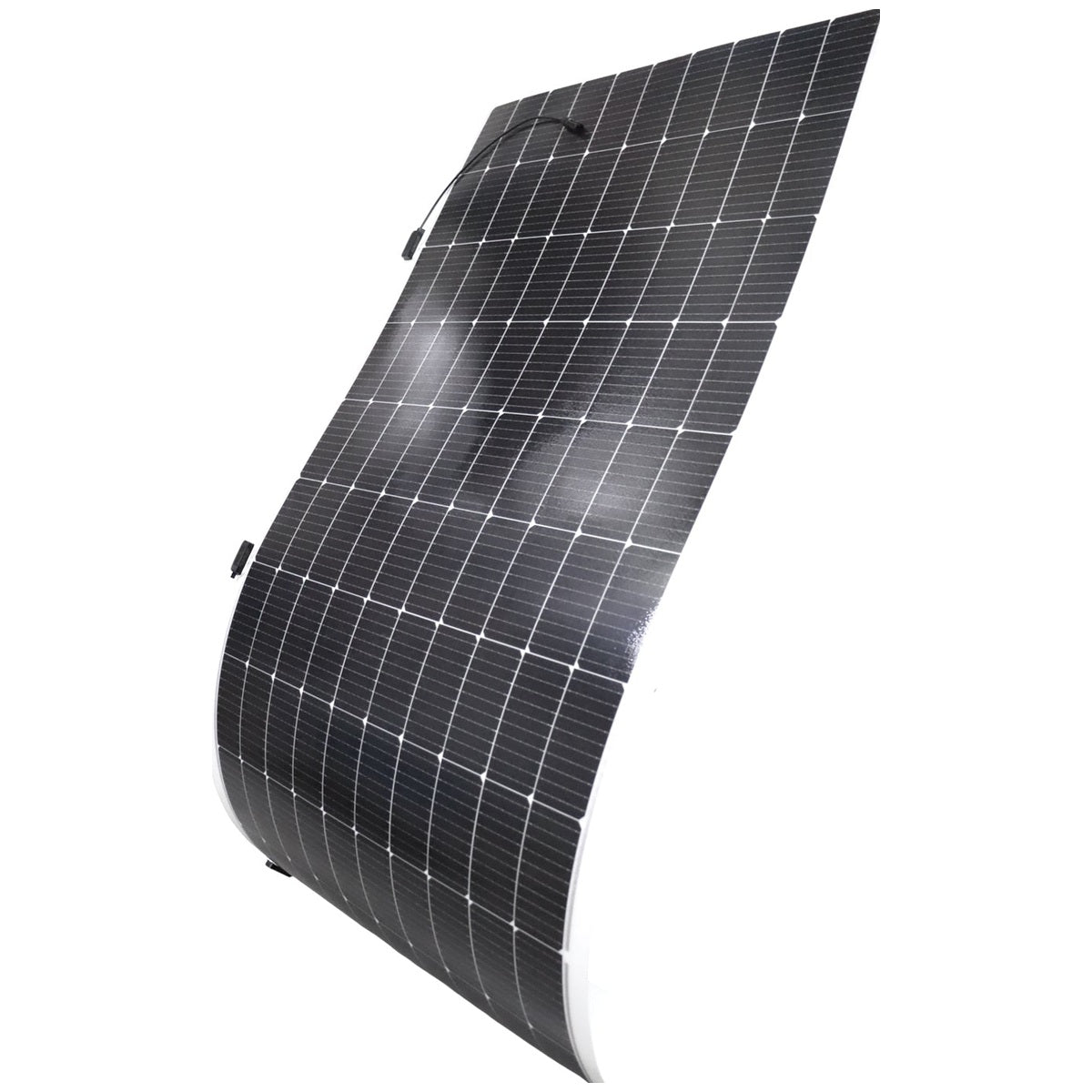

Flexible design for easy installation on various surfaces
Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
CEC-approved for residential and commercial use
10-year product warranty for buildings and 5 years for mobile applications
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.
Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.
In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.
Specifications
Model
SMF430J-12X10UW
Weight
6.2 kg
Maximum Power (Pmax)
430 W
Maximum Power Voltage (Vmp)
35.1 V
Current at Pmax (Imp)
12.31 A
Short-Circuit Current (Isc)
13.56 A ±5%
Open-Circuit Voltage (Voc)
41.5 V ±5%
Operating Temperature (°C)
41 °C
Maximum System Voltage
1000 V DC (IEC)
Power Tolerance
0/+5 W

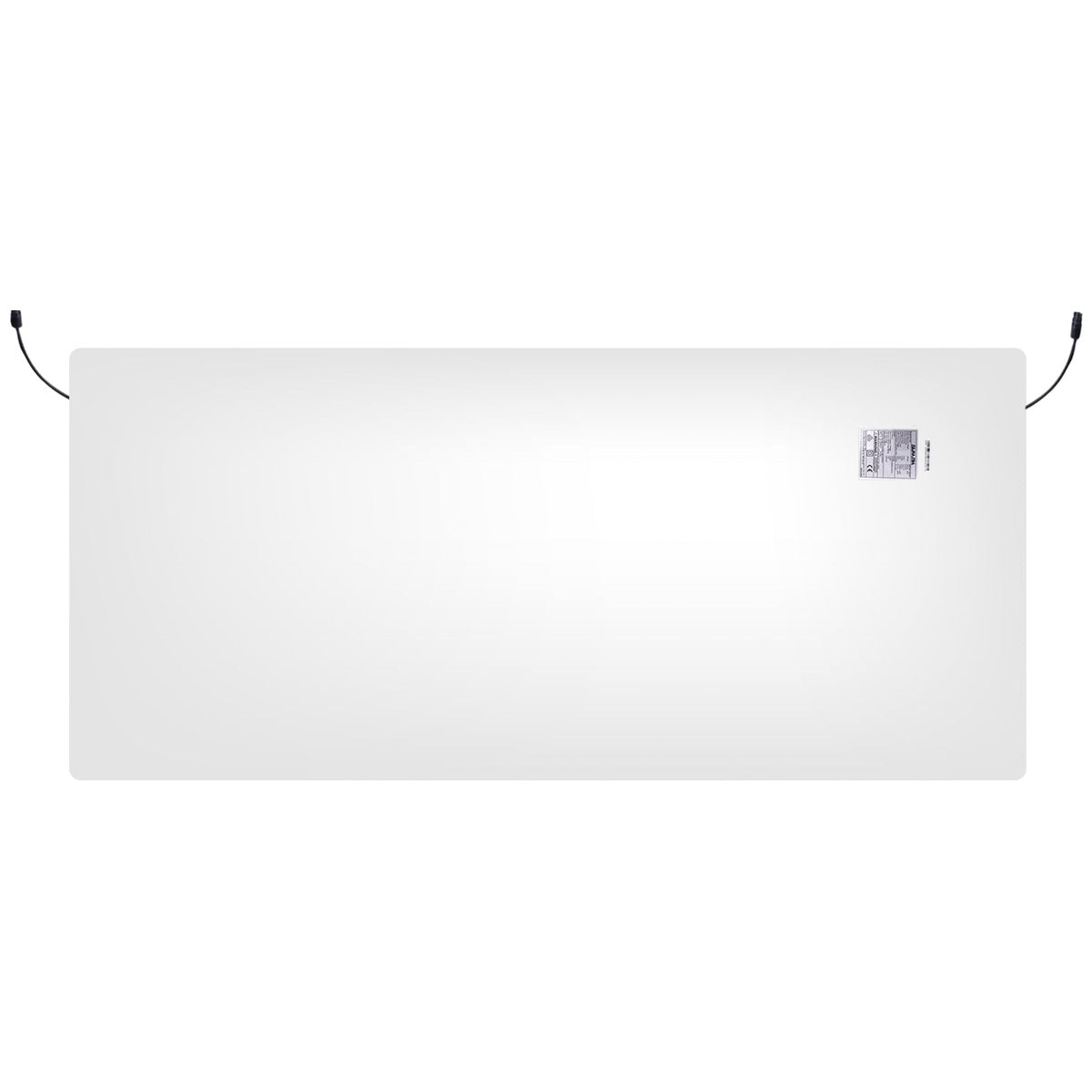

Backsheet
White
Junction Box

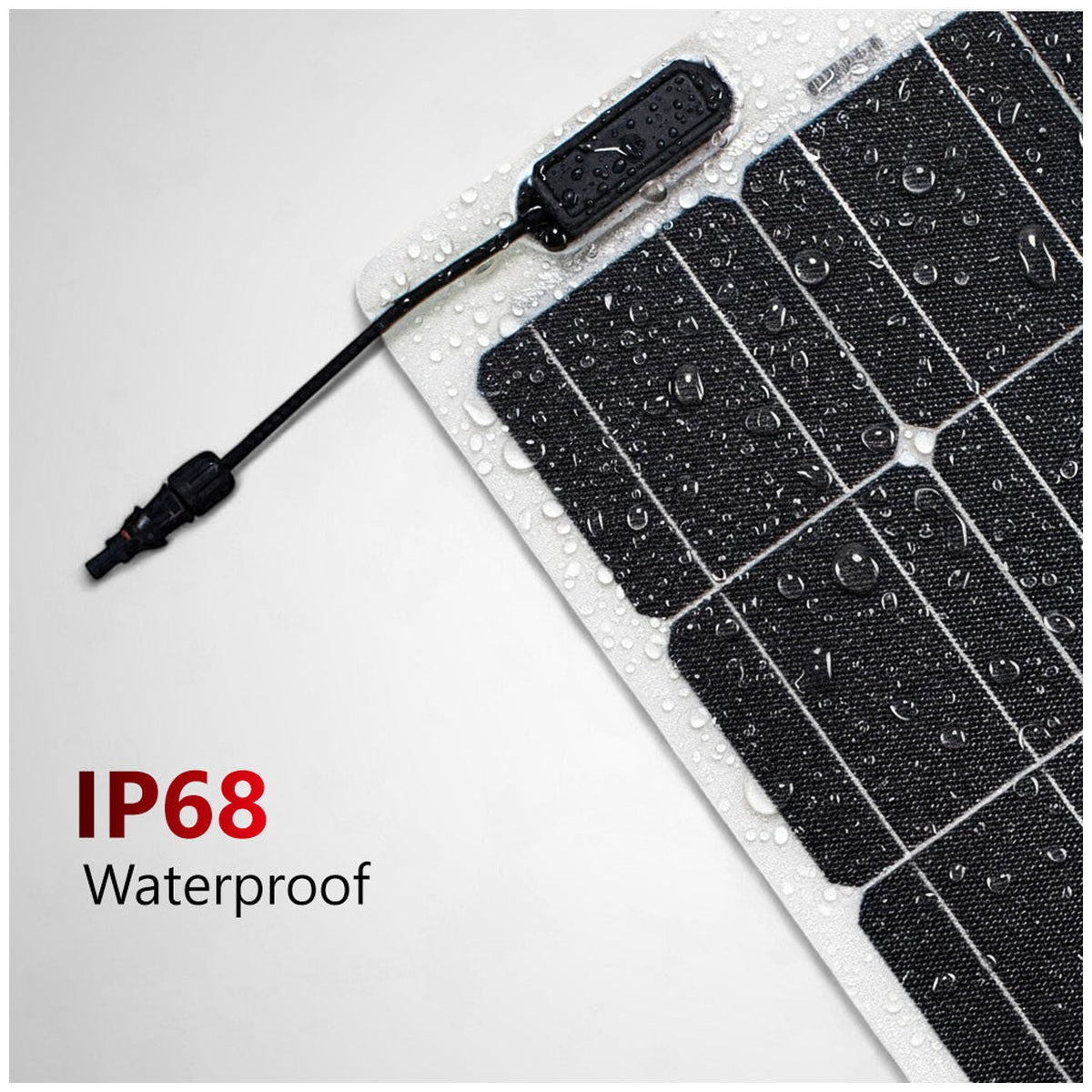

IP68 rated (each junction box has one bypass diode)
Output Cables
Photovoltaic technology cable 4.0 mm², (+)150 / (-)450 mm
