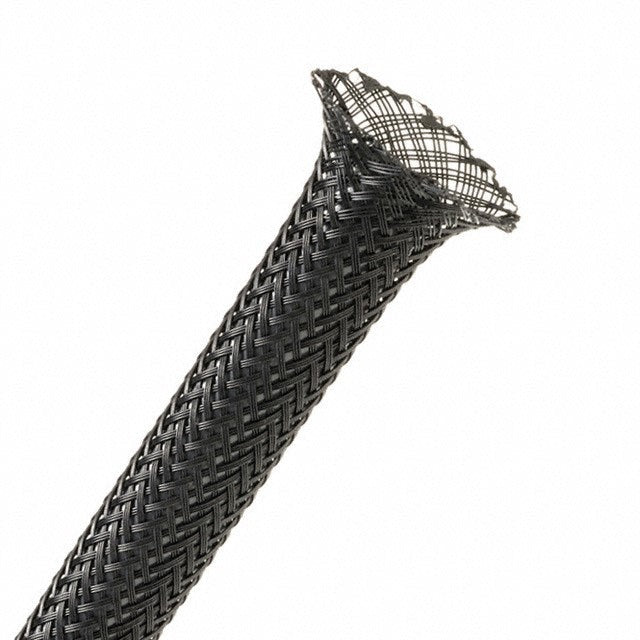

Techflex Sleeving - Black
Techflex Sleeving - Black
Techflex Sleeving can be used as an alternative to corrugated plastic sleeving.
The FLEXO® PET (PT) grade is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical. The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PT can be found in applications ranging from small office/home office to high tech wire and cable harnesses.
PT is braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.
Techflex sleeving will shorten in length when it expands in width. This will be dependent on your wire size, the larger the wire, the more the sleeve will need to stretch to cover it and the shorter it will end up. We recommend ordering at least 20% more sleeve than wire you intend to sleeve so you don't come up short.
We currently offer this in black only and in 3 sizes.
Price is per metre.
Size | Expansion Max | Expansion Min |
1/4" - 6.35mm | 7/16" - 11.11mm | 1/8" - 3.18mm |
3/8" - 9.53mm | 1/2" - 12.7mm | 3/16" - 4.76mm |
1/2" - 12.7mm | 3/4" - 19.05mm | 1/4" - 6.35mm |
