Exotronic - 50mm² Flexible Battery Cable - Per Metre

Exotronic 50mm² Flexible Battery Cable, Sold Per Metre

Single-Core Flexible Cable for Battery Banks, Inverters and Busbars

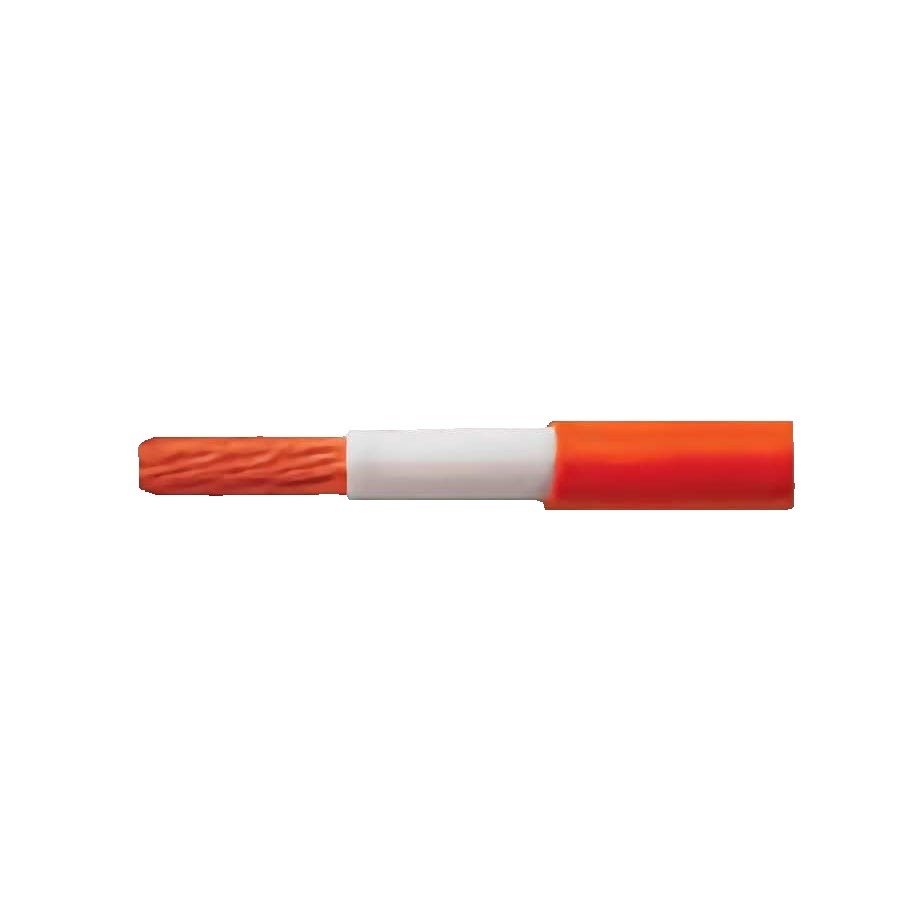

This 50mm² flexible battery cable is an orange single-core cable sold by the metre and cut to your ordered length. Its fine-stranded plain copper conductor routes easily around tight bends in battery boxes and distribution panels, and suits correctly designed battery bank, inverter, busbar and solar energy-storage installations.

The cable is rated at 0.6/1kV. Select the cable size for your circuit's current, run length and voltage drop, allowing for the installation method, bundling and ambient temperature, and have high-current DC wiring designed and installed by a suitably qualified person.

*Reference current-carrying capacity: 276A. This is the AS/NZS 3008.1.1:2017 Table 6 value for two single-core flexible copper cables with 110°C X-HF-110 insulation, unenclosed and spaced in free air at 40°C ambient air temperature. It is not a universal circuit rating: correction and derating factors apply for ambient temperature, grouping or bundling, installation method, enclosure, thermal insulation and other heat sources.

As a cut-length product, please confirm your required quantity before ordering; cable cut to length cannot normally be returned.

Key Features

• 50mm² fine-stranded plain copper conductor for flexible power runs
• Orange single-core cable for battery, inverter and solar energy-storage wiring
• 0.6/1kV voltage rating
• Sold per metre, cut to your specified length
