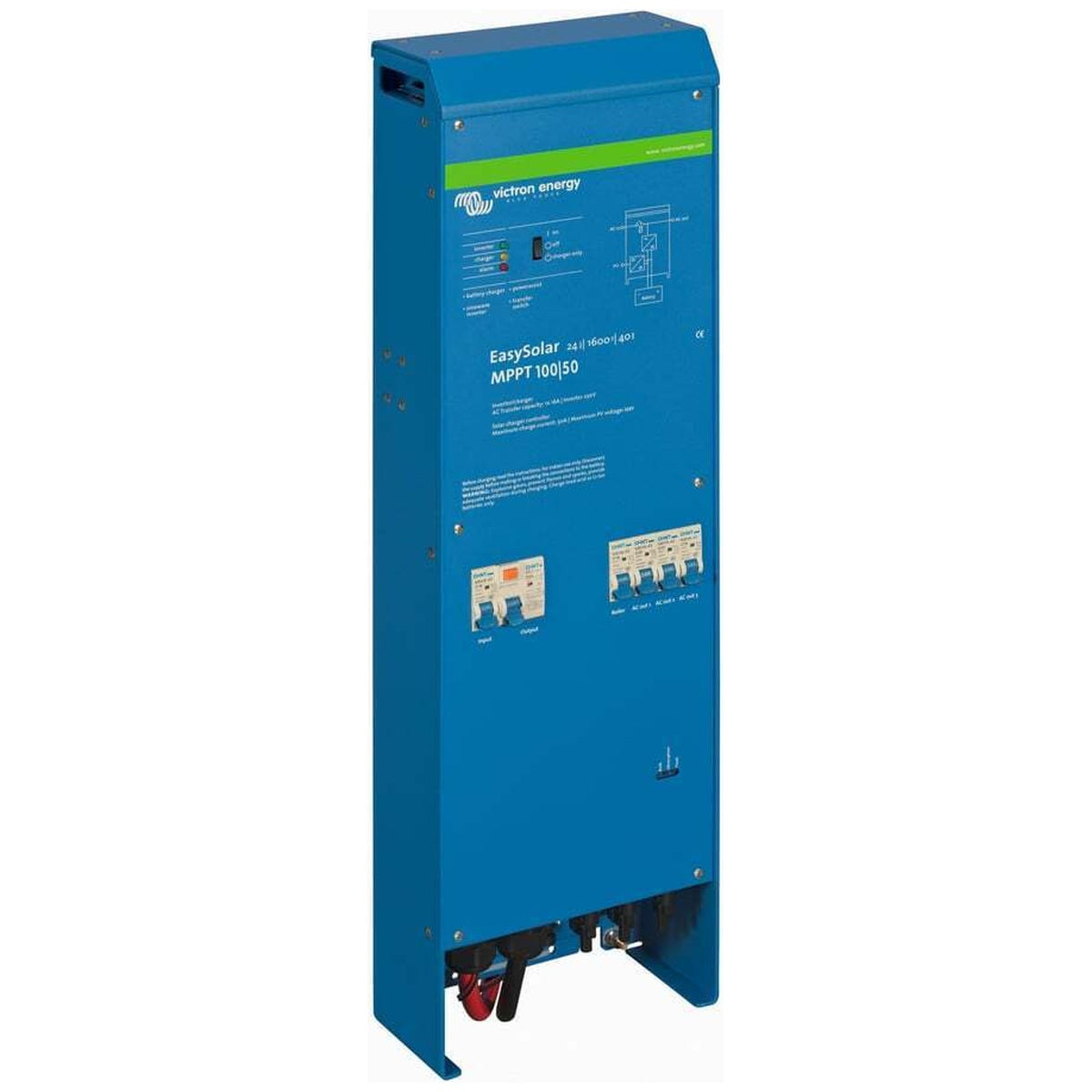

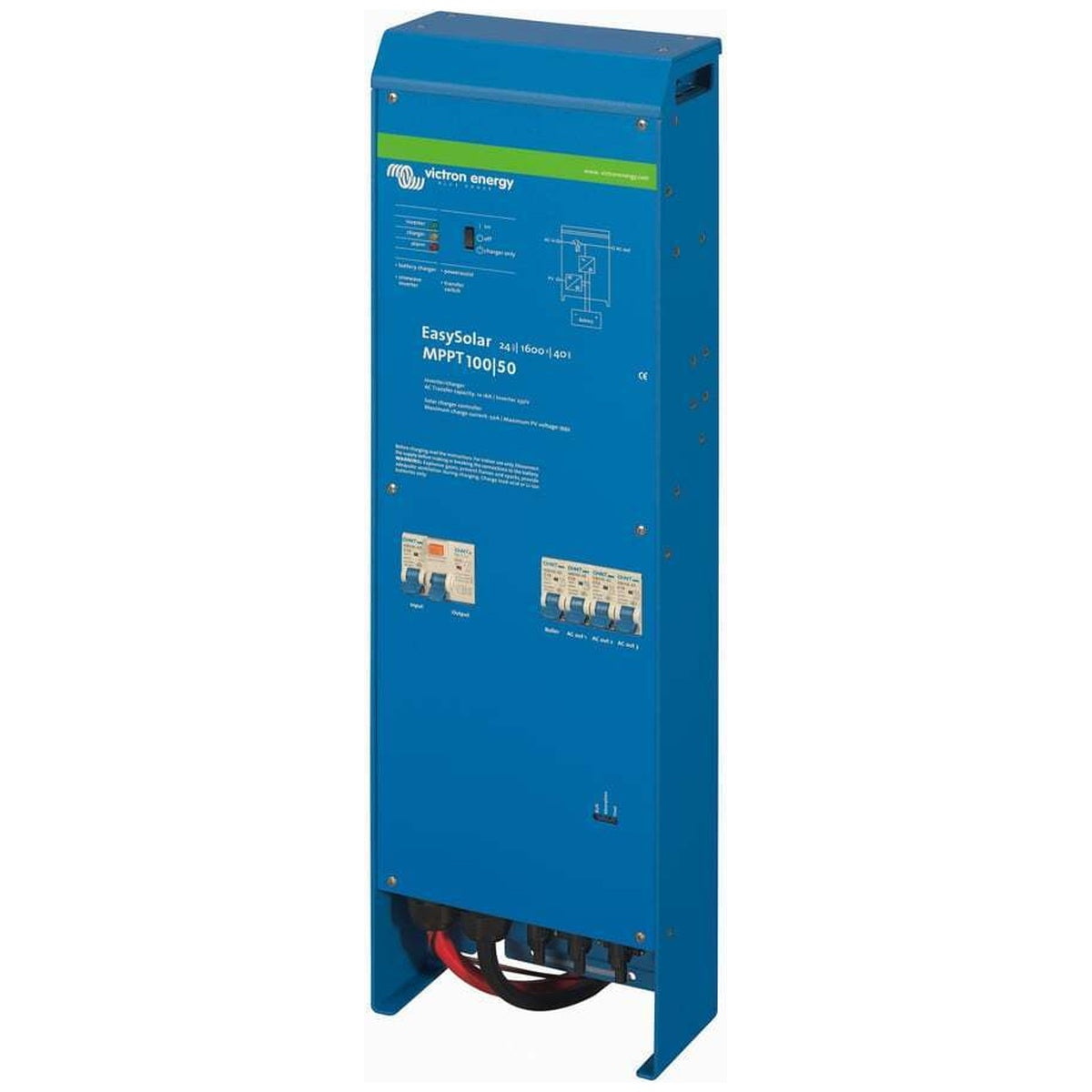

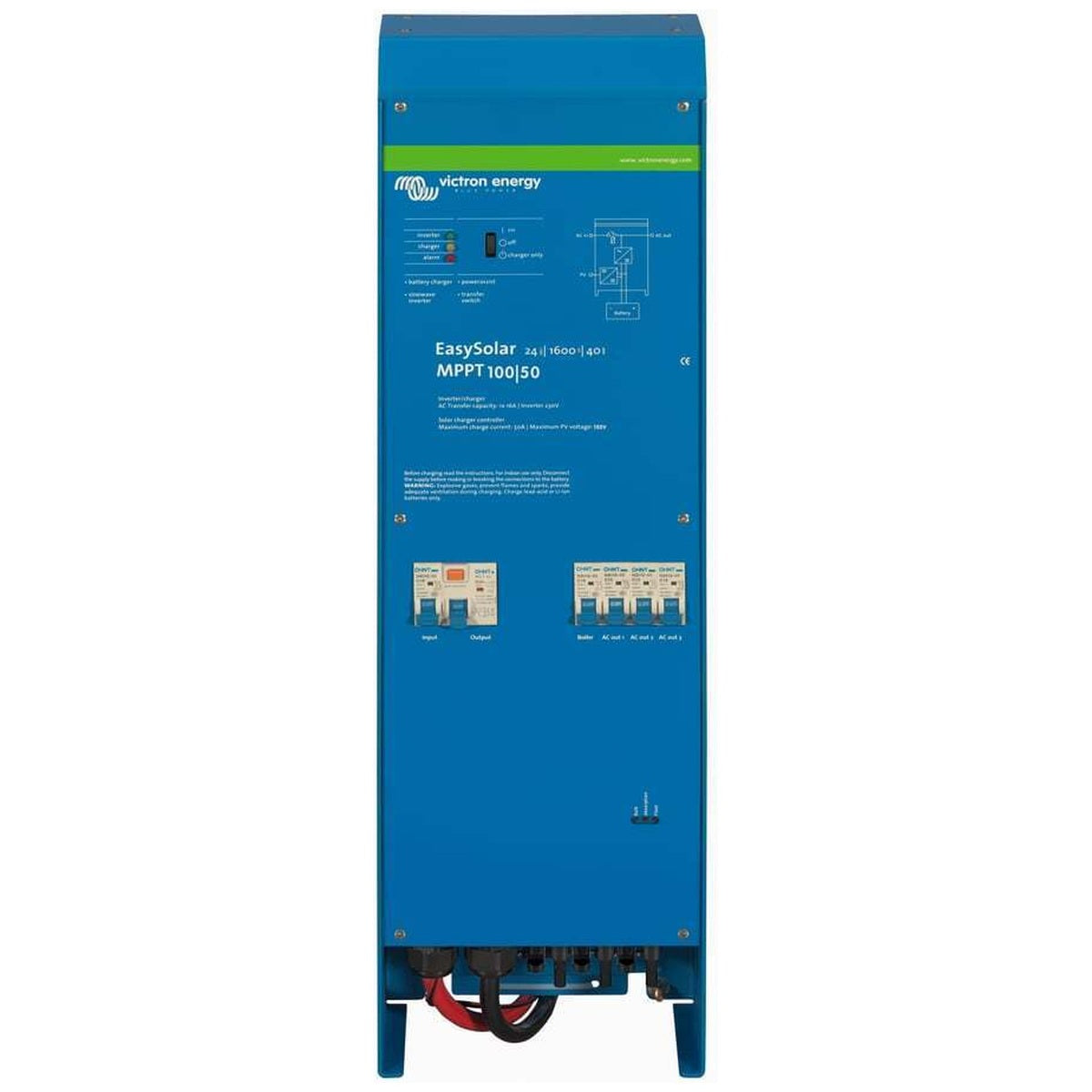

Victron Energy - 24V - 1600VA EasySolar 24/1600/40-16 - Inverter/Charger/MPPT 100/50

Victron EasySolar 24/1600/40-16: The Complete Solar Power Solution for Simple Bus Systems

Unlock the full potential of solar energy with the Victron 24V 1600VA EasySolar 24/1600/40-16, a streamlined all-in-one solar power system. This integrated solution combines a Blue Solar MPPT 100/50 charge controller, a MultiPlus Compact inverter/charger, and a sophisticated AC distribution setup within a single enclosure. It is ideally suited for simple bus systems, offering a simplified installation process with minimal wiring.

Blue Solar MPPT: Optimal Solar Harvesting

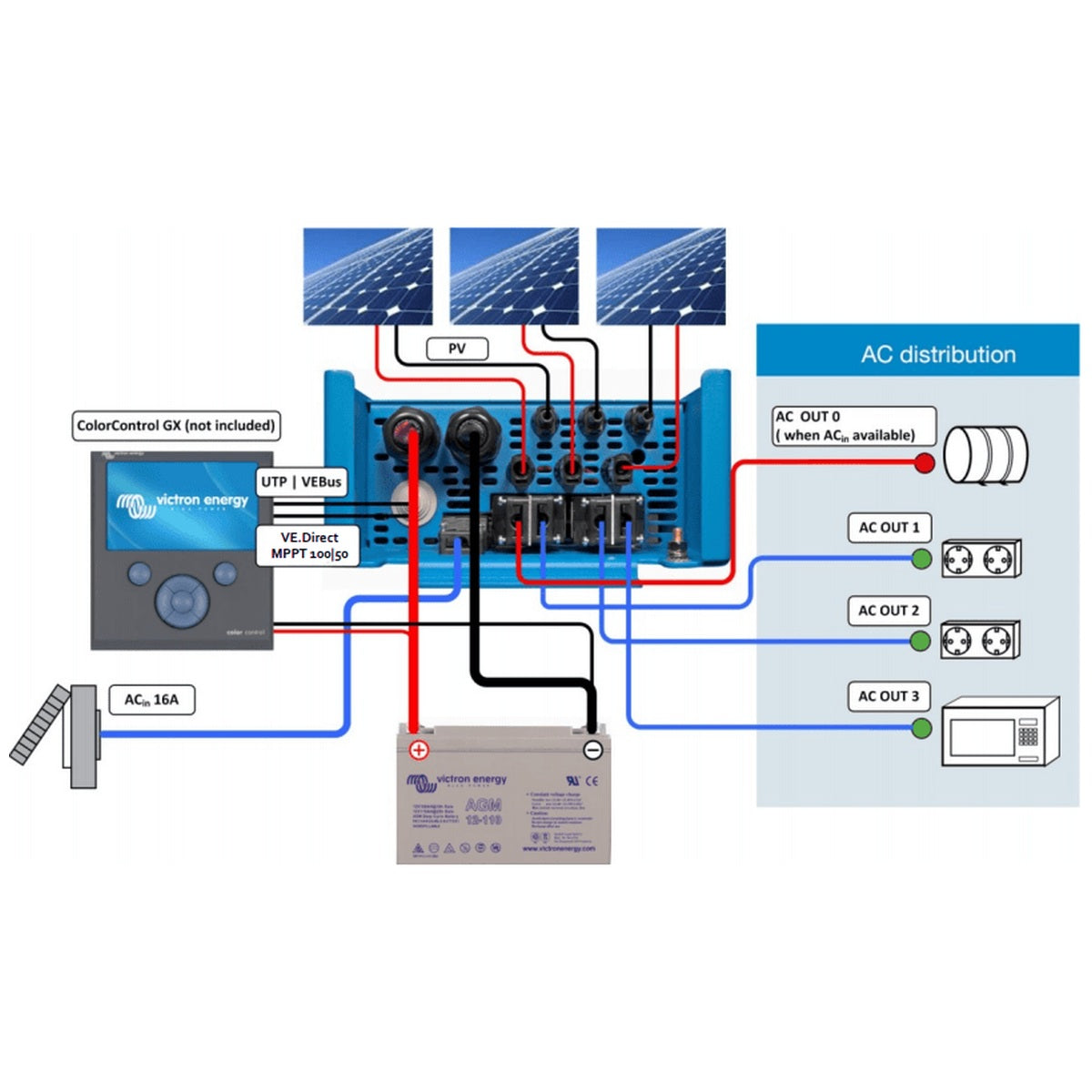

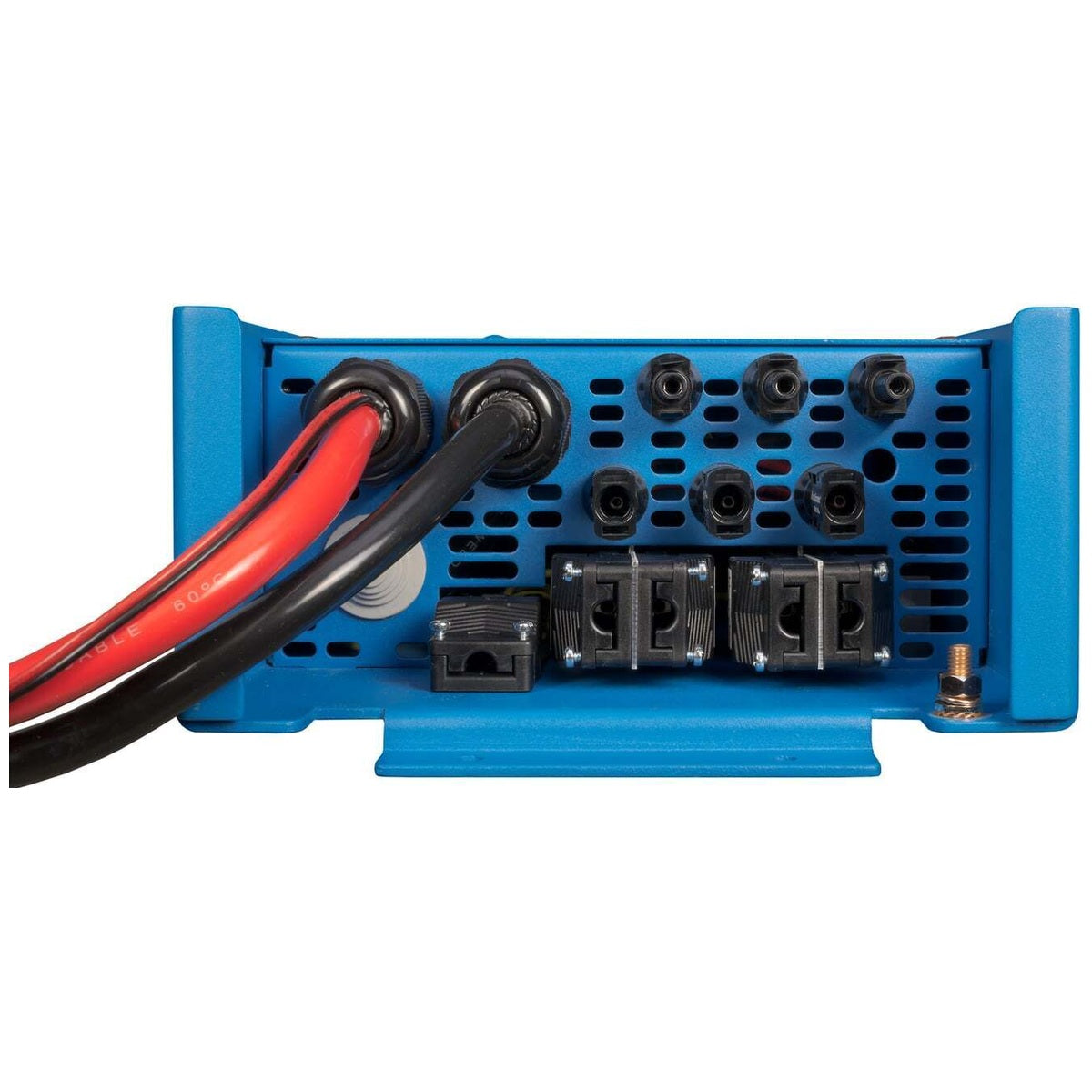

Featuring the advanced Blue Solar MPPT 100/50, the EasySolar allows for the connection of up to three strings of PV panels via MC4 (PV-ST01) connectors. This setup is designed to maximize solar collection efficiency and enhance the overall performance of your solar array.

MultiPlus Compact Inverter/Charger: Dual Charging Convenience

The MultiPlus Compact inverter/charger, available in 12/1600/70 or 24/1600/40 configurations, shares DC battery cables with the MPPT charge controller, streamlining the power flow. Charge your batteries with solar energy or, when needed, switch to AC power from the utility grid or a generator, providing continuous power support without interruption.

Integrated AC Distribution System

The EasySolar's AC distribution panel includes an RCD (30 mA/16 A) and four AC outlets, each protected by two 10A and two 16A circuit breakers. With one of the 16A outlets designed to be AC input-controlled, it ensures smart power management, activating only when external AC power is supplied.

Innovative PowerAssist Technology

The proprietary PowerAssist technology from Victron prevents overload of the utility or generator supply by seamlessly integrating extra inverter power on-demand. This feature is particularly beneficial in simple bus systems where power requirements can fluctuate.

Flexible Solar Application Software

Tailor your EasySolar unit to fit your specific needs with a range of software programs (Assistants) provided by Victron. These applications allow for easy configuration of the system for various grid-interactive or stand-alone operations, making it highly adaptable to different simple bus system requirements.

The Victron EasySolar 24/1600/40-16 represents a leap forward in solar power management, offering a compact, powerful, and intelligent solution perfect for small-scale or mobile installations, such as those found in simple bus systems. Install with ease and manage your solar energy more efficiently with this comprehensive and user-friendly power solution.

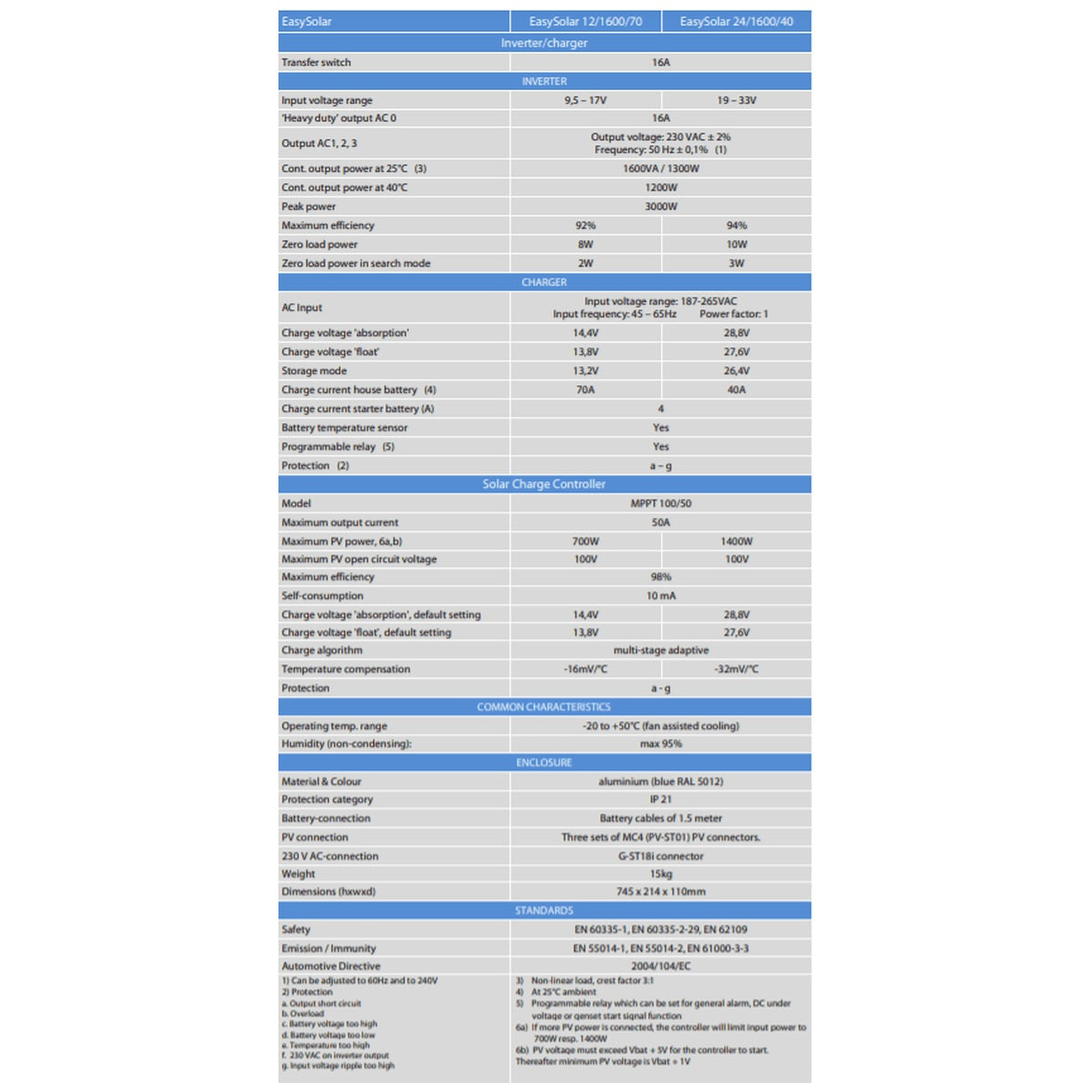

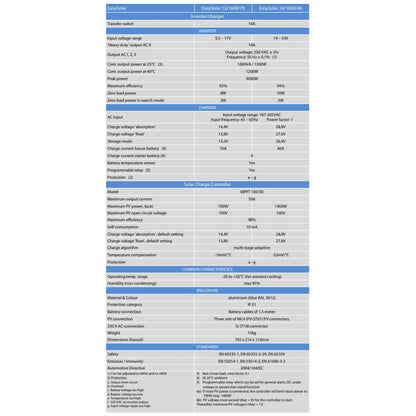

Specifications
