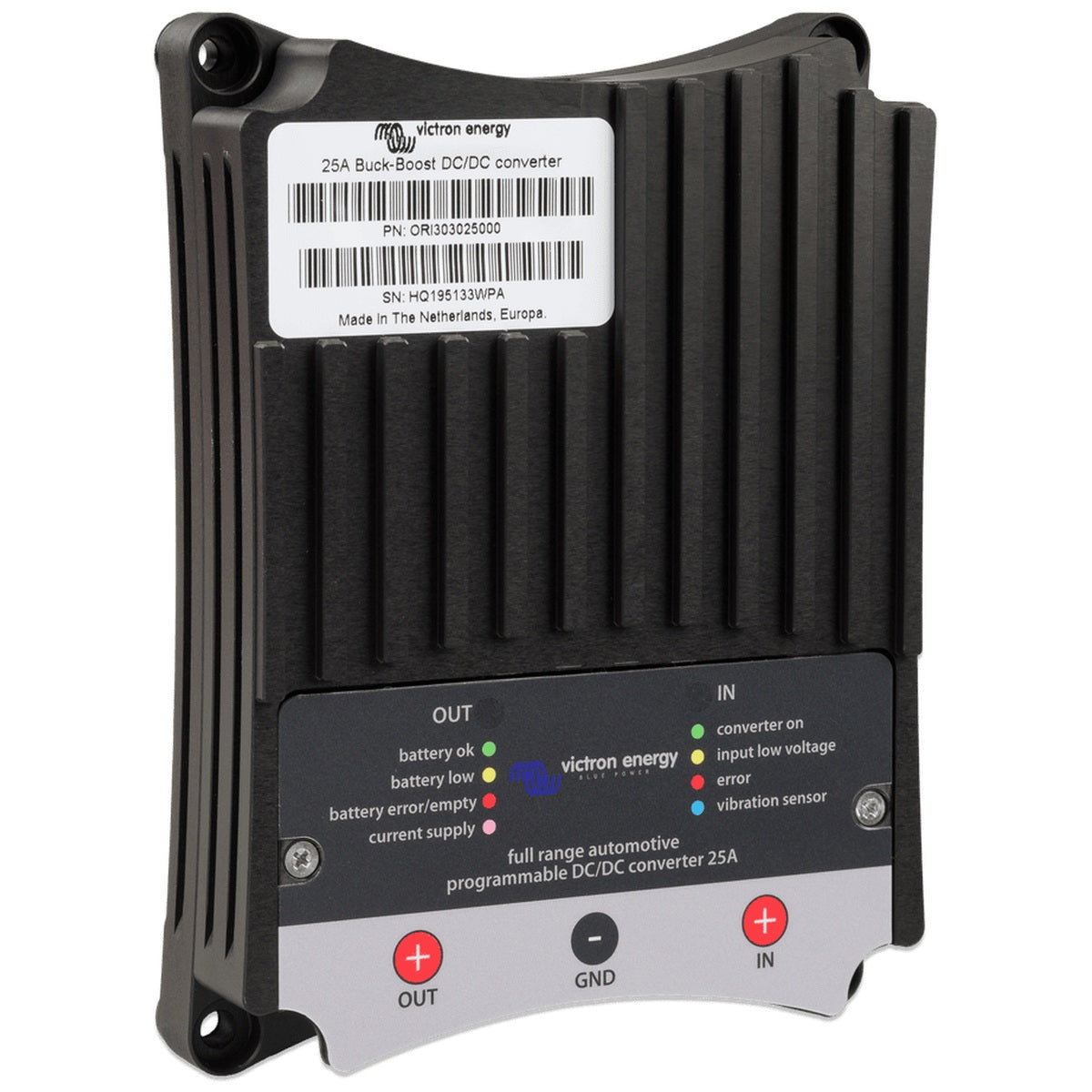

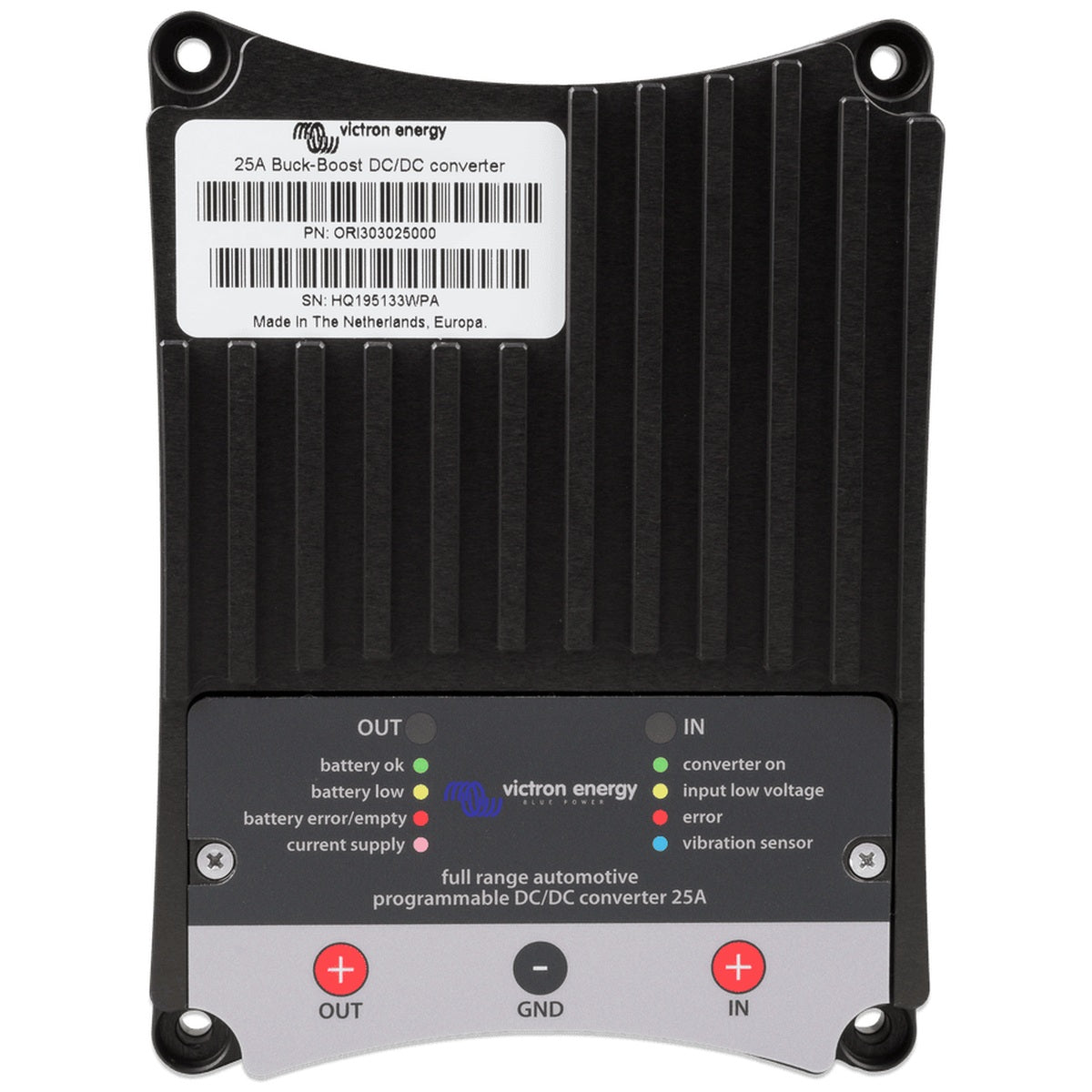

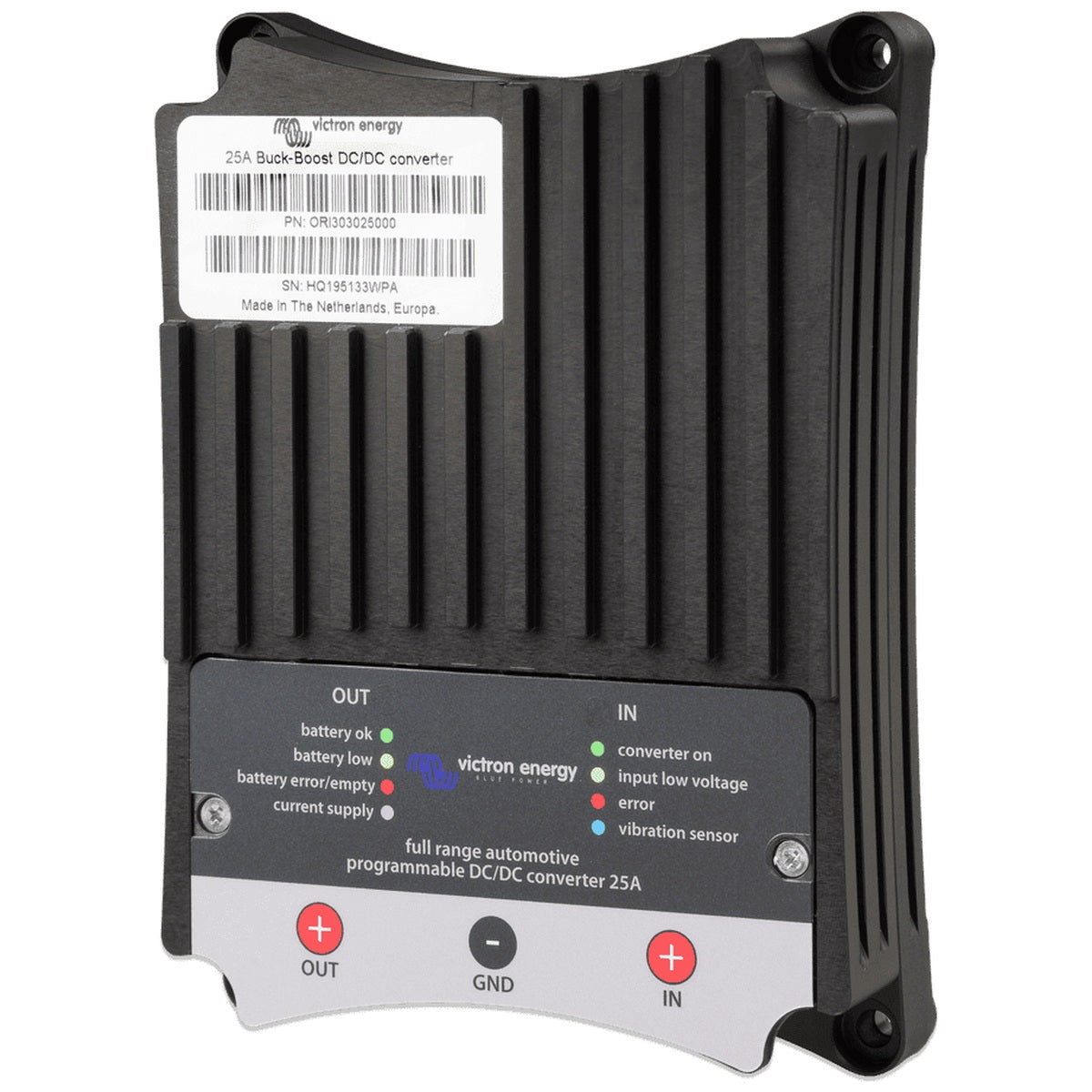

Victron Energy - 12/24V - 25A - Buck-Boost DC-DC Converter

Victron 12/24V 25A Buck-Boost DC-DC Converter

Charge Your Service Battery Efficiently in Vehicles with Smart Alternators

The Victron 12/24V 25A Buck-Boost DC-DC Converter is the perfect solution for charging a 12V or 24V service battery in vehicles equipped with a smart alternator, including those with Euro 5 and Euro 6 engines featuring regenerative braking. Designed to handle both high and low voltage scenarios, this converter ensures your auxiliary battery receives a consistent charge, eliminating potential voltage issues common in smart alternators.

Key Features

Versatile Compatibility

• Supports Multiple Systems: Suitable for 12V, 24V, and 12/24V systems, the converter can be programmed to charge a 12V or 24V auxiliary battery from a 12V or 24V alternator and starter battery.
• Pre-set Charge Voltage: Ensures stable charging by managing high voltages (e.g., Mercedes: 15.4V) and low voltages.

Intelligent Design

• Engine Running Detection: Built-in system prevents deep discharge of the vehicle's starting battery by detecting when the engine is running. Alternatively, the converter can be activated via programmable inputs (D+, CAN bus, or (+)15 connection). Note the 25A Model does not have CANBus.

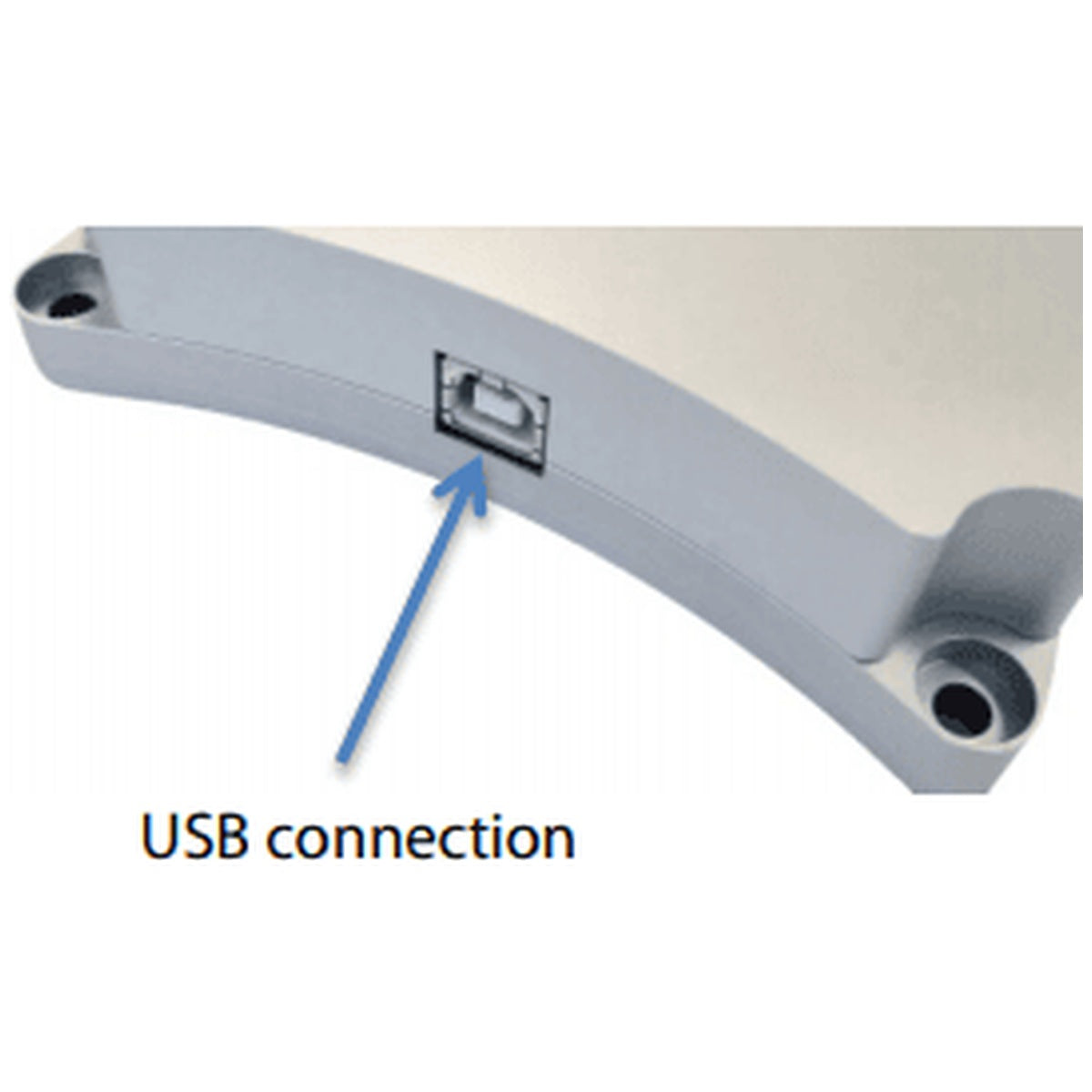

• Fully Programmable: Easily program the converter using a simple and user-friendly PC application. (USB type A male to USB type B male cable required.)

Performance and Safety

• Charge Current and Input Current Limiter: The output current is regulated by the maximum charge current setting, input current setting, and the converter's maximum operating temperature limit.

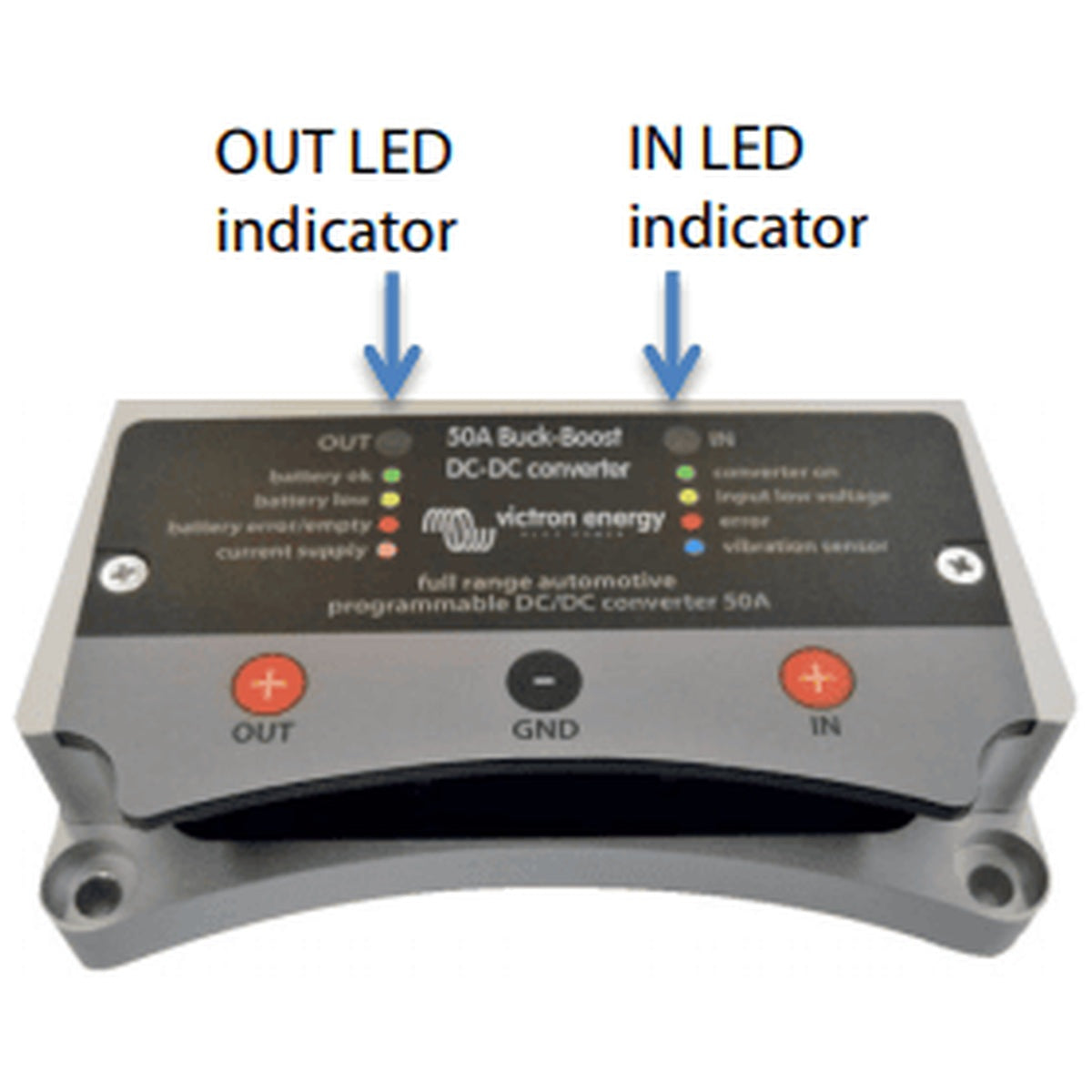

• Status Indication LEDs: Clear visual indicators for input and output status to ensure optimal operation and troubleshooting.

Applications

Ideal for various applications including:

• Trucks, Buses and RVs: Maintain your service batteries efficiently while traveling.
• Marine: Reliable power management for boats with smart alternators.
• Off-Grid and Industrial: Perfect for remote power systems and industrial equipment.

Upgrade Your Power System

Ensure your vehicle's auxiliary battery is always charged and ready with the Victron 12/24V 25A Buck-Boost DC-DC Converter. Optimize your power management and prevent battery issues with this versatile and intelligent converter.

Order yours today and experience seamless battery charging in your vehicle!

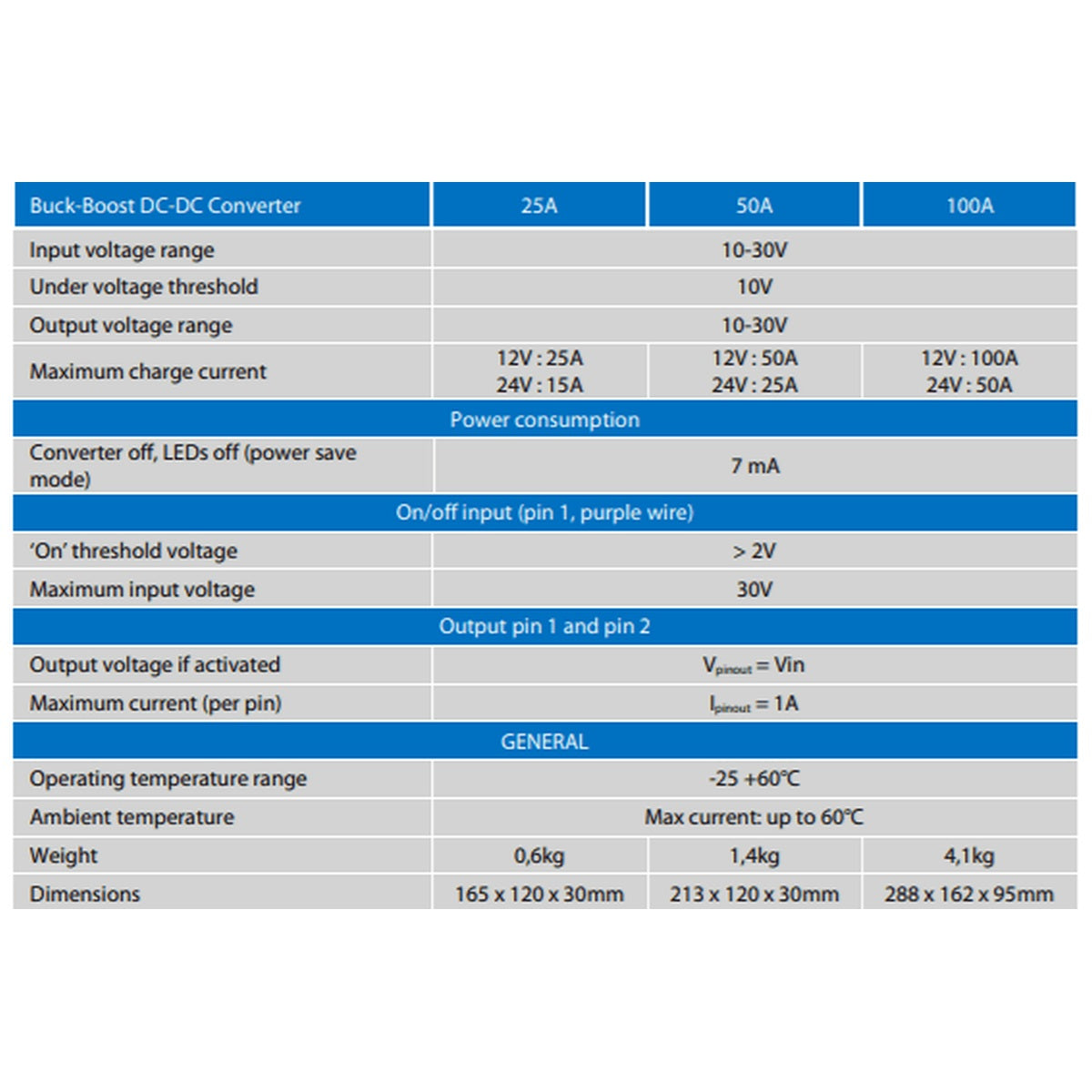

Specifications
