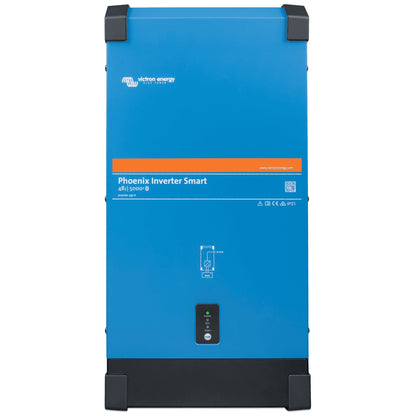

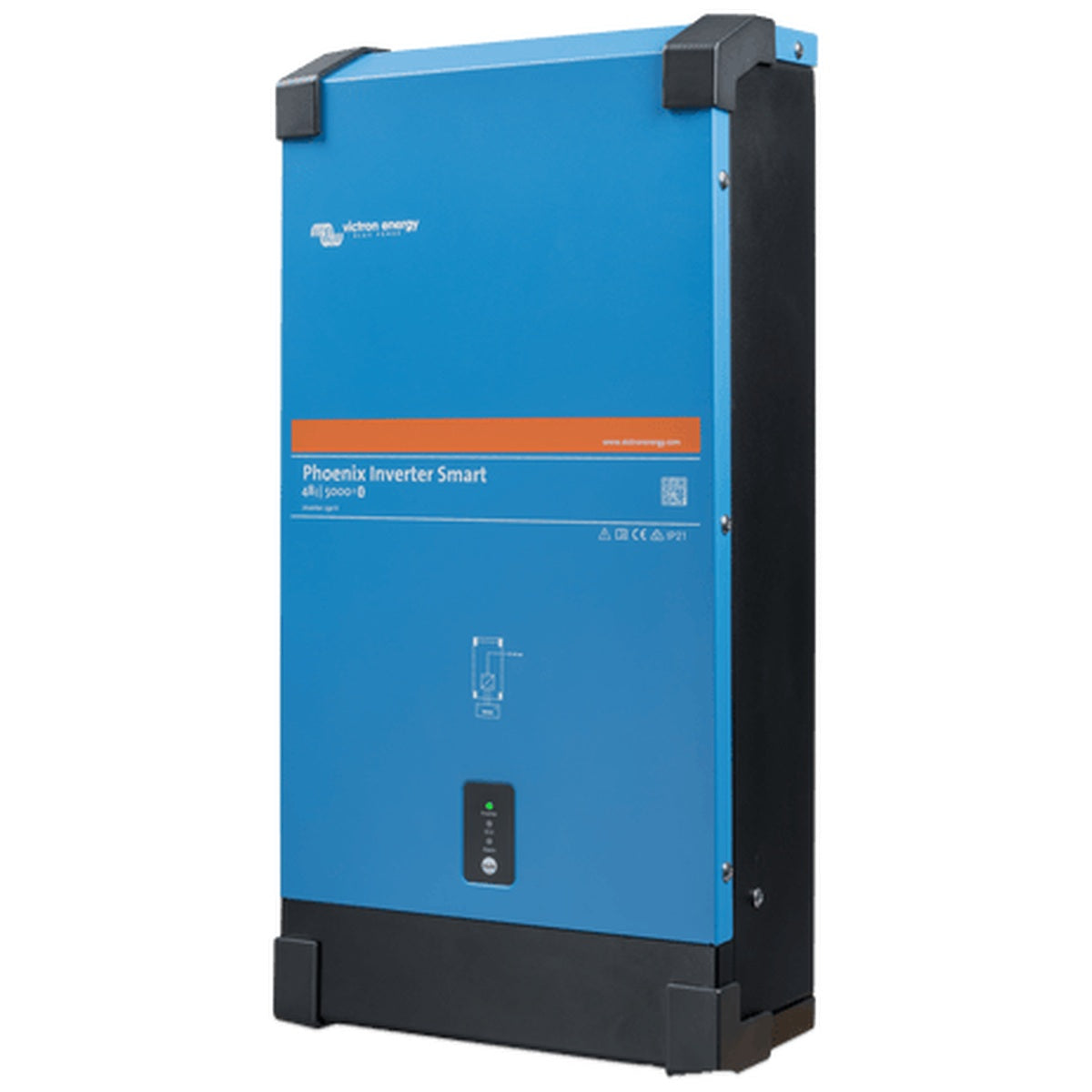

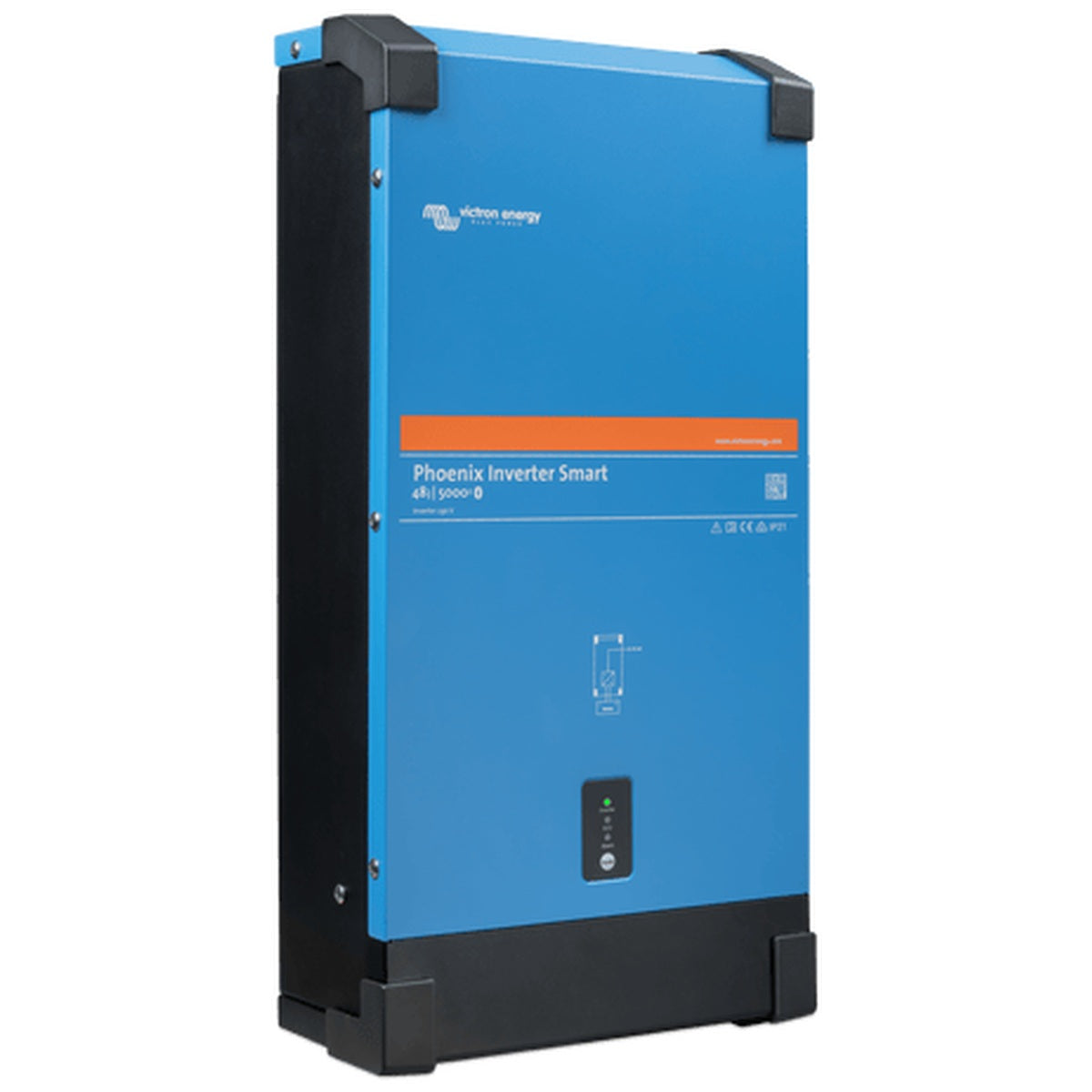

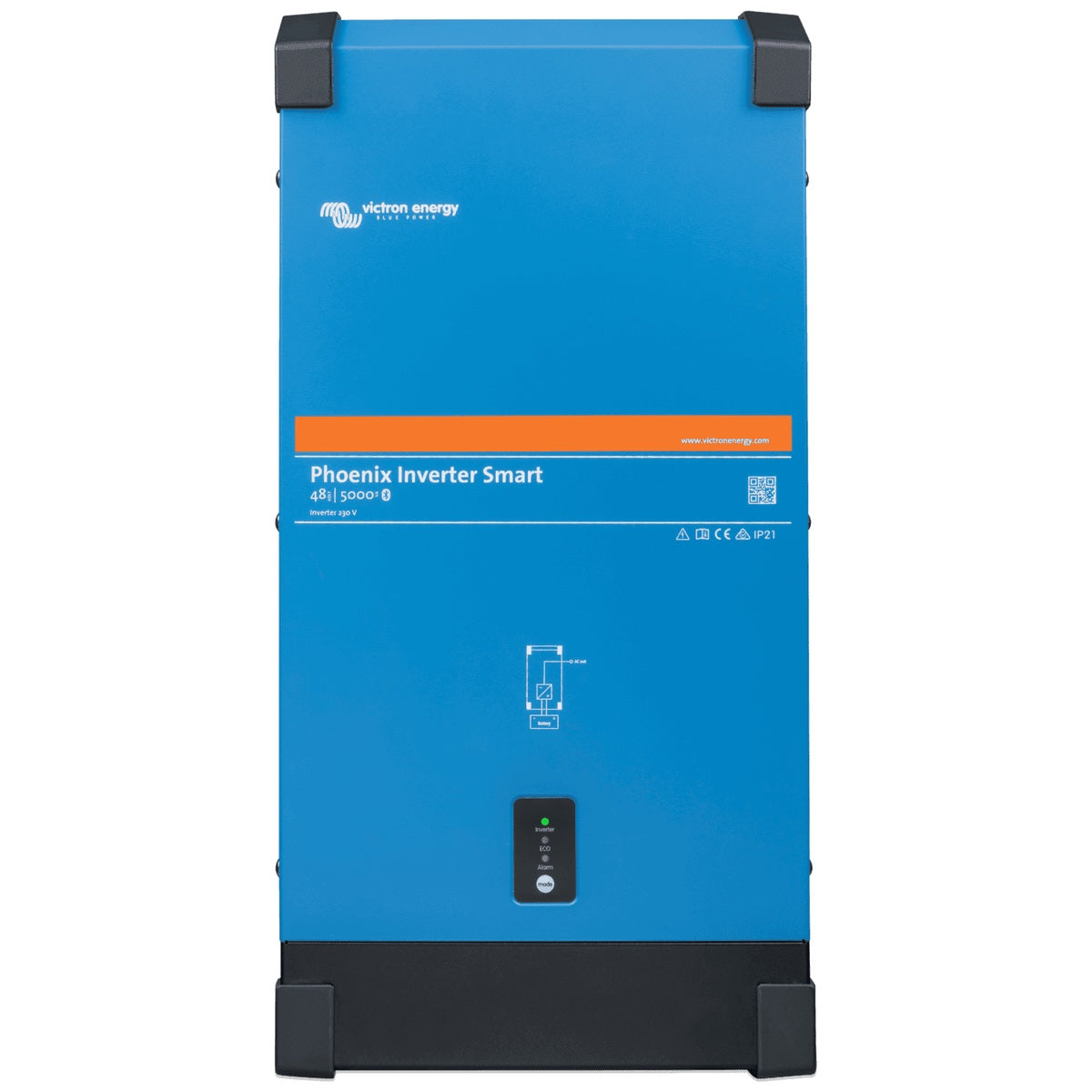

Victron 48V 5000VA Phoenix Smart Inverter 48/5000: Powering Off-Grid, Marine, and Mobile Living Spaces
Embrace the ultimate power solution with the Victron 48V 5000VA Phoenix Smart Inverter. Expertly crafted for off-grid cabins, 48V marine environments, 48V bus and RV house battery systems, this inverter is the key to ensuring a stable and reliable power supply in various demanding settings.
Key Features:
- Optimized for 48V Systems: Specifically designed for 48V power setups, making it an ideal choice for off-grid cabins, marine applications, and 48V house battery systems in buses and RVs.
- Robust Power Output: Capable of delivering a powerful peak output, it effortlessly meets the high energy demands of your appliances and devices.

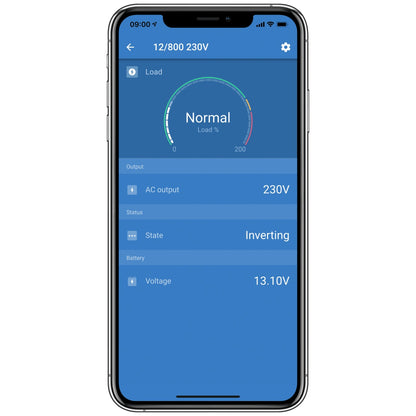

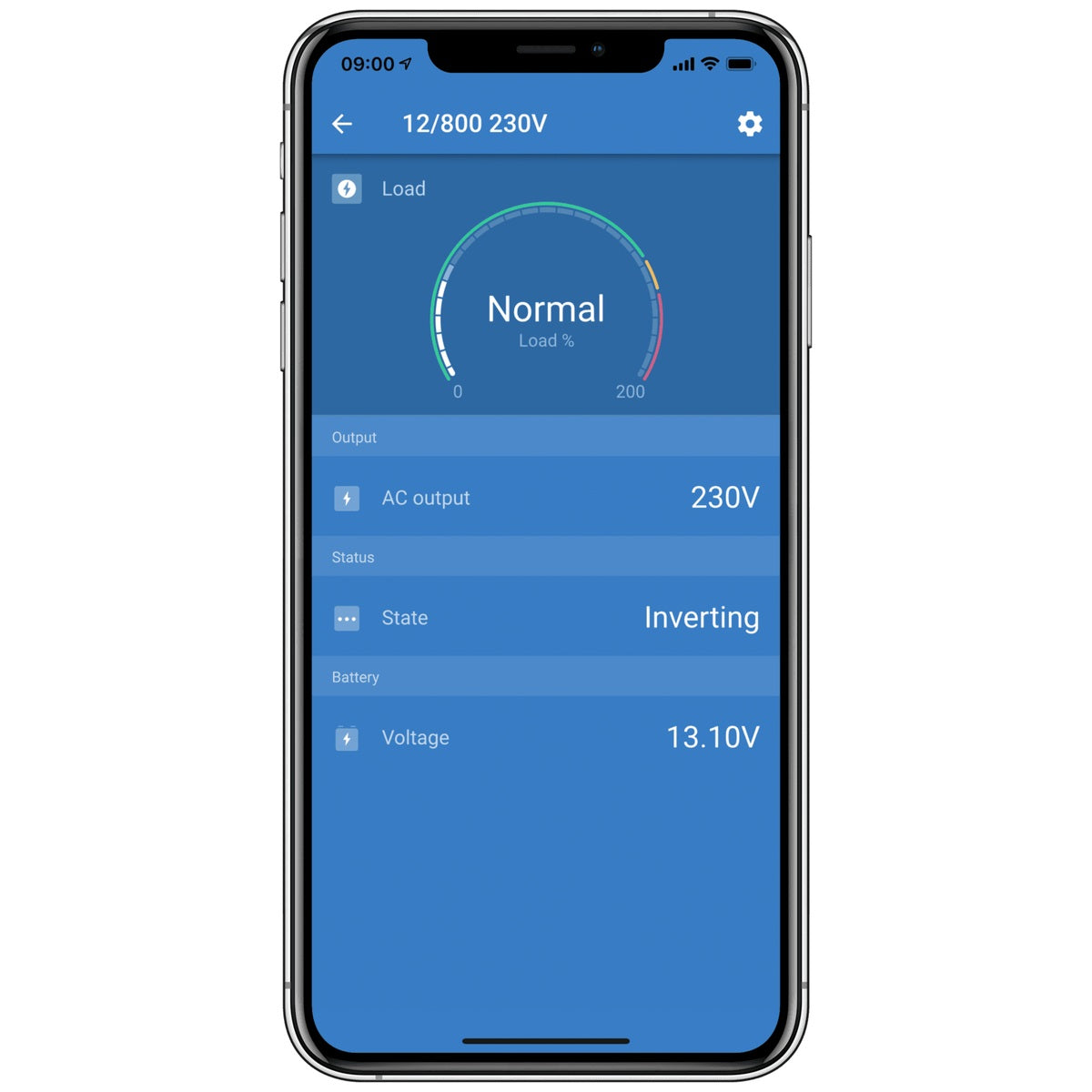

- Bluetooth Connectivity: Monitor and adjust settings easily with the built-in Bluetooth function, providing convenient remote access via your smartphone or tablet.
- Advanced Protection Mechanisms: Features like low battery voltage alarms and dynamic cut-off levels protect against potential overloads and overheating, ensuring the safety of your power system.
- Energy-Saving ECO Mode: Reduces power consumption when the load is low, making it an environmentally friendly and cost-effective solution for extended stays in remote locations.
- Durable and Reliable: Designed to endure the challenges of both off-grid and mobile environments, this inverter guarantees consistent performance under various conditions.
Perfect for Off-Grid Use
The Victron Phoenix Smart Inverter is not just powerful – it's also versatile. Whether you're in a remote cabin, sailing the seas, or traveling in your RV or bus, this inverter ensures that your power needs are always met with efficiency and reliability.
Seamless Integration and User-Friendly Operation
Integration with 48V systems is straightforward and hassle-free, making installation and usage a seamless experience. The inverter's capability to handle various loads makes it an indispensable component in your off-grid cabin, marine setup, or mobile living space.

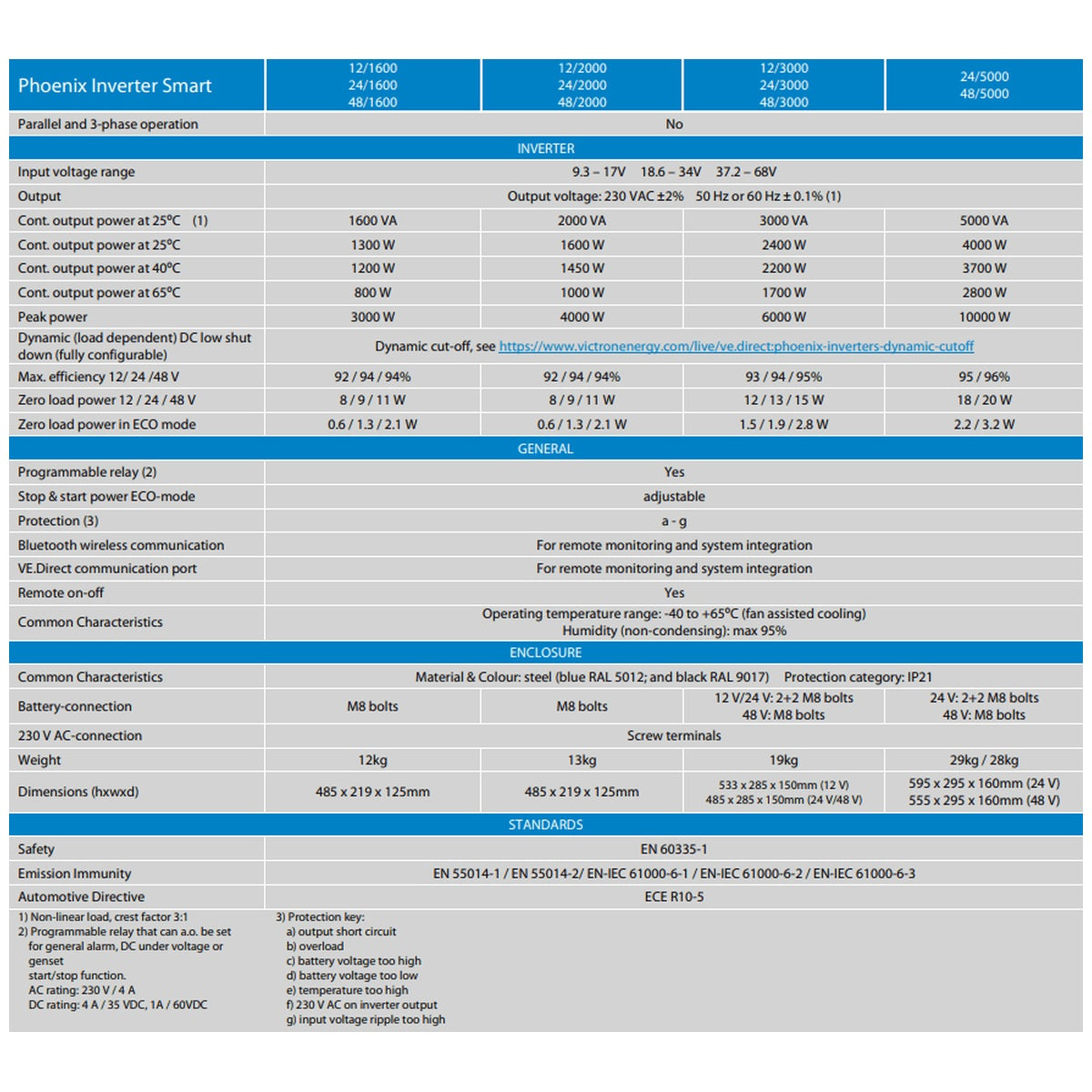

Specifications
| Phoenix Smart Inverter | 48/5000 |
|---|---|
| Parallel and 3-phase operation | No |
| Input voltage range | 37.2 – 68 V |
| Output | Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1 % (1) |
| Cont. output power at 25 ºC (1) | 5000 VA |
| Cont. output power at 25 ºC | 4000 W |
| Cont. output power at 40 ºC | 3700 W |
| Cont. output power at 65 ºC | 2800 W |
| Peak power | 10000 W |
| Dynamic (load dependent) DC low shut down (fully configurable) | Dynamic cut-off |
| Max. efficiency | 96 % |
| Zero load power | 20 W |
| Zero load power in ECO mode | 3.2 W |
| Programmable relay (2) | Yes |
| Stop & start power ECO-mode | adjustable |
| Protection (3) | a - g |
| Bluetooth wireless communication | For remote monitoring and system integration |
| VE.Direct communication port | For remote monitoring and system integration |
| Remote on-off | Yes |
| Common Characteristics | Operating temperature range: -40 to +65 ºC (fan assisted cooling) Humidity (non-condensing): max 95 % |

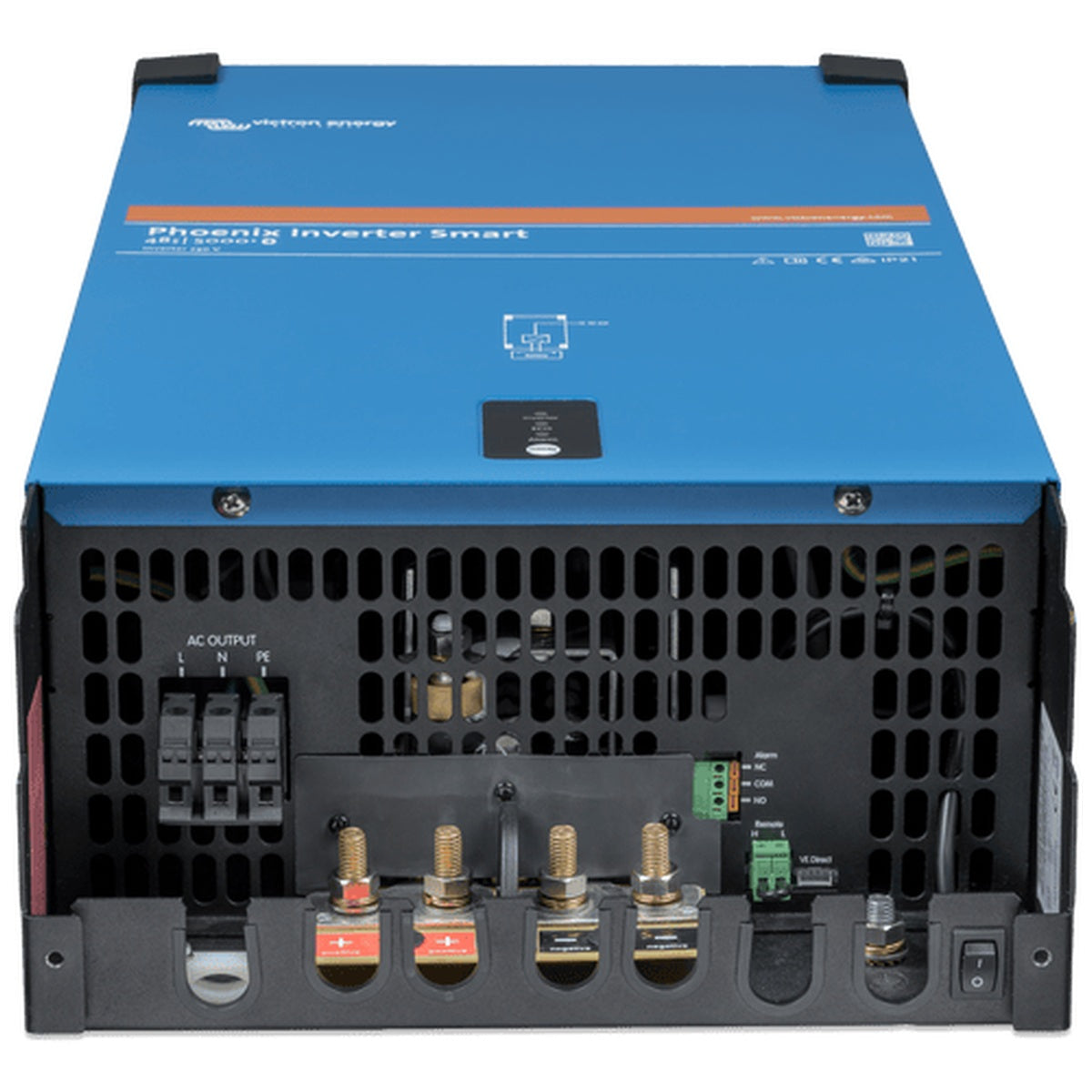

| Battery-connection | M8 bolts |
| 230 VAC-connection | Screw terminals |
| Weight | 28 kg |

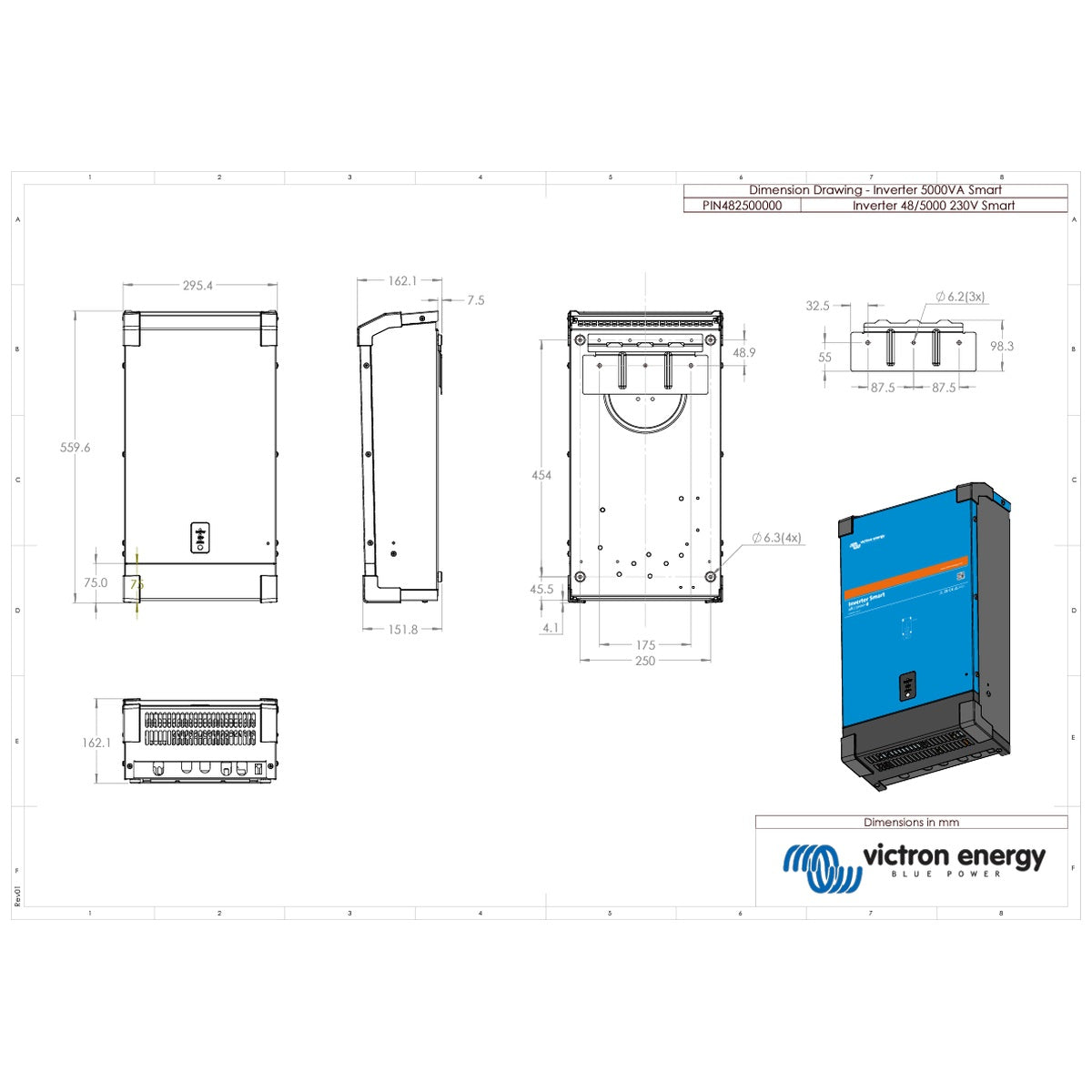

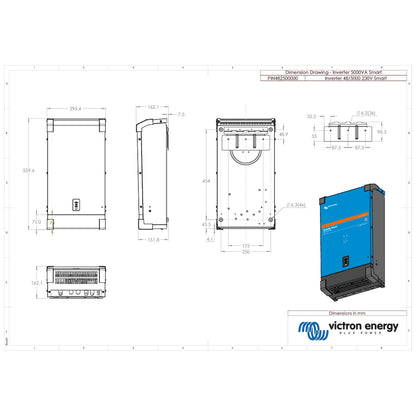

| Dimensions (hxwxd) | 555 x 295 x 160 mm |
| Safety | EN 60335-1 |
| Emission Immunity | EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3 |
| Automotive Directive | ECE R10-5 |
