Victron Multi RS Solar 48/6000 Dual Tracker: A New Standard in Solar Energy Management
Elevate your energy system with the Victron Multi RS Solar 48/6000 Dual Tracker, the premier 48V 6000VA inverter/charger with a dual MPPT capable of 450V/100A. This innovative solution is designed for optimal flexibility and efficiency, ensuring your energy needs are met with precision across a variety of operating modes.
Versatile Operating Modes for Every Need
- Hybrid Mode: Harness solar power to its fullest by storing excess energy in a battery for use at night or during peak demand, with the ability to supplement power from the battery when consumption exceeds grid capacity.
- Backup Mode: Experience uninterrupted power with an automatic switch to backup during grid outages, keeping your critical systems running smoothly.
- Off-Grid Mode: Gain complete independence with the ability to operate without any grid connection, perfect for remote locations.
- Generator Mode: Optimize generator use by controlling run-hours and supplementing with battery power when demand outstrips generator capacity.
Advanced PowerControl and PowerAssist Features
Set maximum currents for your grid or generator to prevent overloads with the PowerControl function. The Multi RS Solar takes it a step further with PowerAssist, supplementing insufficient power with battery reserves during peak demand and recharging the battery when the load decreases.
Dual MPPT for Maximum Solar Harvesting
With dual MPPT, the Multi RS Solar 48/6000 ensures that you're capturing the maximum energy from your solar panels, even in varying lighting conditions. This feature allows for two independent solar arrays, optimizing energy harvest and providing redundancy.

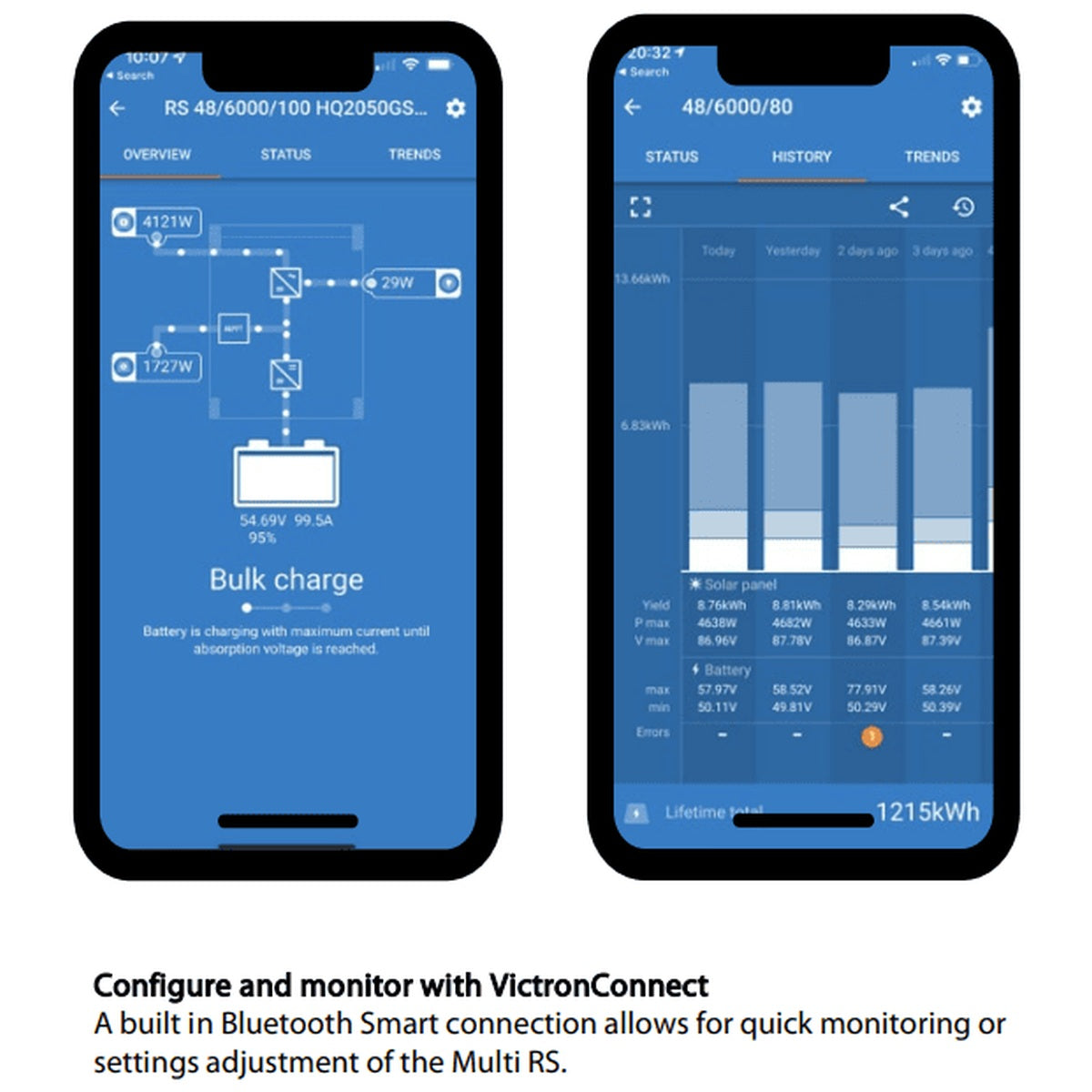

Intuitive Monitoring with Display, Bluetooth, and VictronConnect App
Keep a close eye on your system's health with the integrated display showing battery, inverter, and solar parameters. For remote monitoring and control, the VictronConnect app pairs seamlessly with your device via Bluetooth.
Scalable PV Capacity

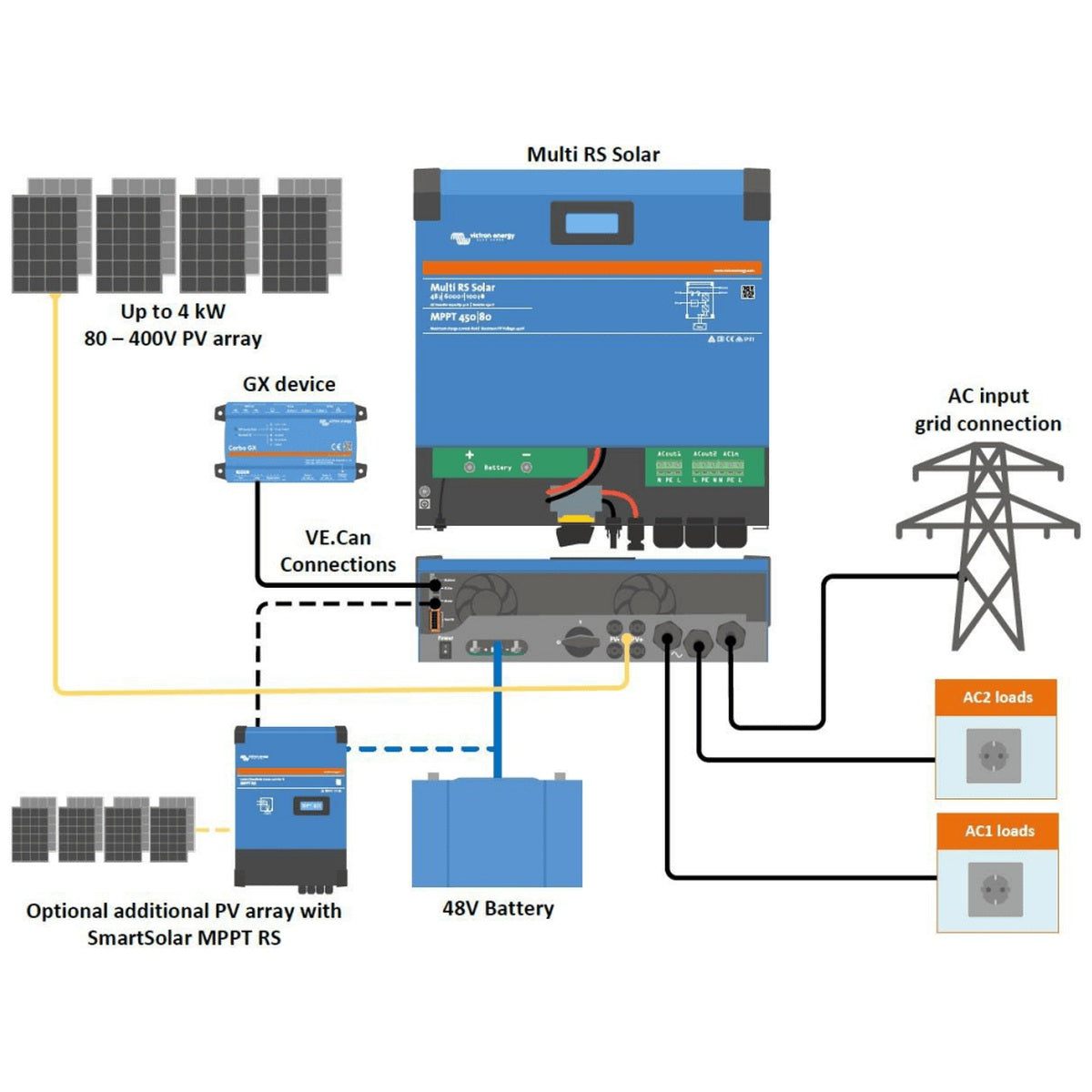

Your solar capacity grows with you. Start with the integrated 6 kWp PV capacity and expand by adding solar chargers for AC or DC coupling. Integrate additional PV Inverters with automatic power control for a tailored energy solution.
Robust Communication and Connection Options
Monitor, log data, and update firmware remotely via VE.Can connection to a GX device. For remote monitoring, connect with VE.Direct to a GlobalLink 520. Programmable relays, temperature sensors, and voltage sensors ensure a customizable and secure setup.
The Victron Multi RS Solar 48/6000 Dual Tracker is not just an inverter/charger—it's the heart of your solar energy system. It's designed to adapt to your changing power needs while providing efficiency and reliability. Step into the future of energy management and make the smart move to a system that grows with your energy demands.

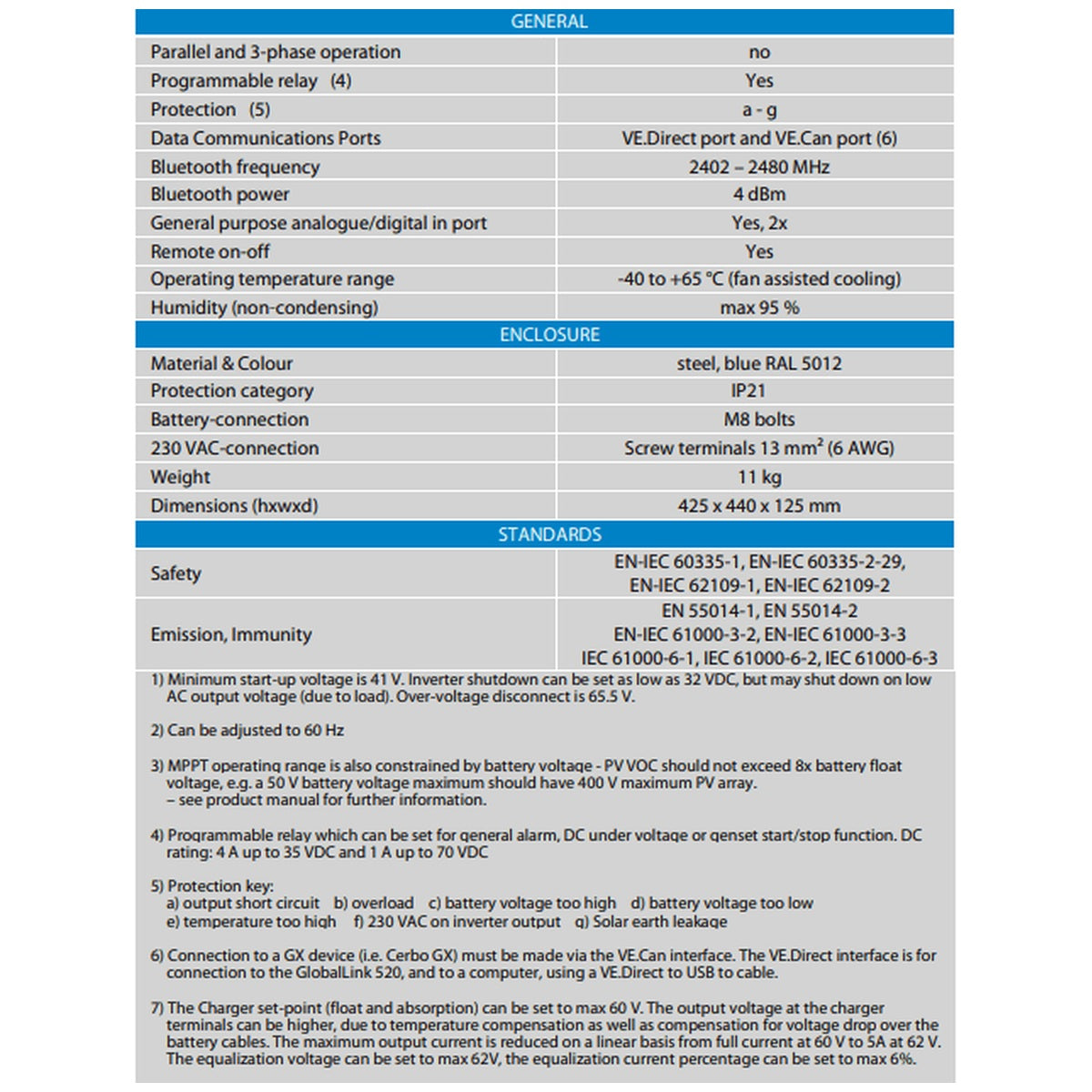

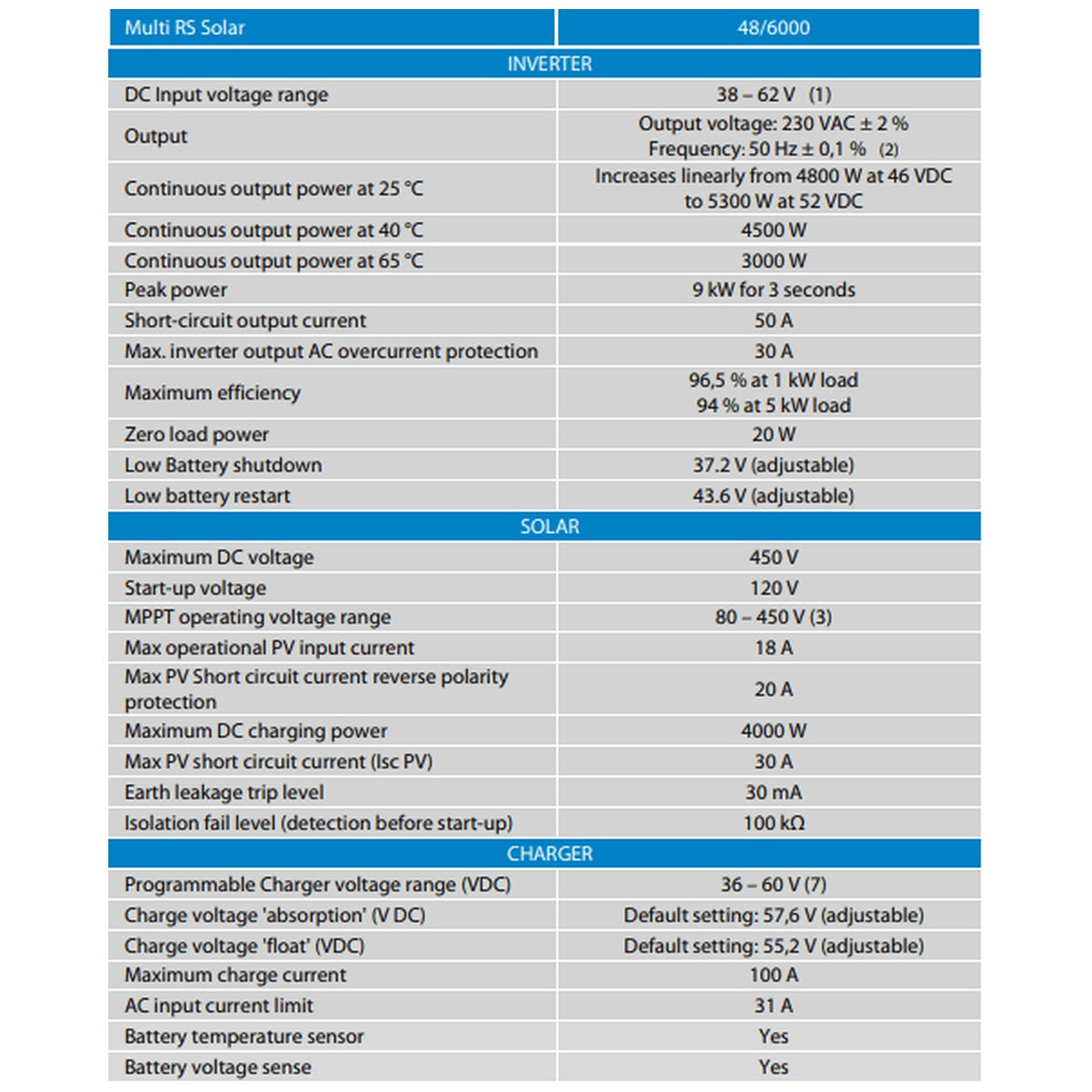

Specifications
| Model | Multi RS Solar 48/6000 Dual Tracker |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input and pass-through current | 50 A |
| DC Input voltage range (1) | 38 – 62 V |
| AC Output (2) | Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0,1 % Maximum continuous inverter current: 25 Aac |
| Continuous output power at 25 °C | Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC |
| Continuous output power at 40 °C | 4500 W |
| Continuous output power at 65 °C | 3000 W |
| Peak power (3) | 9 kW for 3 seconds 7 kW for 4 minutes |
| Short-circuit output current | 45 A |
| Max. AC output overcurrent protection | 30 A |
| Efficiency | 96.5 % at 1 kW load 94 % at 5 kW load |
| Zero load power consumption | 20 W |
| Low Battery shutdown | 37.2 V (adjustable) |
| Low battery restart | 43.6 V (adjustable) |
| Maximum open circuit PV array voltage^{(4)} | 450 V |
| Start-up voltage | 120 V |
| MPPT operating voltage range | 80 – 450 V |
| Maximum operational PV input current limit | 13 A |
| Maximum PV conversion power | 6 kW total – 3 kW per tracker |
| Maximum PV short circuit current | 16 A |
| Earth leakage trip level | 30 mA |
| Isolation fail level (detection before start-up) | 100 kΩ |
| AC Input | Nominal Voltage: 230 VAC, Input voltage range: 187-265 VAC Nominal frequency: 50 Hz, Input frequency: 45-65 Hz AC inrush current: NA |
| Programmable charge voltage range (5) | 36 – 60 V |
| Charge voltage 'absorption' | Default setting: 57.6 V (adjustable) |
| Charge voltage 'float' | Default setting: 55.2 V (adjustable) |
| Maximum charge current from AC (6) | 88 A @ 57.6 VDC |
| Total maximum charge current (AC + PV) | 100 A DC |
| Battery temperature sensor | Included |
| Battery voltage sense | Yes |
| Auxiliary output (AC-out-2) (7) | Yes |
| 3-phase and parallel operation | 3-phase support with one unit per phase. Parallel not supported. |
| Programmable relay (8) | Yes |
| Protections (9) | a - g |
| Data communications ports (10) | VE.Direct, VE.Can & Bluetooth |
| Bluetooth frequency & power | 2402 - 2480 Mhz, 4 dBm |
| Programmable analog/digital input/output ports | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (fan assisted cooling) |
| Maximum altitude | 2000 m |
| Humidity (non-condensing) | max 95 % |
| Material & Colour | steel, blue RAL 5012 |
| Protection category | IP21 Protective Class: I |

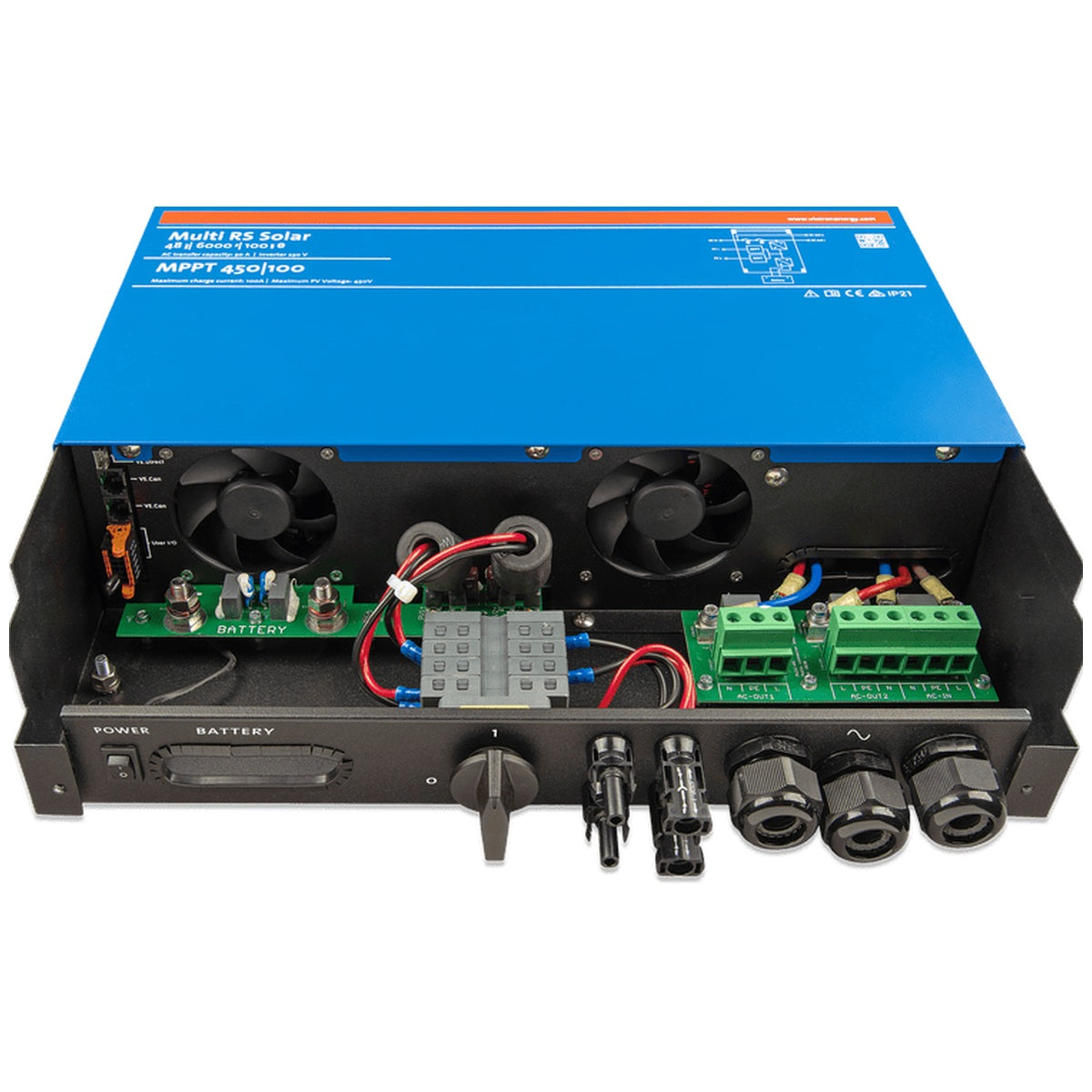

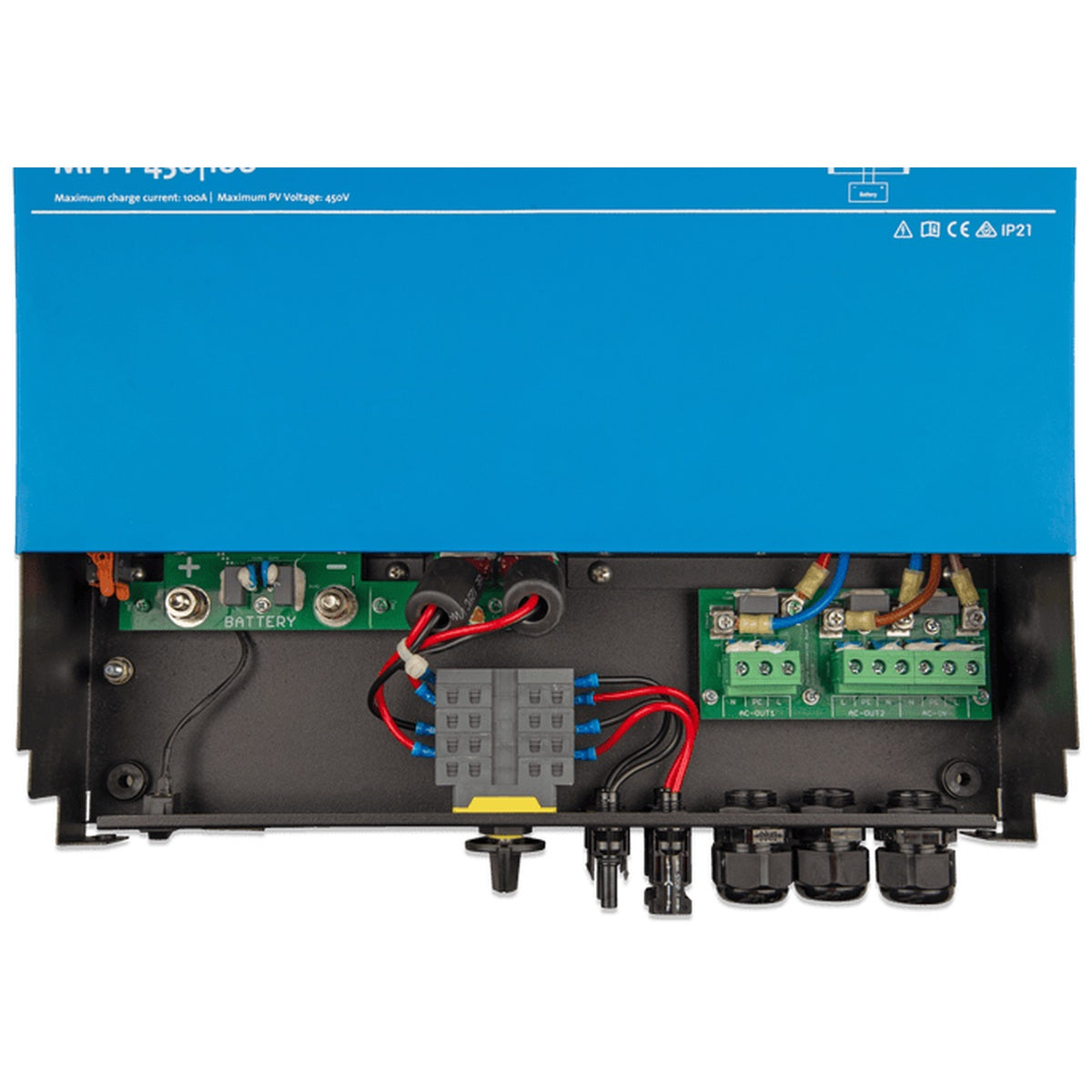

| Battery-connection | M8 bolts |
| PV Connection | 2 strings, each with positive and negative MC4 |
| 230 VAC-connection | Screw terminals 10 mm² (6 AWG) |
| Weight | 12.3 kg |

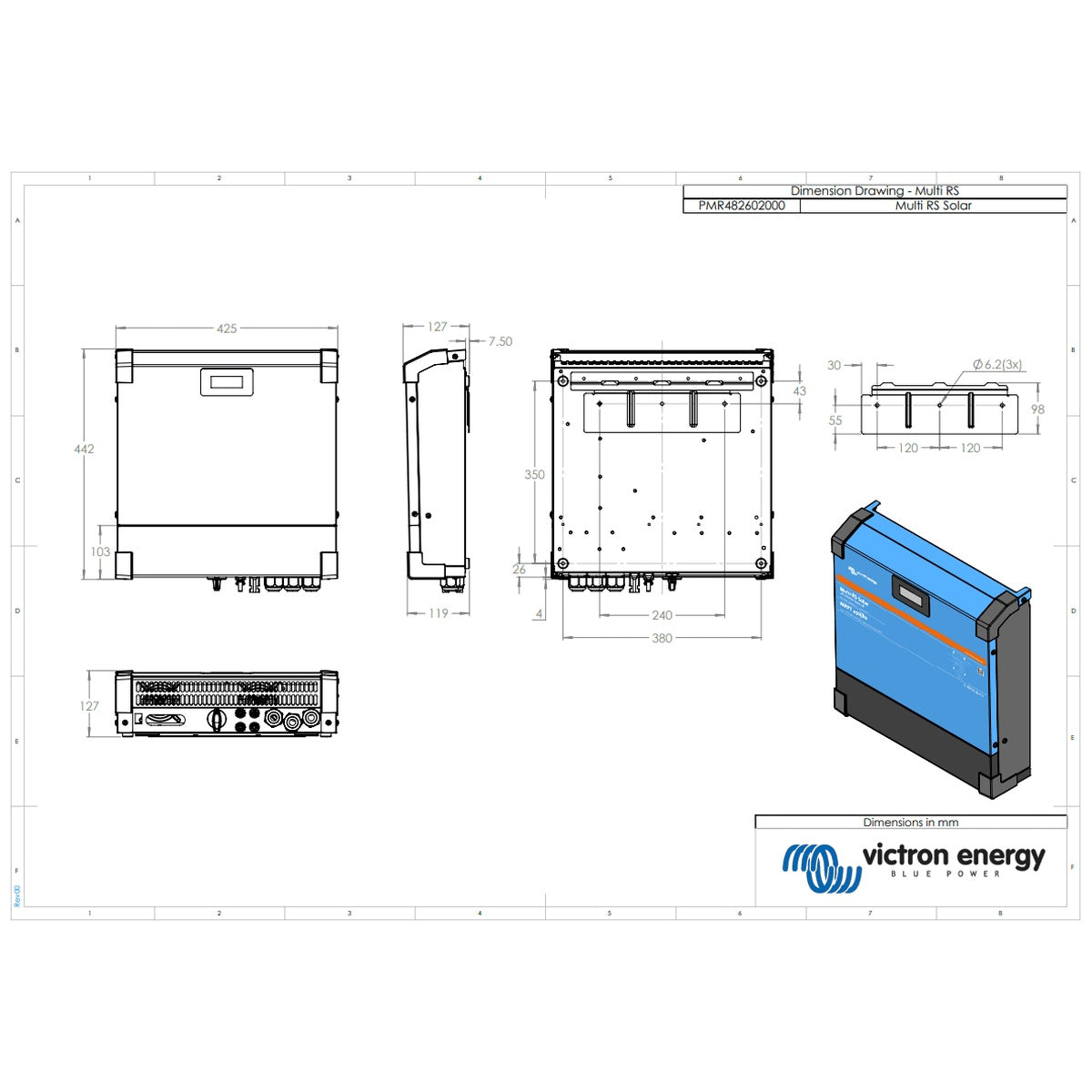

| Dimensions (hxwxd) | 425 x 460 x 125 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, Pollution Degree 2 |
| Overvoltage Category | Battery: OVC 1, PV port: OVC II, AC in / AC out: OVC III |
