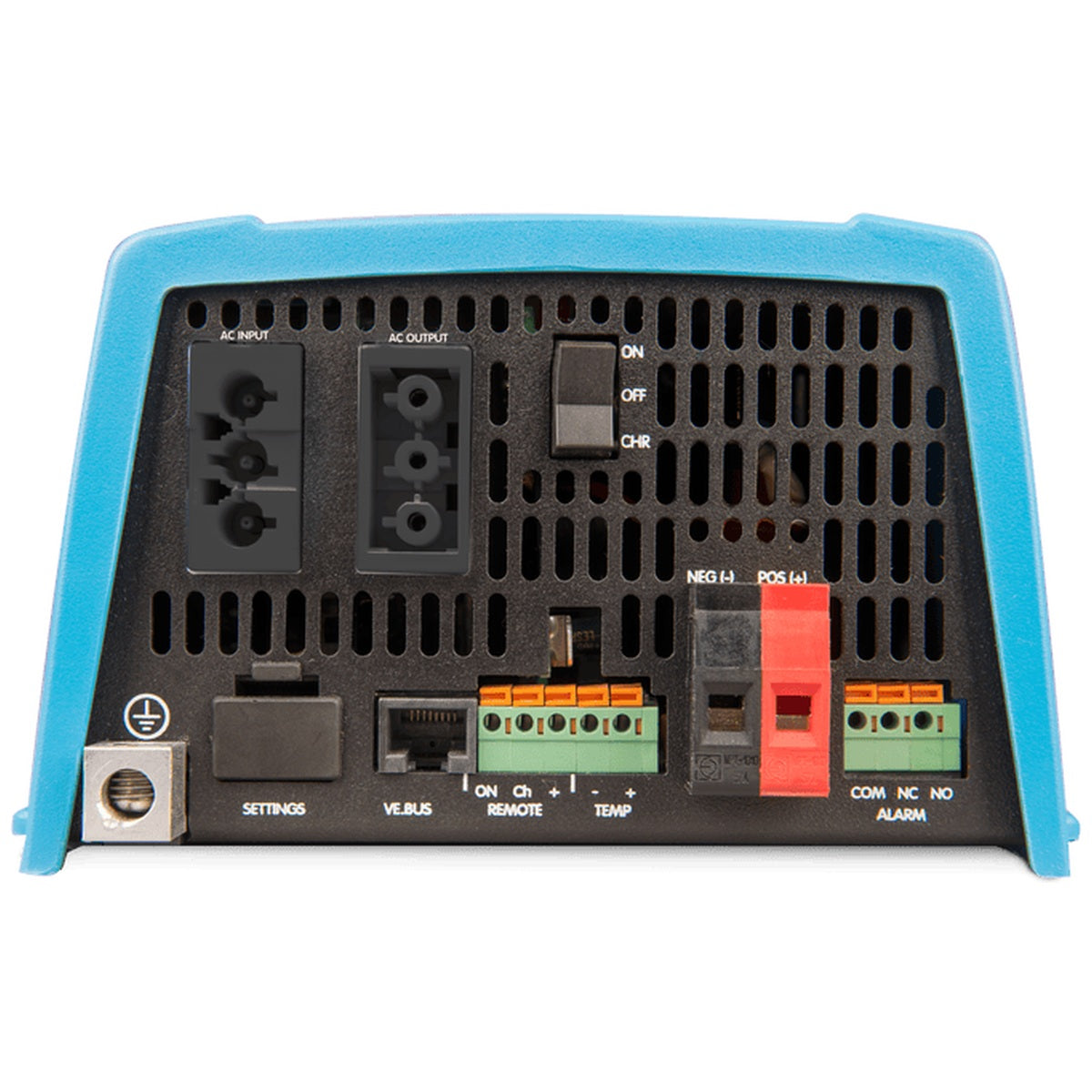

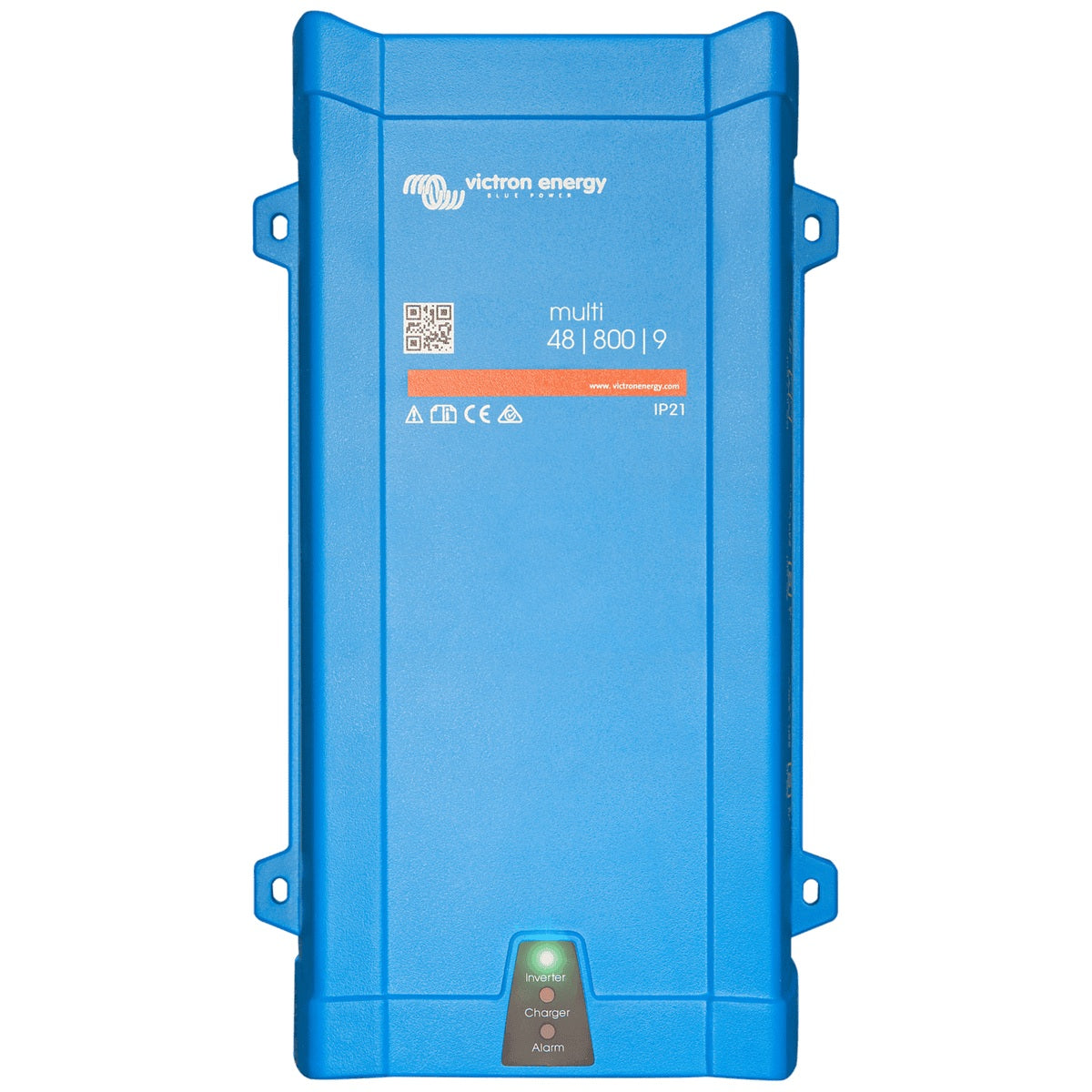

Victron Energy - 48V - 800VA MultiPlus 48/800/9-16 - Inverter/Charger
Victron Energy - 48V - 800VA MultiPlus 48/800/9-16 - Inverter/Charger
Regular price
$569.95 AUD
Regular price
Sale price
$569.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Victron 48V 800VA MultiPlus 48/800/9-16 VE.Bus Inverter/Charger: A Versatile Solution for Commercial and Industrial Off-Grid Projects
Multifunctional Power Management with Intelligent Features
The Victron MultiPlus is not just an inverter/charger; it's a comprehensive power management solution designed for high-demand commercial and industrial off-grid applications. This powerful unit integrates a true sine wave inverter, a sophisticated battery charger with adaptive charge technology, and a high-speed AC transfer switch into a single compact enclosure. Its versatility makes it ideal for a range of applications, ensuring reliability and efficiency in energy supply.
Key Features and Benefits:
Parallel Operation and Three-Phase Capability
- Enhanced Power Output: Up to six MultiPlus units can operate in parallel, delivering increased power for demanding setups.
- Three-Phase Output: Configure three units for balanced three-phase power, perfect for industrial applications.
PowerControl: Managing Limited Power Sources
- Smart Load Management: Set maximum generator or shore current to prevent overload, prioritizing charging and essential loads.
PowerAssist: Supplementing Power When Needed
- Boosting Capacity: Instantly compensates for insufficient shore or generator power, utilizing battery power for peak demands and recharging during low usage periods.
Advanced Charging Technologies
- Adaptive Charging: Four-stage charging process customizes the charge to battery condition, extending battery life.
- Dual Bank Charging: Charges a primary battery system and a secondary battery, such as a generator starter battery, simultaneously.
Additional Features for Enhanced Usability
- High Start-Up Power: Ideal for starting high inrush loads like power tools and lighting.
- Search Mode: Reduces power consumption by approximately 70% in no-load conditions, increasing efficiency.
- Programmable Relay & Remote Operations: Customizable settings and remote monitoring/control options for versatile use in remote locations.
Ideal for Applications in Commercial and Industrial Settings
- Off-grid energy systems in remote commercial and industrial locations.
- Backup power solutions for critical operations requiring high reliability.
- Energy management in facilities with fluctuating power demands or limited grid access.
Easy Configuration and Monitoring
- On-Site and Remote Configurations: Easily adjust settings with DIP switches, VE-Config, or the VE.Bus Smart dongle (not included).
- Remote Monitoring: Connect to the internet with a Cerbo GX or other GX product (not included) for access to Victron's Remote Management (VRM) platform, allowing for comprehensive monitoring and control.
Enhancing Your Project's Power Solutions with Victron MultiPlus
The Victron 48V MultiPlus Inverter/Charger stands out as a robust, efficient, and versatile power solution for commercial and industrial off-grid applications. Its advanced features and customizable settings ensure optimal performance and reliability, making it an ideal choice for projects requiring dependable power management.

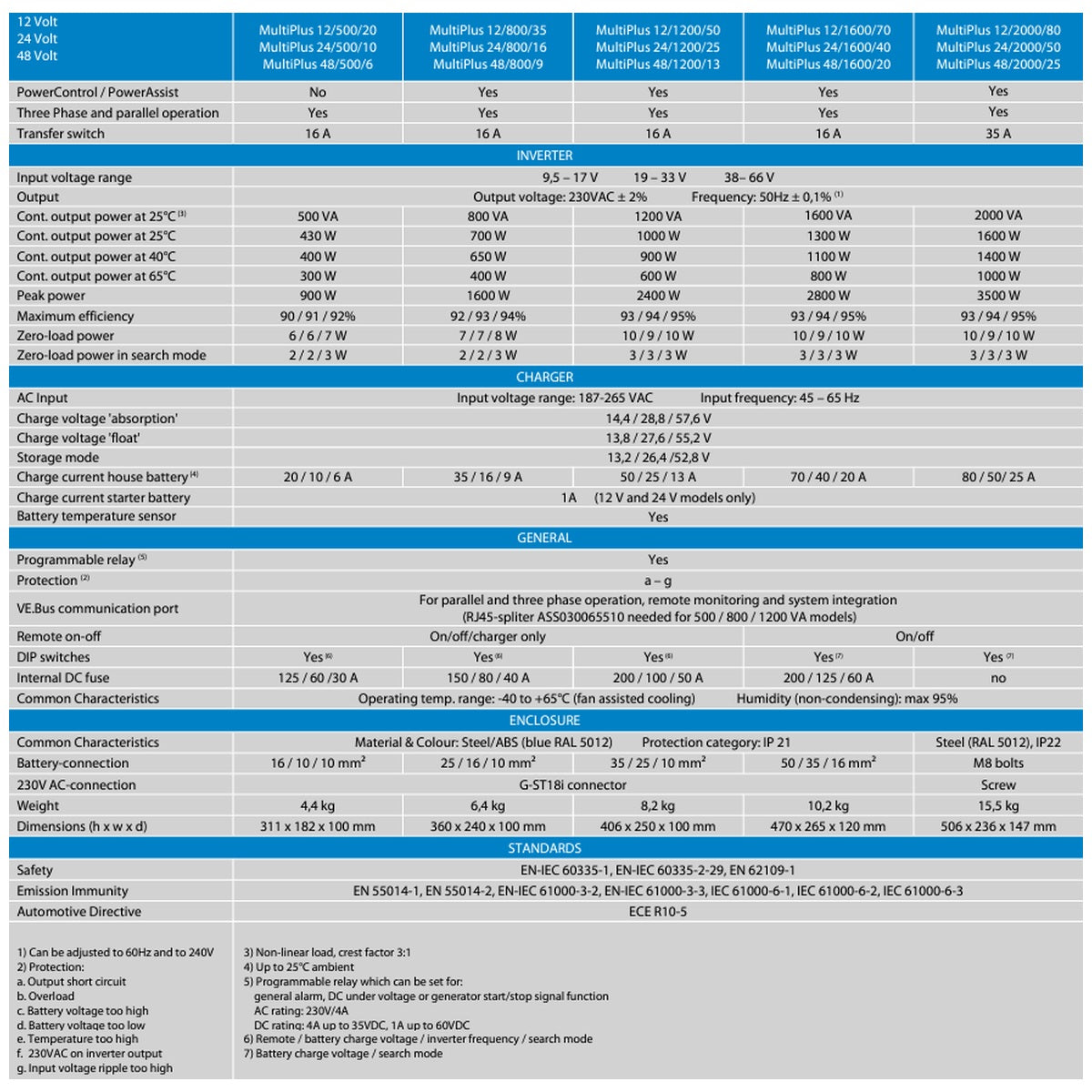

Specifications
| Model | MultiPlus 48/800/9 |
|---|---|
| PowerControl / PowerAssist | Yes |
| Three Phase and parallel operation | Yes |
| Transfer switch | 16 A |
| Input voltage range | 38– 66 V |
| Output | Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0.1% (1) |
| Cont. output power at 25°C^{(3)} Cont. output power at 25°C | 800 VA 700 W |
| Cont. output power at 40°C | 650 W |
| Cont. output power at 65°C | 400 W |
| Peak power | 1600 W |
| Maximum efficiency | 94% |
| Zero-load power | 8 W |
| Zero-load power in search mode | 3 W |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Charge current house battery^{(4)} | 9 A |
| Battery temperature sensor | Yes |
| Programmable relay | Yes |
| Protection (2) | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration (RJ45-spliter ASS030065510 needed) |
| DIP switches | Yes^{(6)} |
| Internal DC fuse | 40 A |
| Common Characteristics | Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95% |
| Battery-connection | 10 mm² |
| 230V AC-connection | G-ST18i connector |
| Weight | 6.4 kg |

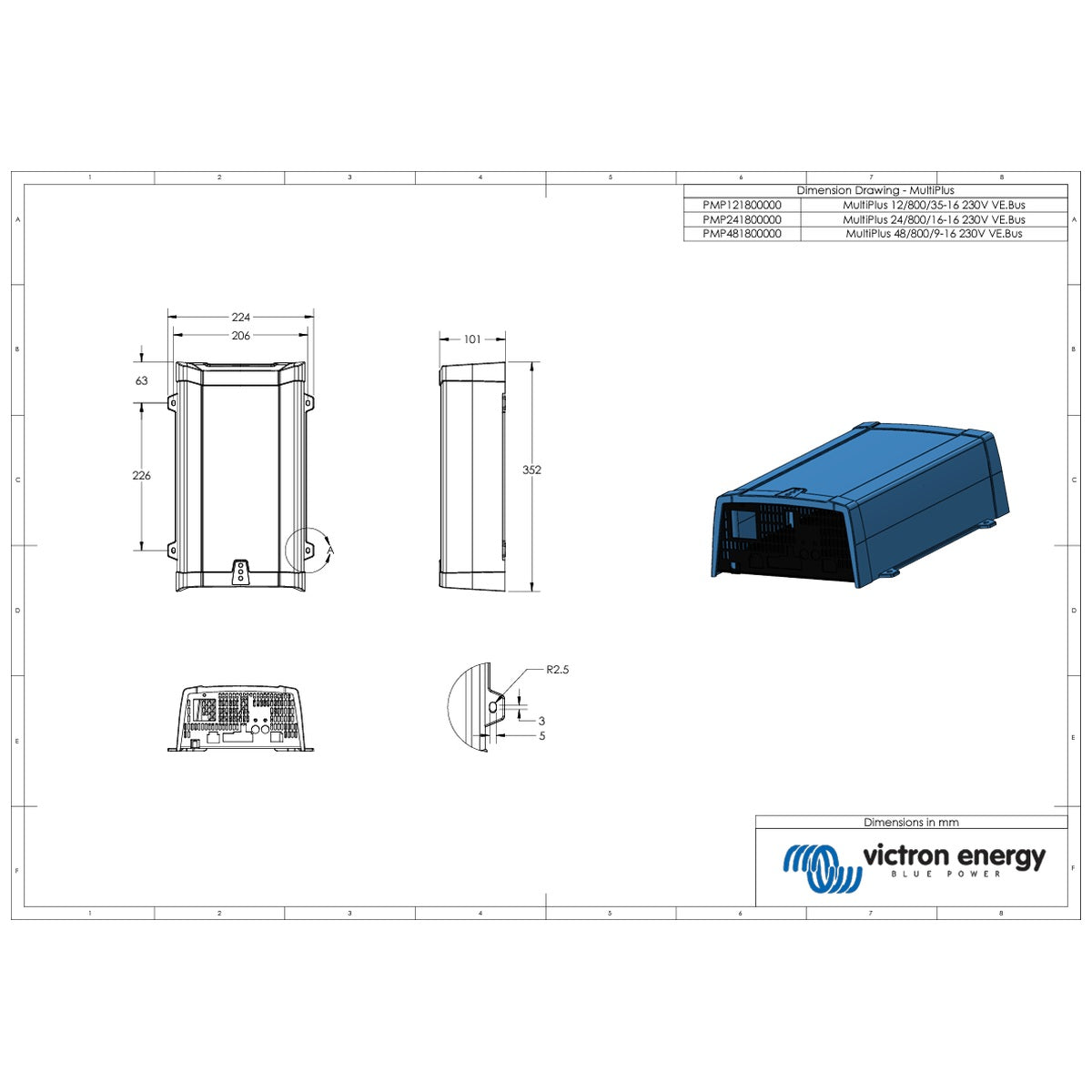

| Dimensions (h x w x d) | 360 x 240 x 100 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 |
| Emission Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Automotive Directive | ECE R10-5 |
