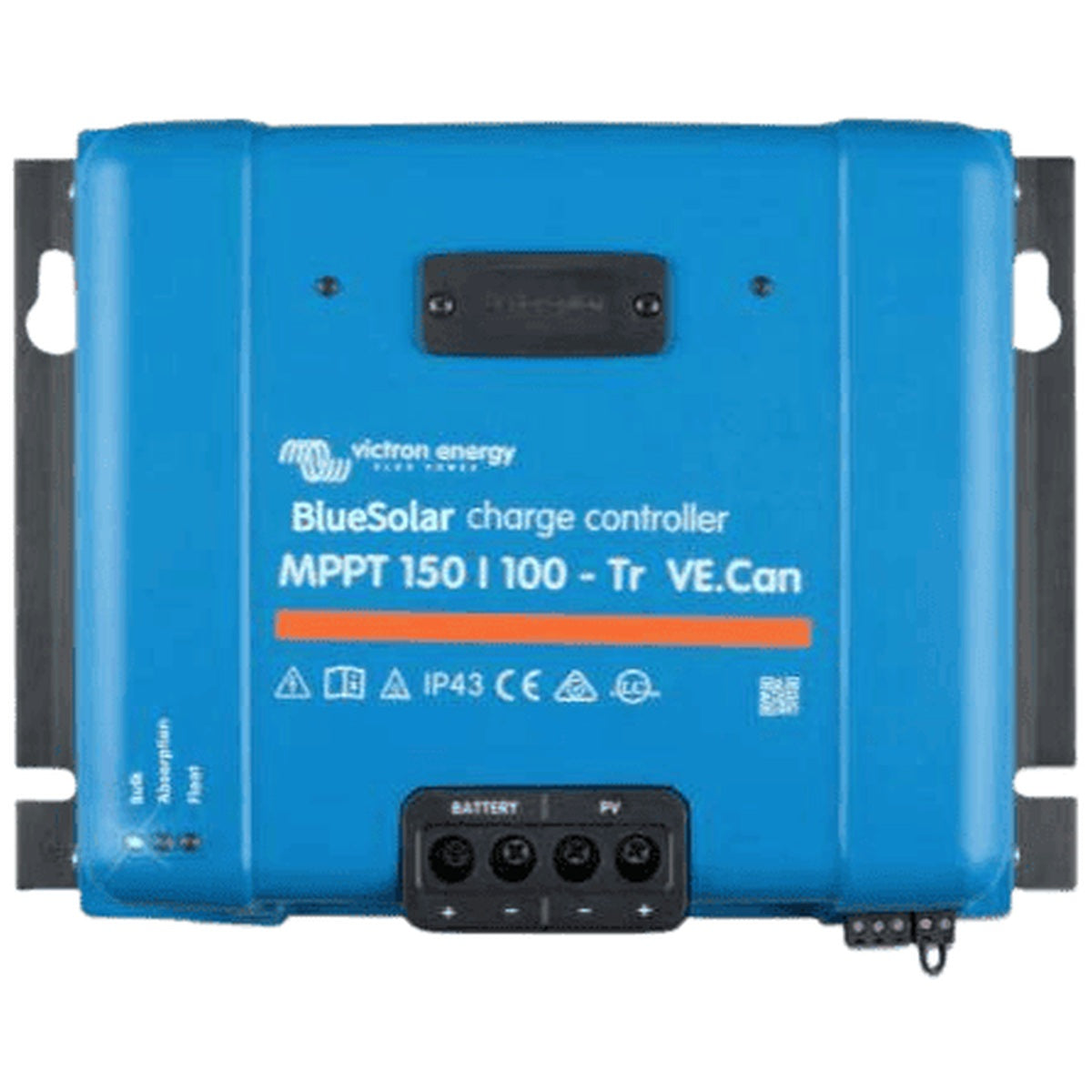

Victron Energy - 12/24/48V - BlueSolar MPPT 150/100-Tr VE.Can - Non-Bluetooth - Solar Charge Controller

Victron BlueSolar MPPT 150/100-Tr VE.Can: High-Capacity Solar Charge Controller for Large Off-Grid Systems

Advanced MPPT Technology for 12V, 24V, and 48V Battery Banks

The Victron BlueSolar MPPT 150/100-Tr VE.Can is a professional-grade solar charge controller engineered for demanding off-grid and hybrid energy systems. With a 100 A rated charge current and support for 12V, 24V, and 48V battery banks (36V configurable via software), it efficiently manages large solar arrays up to 5800 W at 48V. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm continuously optimises energy harvest, even under partial shading or fluctuating light conditions, ensuring your batteries receive maximum available power throughout the day.

Unlike generic PWM controllers, the BlueSolar MPPT 150/100-Tr uses advanced MPPT technology to convert excess voltage into higher charge current, significantly improving overall system efficiency—up to 98% peak conversion efficiency. This means faster charging, reduced energy loss, and better utilisation of your solar investment, particularly in cooler climates where panel voltage rises.

Designed for Large-Scale and Parallel Installations

This controller is built for scalability. With VE.Can communication, you can synchronise up to 25 units in parallel, making it ideal for large residential, commercial, or industrial off-grid systems. The VE.Can interface also enables seamless integration with Victron GX monitoring devices (such as the Color Control GX or Cerbo GX) and the VRM online portal, allowing remote monitoring, firmware updates, and system management from anywhere.

For installations requiring Bluetooth connectivity, the BlueSolar model can be upgraded with an optional VE.Direct Bluetooth Smart dongle (sold separately). This provides wireless access to VictronConnect for configuration and real-time data, while maintaining the security benefit of a physically disconnected Bluetooth module when not in use.

Robust Protection and Adaptive Charging

Engineered for reliability in harsh environments, the BlueSolar MPPT 150/100-Tr features comprehensive electronic protection including PV reverse polarity, output short circuit, and over-temperature safeguards. The controller automatically derates power output when internal temperatures rise, preventing damage and extending service life. Its IP43-rated electronics (IP22 for connection area) provide resistance against dust and water ingress, suitable for unconditioned indoor installations.

The multi-stage adaptive charge algorithm with eight preprogrammed battery presets ensures optimal charging for various battery chemistries, including lead-acid, AGM, gel, and lithium (with user-defined settings). Temperature compensation adjusts charge voltages based on ambient conditions, protecting batteries from overcharging in heat and undercharging in cold.

Key Features

• Ultra-fast MPPT with advanced shading detection maximises energy yield
• 100 A charge current supports large battery banks and high-power loads
• 150 V PV input allows series wiring of multiple panels for reduced current and thinner cabling
• VE.Can and VE.Direct ports for system integration, monitoring, and optional Bluetooth
• Parallel synchronised operation (up to 25 units) for scalable power systems
• Programmable DPST relay for generator start, alarms, or load control
• Remote on/off and virtual load output functionality via VE.Direct
• Natural convection cooling ensures silent, maintenance-free operation

Installation and Connectivity

The controller features robust 35 mm² (AWG 2) screw terminals for both battery and PV connections, accommodating heavy-gauge cables for minimal voltage drop. The compact dimensions (216 x 295 x 103 mm) and 4.5 kg weight allow flexible mounting, while the blue anodised aluminium housing (RAL 5012) provides durability and corrosion resistance.

For advanced system control, the BlueSolar MPPT 150/100-Tr supports optional accessories such as the SmartSolar Control Display (plug-on LCD) and the MPPT Control remote panel. These provide local monitoring and configuration without needing a smartphone or computer.

Why Choose the Victron BlueSolar MPPT 150/100-Tr?

This controller addresses the limitations of smaller or less sophisticated charge controllers by delivering higher power handling, superior efficiency, and extensive communication options. It reduces the risk of undercharged batteries during cloudy periods, prevents overvoltage damage to sensitive electronics, and enables future system expansion through parallel operation. For installers and system owners seeking a dependable, high-performance charge controller backed by Victron's engineering heritage, the BlueSolar MPPT 150/100-Tr is a proven solution.

Upgrade your solar installation with the Victron BlueSolar MPPT 150/100-Tr VE.Can and experience precise, efficient battery charging for your off-grid or backup power system.

Specifications
