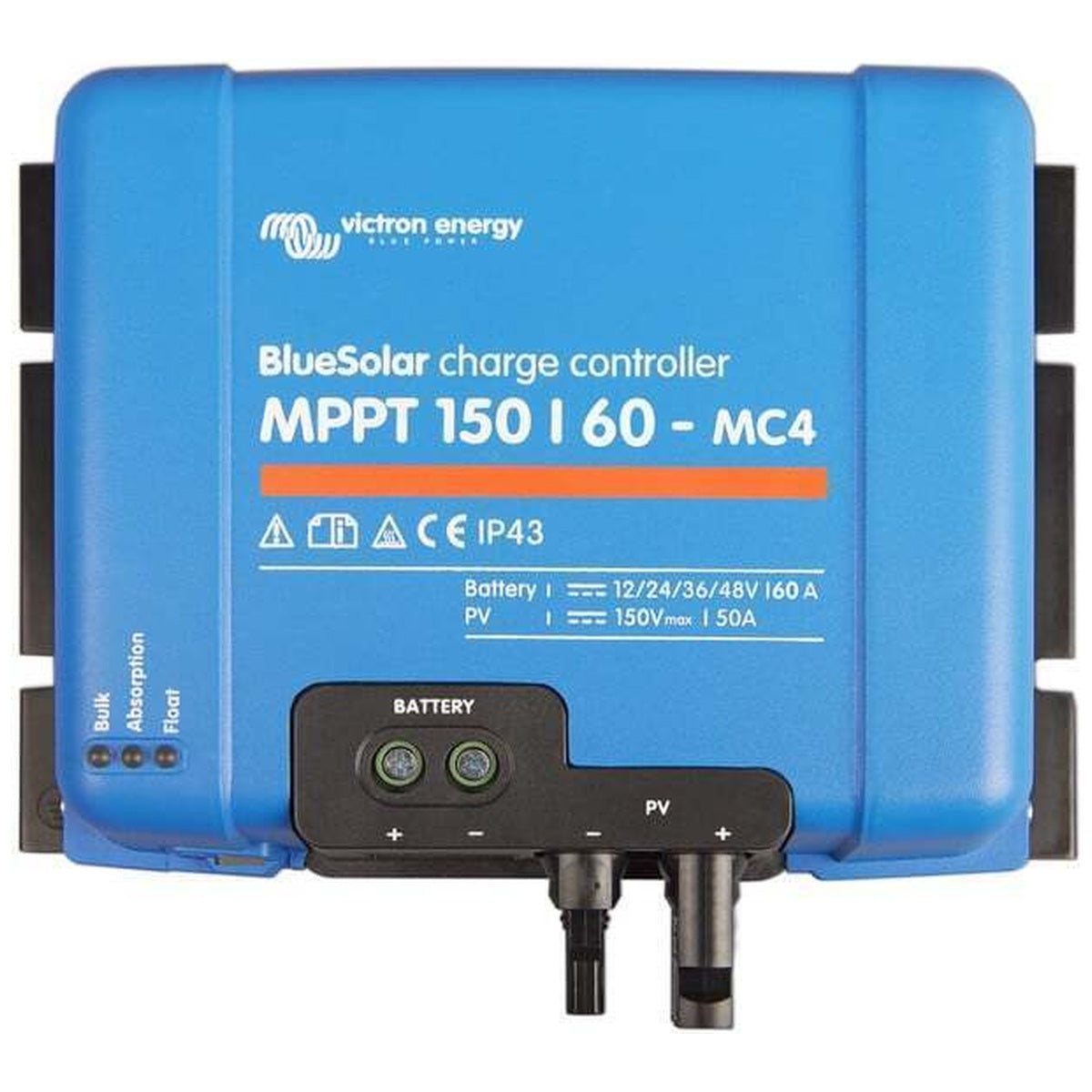

Victron Energy - 12/24/48V - BlueSolar MPPT 150/60-MC4 - Non-Bluetooth - Solar Charge Controller

Victron BlueSolar MPPT 150/60-MC4: High-Performance Solar Charge Controller for 12V, 24V, and 48V Systems

Engineered for Maximum Energy Harvest in Demanding Off-Grid and Mobile Installations

The Victron BlueSolar MPPT 150/60-MC4 is a professional-grade MPPT solar charge controller designed to extract the maximum available power from your PV array. With an ultra-fast Maximum Power Point Tracking algorithm, this controller significantly outperforms traditional PWM and slower MPPT units, delivering up to 30% more energy in variable light conditions. Its 150V PV input and 60A charge current make it a versatile solution for medium to large 12V, 24V, and 48V battery systems in caravans, RVs, marine vessels, and remote off-grid installations.

Unlike many controllers that struggle under partial shading, the BlueSolar MPPT 150/60 employs an advanced MPPT detection algorithm that continuously scans the power-voltage curve to lock onto the optimal maximum power point. This ensures consistent energy harvest even when panels are partially shaded, a common challenge in mobile and rooftop installations.

Key Features

• Ultra-fast MPPT tracking — adapts to changing light every 0.1 seconds for up to 30% more energy than PWM controllers
• Advanced shading management — identifies and locks onto the global maximum power point, avoiding local MPP traps
• 98% peak conversion efficiency — fanless design with full 60A output up to 40°C ambient temperature
• Wide PV voltage range — 150V maximum open-circuit voltage allows longer series strings and reduced cable losses
• Flexible charge programming — eight pre-set battery algorithms plus fully customisable charging via VE.Direct
• Comprehensive electronic protection — PV reverse polarity, short circuit, over-temperature, and reverse current safeguards

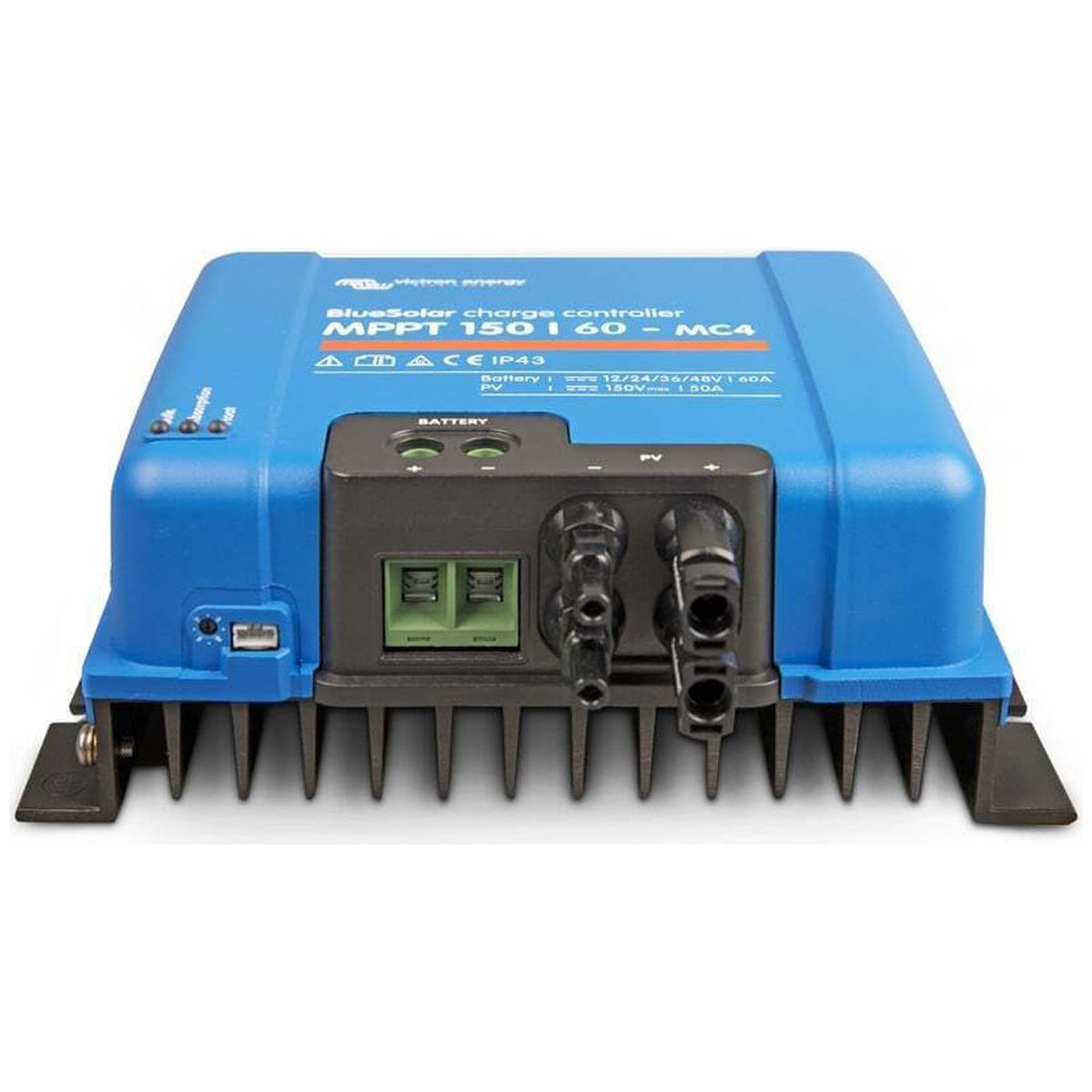

• Integrated MC4 connectors — two pairs of MC4 PV inputs simplify wiring and reduce installation time
• VE.Direct communication port — enables wired data logging and system monitoring (Bluetooth dongle sold separately)

Advanced MPPT Technology for Superior Energy Yield

At the core of the BlueSolar MPPT 150/60 is a high-speed tracking processor that reacts to irradiance changes in milliseconds. In overcast or rapidly changing weather, this responsiveness translates directly into higher daily energy harvest. The controller's ability to handle up to 150V PV open-circuit voltage allows installers to configure panels in longer series strings, reducing current, minimising voltage drop, and enabling the use of thinner, more cost-effective cabling over longer distances.

Robust Protection and Reliable Operation

Designed for harsh environments, the BlueSolar MPPT 150/60 features an IP43-rated electronics compartment and a large aluminium heat sink for efficient passive cooling. The absence of a cooling fan eliminates a common point of failure and ensures silent operation. Built-in electronic protections guard against installation errors such as PV reverse polarity and short circuits, while automatic power derating at high temperatures protects internal components without interrupting charging.

Flexible Charging for Any Battery Chemistry

The controller supports a fully programmable charge algorithm via the VE.Direct port and VictronConnect software, allowing precise tailoring for lead-acid, AGM, gel, and lithium batteries. An internal temperature sensor provides automatic compensation of absorption and float voltages, extending battery life. For systems requiring remote on/off control or load management, the built-in programmable relay and remote on/off terminal offer seamless integration.

Monitoring and Control Options

While this BlueSolar model does not include integrated Bluetooth, real-time data and settings can be accessed by connecting the optional VE.Direct Bluetooth Smart Dongle or a Victron Color Control GX panel. This provides wireless monitoring via smartphone or tablet, as well as integration into larger Victron energy systems.

Ideal Applications

• Caravan and RV solar upgrades requiring high charge current and multi-voltage support
• Marine battery charging with robust corrosion-resistant construction
• Off-grid cabins and tiny homes needing reliable, high-efficiency charge control
• Industrial remote power systems where uptime and energy yield are critical

With its proven reliability and advanced feature set, the Victron BlueSolar MPPT 150/60-MC4 is a trusted choice for professionals seeking a high-performance solar charge controller that maximises energy harvest and protects valuable battery banks.

Upgrade your solar installation with the Victron BlueSolar MPPT 150/60-MC4 today and experience the difference that ultra-fast MPPT tracking makes in real-world conditions.

Specifications
