Victron Energy - 12/24/48V - BlueSolar MPPT 250/100-Tr VE.CAN - Non-Bluetooth - Solar Charge Controller

Victron BlueSolar MPPT 250/100-Tr VE.CAN Solar Charge Controller (12V / 24V / 48V, 100A)

Professional-Grade MPPT Solar Charging Without Bluetooth

The Victron BlueSolar MPPT 250/100-Tr VE.CAN is a high-end, non-Bluetooth solar charge controller designed for advanced energy systems where wired communication, maximum efficiency, and long-term reliability are the priority. Supporting 12V, 24V, and 48V battery banks with a powerful 100A charging capacity, this controller is ideal for caravan, RV, marine, off-grid, industrial, and tiny home solar installations that rely on centralized monitoring via GX devices.

Ultra-Fast Maximum Power Point Tracking (MPPT)

Equipped with Victron’s proven ultra-fast MPPT technology, the BlueSolar MPPT 250/100-Tr continuously tracks the optimal power point of your solar array. In dynamic conditions such as passing clouds or fluctuating irradiance, this controller can increase energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT designs. This makes it a dependable solution for high-voltage PV arrays up to 250V open circuit.

Advanced MPPT Performance Under Partial Shading

In real-world solar environments, partial shading often creates multiple maximum power points on the PV curve. Conventional MPPT controllers may lock onto a local MPP, reducing overall output. The BlueSolar MPPT 250/100-Tr uses an advanced MPPT detection algorithm to consistently identify and lock onto the true optimal MPP, maximizing solar yield across complex array layouts common in marine decks, RV rooftops, and industrial installations.

Exceptional Efficiency with Fanless Cooling Design

Delivering a peak efficiency exceeding 99%, this controller operates without a cooling fan, reducing noise, dust ingress, and mechanical failure points. Integrated over-temperature protection ensures safe operation by automatically reducing output under high thermal loads, making it well-suited for enclosed electrical compartments and harsh operating environments.

Flexible Charging Algorithms & Battery Compatibility

The BlueSolar MPPT 250/100-Tr features a fully programmable charge algorithm and includes eight pre-configured battery profiles selectable via a rotary switch. It supports lithium-ion, AGM, GEL, and lead-acid batteries, ensuring compatibility with modern energy storage systems. The fully discharged battery recovery function allows charging to begin even when the battery voltage has dropped to zero, a critical feature for remote and unattended off-grid systems.

• Supports external battery voltage and temperature sensing via VE.Can
• Compatible with BMV battery monitors and SmartShunt (via GX devices)
• Internal temperature sensor for accurate charge regulation

VE.Can Communication for Scalable Solar Systems

Designed for installations that rely on wired data communication, the VE.Can interface enables seamless integration with Victron GX devices, Color Control GX, and industrial monitoring systems. Up to 25 BlueSolar MPPT controllers can be synchronized on a single VE.Can network, making this model ideal for large solar arrays and professional multi-controller setups.

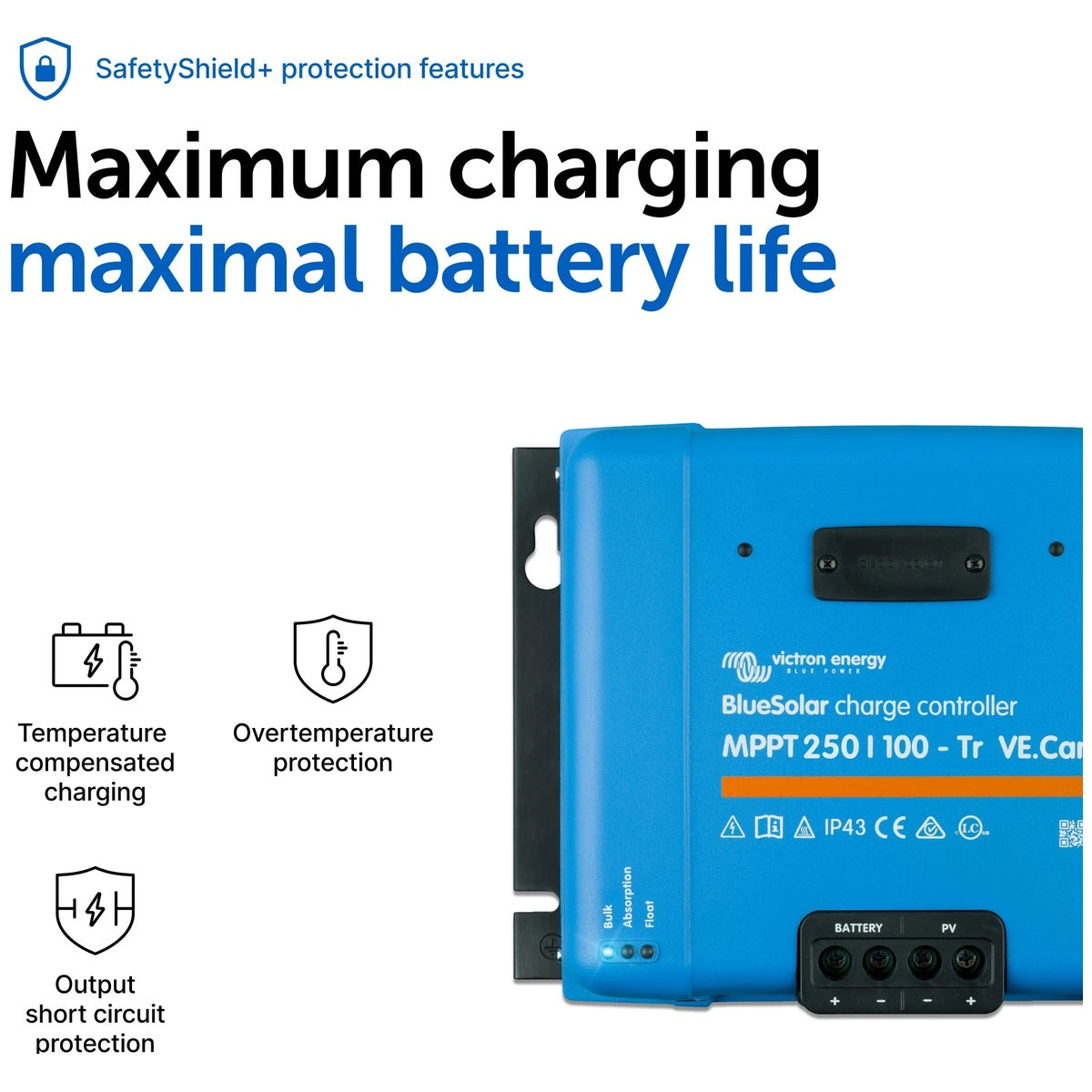

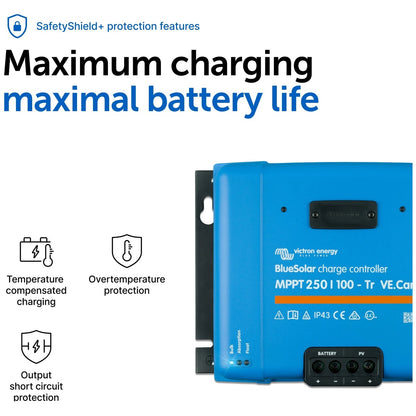

Advanced Protection & System Control

Extensive electronic protection includes PV short-circuit protection, PV reverse polarity protection, reverse current protection, and thermal derating. A remote on/off input allows direct connection to a VE.Bus BMS, while the programmable relay can be configured for alarms, generator start signals, or other automation events. An optional SmartSolar/BlueSolar pluggable LCD display provides local system visibility when required.

Why Choose the Victron BlueSolar MPPT 250/100-Tr?

This controller is purpose-built for users who prefer hard-wired monitoring, system scalability, and industrial-grade reliability over wireless control. It is an excellent choice for commercial off-grid systems, marine power management, RV solar upgrades, and industrial energy storage solutions where long-term performance and deterministic communication are essential.

Upgrade Your Solar Infrastructure Today

Upgrade your vehicle, vessel, or off-grid power system now with the Victron BlueSolar MPPT 250/100-Tr VE.CAN to achieve higher energy yield, precise battery charging, and professional-grade system integration built for demanding environments.

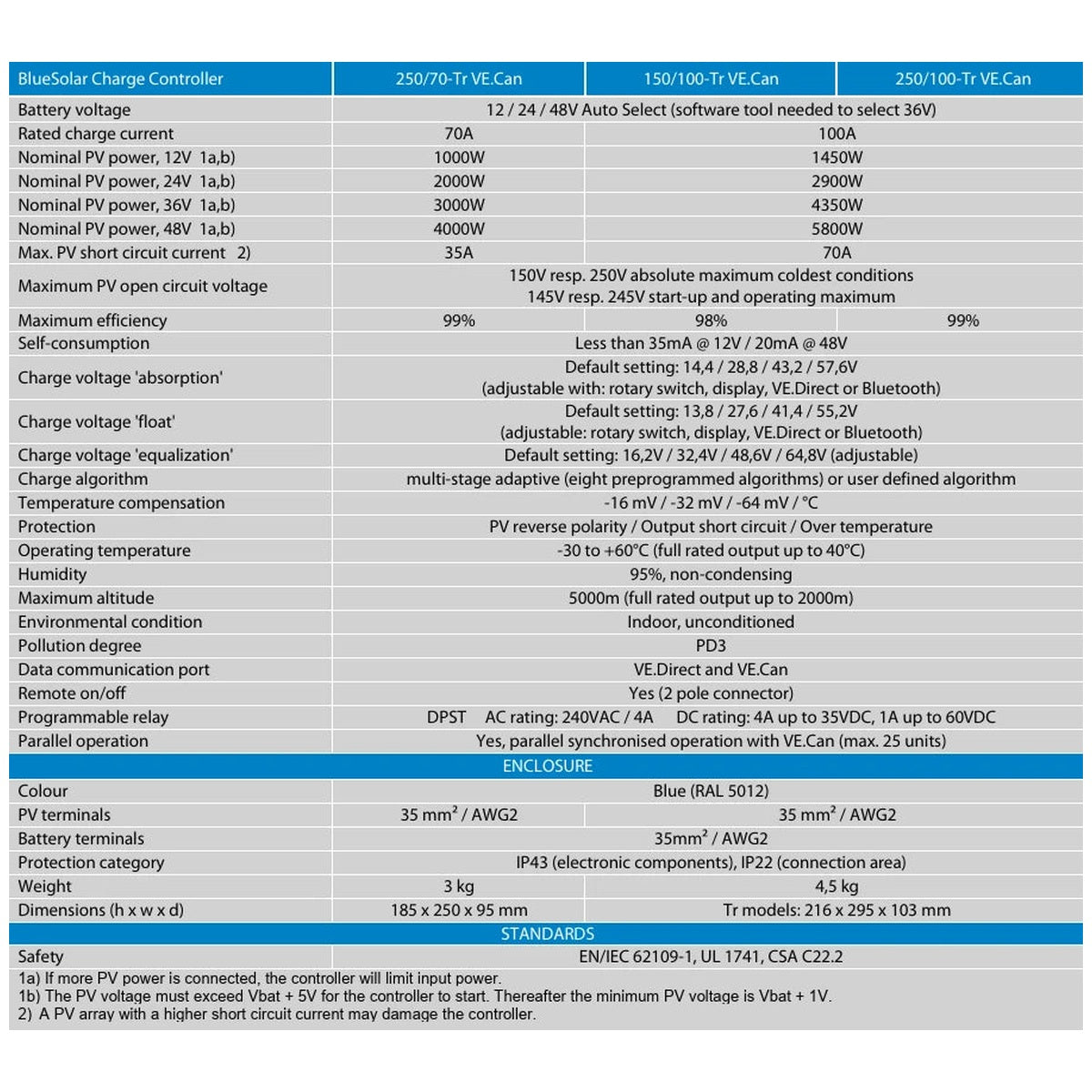

Specifications
