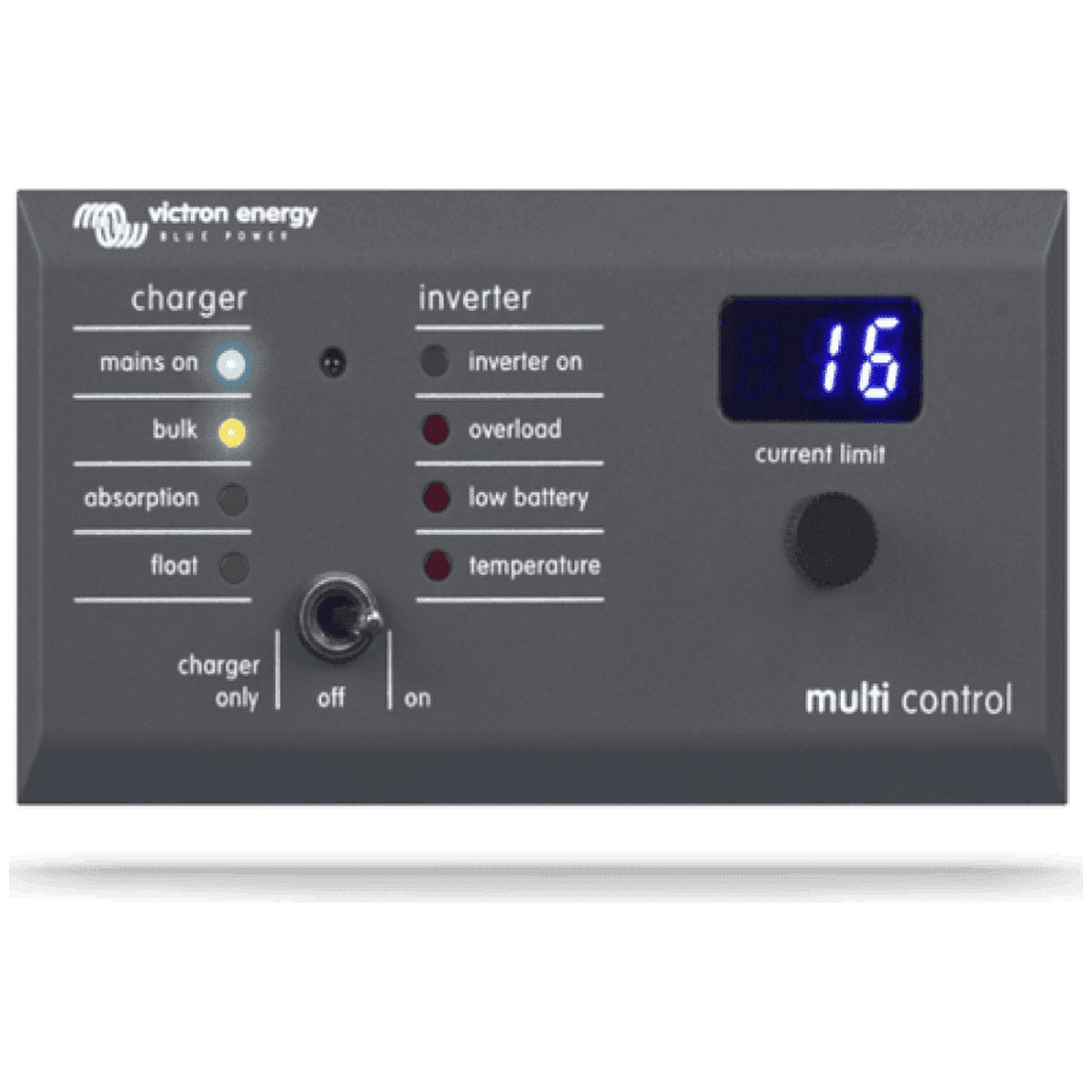

Victron Energy - Digital Multi Control 200/200A (Right Angle RJ45) GX / MultiPlus Remote Panel

Victron Digital Multi Control 200/200A GX: Precision Remote Management for MultiPlus and Quattro Systems

Advanced Remote Panel for Inverter/Charger Control

The Victron Digital Multi Control 200/200A GX provides a dedicated, hardwired interface for remotely monitoring and adjusting your Victron inverter/charger system. Designed for seamless integration into control panels on boats, vehicles, and off-grid installations, this remote panel offers instant access to critical settings without needing a smartphone or laptop. The right-angle RJ45 connector ensures a low-profile, space-efficient fit behind mounting surfaces, making it ideal for compact electrical compartments.

With the ability to set AC input current limits up to 200 A, the DMC allows you to match your system’s draw to the available shore power or generator capacity. This prevents nuisance tripping of breakers and protects your AC source from overload, a common risk when connecting to weak marina supplies or portable generators. The panel replicates the inverter/charger’s LED status indicators, so you can verify operational modes at a glance—whether the unit is in bulk, absorption, float, or inverter mode.

Why a Dedicated Remote Panel Matters

While many Victron systems can be monitored via Bluetooth or the VRM portal, a physical control panel offers unmatched reliability and immediacy. There is no dependency on wireless connectivity, app updates, or device compatibility. In critical moments—such as when a generator is struggling or shore power is unstable—you can quickly switch the system to charger-only mode or adjust the input limit with the rotary knob. This reduces the risk of system shutdowns and extends the lifespan of your AC sources.

Compared to generic remote switches or basic digital meters, the Victron DMC communicates directly over the VE.Bus protocol, ensuring accurate, real-time data and full compatibility with all MultiPlus, MultiPlus-II, Quattro, and EasySolar models, including parallel and three-phase configurations. It also supports legacy VE.Bus products manufactured before 2008, providing a consistent control solution across mixed fleets.

Key Features

• 200 A AC input current adjustment via a tactile rotary knob, enabling precise matching to shore or generator limits
• Right-angle RJ45 connector minimises depth behind the panel, simplifying installation in tight spaces
• Eight status LEDs mirror the inverter/charger’s own indicators for mains, bulk, absorption, float, inverter, overload, low battery, and temperature warnings
• 7-segment digital display shows the set AC input current limit and, if applicable, the active AC input source or VE.Bus error codes
• Three-position power mode switch (On, Off, Charger Only) for immediate system control without navigating menus
• Flexible mounting options include front recess, rear recess, or surface wall mount using the included frame and screws
• Generator support wiring accepts 0.25 to 1.0 mm² conductors for remote start/stop integration
• Wide operating temperature range from -20°C to 60°C, suitable for engine rooms and outdoor enclosures

Installation and Compatibility

Connecting the DMC is straightforward: a standard RJ45 UTP cable (not included) links the panel to the VE.Bus network. In most setups, no additional configuration is required—the panel is automatically recognised. The compact dimensions (65 x 120 x 40 mm) and included mounting frame allow for clean integration into existing dashboards or electrical panels. The right-angle connector is particularly beneficial when space behind the panel is limited, such as in marine navigation stations or slim RV control cabinets.

This remote is compatible with the full range of Victron inverter/chargers, including MultiCompact, MultiPlus, MultiPlus-II, MultiPlus-II GX, Quattro, Quattro-II, EasySolar, and EasySolar-II GX. It also supports older VE.Bus models, ensuring a unified control experience even when upgrading systems incrementally.

Enhance System Reliability and User Confidence

By providing a tactile, always-available interface, the Digital Multi Control reduces reliance on mobile devices and eliminates the frustration of connectivity issues. It empowers users to make real-time adjustments that protect their equipment and optimise energy usage. Whether you are managing a marine electrical system, a remote off-grid power setup, or a mobile workshop, this panel delivers the control precision needed to keep operations running smoothly.

Upgrade your Victron installation with the Digital Multi Control 200/200A GX and gain immediate, reliable command over your power system. Add it to your setup today for enhanced control and peace of mind.

Specifications
