Victron 100A:50mA Current Transformer for MultiPlus-II & MultiPlus 20kW (Wire-End, 20m)

External Current Sensing for PowerControl and PowerAssist

The Victron 100A:50mA Current Transformer clips around an existing live AC conductor to measure current externally, without routing that current through the inverter/charger itself. Feeding this data to a MultiPlus-II or MultiPlus 20kW allows the system to implement PowerControl and PowerAssist, and to optimise self-consumption by tracking how much power is flowing to or from the grid - all without the cost and complexity of a full DIN-rail energy meter.

This wire-end, 20 metre version is the design fitted to newer MultiPlus-II units and the MultiPlus 20kW, which use a two-wire terminal connection rather than the 3.5mm headphone jack found on older MultiPlus-II models. The split-core clamp opens and closes around the conductor, making it a fast retrofit for installations where there's no room for a dedicated energy meter.

Key Features

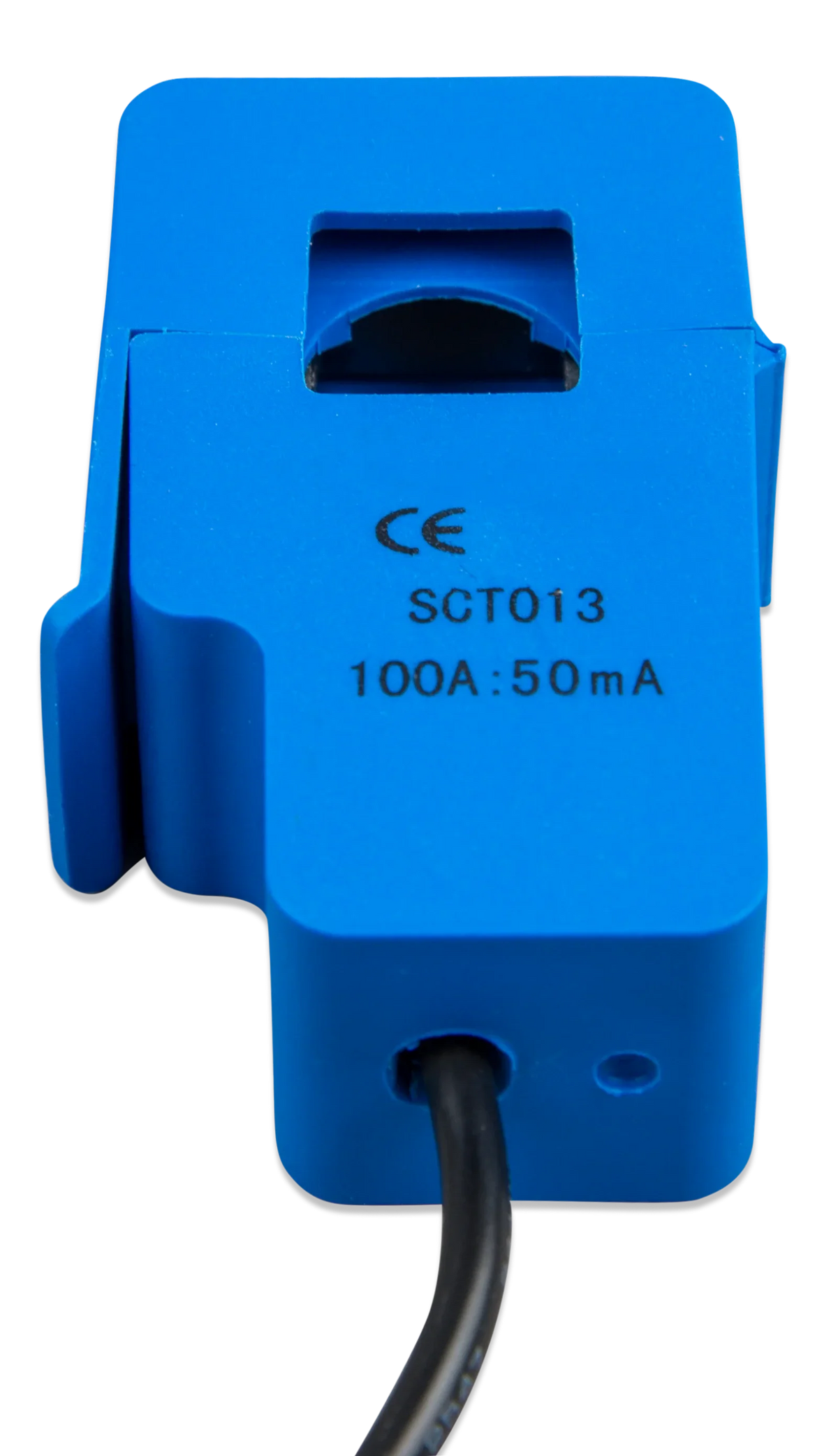

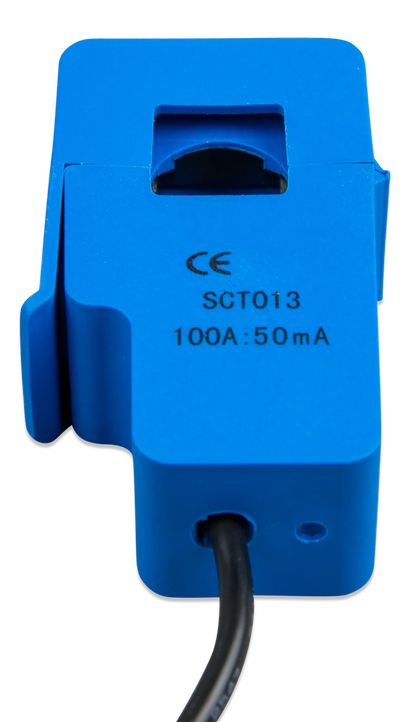

• 100A:50mA ratio - a 50mA output at a primary current of 100A
• 20m cable, factory-calibrated for accuracy - must not be extended or shortened

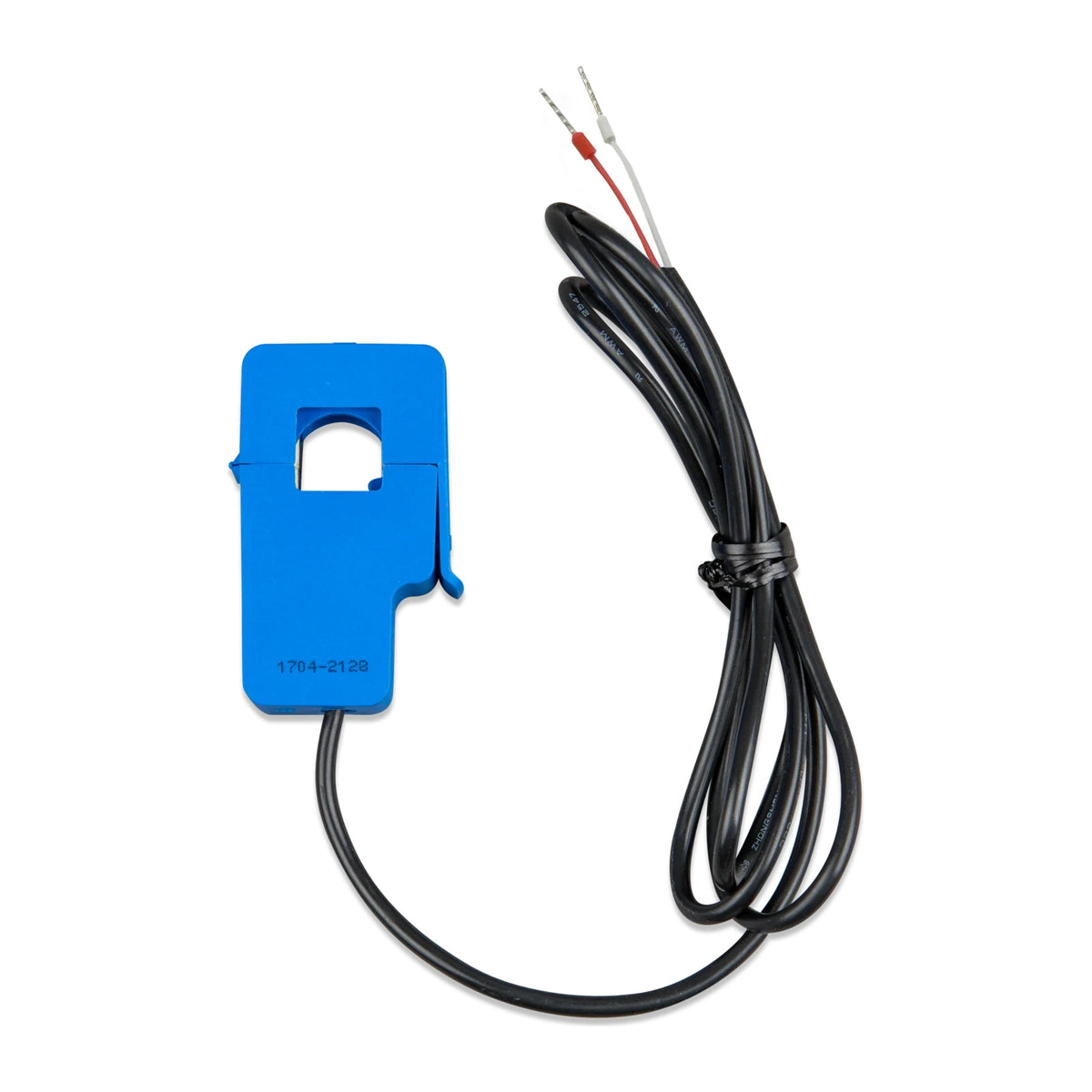

• Wire-end termination - red and white leads connect to the EXT and COM current-sense terminals on newer MultiPlus-II and MultiPlus 20kW units

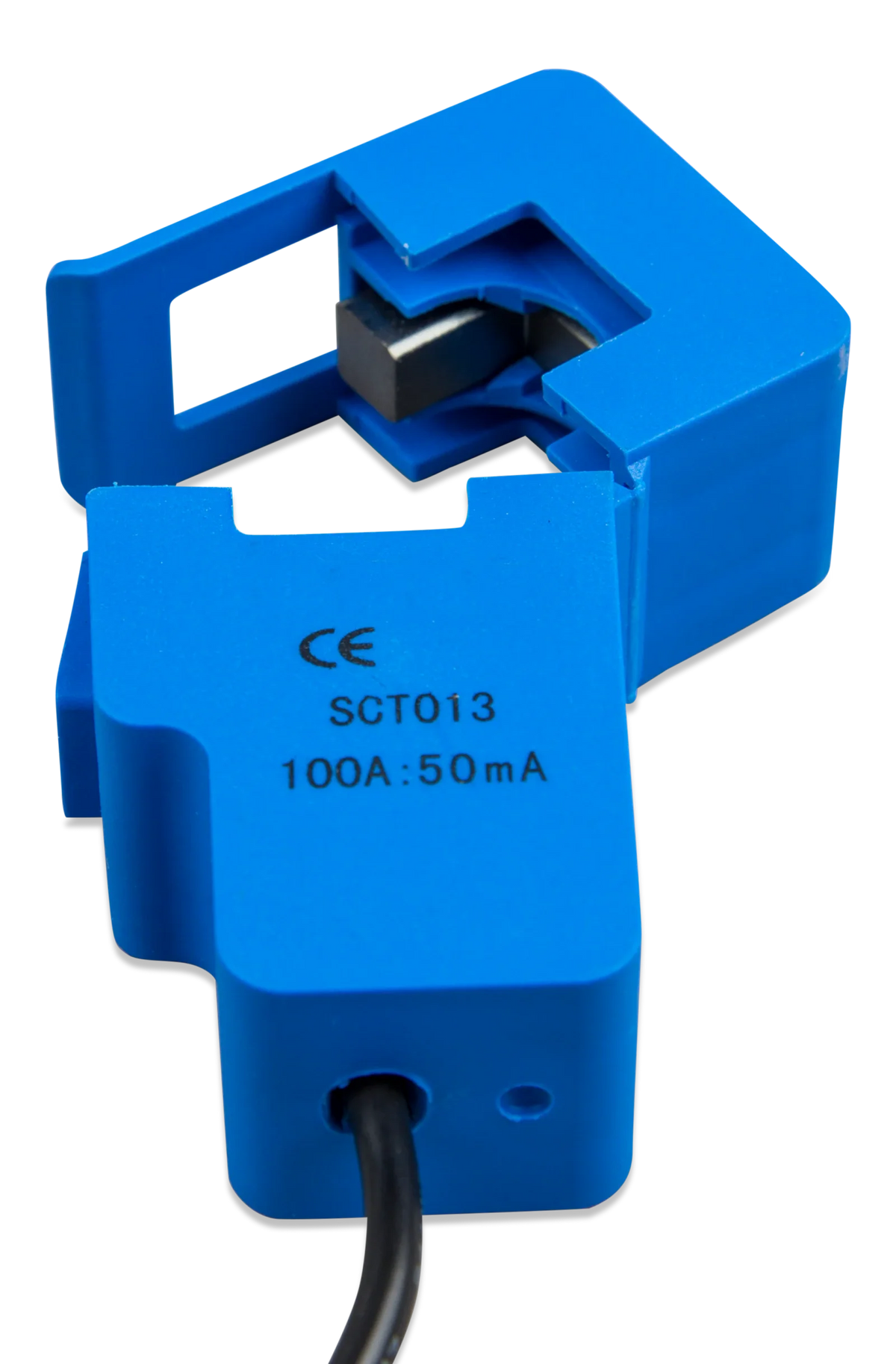

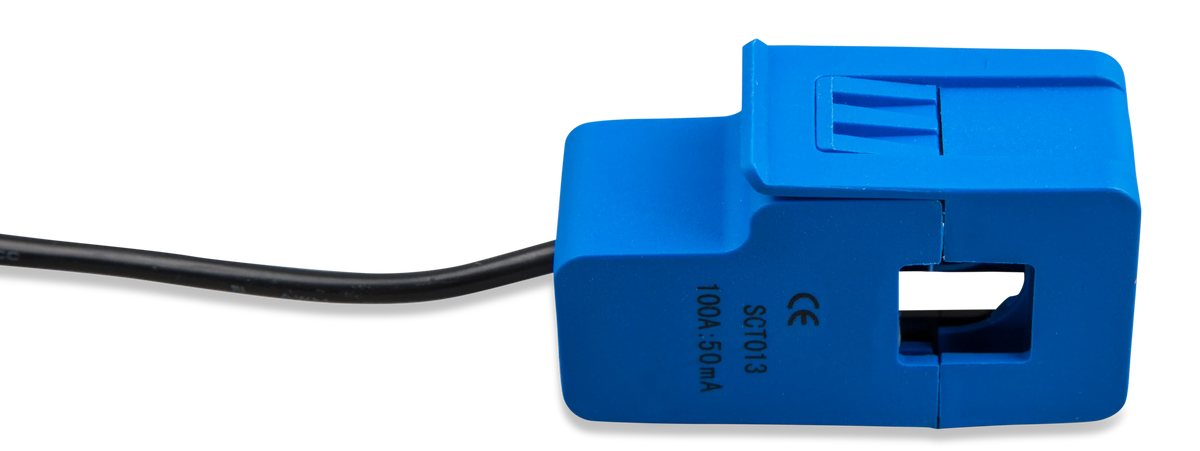

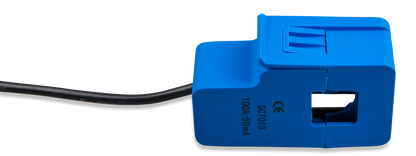

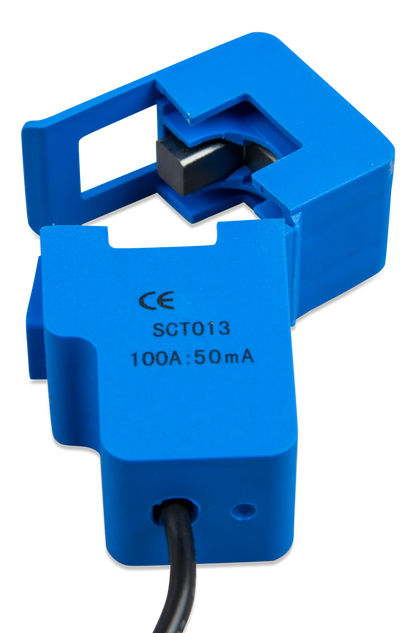

• Split-core clamp fits around an existing conductor without disconnecting wiring
• Enables PowerControl and PowerAssist, and self-consumption optimisation, via external current sensing
• Polarity sensitive: red wire to EXT terminal, white wire to COM terminal

Important Notes

This current transformer measures current only, not voltage, and provides single-phase monitoring only - it is less accurate at low currents than a dedicated energy meter. It suits newer MultiPlus-II units and the MultiPlus 20kW only; older MultiPlus-II units that use a 3.5mm headphone jack connection require the corresponding jack-type current transformer instead.
