Victron 50A Autotransformer: Split-Phase Balancing and Voltage Conversion

Step-Up, Step-Down and Load Balancing in 120/240V Systems

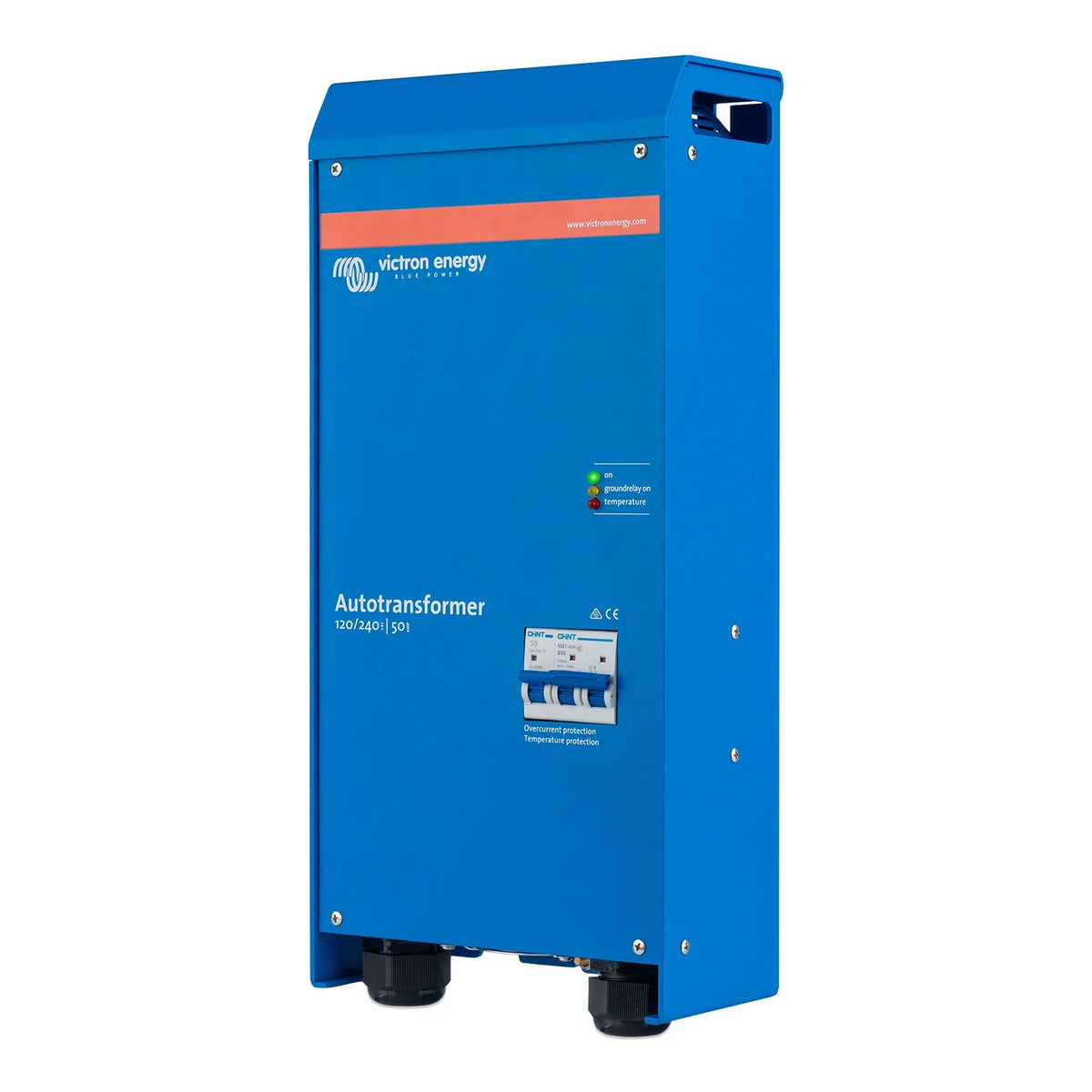

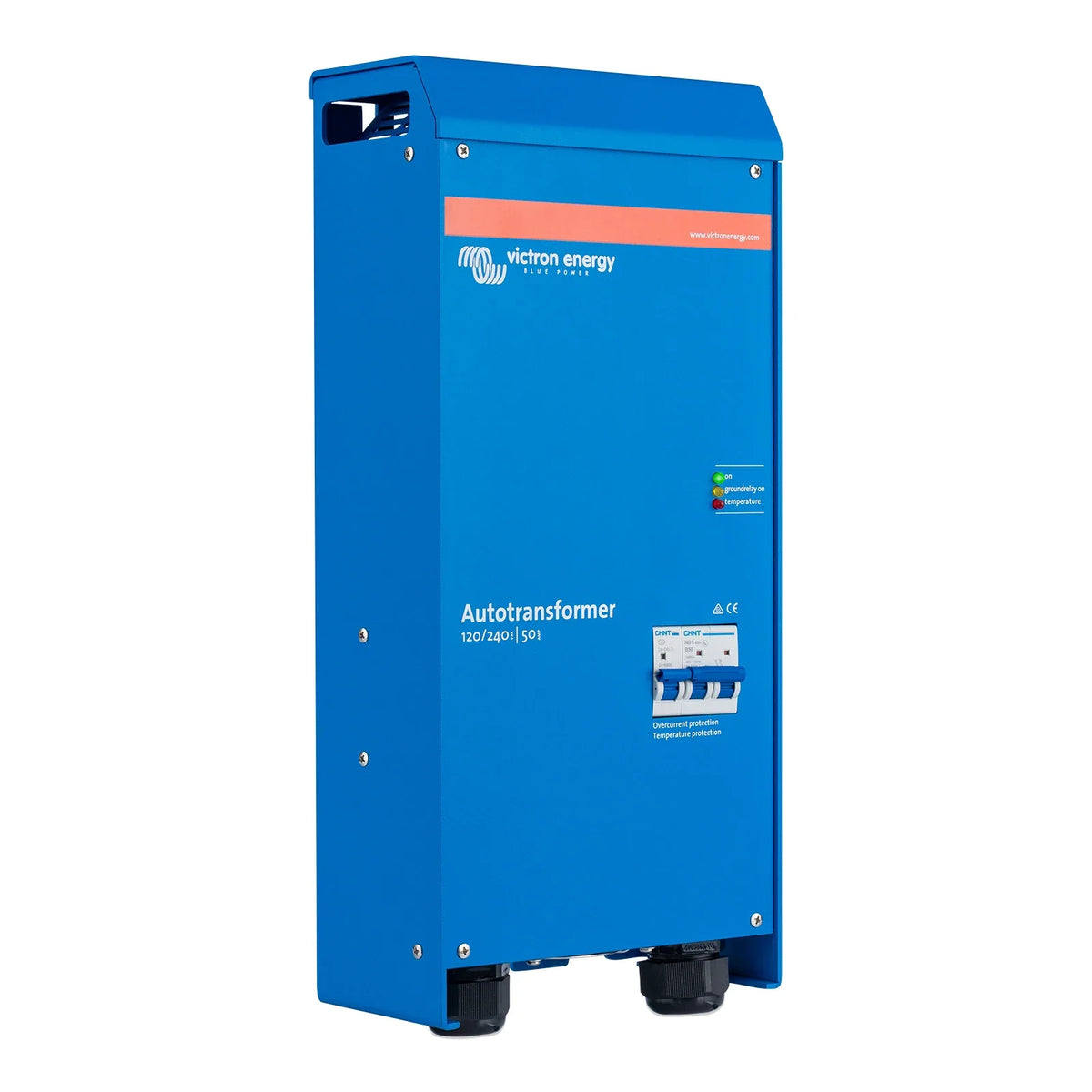

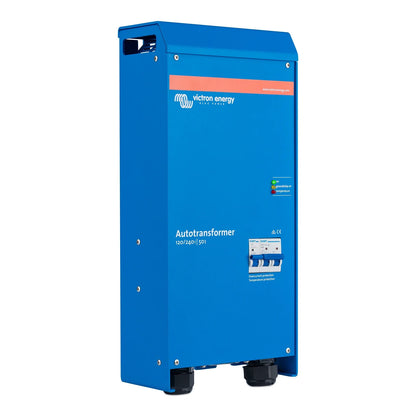

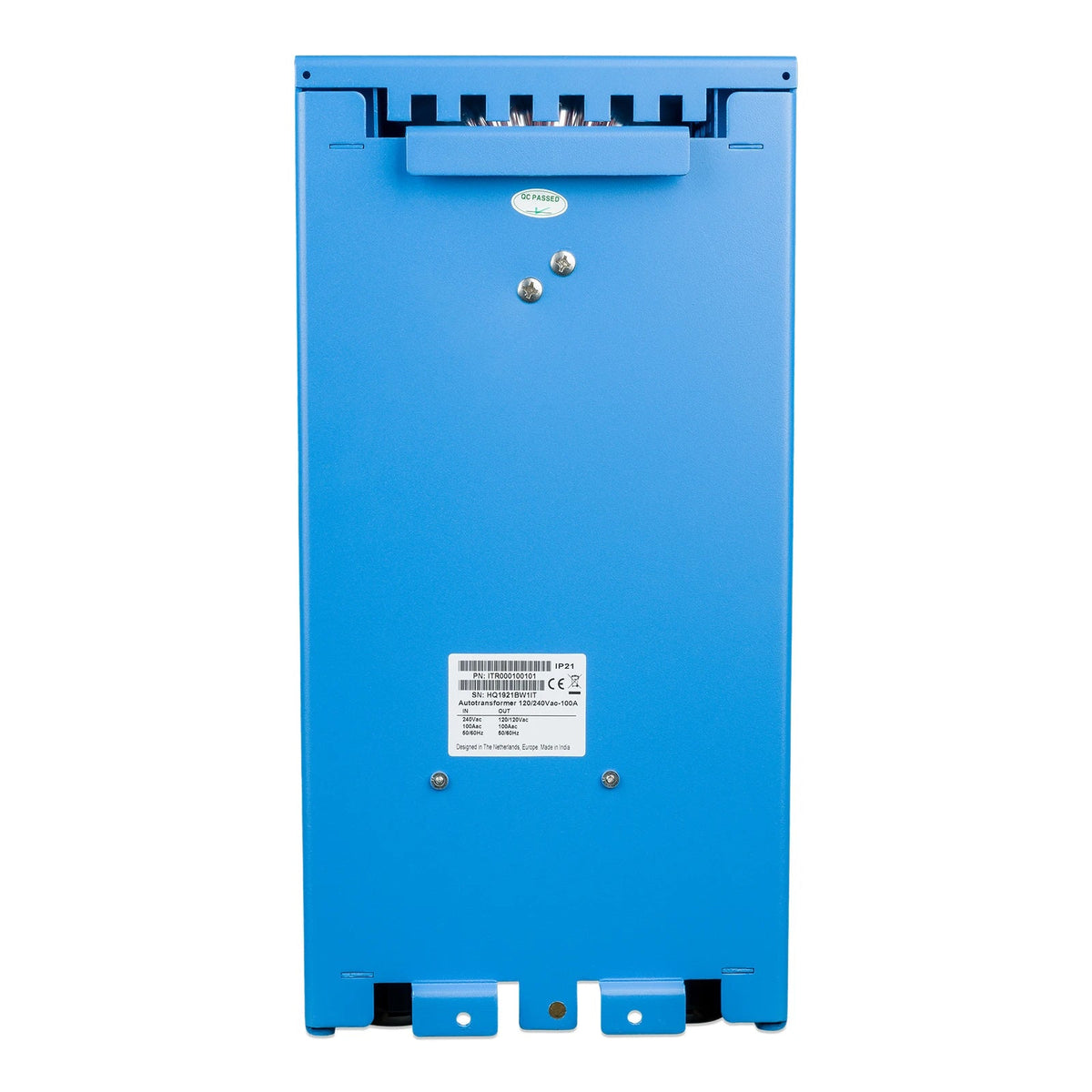

The Victron Autotransformer 120/240V 50A is a toroidal autotransformer for split-phase 120/240V installations. Used with a generator or stacked inverters, it balances loads across the two legs: any load unbalance is absorbed by the autotransformer, so a single-phase load can draw more of the available power.

How It Solves Real-World Power Problems

The autotransformer can also create the voltage a system needs. It can step up by doubling the incoming voltage for split-phase loads, or step down by decreasing the incoming voltage, for example to let a single-phase inverter use both legs of a split-phase generator.

Built-In Safety and Protection Features

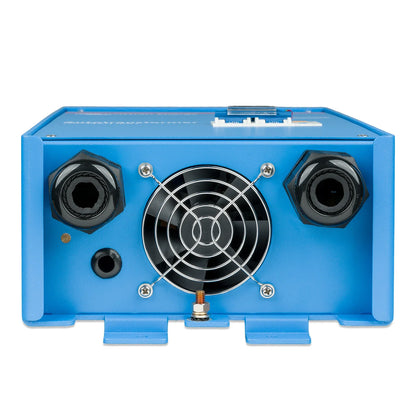

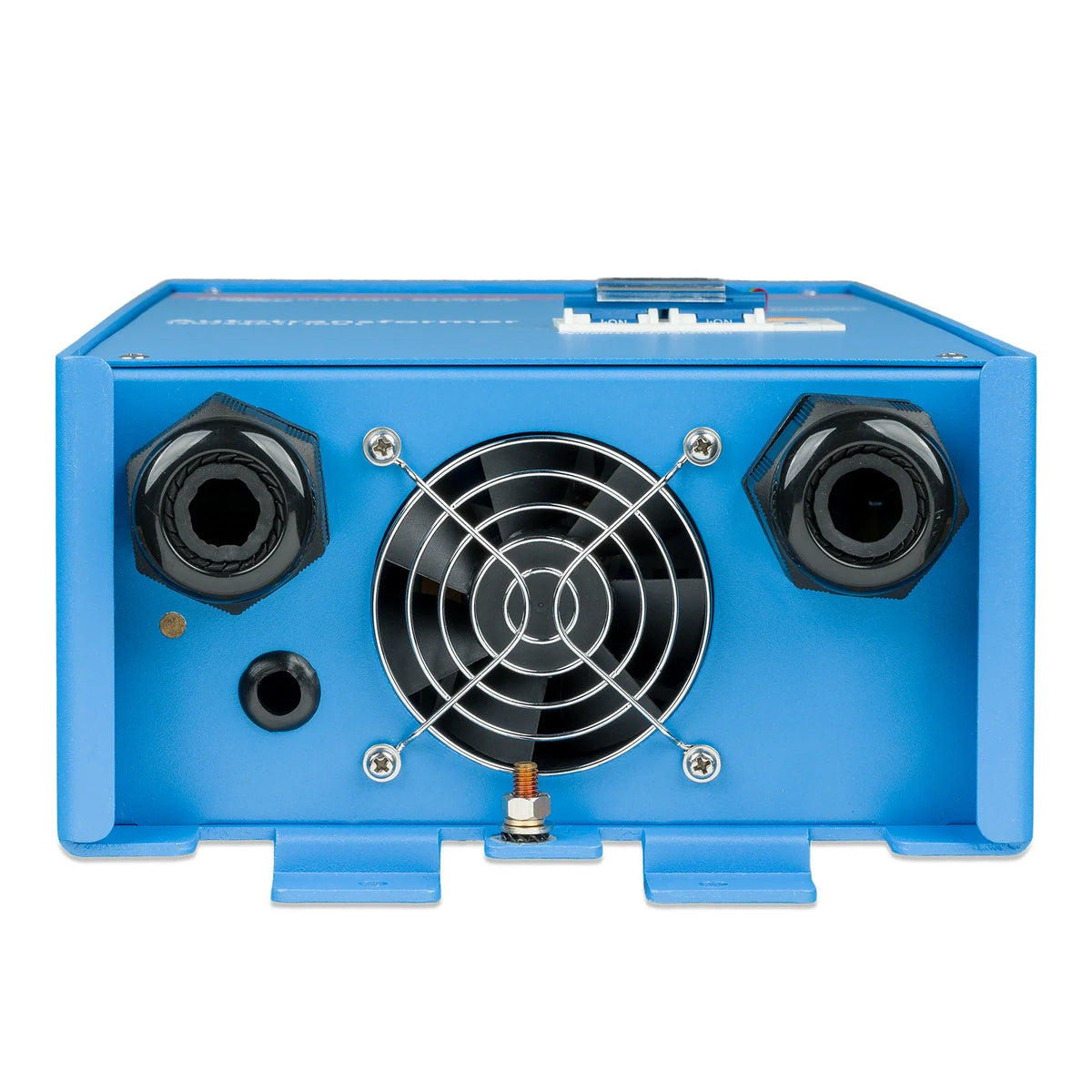

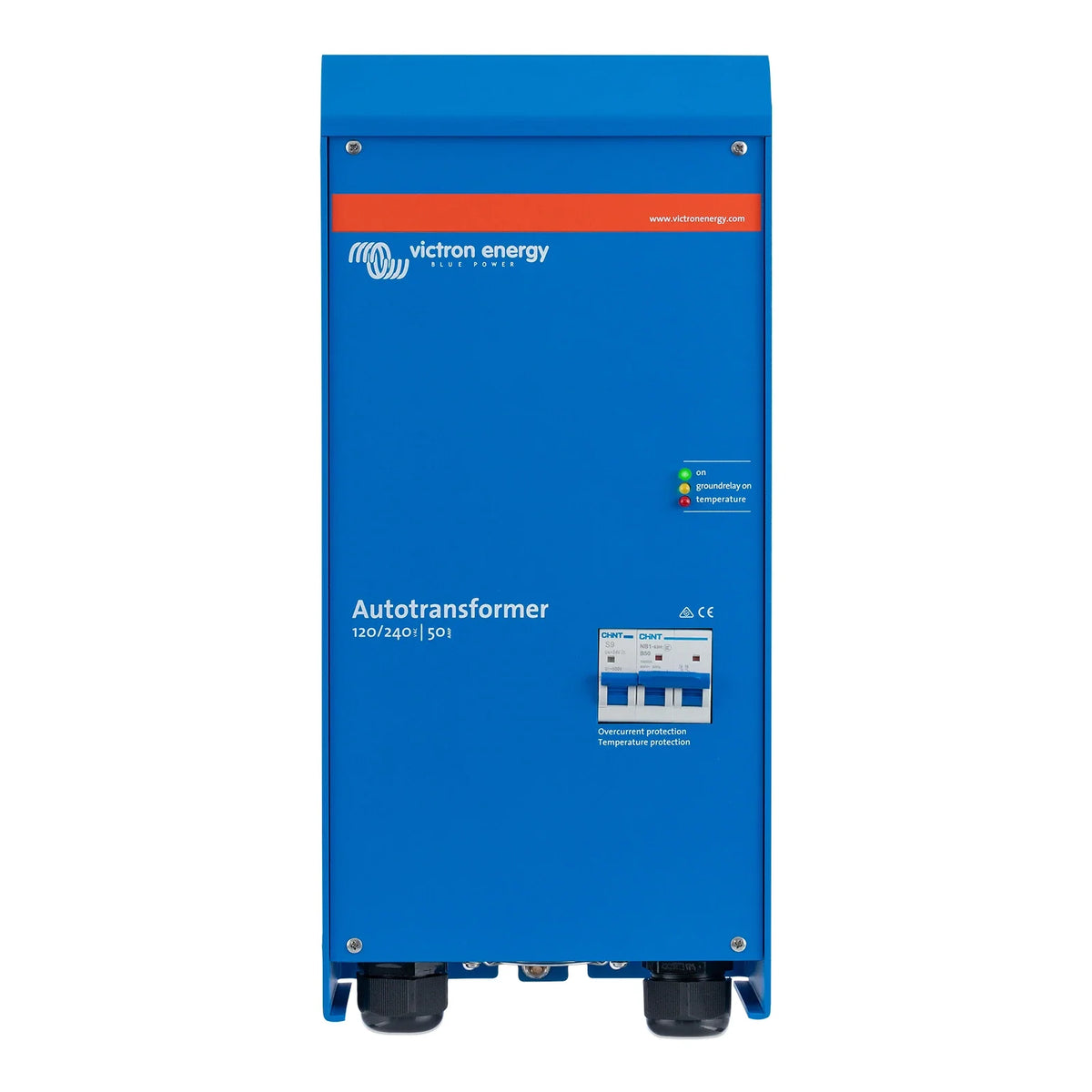

An integrated ground relay creates the neutral-to-ground bond and can be controlled by a Victron MultiPlus or Quattro inverter/charger. If the autotransformer overheats it is disconnected from the supply: the fan runs and a red LED lights when it gets warm, and the MCB trips if it overheats. In case of over current the 50A two-pole input circuit breaker switches off.

Key Features

• Toroidal transformer design
• Neutral current rating of 45A continuous at 40°C, and 55A for 30 minutes
• Maximum 240V feed through current of 50A
• Integrated ground relay for inverter neutral bonding
• Temperature protection and over current protection
• Aluminium enclosure with IP21 protection rating
• Screw terminals for 35 mm² / AWG 2 cable

50A and 100A Models

Victron makes the autotransformer in 50A and 100A versions. The pass through current is 50A and 100A respectively; the transformers are the same in both models.

Maximise Your Power System's Potential

Fit the Victron 50A Autotransformer to a 120/240V split-phase system to balance loads and make full use of your generator or inverter capacity.
