Victron Energy - 12V - 1600VA - 12/1600 - Phoenix VE.Direct AU/NZ - Inverter

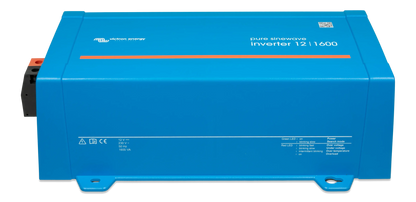

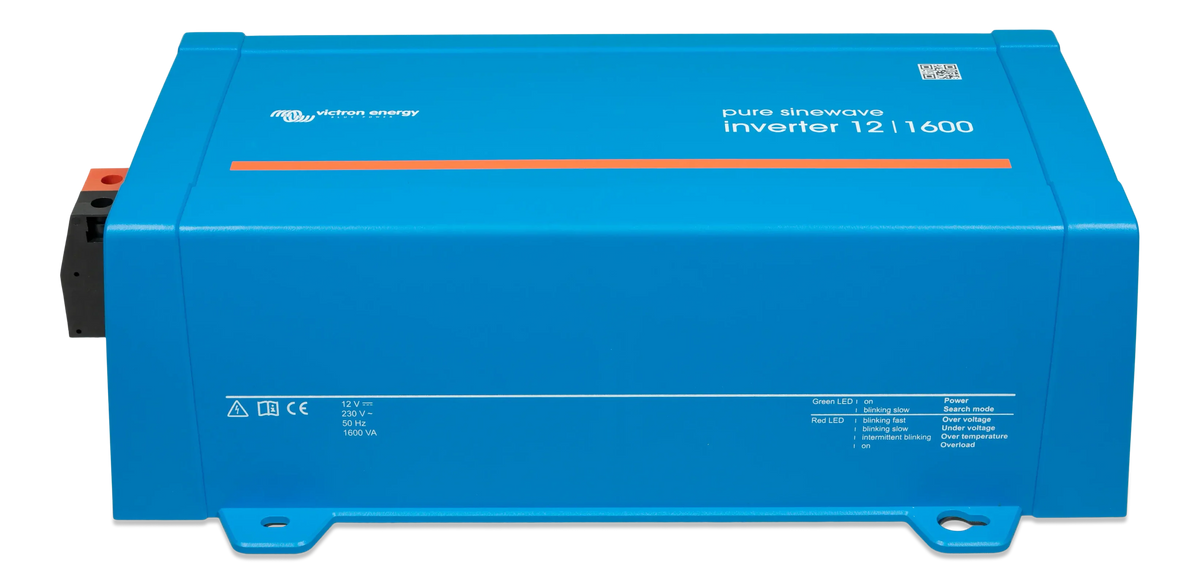

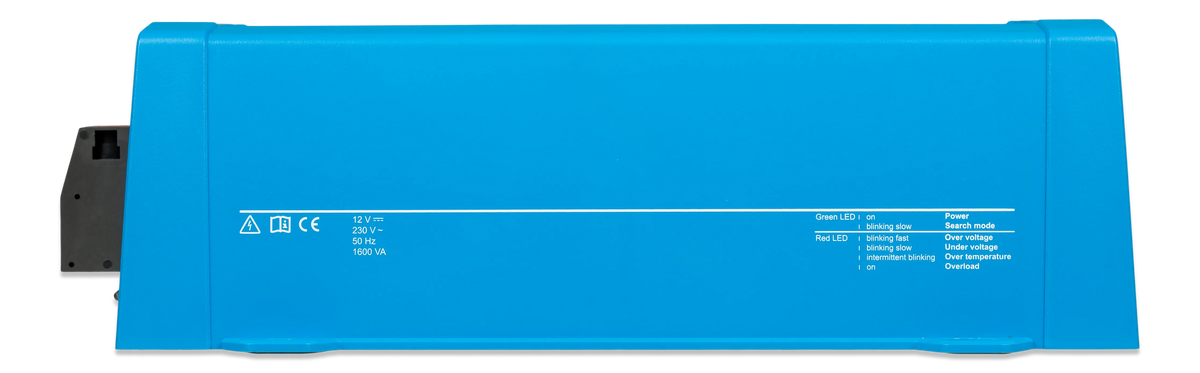

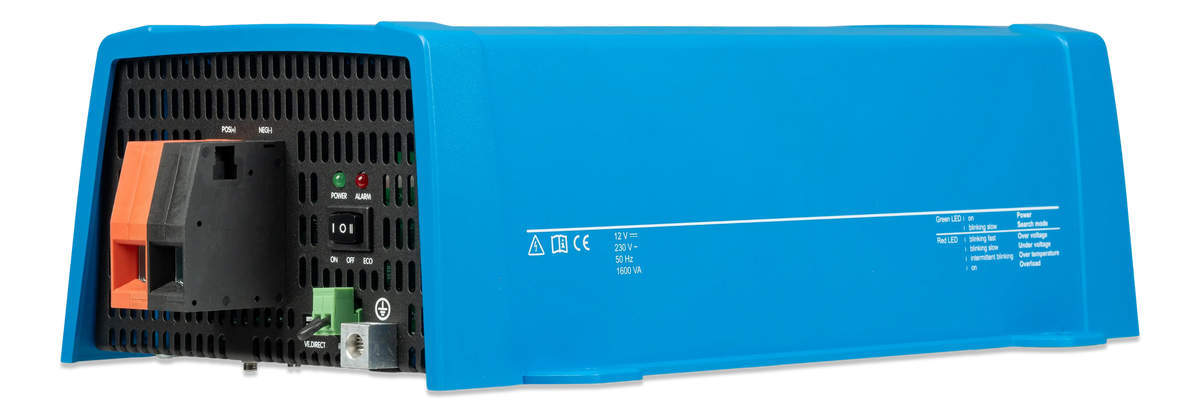

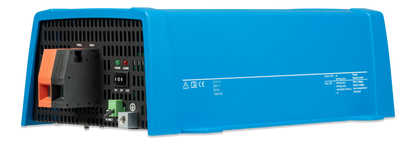

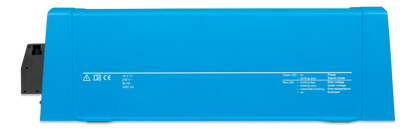

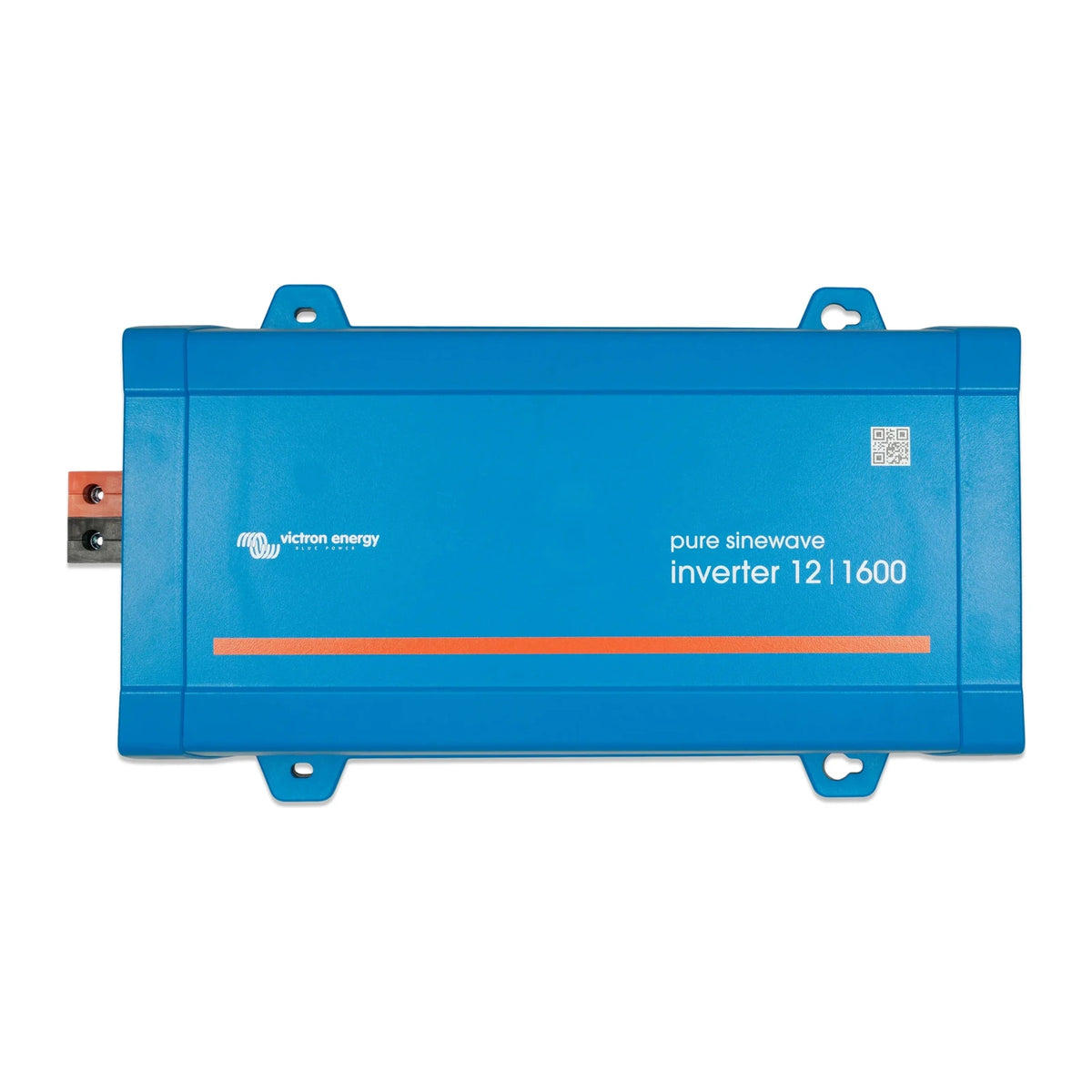

Victron Phoenix Inverter 12/1600 VE.Direct (AU/NZ)

Reliable Pure Sine Wave Power for Off-Grid 12V Systems

The Victron Phoenix Inverter 12/1600 converts 12V DC battery power into clean 230V AC pure sine wave power, rated at 1600VA (1450W continuous at 25°C, 1300W at 40°C) with a 2100W peak surge rating for starting demanding loads such as compressors, power tools and pumps. Its full bridge plus toroidal transformer topology is a proven Victron design, built to run domestic appliances and sensitive electronics reliably in caravans, boats and off-grid systems. This AU/NZ version is fitted with an AS/NZS 3112 outlet.

A VE.Direct port is built in as standard for wired connection to a computer (via a VE.Direct to USB cable) or a GX device for monitoring and configuration. Wireless setup and monitoring via the VictronConnect app is also possible, but requires a VE.Direct Bluetooth Smart dongle, sold separately - this model does not have Bluetooth built in.

Key Features

• 1600VA / 1450W continuous (25°C), 1300W at 40°C, with 2100W peak surge capacity
• Pure sine wave output, adjustable 210-245V and 50Hz or 60Hz
• VE.Direct port standard; Bluetooth monitoring available with an optional VE.Direct Bluetooth Smart dongle
• ECO mode drops standby consumption to as little as 1.8W to extend battery runtime
• Fully adjustable low-battery alarm, cut-off and restart levels, including dynamic (load-dependent) cut-off
• Remote on/off connection via a two-pole connector
• Short-circuit proof with protection against overload, over/under-voltage and over-temperature

Specifications
