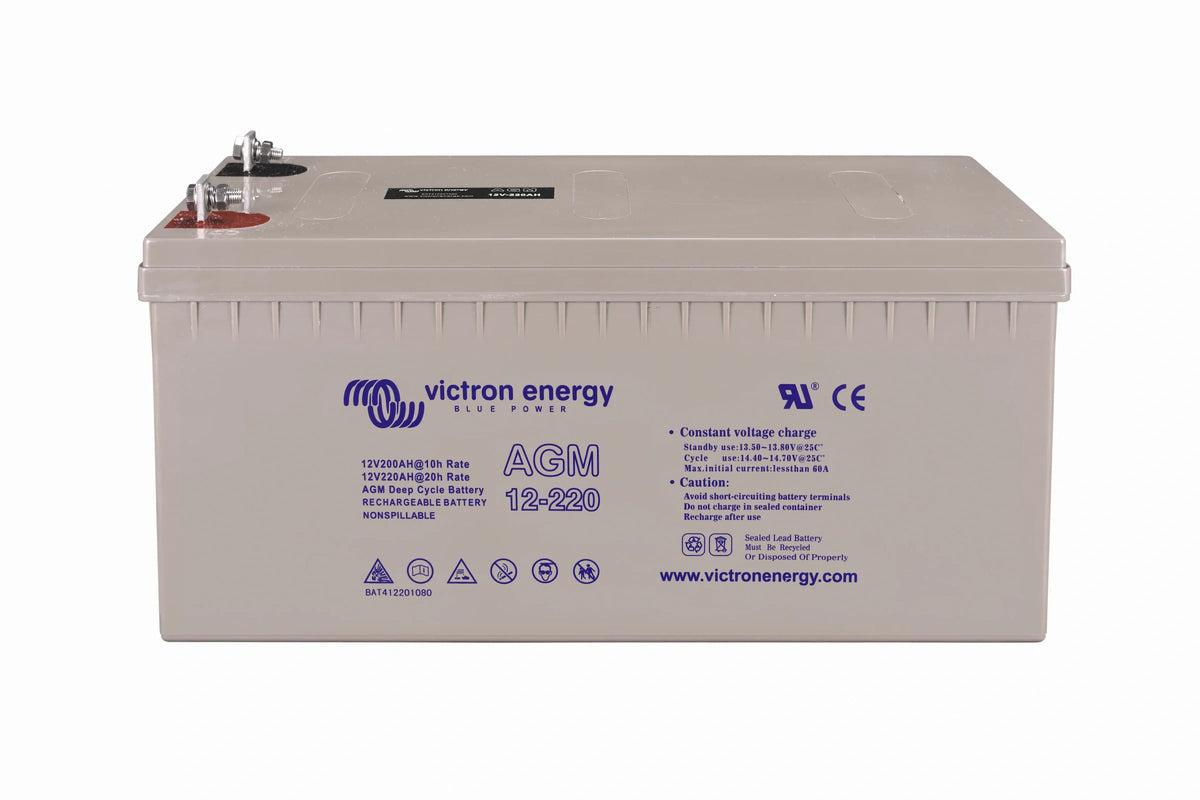

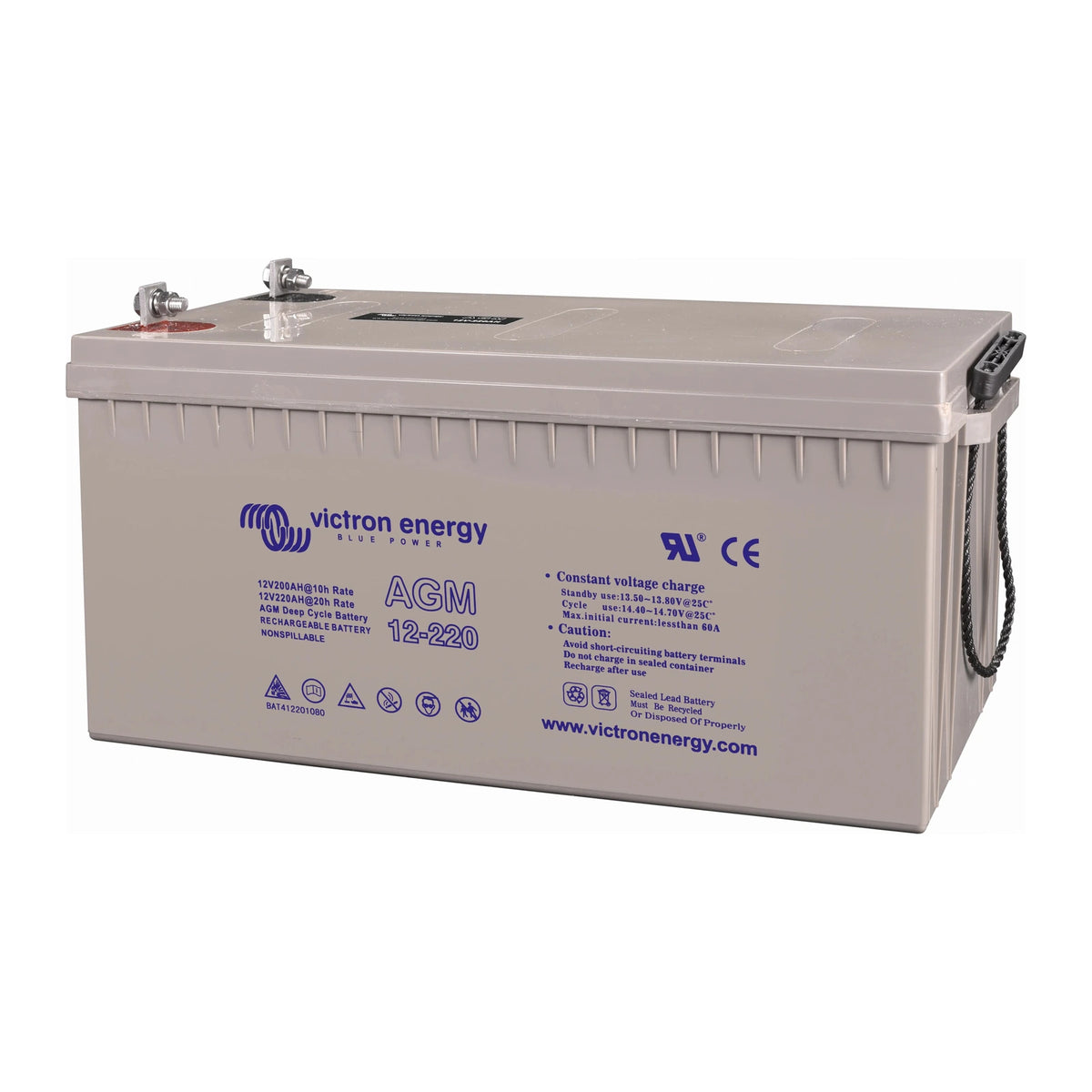

Victron Energy - 12V - 220AH - AGM Deep Cycle Battery (M8)

Victron 12V 220Ah AGM Deep Cycle Battery - M8 Threaded Terminals

Sealed VRLA AGM Power for Demanding 12V Systems

The Victron 12V 220Ah AGM Deep Cycle Battery uses sealed Valve Regulated Lead Acid (VRLA) construction with Absorbent Glass Mat (AGM) technology, where the electrolyte is held in a glass-fibre mat between the plates rather than as free liquid. This makes the battery completely maintenance-free and well suited to the high-current, short-burst loads of inverters, winches and thrusters, while its high-purity lead-calcium grids give it a very low self-discharge rate for long storage between uses.

This 220Ah version is fitted with M8 threaded terminal inserts rather than Victron's standard flat copper terminals, giving a secure, low-resistance connection point for heavy cable lugs without needing separate terminal adapters.

Key Features

• 220Ah capacity (20-hour rate) in a 12V sealed AGM VRLA battery
• M8 threaded terminals for a secure, low-resistance connection with ring terminal lugs
• Self-discharge under 2% per month at 20°C thanks to high-purity lead-calcium grids
• 7-10 year float design life at 20°C
• Cycle life of 400 cycles at 80% DoD, 600 cycles at 50% DoD, or 1500 cycles at 30% DoD
• Low internal resistance suited to high-current inverter, winch and thruster loads
• Sealed, spill-proof VRLA construction - no watering or topping up required

Charging Recommendations

For cyclic use, Victron recommends an absorption voltage of 14.2-14.6V (or 14.6-14.9V for fastest recharge), a float voltage of 13.5-13.8V and a storage voltage of 13.2-13.5V. Charge current should preferably not exceed 0.2C, and temperature compensation is recommended if the battery regularly experiences temperatures below 10°C or above 30°C.

Specifications
