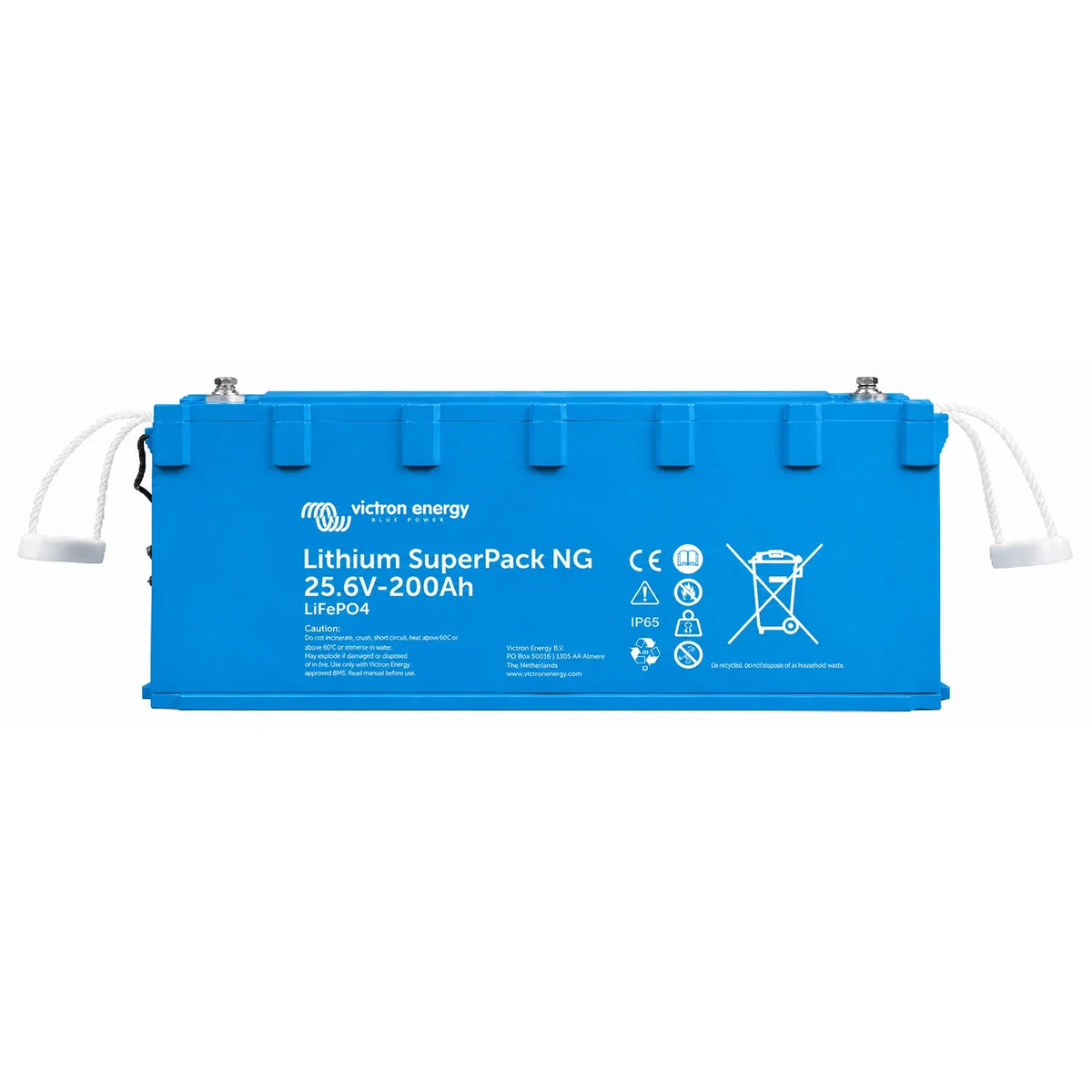

Victron SuperPack NG 25.6V/200Ah Lithium Battery: Integrated Energy Storage for 24V Systems
Lithium Battery with Built-In BMS and Bluetooth
The Victron Lithium SuperPack 25.6V/200Ah NG combines lithium cells with a built-in BMS and battery monitor, cell balancing and Bluetooth in one IP65 housing. It is designed for extended off-grid use in RVs and recreational vehicles, with ample capacity to power the complete electrical system, including high-demand appliances. Victron rates its operating efficiency at 93%.
The integrated BMS provides software protection against overvoltage, undervoltage, overtemperature, undertemperature and overcurrent, plus hardware short circuit protection above 800 A. A self-heating function keeps the cells above the minimum safe charging temperature, so the battery can be charged and discharged from -30°C to +60°C: below 0°C charging is suspended while the cells warm, then resumes automatically.
Seamless Monitoring and Control via VictronConnect
Bluetooth Smart allows wireless configuration, monitoring and firmware updates with the VictronConnect app, and the Instant Readout function shows state of charge, battery temperature, warnings and alarms in the device list without connecting. An On/Off push button switches the battery off for safe storage, and the External Feedback Signal (EFS) can trigger an external disconnection or start a charger at a low state of charge.
Robust Design for Harsh Environments
The IP65 housing and M8 female threaded inserts (20 mm including nut screws) suit vehicle and marine installs. The battery can be mounted upright or on its long side, provided flat horizontal support is maintained.
Key Features
- Built-in BMS and battery monitor with cell balancing and protection
- Bluetooth monitoring and control via the VictronConnect app
- Self-heating function for charging in cold conditions
- IP65 protection class
- Unlimited parallel connection for energy expansion (system current limits apply); series connection is not supported
- External Feedback Signal (EFS) output for system integration and alarms
- Cycle life: 5000 cycles at 50% DoD, 3000 cycles at 70% DoD, 2500 cycles at 80% DoD
- 93% round trip efficiency
Applications
The SuperPack NG 25.6V/200Ah is suited to 24V systems where reliable, maintenance-free energy storage is essential:
- Caravan, RV, bus and truck house power systems
- Marine and boating electrical systems
- Off-grid solar energy storage
- Backup power systems
Equip your 24V energy system with the Victron SuperPack NG lithium battery for integrated, monitored power storage.
Specifications
| Battery Model | Lithium SuperPack 25.6V/200Ah NG |
|---|---|
| Part Number | BAT524120740 |
| Nominal Voltage | 25.6 V |
| Nominal Capacity @ 25°C | 200 Ah |
| Nominal Energy @ 25°C | 5120 Wh |
| Capacity Loss / Energy Loss | <1% (per 100 cycles, @ 25°C, 100% DoD) |
| Round Trip Efficiency | 93% |
| Cycle Life @ 80% DoD | 2500 cycles |
| Cycle Life @ 70% DoD | 3000 cycles |
| Cycle Life @ 50% DoD | 5000 cycles |
| Recommended Discharge Current (continuous use) | 100 A |
| Max Continuous Discharge Current | 400 A |
| End of Discharge Voltage | 22.4 V |
| Internal Resistance | 2 mΩ |
| Recommended Charging Voltage | 28 V |
| Float Voltage | 27 V |
| Charging Voltage Range | [27 - 28.4] V |
| Recommended Charging Current | 60 A |
| Max Continuous Charging Current | 200 A |
| Hardware Protection / System Max Current | Short circuit above 800 A |
| Software Protections | Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent |
| Wired Communication | External Feedback Signal (EFS) |
| Bluetooth | Yes, VictronConnect App |
| User Interface | Push button (On/Off), BLE LED, Error LED |
| Parallel Configuration | Yes, unlimited energy expansion, with power expansion limited to the system's maximum current |
| Series Configuration | No |
| Operating Temperature | Charge and discharge: -30°C to +60°C |
| Humidity (non-condensing) | <90% RH |
| Storage Temperature | Recommended [10 - 35] °C, Expanded [-40 to +65] °C |
| Max Storage Time @ 25°C | 1 year with at least initial remaining SoC >50% |
| Protection Class | IP65 |
| Power Connection (threaded insert) | M8 female, 20 mm including nut screws |
| Mounting Options | Upright and on its long side, maintain flat horizontal support |
| Dimensions (L x W x H) mm | 871 x 198 x 173 |
| Weight | 41 kg |
| Safety | Cells: IEC62619, UL1973, UL 9540A. Battery: IEC62619 (pending) |
| EMC | EN 61000-6-3, EN 61000-6-2 |
| Performance | IEC62620 (pending) |
| Transportation | UN38.3 |
