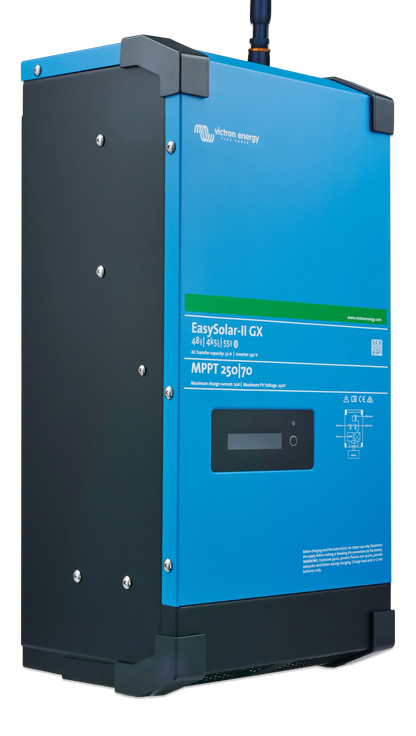

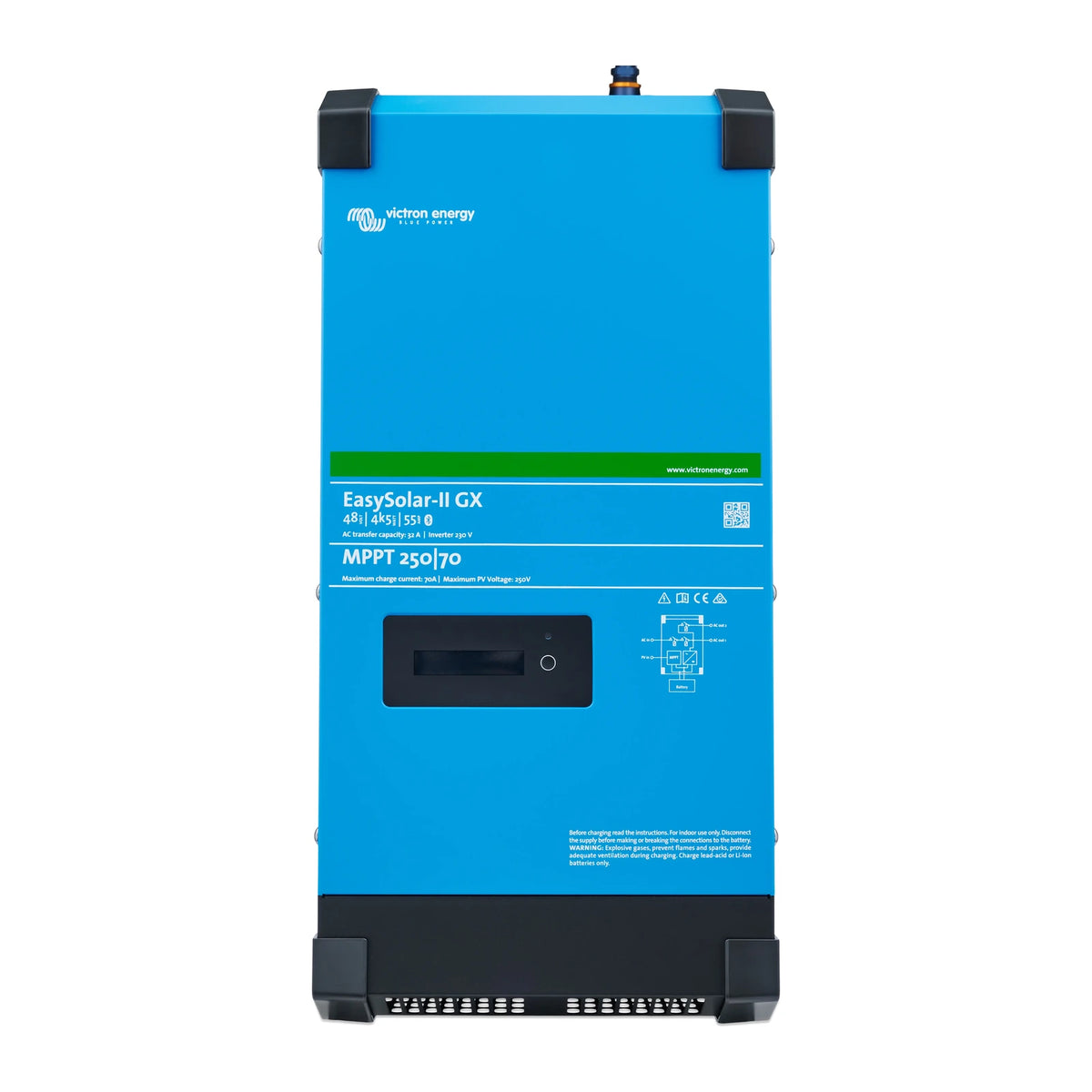

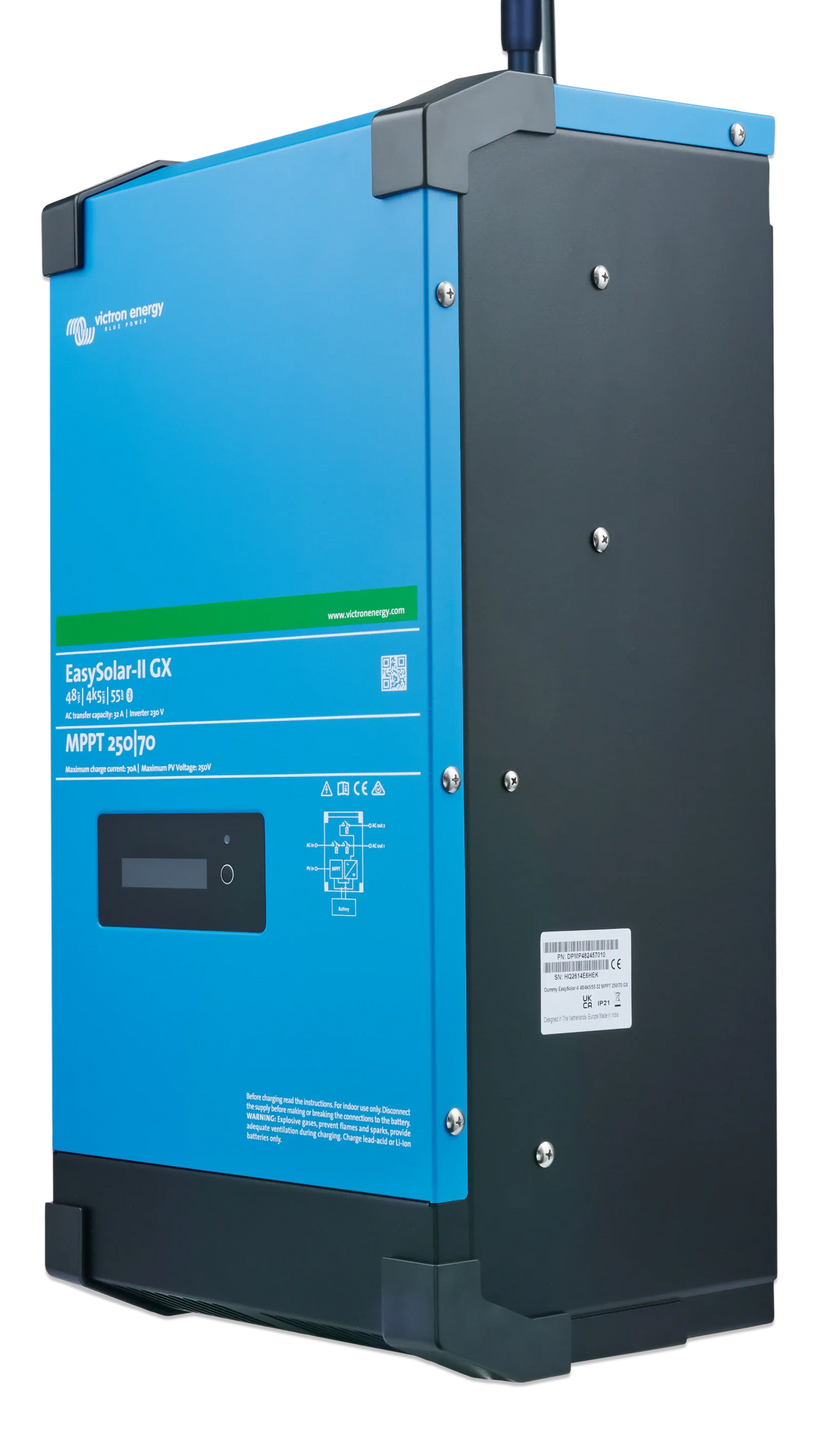

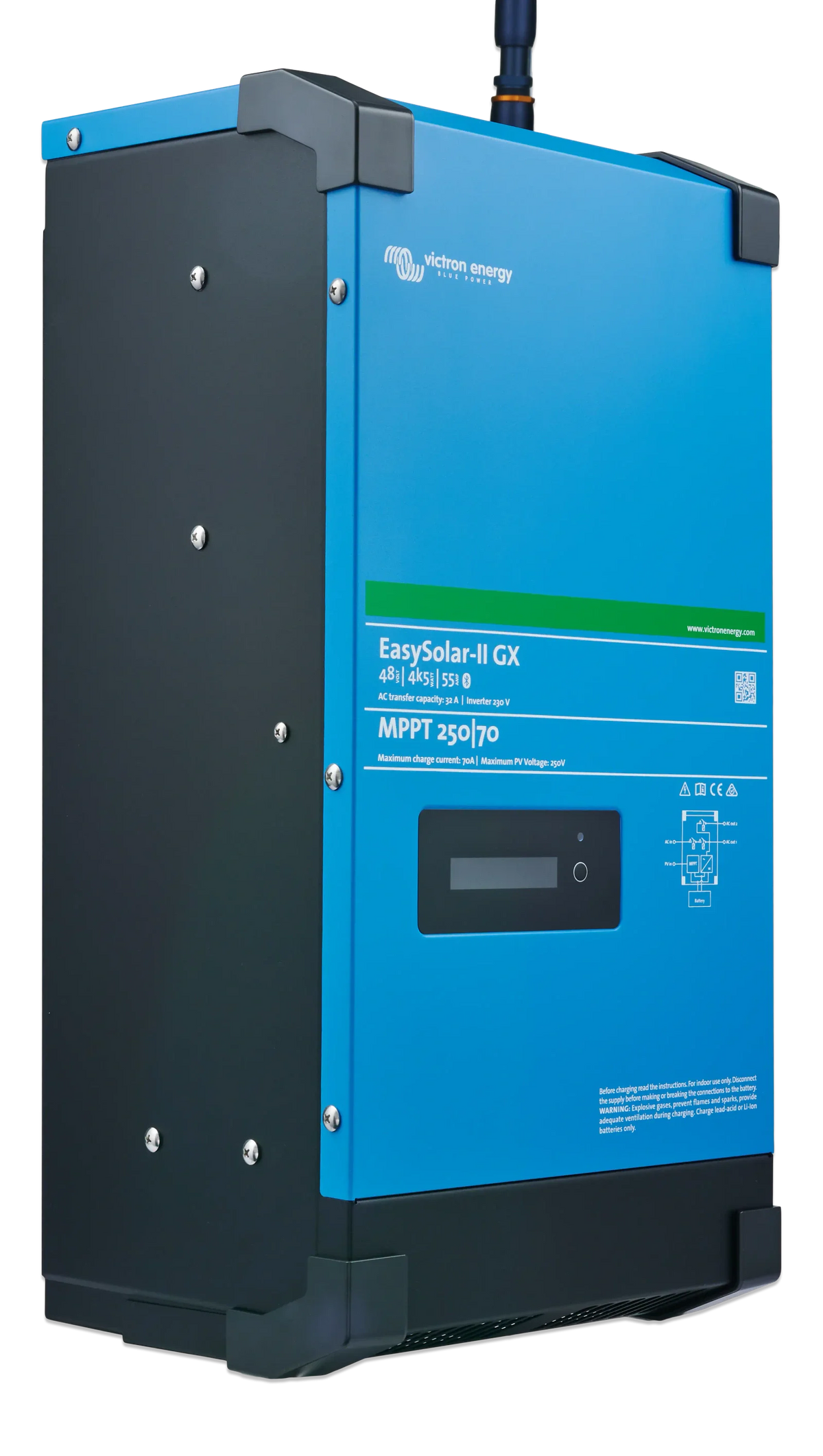

Victron EasySolar-II 48/4500/55-32 MPPT 250/70 GX
Inverter/Charger, MPPT Solar Charge Controller and GX Monitoring in One Enclosure
The Victron EasySolar-II 48/4500/55-32 MPPT 250/70 GX combines a 48V MultiPlus-II inverter/charger, a SmartSolar MPPT 250/70 solar charge controller and a GX monitoring device in a single pre-wired enclosure. The MPPT's DC output is internally parallel-wired to the MultiPlus-II's battery connection, and the MultiPlus-II's on/off control also switches the MPPT, removing the external DC cabling and breakers a separate-component system would otherwise need.
The inverter section delivers 4kW continuous output at 25°C (3.7kW at 40/55°C, 3kW at 65°C) at 230VAC, with a peak rating of 7kW for one minute and up to 95% efficiency. A 32A transfer switch and matching 32A maximum AC input current work with PowerControl and PowerAssist to supplement a limited shore power or generator supply with battery power rather than tripping the incoming breaker. The integrated charger delivers up to 55A to the battery (50A at 40°C) across an absorption/float/storage charge profile (57.6V / 55.2V / 52.8V by default, adjustable), and can be configured for lithium, lead-acid and other battery chemistries.
The SmartSolar MPPT 250/70 stage accepts up to 4000W of PV at up to 250V open-circuit, delivering up to 70A of charge current at up to 99% efficiency. The built-in GX device provides a 2x16-character display plus BMS-Can, USB, Ethernet, VE.Direct and Wi-Fi connectivity, giving full local and remote (VRM) monitoring and control of the whole system from one point, without needing a separate Cerbo GX or Color Control unit.
Key Features
- 4kW continuous inverter output (7kW peak for 1 minute) at 230VAC, up to 95% efficient
- 55A battery charger with absorption/float/storage charging, lithium and lead-acid compatible
- Integrated SmartSolar MPPT 250/70 - up to 4000W PV input, 250V max Voc, 70A max charge current
- Built-in GX device - 2x16 character display, BMS-Can, USB, Ethernet, VE.Direct and Wi-Fi, VRM remote monitoring
- 32A transfer switch with PowerControl/PowerAssist to manage limited AC input
- M8 battery / M6 PV bolted connections in an IP21 steel enclosure
Specifications
| Model | EasySolar-II 48/4k5/55-32 MPPT 250/70 GX |
|---|---|
| Transfer Switch / Max AC Input Current | 32 A |
| Inverter Input Voltage Range | 38 - 60 V |
| Output | 230 VAC ± 2%, 50 Hz ± 0.1% (adjustable to 60 Hz) |
| Cont. Output Power (25°C / 40-55°C / 65°C) | 4 kW / 3.7 kW / 3 kW |
| Peak Power | 7 kW (1 min) |
| Maximum Inverter Efficiency | 95% |
| Charger AC Input | 187-265 VAC, 45-65 Hz |
| Charge Voltage (Absorption / Float / Storage) | 57.6 V / 55.2 V / 52.8 V |
| Max Battery Charge Current (25°C / 40°C) | 55 A / 50 A |
| Compatible Battery Chemistries | Lithium, lead-acid, zinc-bromine and more (configurable) |
| MPPT Max Output Current | 70 A |
| MPPT Max PV Power | 4000 W |
| MPPT Max PV Open Circuit Voltage | 250 V |
| MPPT Maximum Efficiency | 99% |
| Auxiliary Output | Yes (32 A) |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| Operating Temperature Range | -20°C to +65°C (fan assisted cooling) |
| Protection Category | IP21 |
| Material & Colour | Steel, blue RAL 5012 |
| Battery Connection | M8 bolts |
| PV Connection | M6 bolts |
| AC Connection | Screw terminals, 16mm² (6 AWG) |
| Weight | 27 kg |
| Dimensions (h x w x d) | 591 x 275 x 254mm |
