Victron Cerbo GX MK3: Power System Monitor

Cerbo GX MK3 vs Cerbo GX MK2:

The Cerbo GX MK3 shares the Cerbo GX MK2's connections and specifications, with one listed difference: Victron's specifications give the MK3 support for up to 25 VE.Direct devices, against 15 for the MK2. The limit counts all connected VE.Direct devices, including those connected over USB, so the MK3 suits larger systems with many solar charge controllers.

The Cerbo GX is a communication centre that gives you control over your Victron system from wherever you are. Connect through the Victron Remote Management (VRM) portal or access it locally with a GX Touch display. Built-in Bluetooth assists with initial connection and network configuration in the VictronConnect app.

Perfect monitoring & control

Monitor battery state of charge, power consumption and power harvest from PV, generator and mains, and check tank levels and temperatures. Relay 1 can be set as an alarm relay, generator start/stop, tank pump, temperature-controlled relay or manual operation.

Maximise your system performance

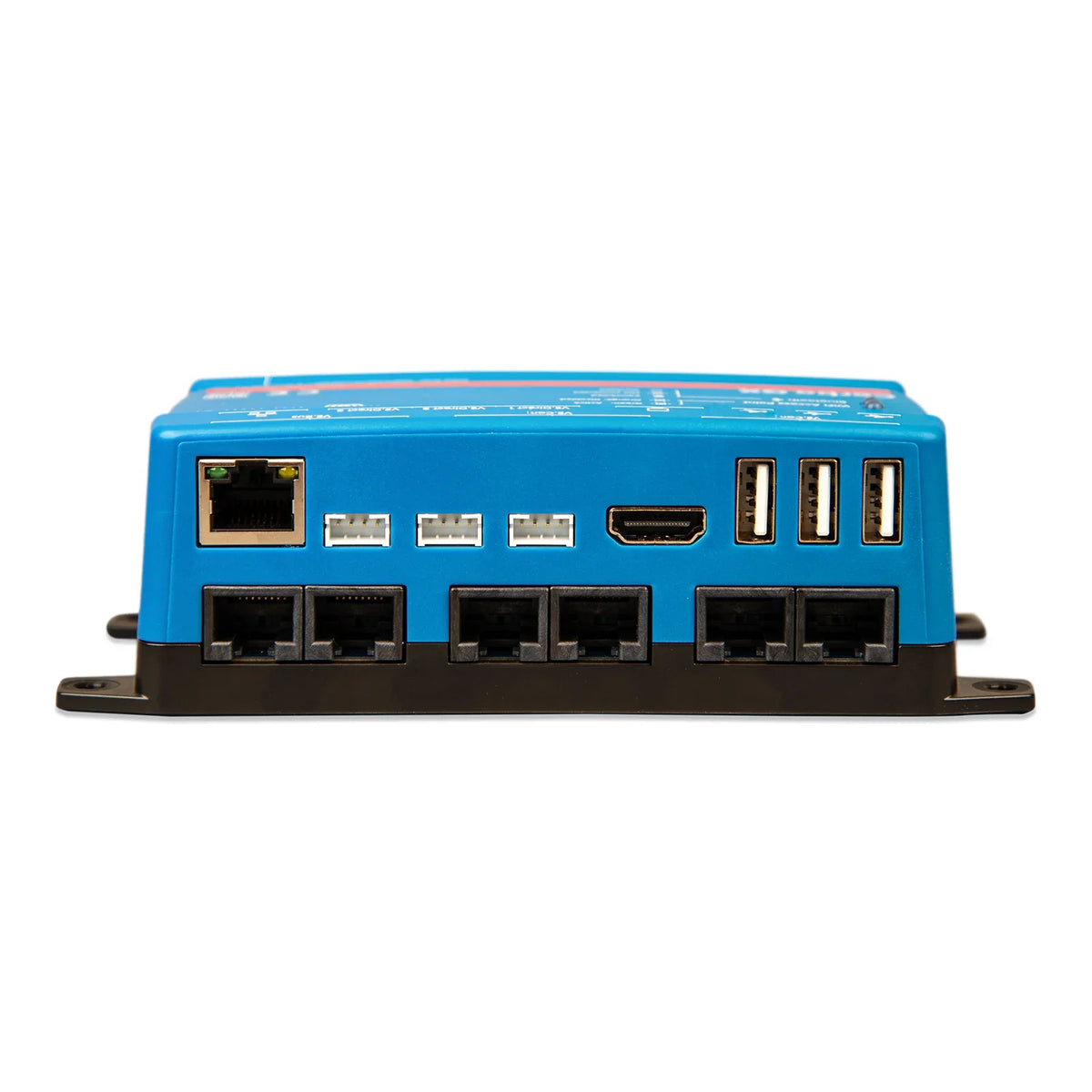

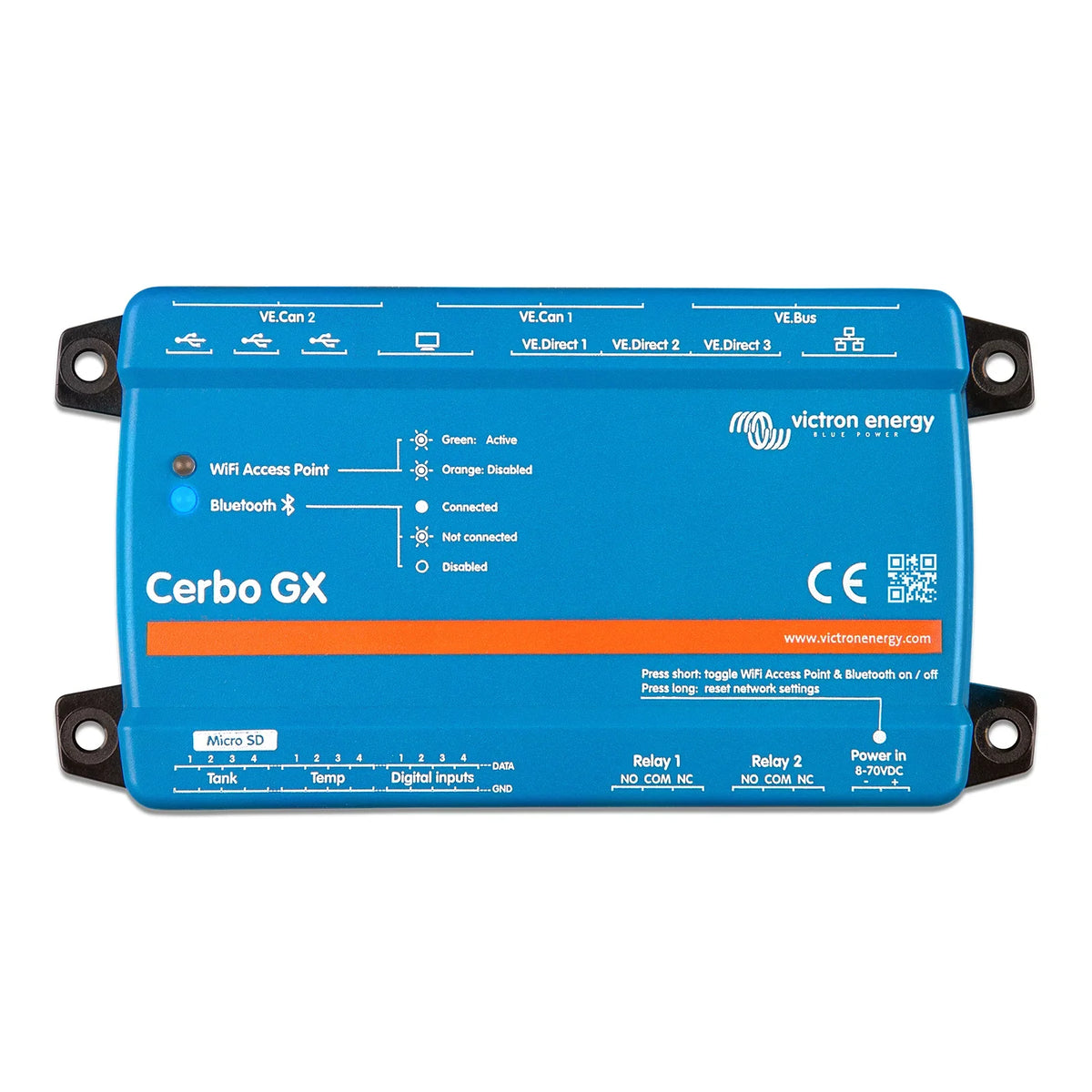

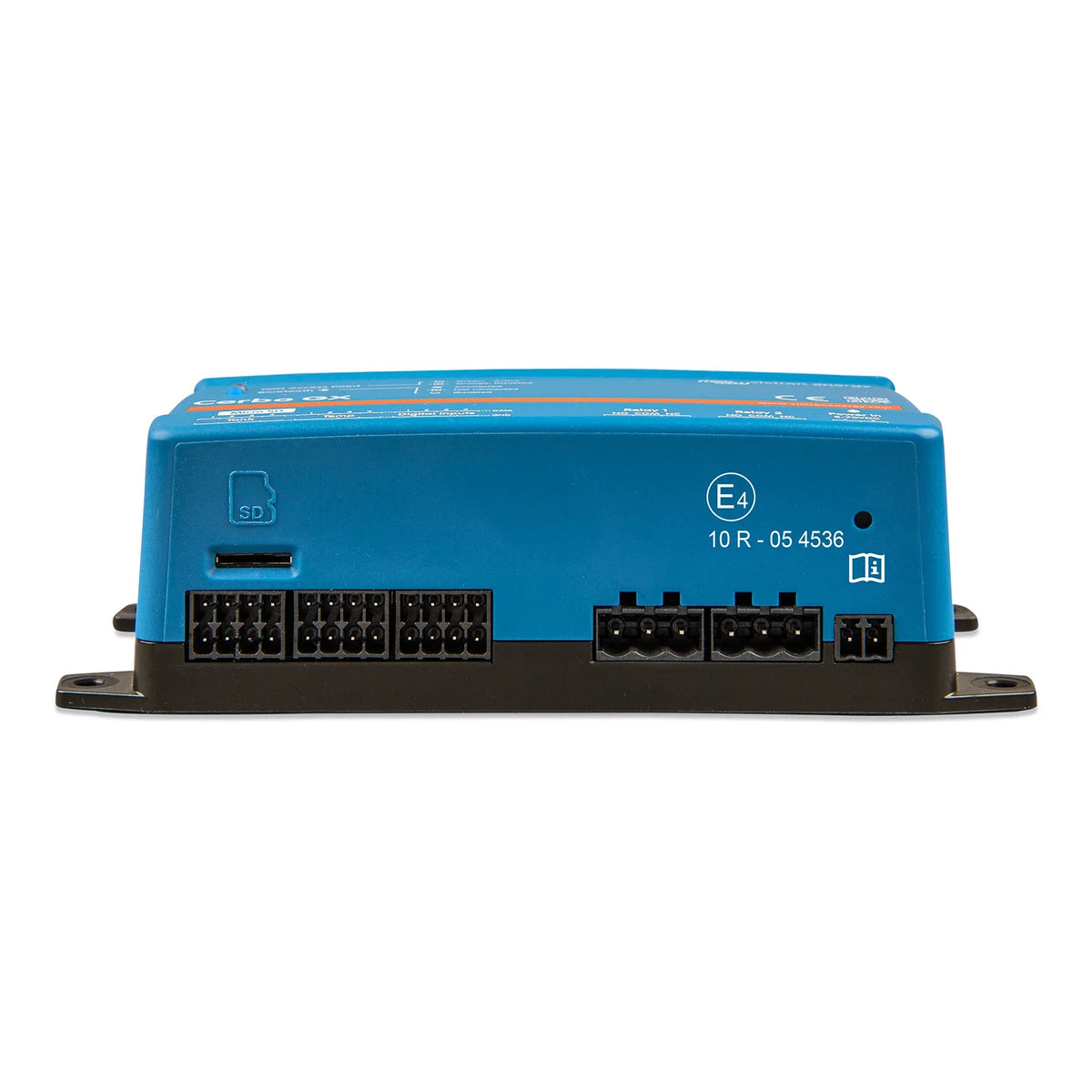

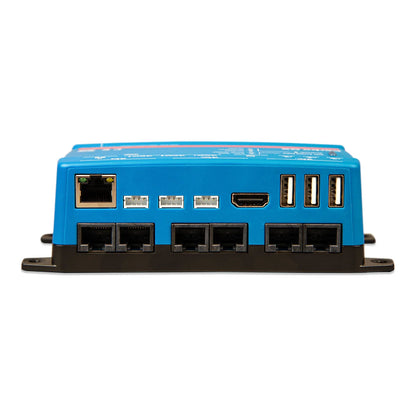

The Cerbo GX MK3 has 3 VE.Direct ports, 2 VE.Can ports (VE.Can 1 isolated, VE.Can 2 non-isolated), a VE.Bus connection, Ethernet, WiFi and 3 USB host ports. Four resistive tank level inputs, four temperature sense inputs, four digital inputs and two relays extend control across the whole system.

Expand your view

The optional GX Touch 50 or GX Touch 70 display gives an instant overview of your system and quick access to settings. Both connect with a 2 m cable.

Simple mounting and configuration

The Cerbo GX MK3 mounts on a wall or on a 35 mm DIN rail (with the DIN35 adapter accessory, not included). It runs from 8 to 70V DC.
