Victron Nucleo GX: Compact Communication Centre

Nucleo GX vs Cerbo GX:

The Nucleo GX is a compact, high-performance communication centre for monitoring and controlling your Victron system. Unlike the Cerbo GX, it has no built-in VE.Bus port, relays, tank or temperature inputs: it is ideal for VE.Can-based installations such as RS systems. VE.Bus connectivity, relays or analogue inputs can be added with optional USB accessories: the MK3-USB interface, GX I/O Extender 150 or GX Tank 140.

Monitor and control the Nucleo GX remotely through VRM, on the local network, or through its built-in WiFi Access Point. There is no HDMI port; an Android GX WiFi Display, the VictronConnect app or a web browser provide local access.

Perfect monitoring & control

Monitor real-time system information such as battery state of charge, power consumption and power harvest from PV, generator or mains. Start or stop generators automatically, adjust key system settings and track performance trends. Stay informed with alerts, run diagnostics and resolve issues remotely.

Maximise your system performance

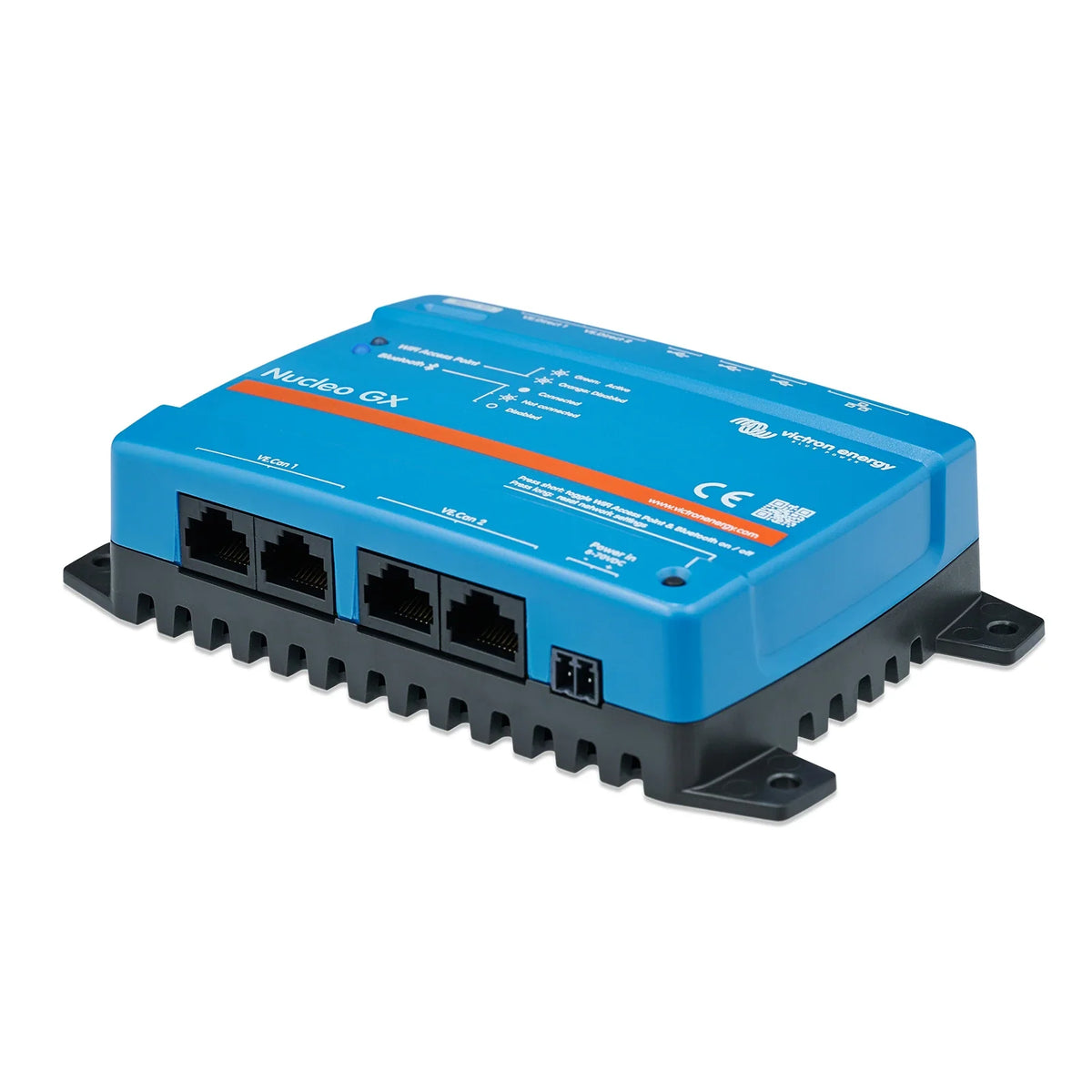

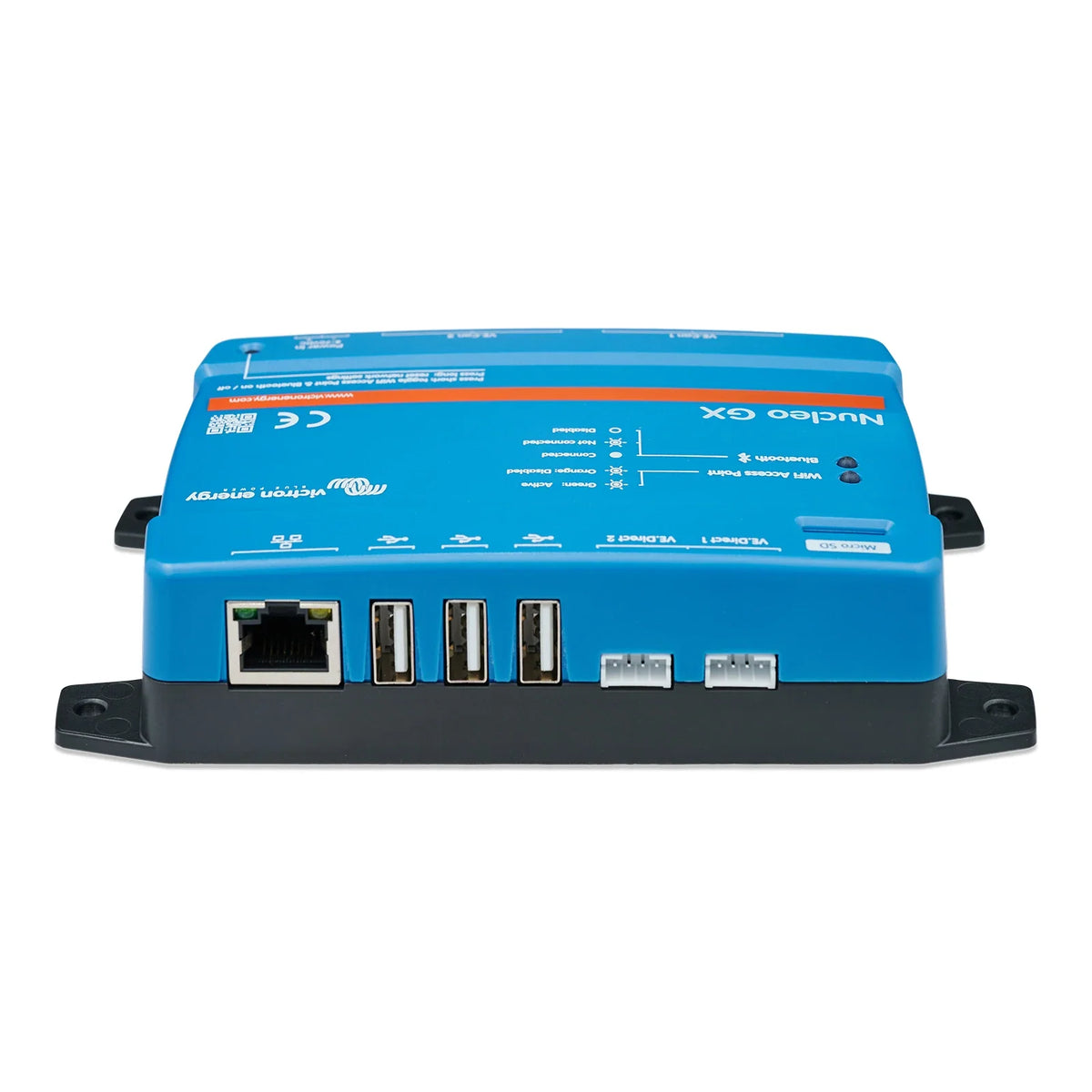

A quad-core processor delivers fast, reliable system performance. The Nucleo GX supports up to 25 connected devices via VE.Direct and USB, and more via VE.Can. It has 2 VE.Direct ports, 2 VE.Can ports (one isolated, one non-isolated), Ethernet, WiFi, Bluetooth Smart, 3 USB-A host ports and a MicroSD card slot.

Remote Console on VRM

Monitor, control and configure the Nucleo GX remotely, just as if you were standing in front of it, using Remote Console on VRM.

Simple mounting and configuration

The Nucleo GX mounts on a wall or on a 35 mm DIN rail with the optional DIN35 adapter. Built-in Bluetooth enables quick setup with the VictronConnect app. It runs from 8 to 70 V DC.

Specifications
