Victron Energy - 1000A - Lynx Shunt VE.Can - Battery Monitor - M8

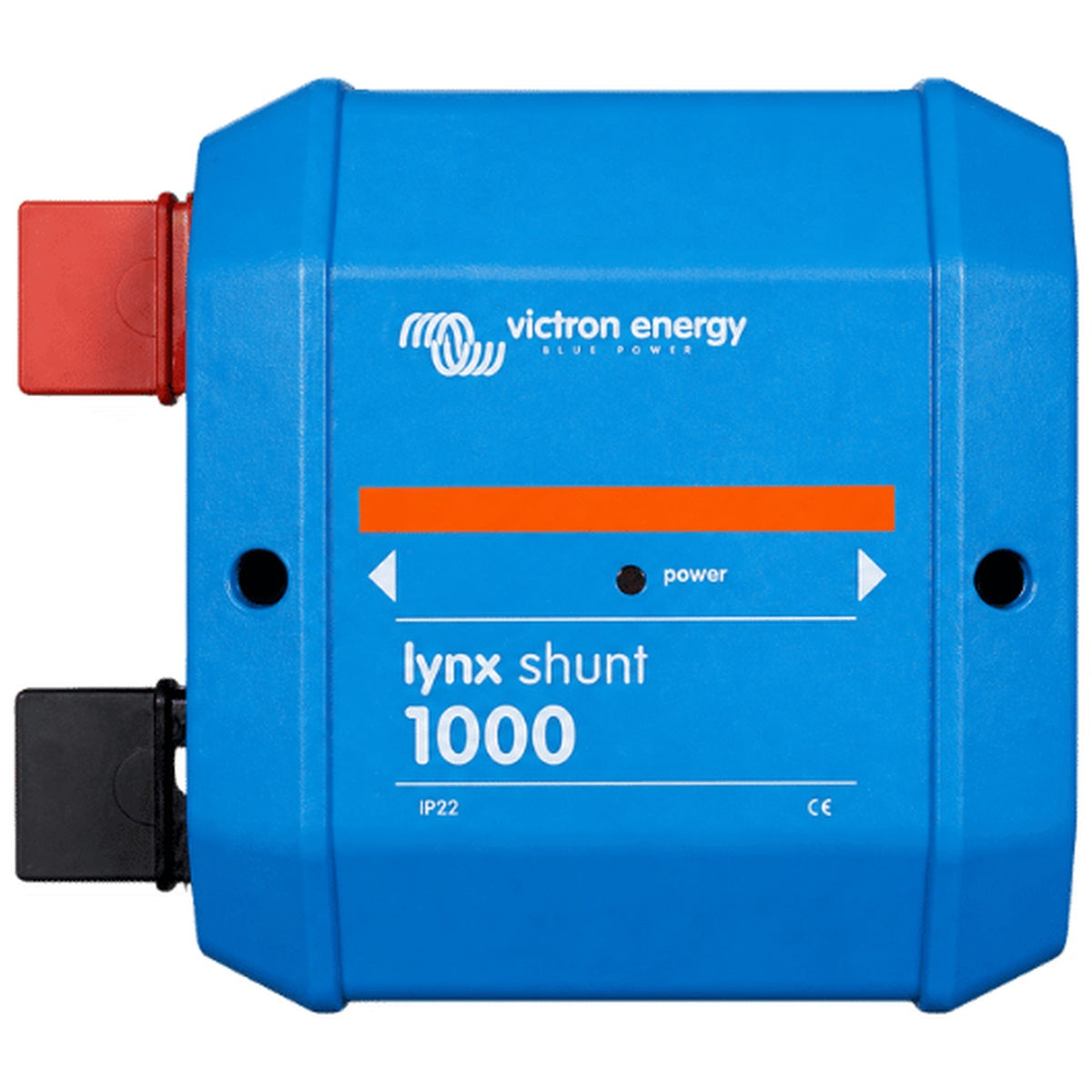

Victron Lynx Shunt VE.Can M8: High-Capacity 1000A Battery Monitoring

The Victron Lynx Shunt VE.Can M8 represents a critical upgrade for high-capacity power management systems. Operating as a highly accurate 1000A battery monitor, this device calculates your exact battery state of charge while functioning as a central distribution node. By integrating heavy-duty busbars and a main system fuse holder into a single robust enclosure, it significantly streamlines your electrical architecture.

Designed specifically for complex 12V, 24V, and 48V setups, this shunt eliminates the clutter and voltage drops commonly associated with daisy-chained cables. It is the perfect backbone for marine vessels, off-grid solar systems, and large-scale RV builds requiring professional-grade energy monitoring.

Seamless GX Device Communication

Equipped with a VE.Can communication interface, the shunt transmits real-time battery data directly to your Victron Cerbo GX or Ekrano GX. This enables comprehensive monitoring of your battery voltage, current draw, and overall state of charge through the Victron Remote Management (VRM) portal or a local GX Touch screen. The package includes two RJ45 VE.Can terminators, ensuring a clean and reliable data connection right out of the box.

Integrated Busbar and Fuse Holder

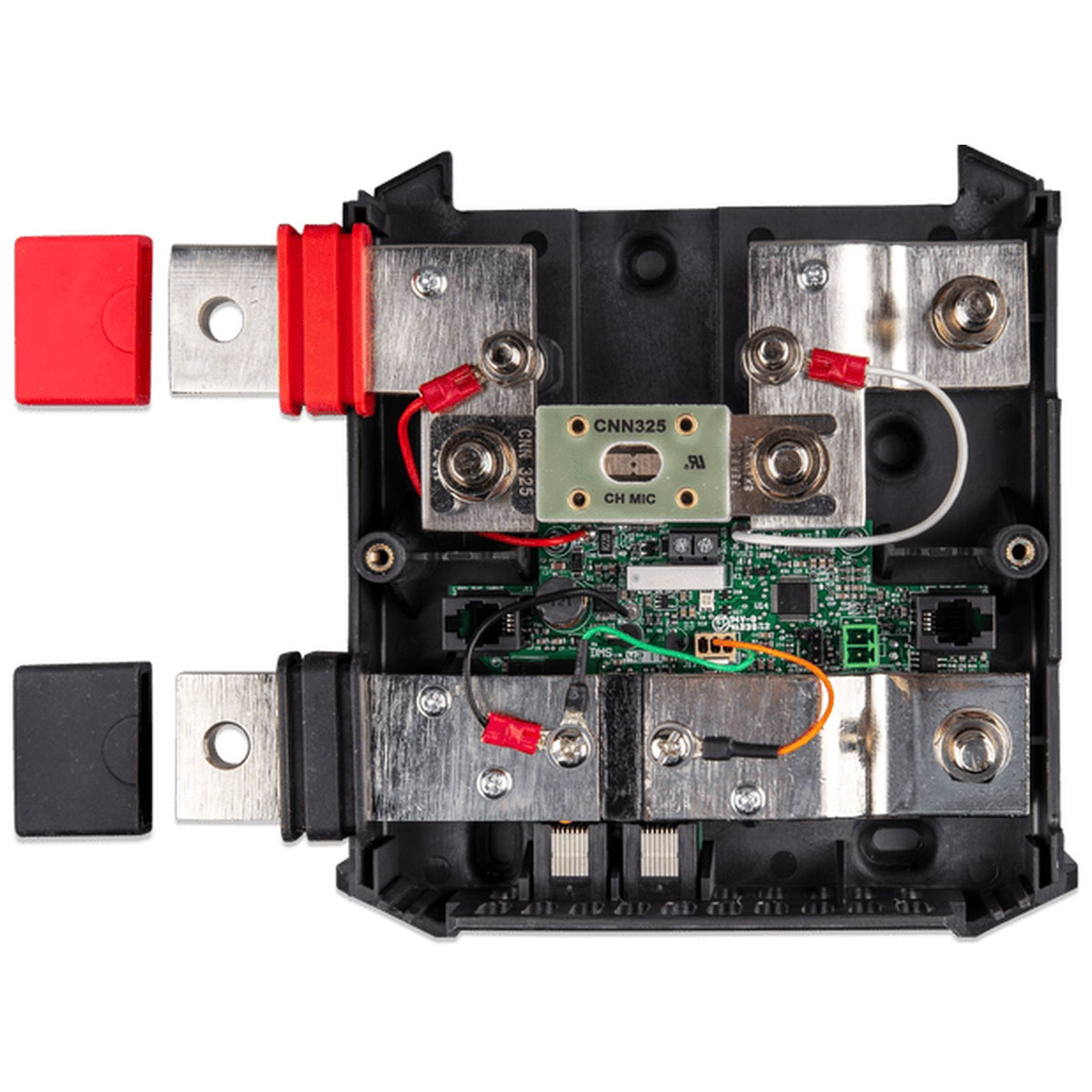

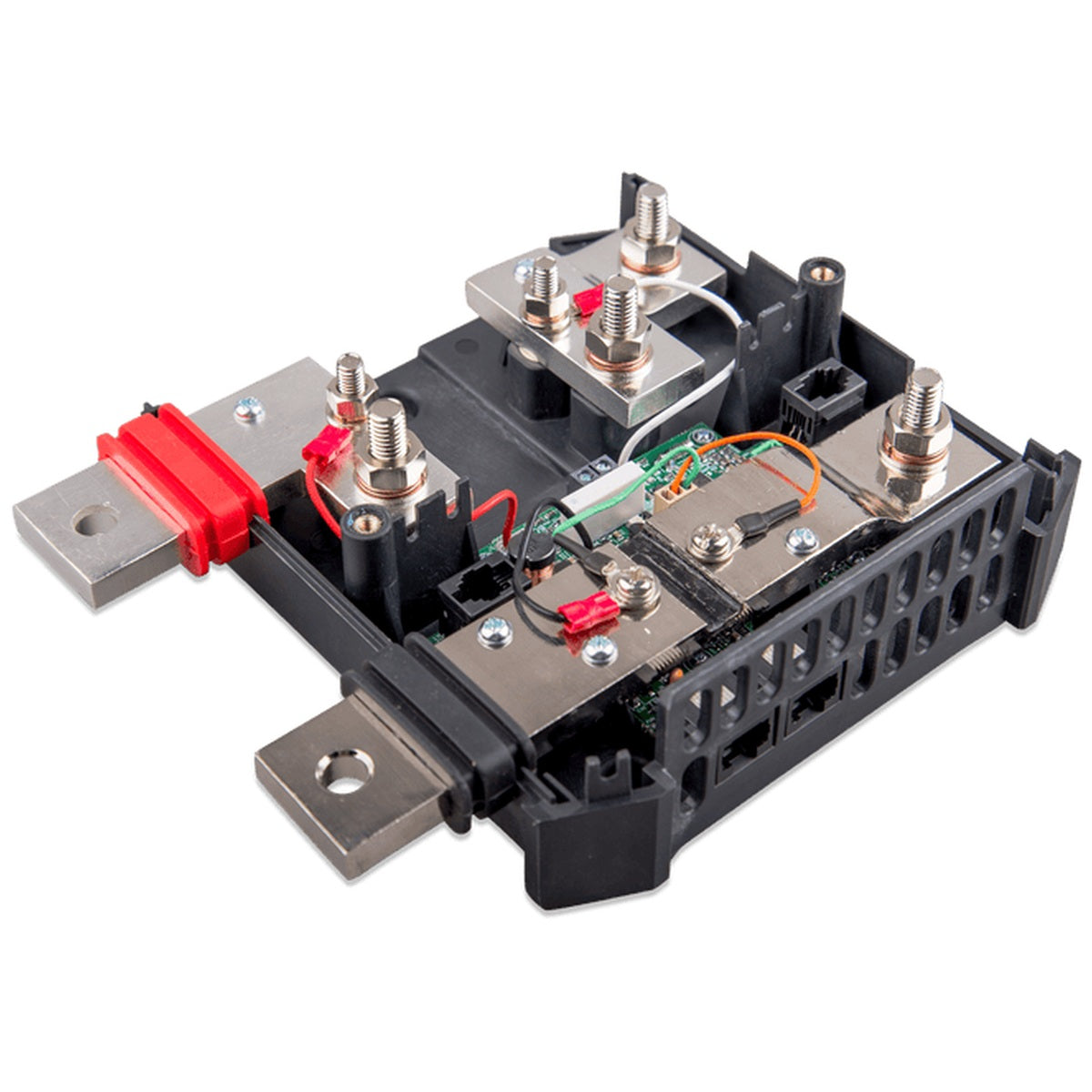

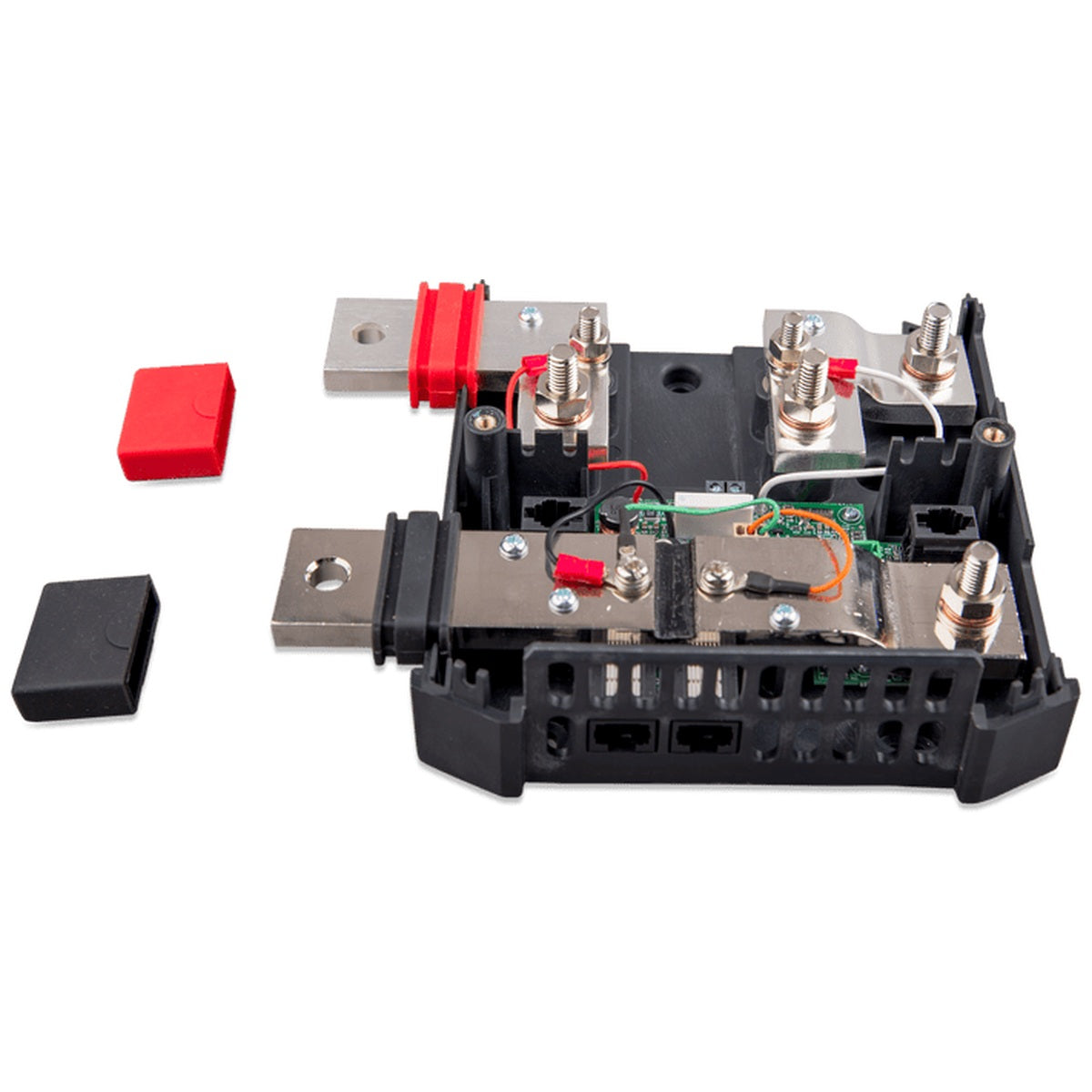

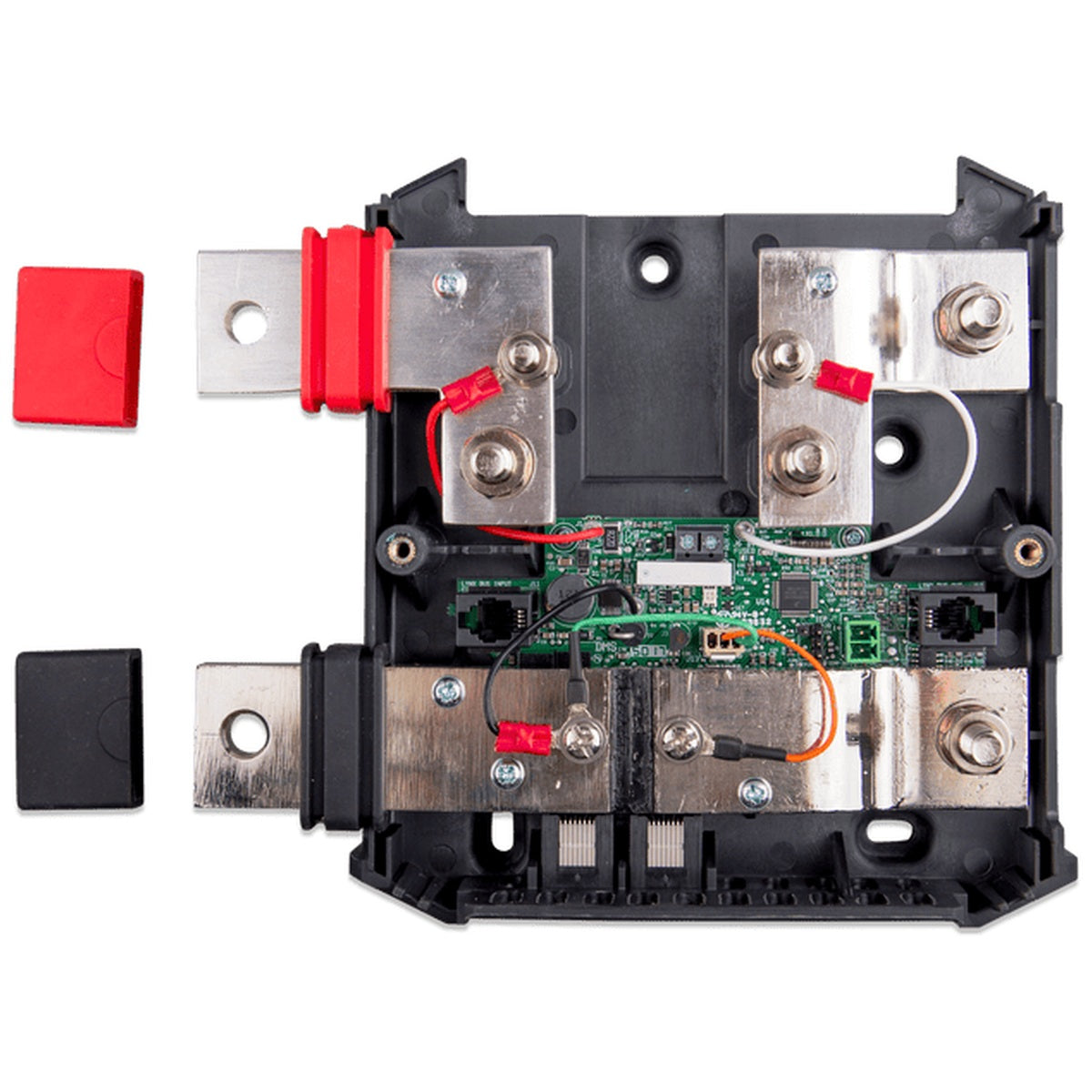

Unlike standalone battery monitors, this unit combines precise measurement with high-current power distribution. It features massive 8 x 30 mm tinned copper busbars, engineered to handle a 1000Adc continuous current without significant heat generation or power loss. Furthermore, the enclosure includes a dedicated space to mount a CNN main system fuse (purchased separately) directly onto the M8 studs. This design reduces the number of connections in your high-current path, lowering resistance and minimising potential failure points.

A Core Component of the Lynx Ecosystem

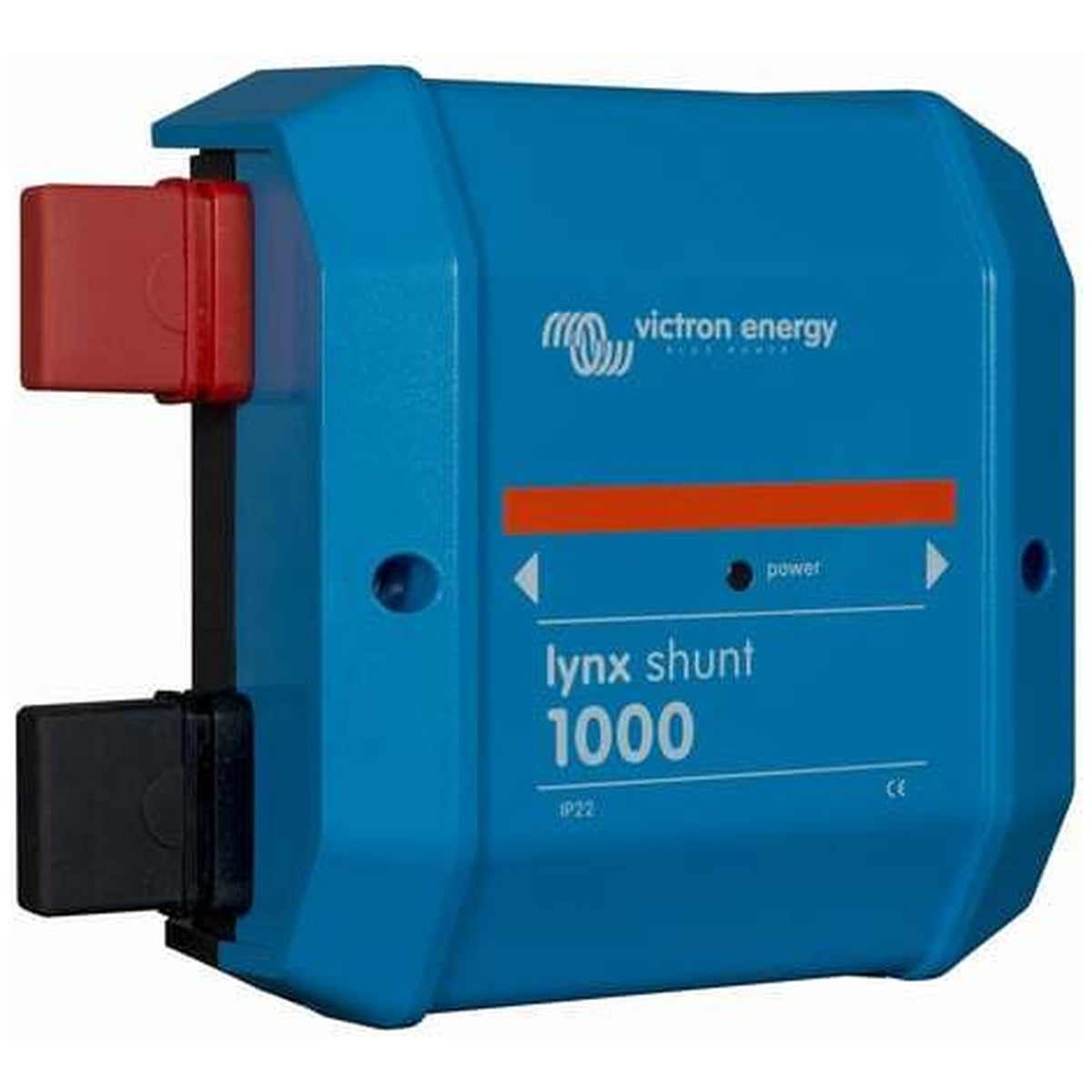

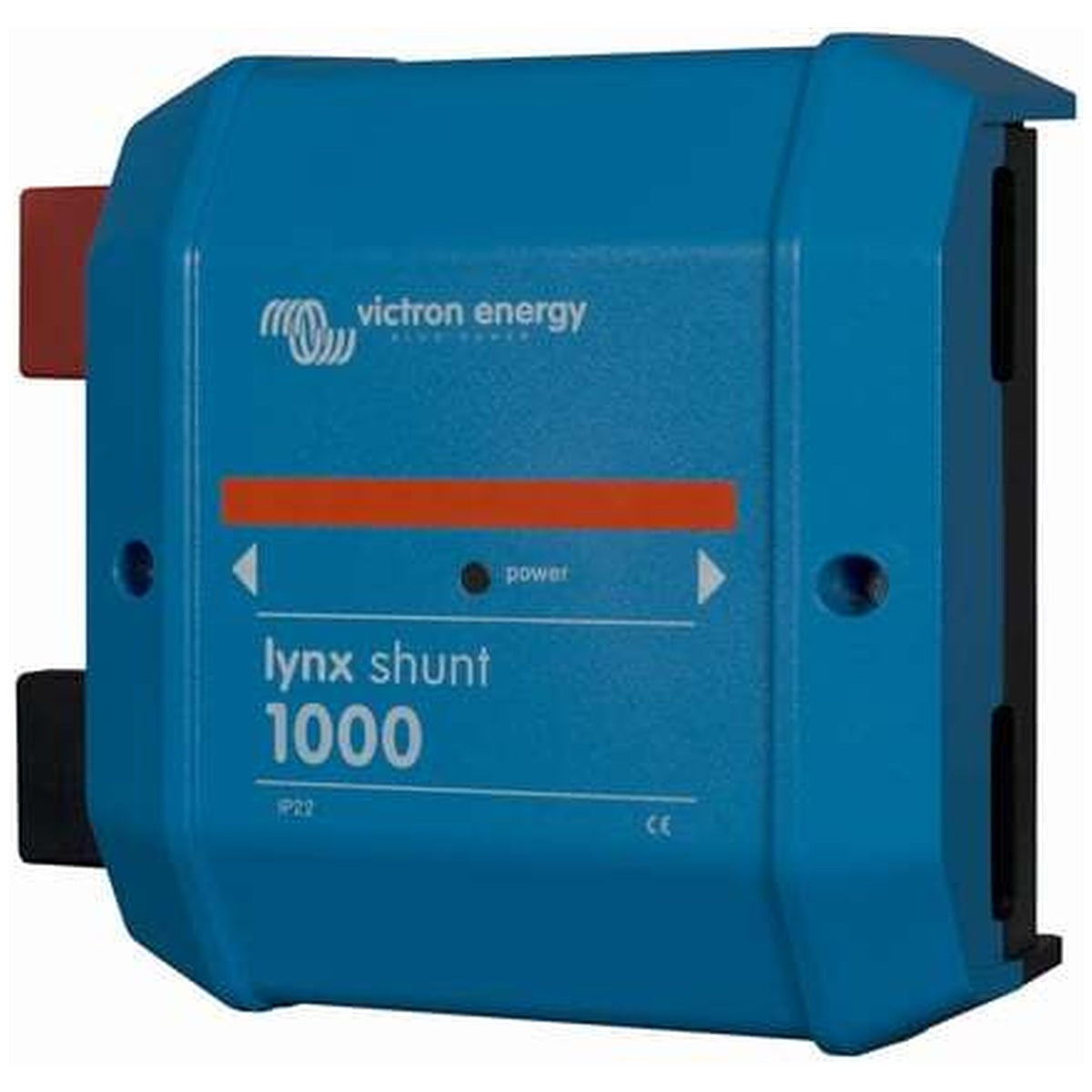

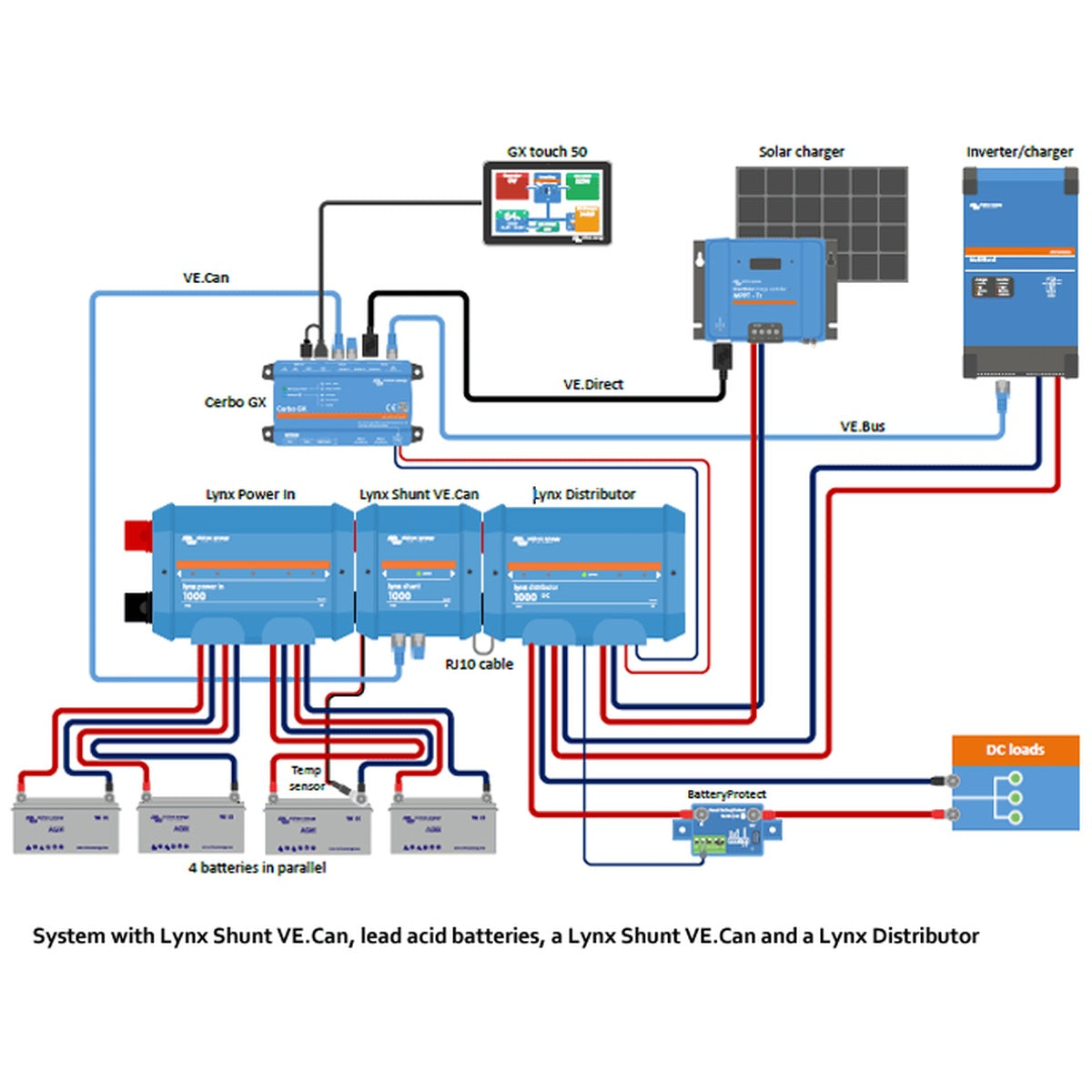

As a central piece of the modular Lynx Distribution System, the unit connects directly to the Lynx Power In or Lynx Distributor modules. This modular approach allows you to build a neat, scalable, and fully protected DC distribution system. A power-indicating LED is built directly into the unit, providing immediate visual feedback on system status.

Key Features

• Rated for an impressive 1000Adc continuous current, supporting large battery banks and heavy inverter loads
• Compatible with 12V, 24V, and 48V power systems for maximum versatility
• Built-in holder for a CNN series fuse, streamlining overcurrent protection
• Heavy-duty M8 stainless steel connection studs and 8 x 30 mm tinned copper busbars
• Direct VE.Can integration via RJ45 ports for advanced GX device communication
• Includes connections for an external temperature sensor and a potential-free alarm contact

Engineered for Reliability

Constructed with a durable ABS enclosure, the unit is rated to IP22, offering protection in controlled electrical compartments. It operates flawlessly in extreme conditions, supporting a temperature range from -40 to +60 degrees Celsius. Whether you are running a high-demand air conditioning unit on a superyacht or powering a remote off-grid homestead, this shunt provides the precise data and robust physical connections required to keep your system safe.

Upgrade Your Power Management

Take control of your battery data and simplify your wiring architecture. Order the Victron Lynx Shunt VE.Can M8 today to ensure your off-grid or marine energy system operates with absolute precision and safety.

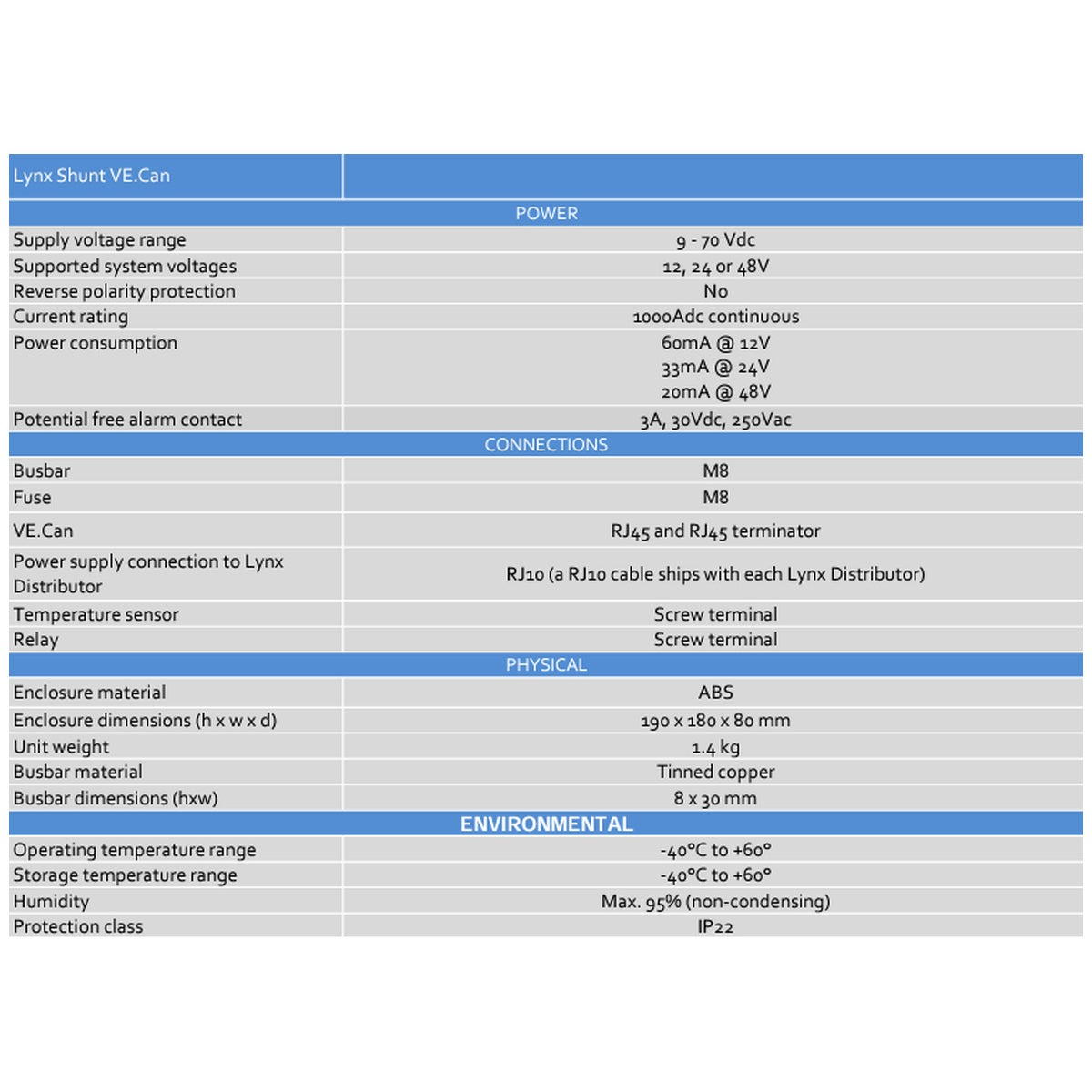

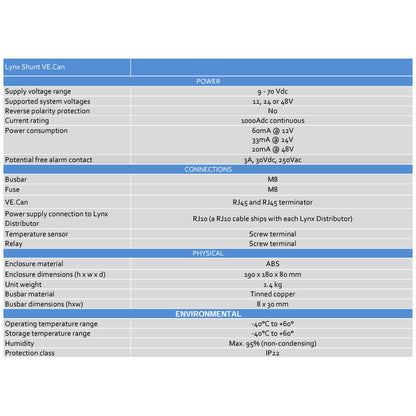

Specifications
