Victron - MPPT Solar Controller - 150|60
Victron - MPPT Solar Controller - 150|60
Couldn't load pickup availability
Description:

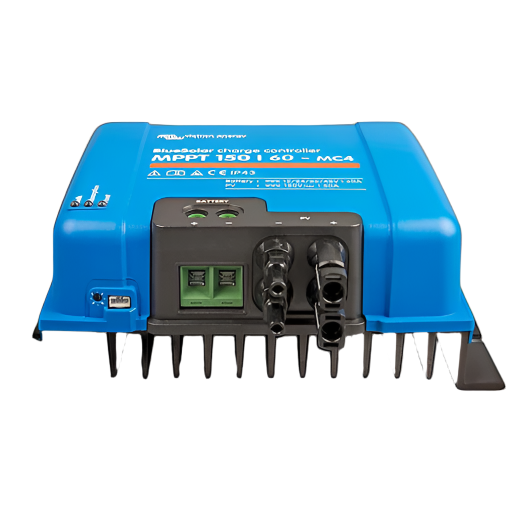

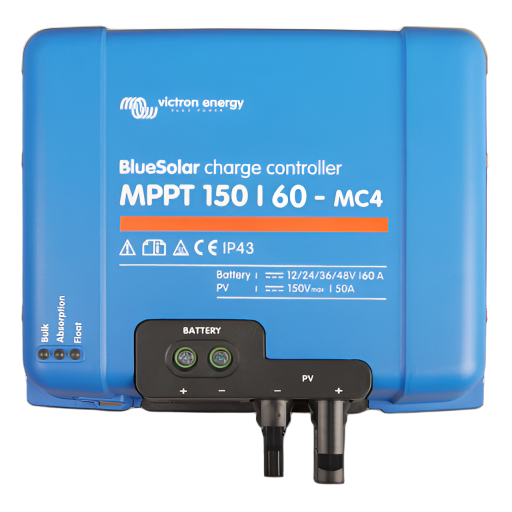

The SmartSolar MPPT 150/60-MC4 is a solar charge controller with built-in Bluetooth. It features two pairs of MC4 PV terminals. It includes an ultra fast MPPT controller that allows you to fully charge your 12/24/48V batteries in the least amount of time.
The solar charger features Battery Life, an intelligent battery management function that adjusts load disconnect levels for full charge and prevent damage. It supports a fully discharged battery recovery function that will recharge a severely depleted battery provided the cells are not damaged. It also has various charge protections.
The solar charge controller can be monitored and managed via Bluetooth, USB (with optional VE.Direct to USB interface cable, or the internet using a GX device or GlobalLink 520 device.
Features/Specs:
- 12V/24V/48V auto-select battery voltage.
- 150V max. PV open circuit voltage, 60A rated charge current.
- 860W @12V or 1720W @24V or 3440 @48V maximum PV power.
- Two sets of MC4 connectors.
- An ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers when light intensity is changing continuously.
- Innovative BlueSolar algorithm will always maximise energy harvest by locking in the optimum MPP.
- No cooling fan. Maximum efficiency exceeds 98%.
- Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch.
- Offers over-temperature, short circuit and reverse polarity protection.
- Includes built-in Bluetooth for set-up, monitor, update and synchronise SmartSolar Charge Controllers.
- Optional external battery voltage and temperature sensing via Bluetooth by pairing with BMV-712 smart battery monitor.
- Recovers low voltage batteries. It will initiate charging even if the battery has been discharged to zero volts.
- Dimensions: 215x250x95mm. IP43 ingress protection rated.
