Victron
Victron Energy - 12/24/48V - 70A - SmartSolar 150/70-MC4 - Bluetooth - MPPT Solar Charge Controller
Victron Energy - 12/24/48V - 70A - SmartSolar 150/70-MC4 - Bluetooth - MPPT Solar Charge Controller
Regular price
$639.95 AUD
Regular price
Sale price
$639.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Optimize Your Solar System with Victron SmartSolar MPPT 150/70-MC4 (12/24/48V-70A) Bluetooth Solar Charge Controller
Elevate your solar energy efficiency with the Victron SmartSolar MPPT 150/70-MC4 Bluetooth Solar Charge Controller. Designed for maximum performance, this controller features dual MC4 inputs for seamless solar panel connectivity, ensuring your batteries are charged quickly, safely, and efficiently.
Key Features:
- Dual MC4 Inputs for Enhanced Connectivity: Easily connect to solar panels with two sets of MC4 connectors, streamlining installation and optimizing solar array efficiency.

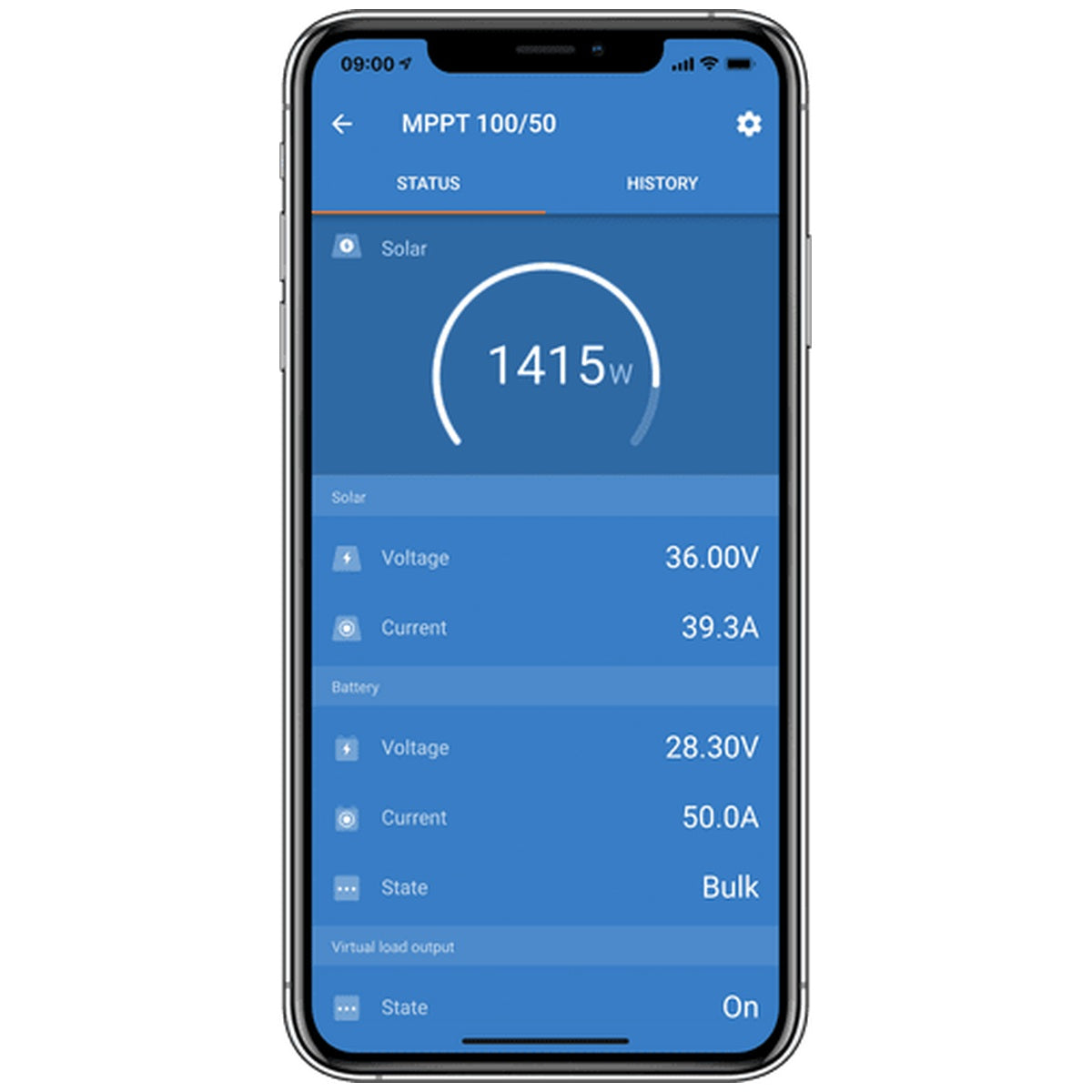

- Bluetooth Smart Integration: Wirelessly set up, monitor, update, and synchronize your SmartSolar Charge Controllers, ensuring your system is always running at its best.
- Ultra-Fast Maximum Power Point Tracking (MPPT): With the capability to improve energy harvest by up to 30% compared to PWM charge controllers and by 10% over slower MPPT controllers, the SmartSolar controller adapts quickly to changing light conditions, maximizing energy collection.
- Advanced MPP Detection in Partial Shading: Unlike conventional MPPTs that may settle for a less optimal MPP, the SmartSolar's innovative algorithm ensures the maximum energy harvest by locking onto the best MPP, even in partially shaded conditions.
- Exceptional Conversion Efficiency: Operate more efficiently with no need for a cooling fan. Enjoy maximum efficiency that exceeds 98%, reducing energy waste.
- Flexible Charging Algorithm: Tailor charging to your needs with a fully programmable charge algorithm available on our website, or choose from eight pre-programmed algorithms via a rotary switch.
- Comprehensive Electronic Protection: Benefit from over-temperature protection, PV short circuit, PV reverse polarity, and PV reverse current protection, safeguarding your system.
- Internal Temperature Sensor: Automatically adjusts charge voltage based on temperature, ensuring optimal charging and protecting battery health.
Ideal Applications:
The Victron SmartSolar MPPT 150/70-MC4 is expertly designed for a variety of applications where its features and capabilities are most beneficial:
- RVs and Caravans: Keep your adventures powered with efficient solar charging. This charge controller is perfect for ensuring your vehicle's batteries are fully charged, allowing you to enjoy the comforts of home while on the move.
- Marine Vessels: Sail the seas with confidence knowing your batteries are efficiently managed. Ideal for boats and yachts, this controller withstands the marine environment and ensures your navigation and communication systems stay powered.
- Agricultural Projects: Automate and power remote irrigation systems, farm lighting, and essential agricultural operations with sustainable solar energy. This controller helps reduce operational costs and supports eco-friendly farming practices.
- Off-Grid Living: For cabins, remote homes, or any off-grid setup, the SmartSolar MPPT controller maximizes solar energy harvest, ensuring reliable power where traditional electricity is unavailable. It's essential for maintaining energy independence in remote locations.
Recovery and Connectivity:
- Recovery of Fully Discharged Batteries: Capable of initiating charging with zero-volt batteries and reconnecting to fully discharged Li-ion batteries with an integrated disconnect function.
- Synchronized Charging: Connect up to 10 units via Bluetooth for synchronized parallel charging, suitable for larger or expanding systems.
- VE.Direct & Remote Options: Wired connectivity to Victron devices and remote on-off capabilities enhance system flexibility and control.
Enhancements:
- Programmable Relay: Customizable for alarms or specific events, adding an extra layer of system management.
- Optional LCD Display: For detailed real-time monitoring and adjustments, enhancing user interaction and control.
- Optional External Sensing: Enhance accuracy with optional external battery voltage, temperature, and current sensing via Bluetooth, compatible with Smart Battery Sense, BMV-712 Smart Battery Monitor, or a SmartShunt.
Transform your solar energy system with the Victron SmartSolar MPPT 150/70-MC4. Its advanced technology and versatile applications make it a superior choice for optimizing solar energy harvesting and management. Visit our website for further details, software updates, and comprehensive product manuals.

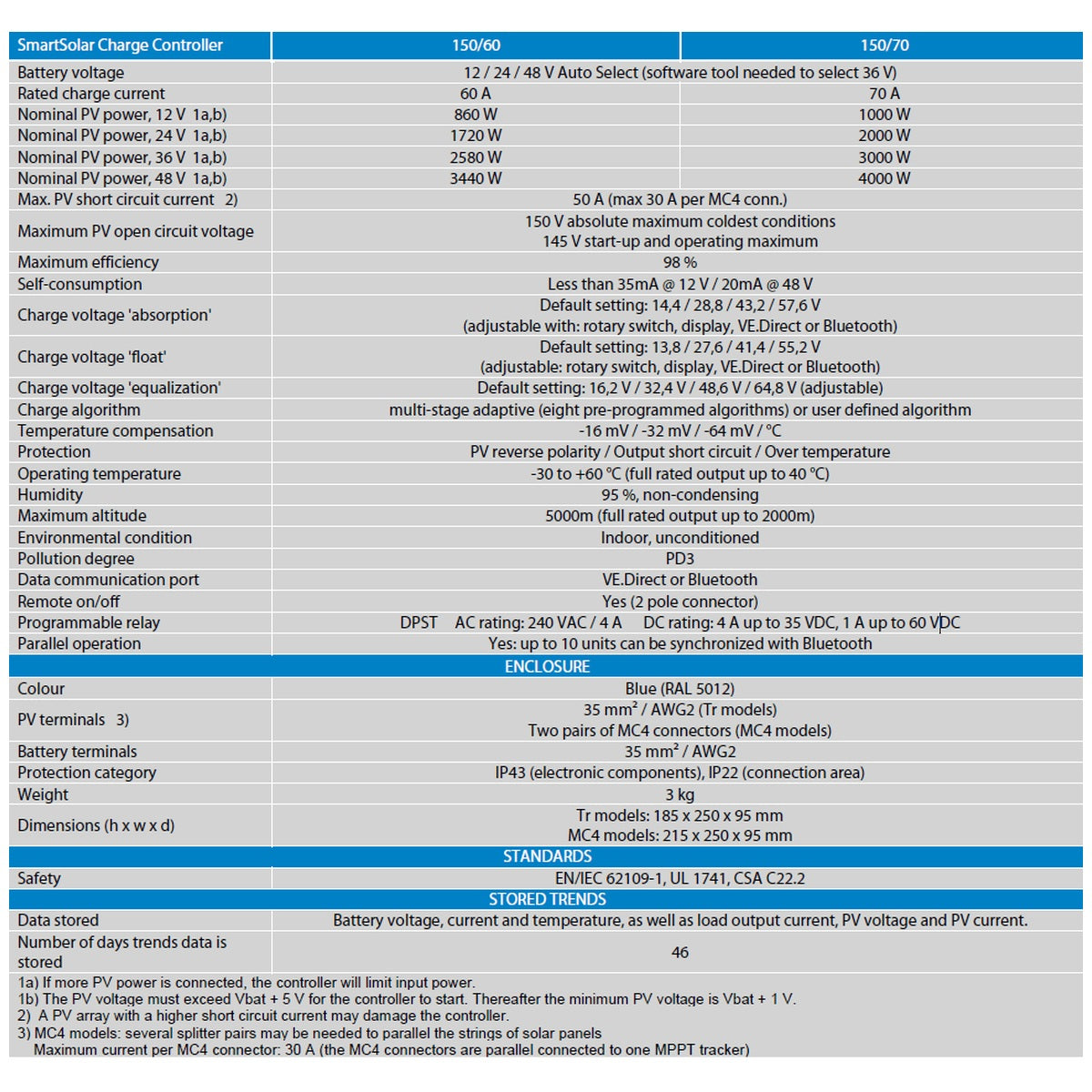

Specifications
| SmartSolar Charge Controller | 150/70 |
|---|---|
| Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated charge current | 70 A |
| Nominal PV power, 12 V 1a,b) | 1000 W |
| Nominal PV power, 24 V 1a,b) | 2000 W |
| Nominal PV power, 36 V 1a,b) | 3000 W |
| Nominal PV power, 48 V 1a,b) | 4000 W |
| Max. PV short circuit current 2) | 50 A (max 30 A per MC4 conn.) |
| Maximum PV open circuit voltage | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
| Maximum efficiency | 98 % |
| Self-consumption | Less than 35mA @ 12 V / 20mA @ 48 V |
| Charge voltage 'absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' | Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 5000m (full rated output up to 2000m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication port | VE.Direct or Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel operation | Yes: up to 10 units can be synchronized with Bluetooth |
| Colour | Blue (RAL 5012) |
| PV terminals 3) | 35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |

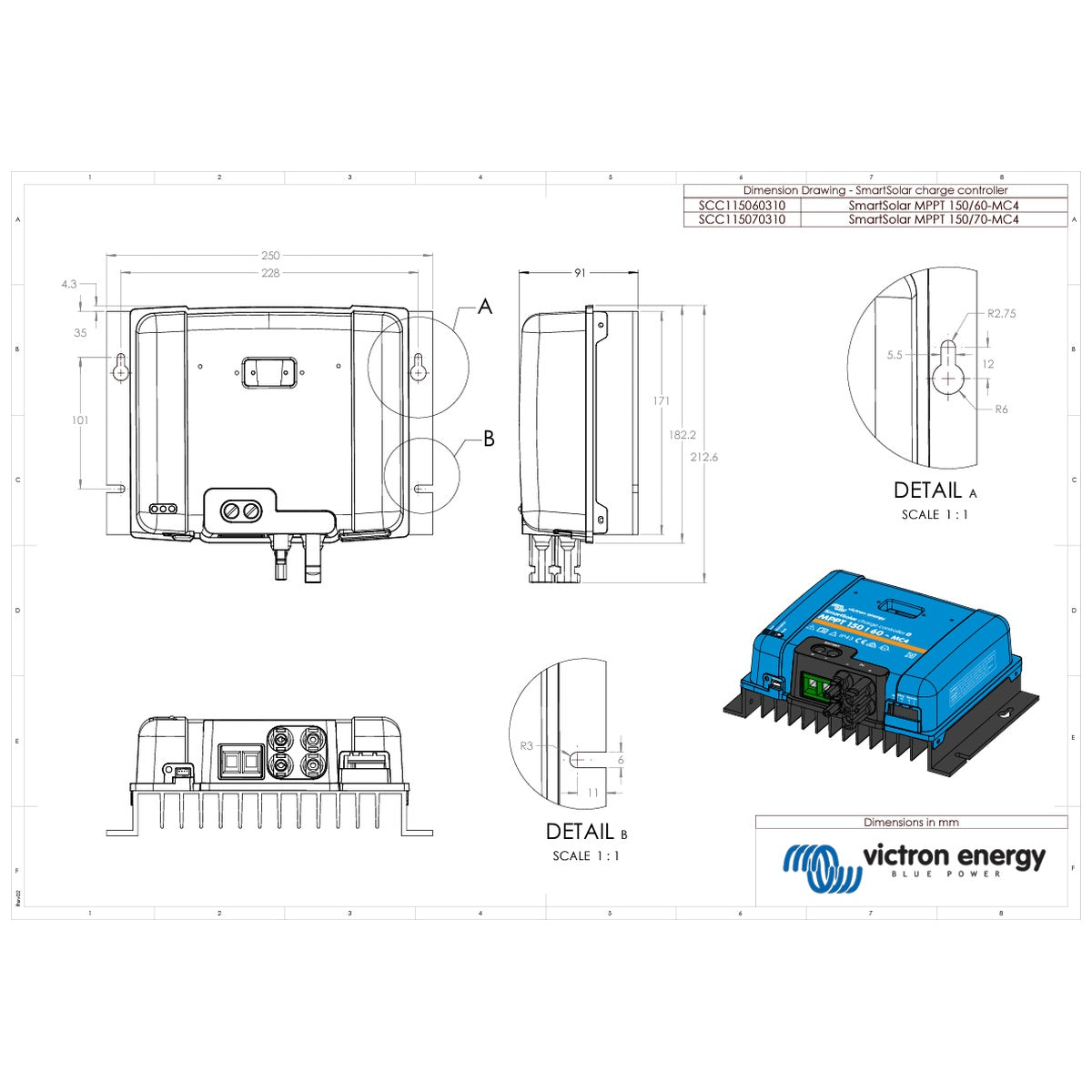

| Dimensions (h x w x d) | Tr models: 185 x 250 x 95 mm MC4 models: 215 x 250 x 95 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Data stored | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
