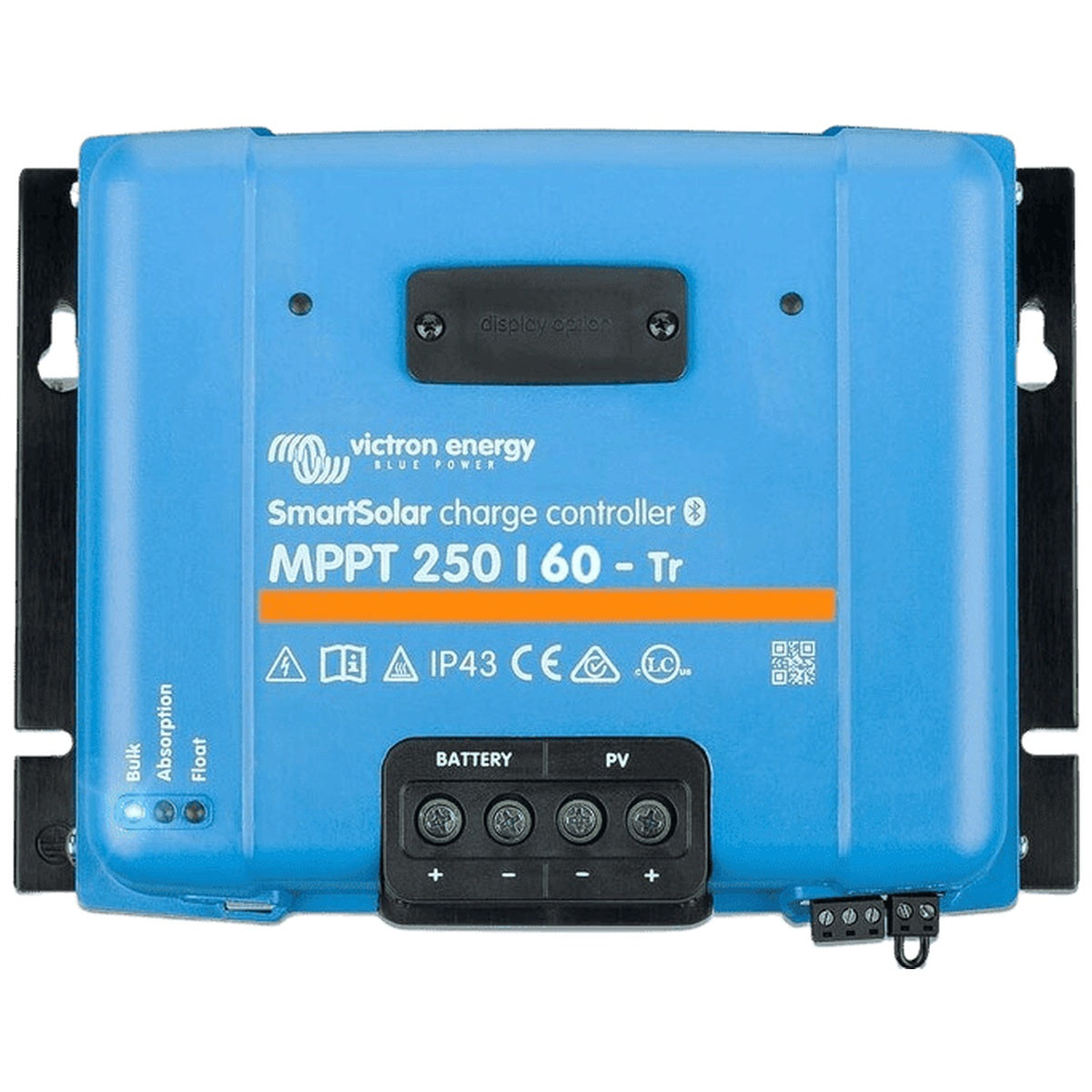

Victron SmartSolar MPPT 250/60-Tr: High-Performance Solar Charge Controller for 12V, 24V, and 48V Systems
Advanced MPPT Technology for Maximum Energy Harvest
The Victron SmartSolar MPPT 250/60-Tr is a professional-grade solar charge controller engineered to extract the maximum available power from your photovoltaic array. Utilising ultra-fast Maximum Power Point Tracking (MPPT), this controller continuously adapts to changing light conditions, delivering up to 30% more energy compared to traditional PWM controllers and up to 10% more than slower MPPT alternatives. This is particularly beneficial under partially cloudy skies or intermittent shading, where rapid adjustments are critical.
With an exceptional peak conversion efficiency of 99% and full rated output up to 40°C ambient temperature, the 250/60-Tr ensures minimal energy loss and reliable operation without the need for a cooling fan. Its advanced algorithm excels in partial shading scenarios, intelligently locating the global maximum power point rather than settling for a local peak, thereby safeguarding your energy yield in real-world installations.
Seamless Connectivity and Intelligent Control

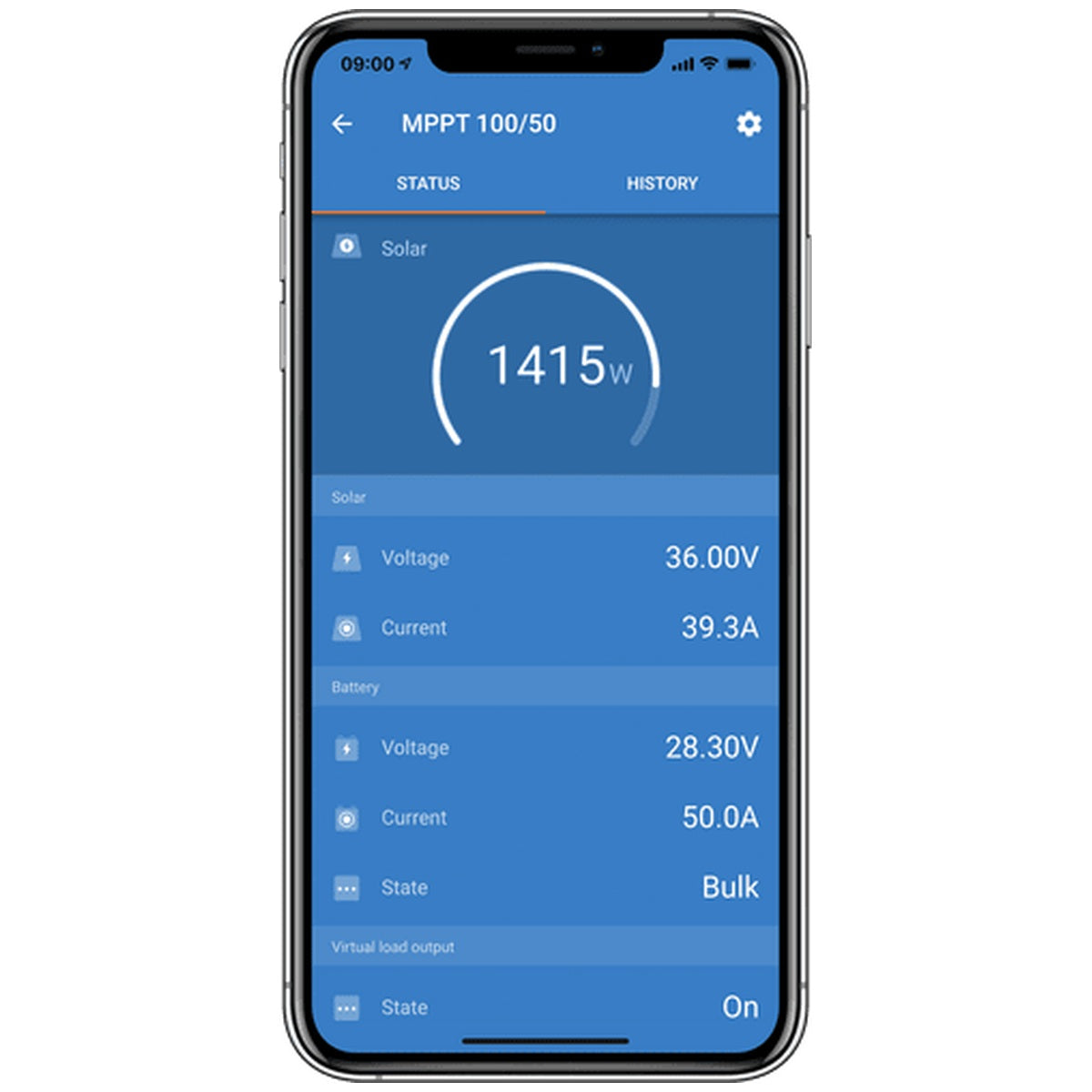

Built-in Bluetooth Smart enables wireless configuration, monitoring, and firmware updates via the VictronConnect app on your smartphone or tablet. Access real-time data on solar production, battery state of charge, and historical performance. For wired integration, the VE.Direct port allows connection to GX devices (such as the Cerbo GX or Color Control GX), PCs, or other compatible equipment, forming the backbone of a comprehensive energy management system.
The controller supports fully programmable charge algorithms alongside eight pre-defined battery presets, selectable via a rotary switch. This flexibility accommodates a wide range of battery chemistries, including lithium, AGM, and gel. An internal temperature sensor automatically compensates charge voltages, while optional external sensing via a Smart Battery Sense or BMV-712 Smart Battery Monitor provides precise voltage and temperature data at the battery terminals for enhanced accuracy.
Robust Protection and System Integration
Designed for demanding environments, the SmartSolar MPPT 250/60-Tr incorporates extensive electronic safeguards: PV reverse polarity protection, PV short circuit protection, and over-temperature protection with power derating. The unit is rated IP43 for electronics and IP22 for the connection area, making it suitable for indoor, unconditioned spaces. A programmable relay can be configured for alarms or load control, and a remote on/off terminal allows integration with a VE.BUS BMS for lithium battery systems.
Up to 10 controllers can be synchronised via Bluetooth for parallel operation, enabling scalable solar arrays. The 35 mm² (AWG 2) battery and PV terminals accept large gauge cable, minimising resistive losses in high-current installations.
Key Features
- Ultra-fast MPPT tracking for up to 30% greater energy harvest versus PWM
- 99% peak conversion efficiency with fanless, silent operation
- Built-in Bluetooth for wireless monitoring and configuration via VictronConnect
- VE.Direct port for wired integration with GX monitoring systems
- Advanced partial shading detection to lock onto the optimal power point
- Comprehensive electronic protection: reverse polarity, short circuit, over-temperature
- Programmable charge profiles for lithium, AGM, gel, and other battery types
- Supports 12V, 24V, and 48V battery banks (36V with software tool)
- Optional plug-in LCD display for local readout (sold separately)
Ideal Applications
This controller is an excellent choice for off-grid solar systems, marine and RV installations, remote telecommunications, and industrial backup power. Its high 250V PV input voltage allows long series strings of panels, reducing wiring costs and improving efficiency. Whether you are building a residential off-grid system or upgrading a mobile power setup, the Victron SmartSolar MPPT 250/60-Tr delivers dependable, high-efficiency charge control.
Take Control of Your Solar Harvest
Equip your system with the Victron SmartSolar MPPT 250/60-Tr and experience precise, efficient battery charging backed by decades of power electronics expertise. Order today to maximise your solar investment.

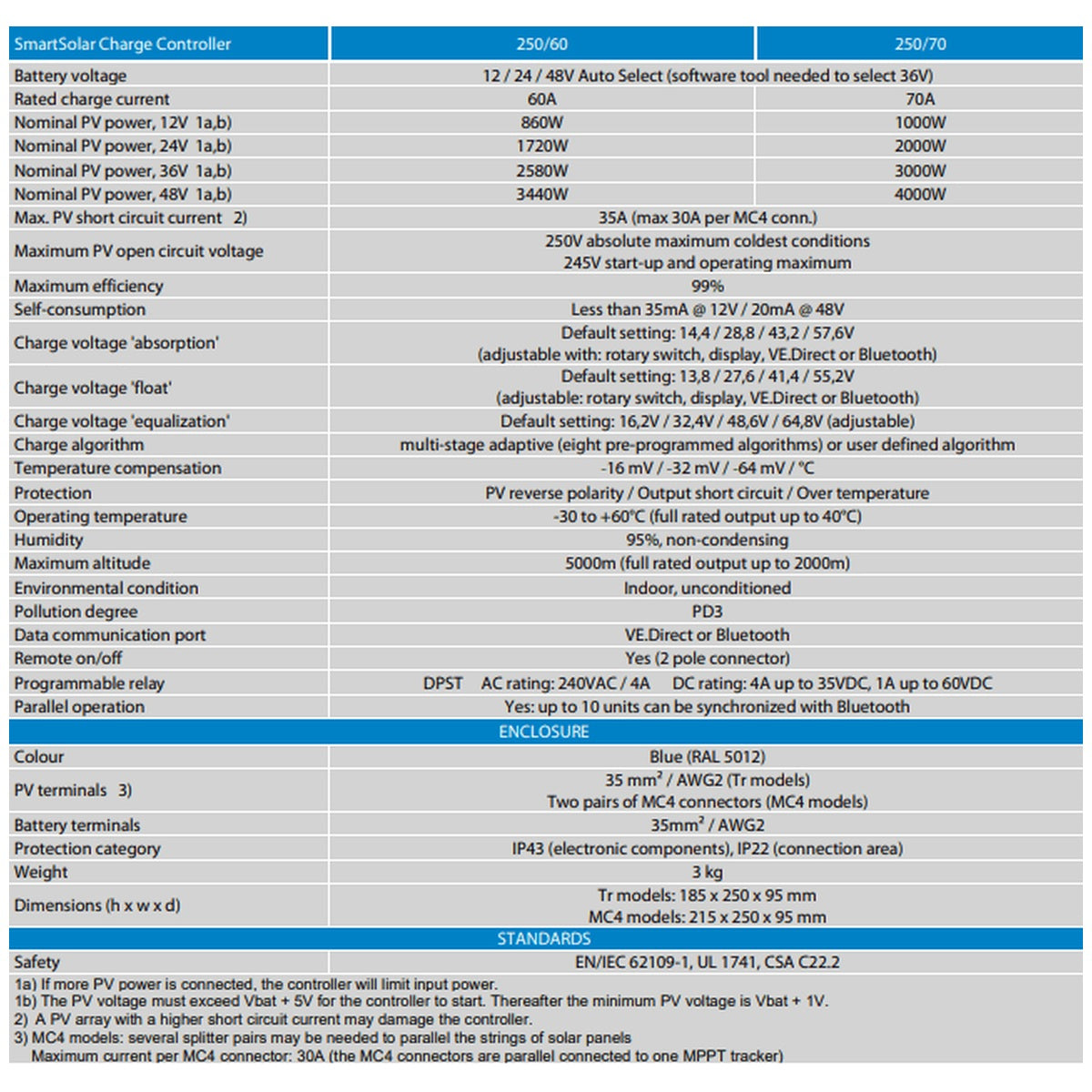

Specifications
| Model | SmartSolar MPPT 250/60-Tr |
|---|---|
| Part Number | SCC125060221 |
| Battery Voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated Charge Current | 60 A |
| Nominal PV Power, 12 V | 860 W |
| Nominal PV Power, 24 V | 1720 W |
| Nominal PV Power, 36 V | 2580 W |
| Nominal PV Power, 48 V | 3440 W |
| Max. PV Short Circuit Current | 35 A |
| Maximum PV Open Circuit Voltage | 250 V absolute maximum coldest conditions; 245 V start-up and operating maximum |
| Maximum Efficiency | 99 % |
| Self-consumption | Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Equalization' | Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm |
| Temperature Compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum Altitude | 5000 m (full rated output up to 2000 m) |
| Environmental Condition | Indoor, unconditioned |
| Pollution Degree | PD3 |
| Data Communication Port | VE.Direct or Bluetooth |
| Remote On/Off | Yes (2 pole connector) |
| Programmable Relay | DPST AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation | Yes: up to 10 units can be synchronized with Bluetooth |
| PV Terminals | 35 mm² / AWG 2 (Tr models) |
| Battery Terminals | 35 mm² / AWG 2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions (H x W x D) | 185 x 250 x 95 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
